Center Fender Black Bracket, Model E-Z

569-ME

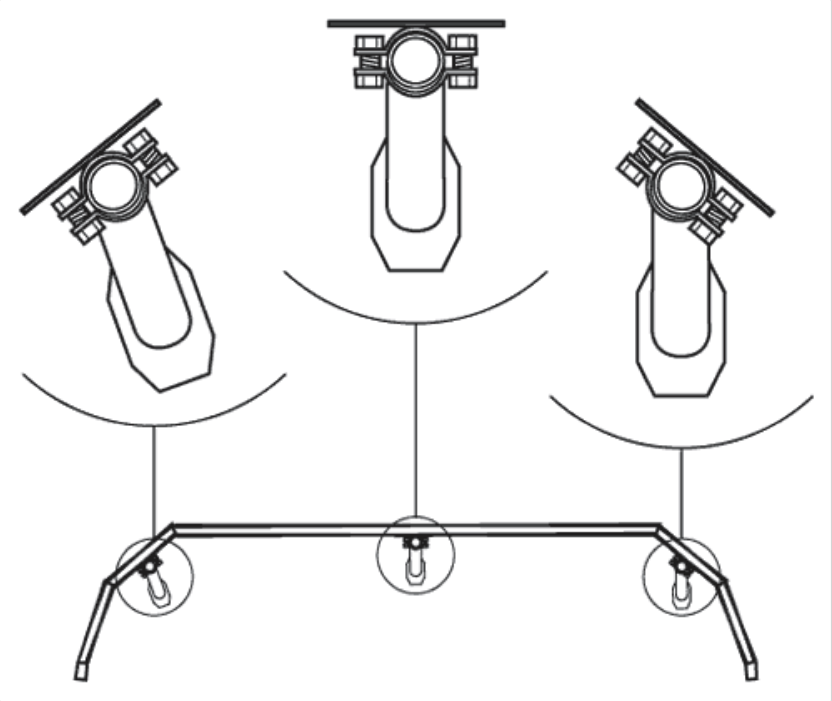

  • All E-Z Fender Mount brackets have the time tested single mounting bolt.  Very Quick- Very Easy!
  • Brackets are adjustable in length from 27” to 30”
  • Stainless steel cap screw mounting plate bolts are included.
  • Choose from either 8" height or 10" height bracket.

Installation Notes:
  • Backing plate is designed to be used as a template to drill holes in fender.
  • When installing the 3/8” x 2 1/4” bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
  • It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
  • Torque 5/8 Nyloc nuts to 150 ft/lbs.

Freightliner Cascadia, Century, Classic, Columbia, Coronado, FL70, FLD112, FLD112 (Set back Axle), FLD120, M2
Kenworth K100, T2000, T300, T600, T660, T680, T700, T800, W900
Peterbilt 330, 335, 367, 377, 378, 379, 386, 387, 389, 579, 587
International 4300, 4700, 9200, 9300, 9400, 9670, 9900, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700
Volvo VNL, VNM, WIA & White GMC
Mack CH, Granite, R600 & R700, RD, Vision
1 Bracket

Center Fender Black Bracket, Model E-Z

SKU: 569-ME

Option: 10" Height

$79.99

Option: 10" Height


In Stock

Usually ships within 24 hours


Shipping fee is calculated during checkout

Available for pickup at our Miami location

Please select a delivery method.


  • All E-Z Fender Mount brackets have the time tested single mounting bolt.  Very Quick- Very Easy!
  • Brackets are adjustable in length from 27” to 30”
  • Stainless steel cap screw mounting plate bolts are included.
  • Choose from either 8" height or 10" height bracket.

Installation Notes:
  • Backing plate is designed to be used as a template to drill holes in fender.
  • When installing the 3/8” x 2 1/4” bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
  • It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
  • Torque 5/8 Nyloc nuts to 150 ft/lbs.

Freightliner Cascadia, Century, Classic, Columbia, Coronado, FL70, FLD112, FLD112 (Set back Axle), FLD120, M2
Kenworth K100, T2000, T300, T600, T660, T680, T700, T800, W900
Peterbilt 330, 335, 367, 377, 378, 379, 386, 387, 389, 579, 587
International 4300, 4700, 9200, 9300, 9400, 9670, 9900, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700
Volvo VNL, VNM, WIA & White GMC
Mack CH, Granite, R600 & R700, RD, Vision
1 Bracket
