Trux Universal LED Projector Headlight Assembly With Glow Position & Marker LED Accents – Chrome (Passenger Side)
SKU: TLED-H125
Trux Universal LED Projector Headlight Assembly With Glow Position & Marker LED Accents – Chrome (Passenger Side)
- Patented Design
- Included Integrated Traditional Visor, Housing Bucket & Hardware

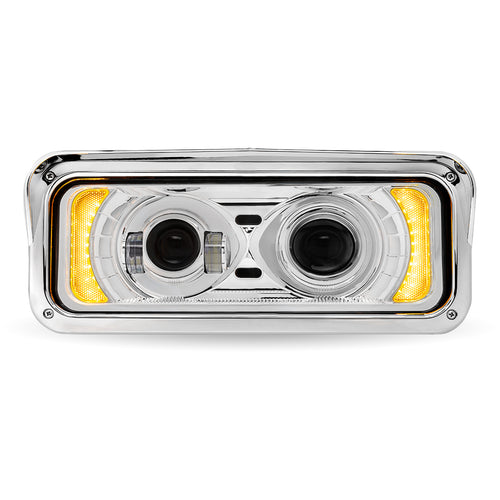

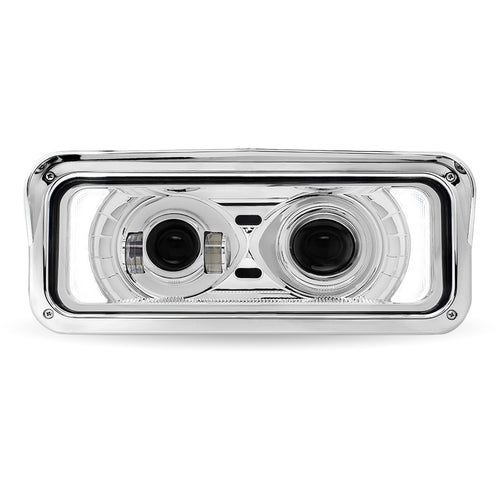

- Dual Function White Glow Position (DRL Auxiliary) & Amber Marker LED Accents
- Projector Technology for a Wider Beam
- Replaces OEM 4″ x 6″ Headlight Configurations

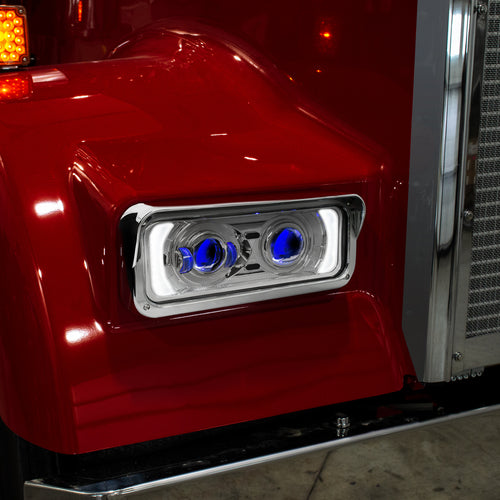

- Optional Blue Backlit Auxiliary Function (Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted)
-
Product Description | Universal LED Projector Headlight Assembly with Glow Position & Marker LED Accents – Chrome (Passenger Side)
Style | Freightliner, Kenworth, Peterbilt, Western Star
Size | Double 4" x 6"
Sold | Individually
Compliance | CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type | LED Projector
Function 1 | Combination High & Low Beam with DRL Accent
Function 2 | Marker
Function 3 | Optional Backlit Auxiliary
LED Power | High: 28 Watts, Low: 11 Watts
Raw Lumens | High: 5000 Lumens, Low: 3000 Lumens
Effective Lumens | High: 2000 Lumens, Low: 1200 Lumens
Operating Voltage | 9-30 Volts (DRL Compatible)
Current Draw @ 12 Volts | High: 2.5 Amps, Low: 0.87 Amps
DRL Amperage (Watts/Amps) | 0.4 Amps
Turn / Marker Amperage (Watts/Amps) | 0.4 Amps
Interior Color | Chrome
Lens Color | Clear
Lens Material | Polycarbonate
Housing Material | ABS Plastic
Product Restriction | Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted
Waterproof Rating | IP67 Rating
What's Included | Housing Bucket & Hardware Included
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
