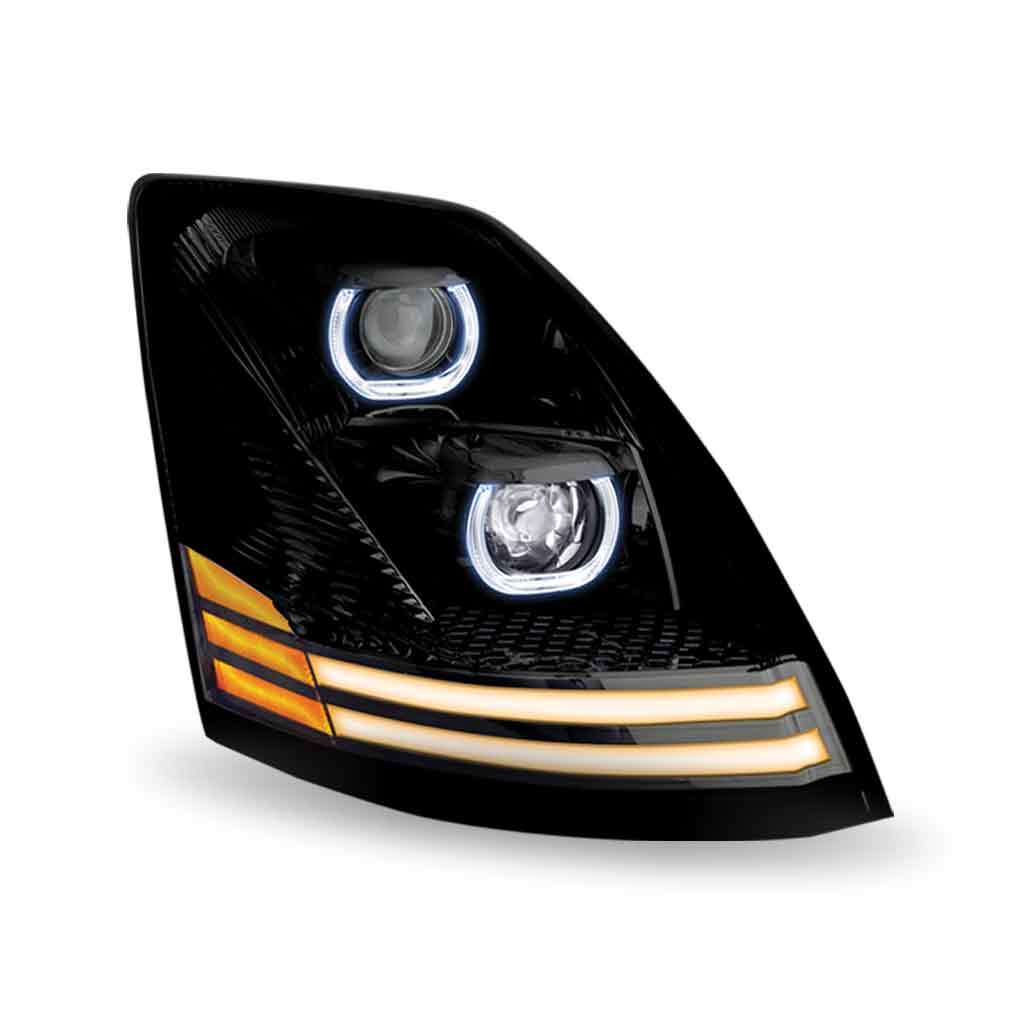

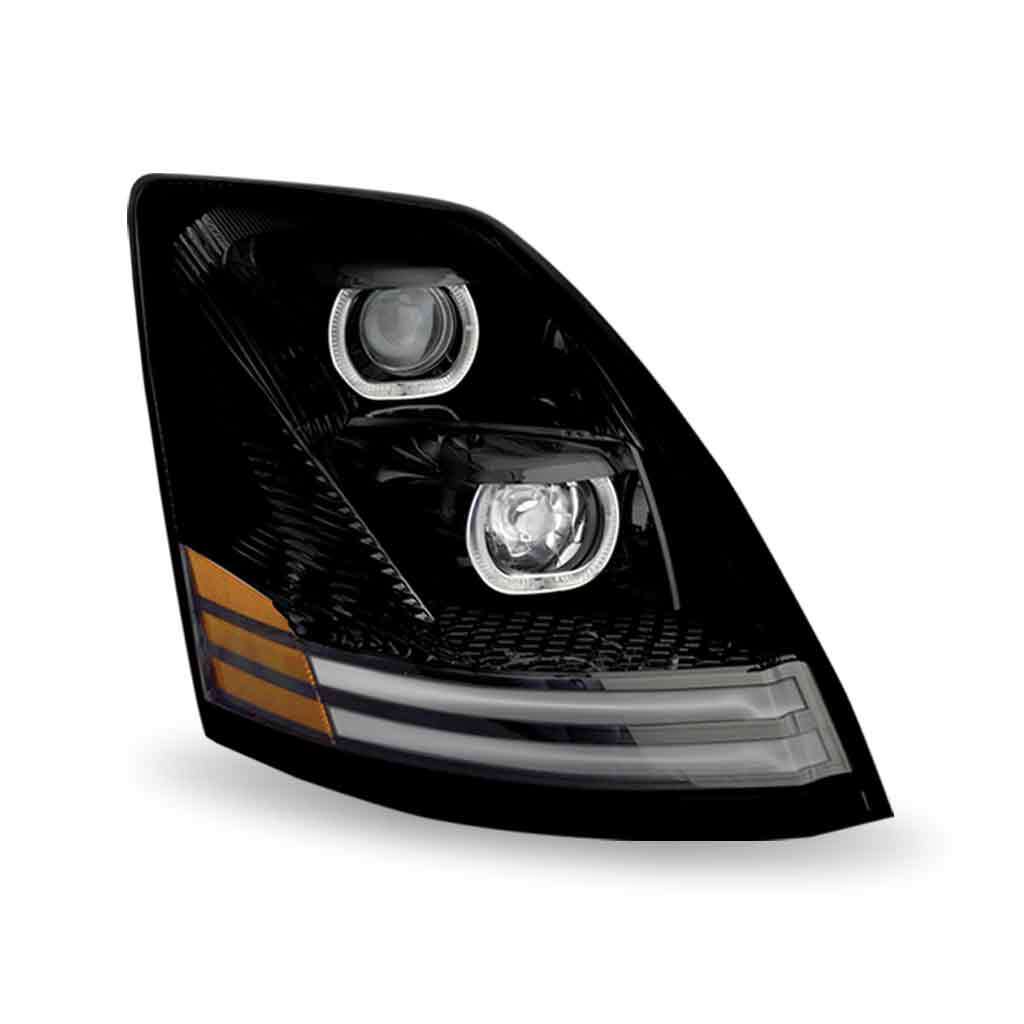

Trux Volvo VN/VNL LED Projector Headlight Assembly with LED Glow Position, Turn & Marker Accents – Black (Passenger Side) 2003-2017
SKU: TLED-H20
Trux Volvo VN/VNL LED Projector Headlight Assembly with LED Glow Position, Turn & Marker Accents – Black (Passenger Side) 2003-2017
- Patented Adapter Eliminating Reprogramming to Resolve Dash Errors

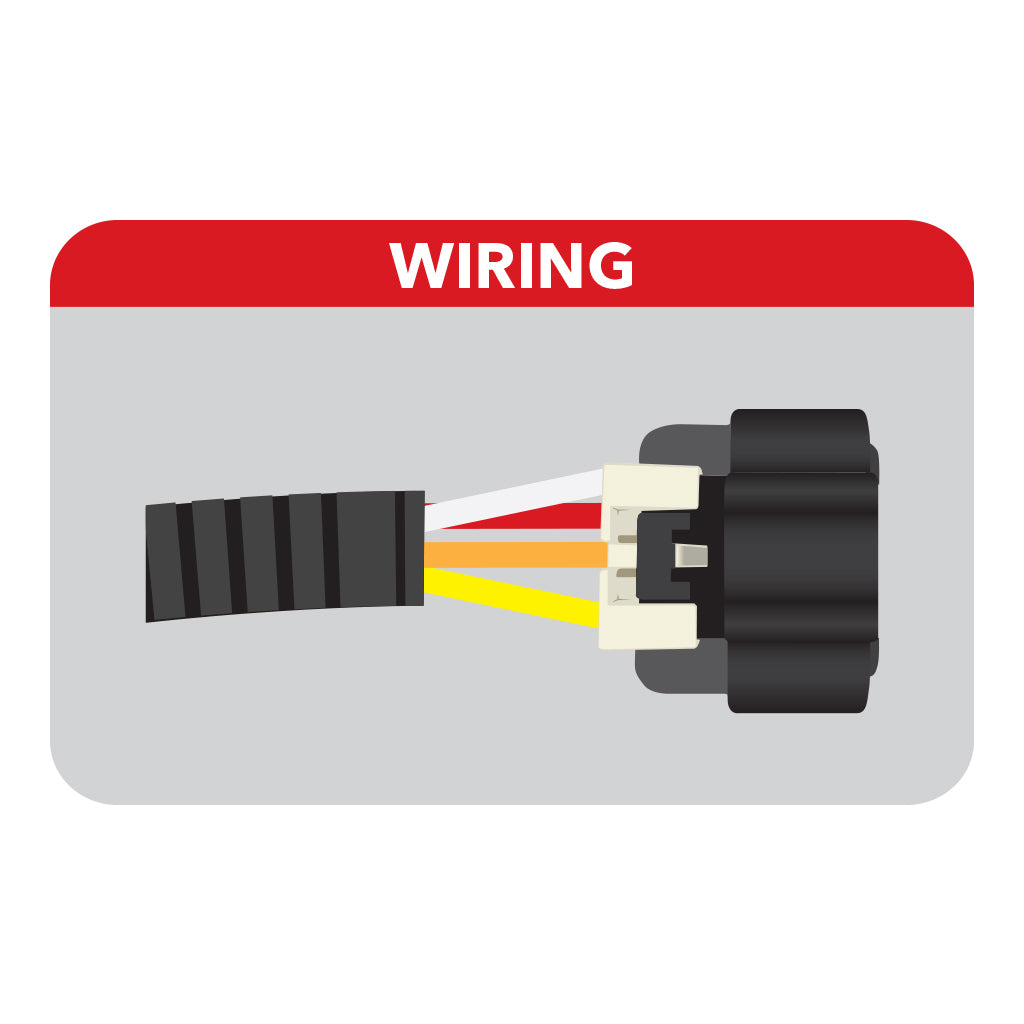

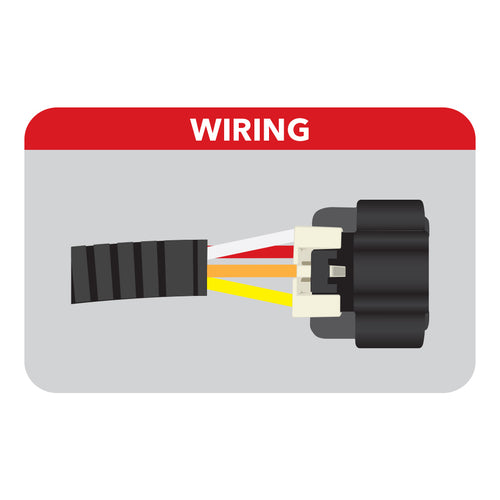

- “Plug & Play” for Easy Installation

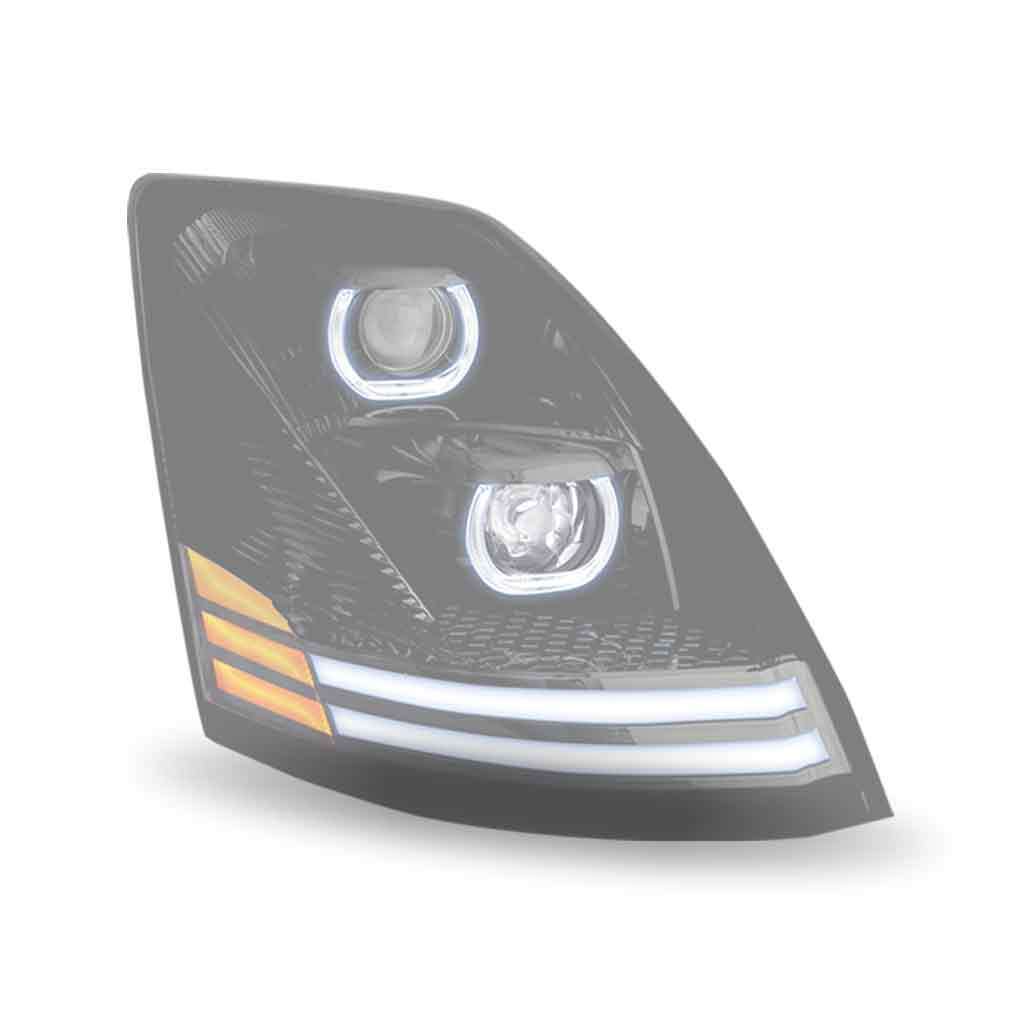

- Dual Function White Glow Position (DRL Auxiliary) to Amber Turn & Marker LED Accents
- Projector Technology for a Wider Beam
- Most Efficient Current Draw in the Industry
- 2 Year Warranty on Projector LEDs
- 1 Year Warranty on Housing
-
Product Description | Turn & Marker Accents – Passenger Side, Volvo VN/VNL LED Projector Black Headlight Assembly with LED Glow Position
Style | Volvo
Size | OE
Sold | Individually
Compliance | CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type | LED Projector
Function 1 | Combination High & Low Beam with LED Glow Position
Function 2 | Turn & Marker Strips & Auxiliary Halo Rings
LED Power | High: 36 Watts, Low: 18 Watts
Raw Lumens | High: 2770 Lumens, Low: 1590 Lumens
Effective Lumens | High: 1500 Lumens, Low: 1000 Lumens
Operating Voltage | 12 Volts
Current Draw @ 12 Volts | High: 3 Amps, Low: 1.5 Amps
DRL Amperage (Watts/Amps) | 0.6 Watts
Diodes | Marker & DRL: 18 Diodes, Turn
Interior Color | Black
Lens Color | Clear
Lens Material | Polycarbonate
Housing Material | Polypropylene
Gauge | 18 AWG
Waterproof Rating | IP56 Rating
Package Dimensions | 30"L x 19"W x 15.8"H
Package Weight | 19.4 lbs
Inner Box QTY | 1 PC
Warranty | 2 Year Warranty on LEDs / 1 Year Warranty on Housing
| Volvo | VNL |
