1-1/4” Round P2PC CM Amber and Flashing Warning Strob Maxxima
SKU: M09450YCL-DC
1-1/4” Round P2PC CM Amber and Flashing Warning Strob Maxxima

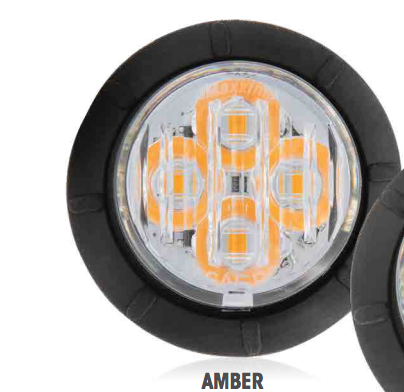

The M09450YCL-DC is a 1-1/4” Single Color, Dual Function, combination Clearance Marker and Flashing Warning light. It functions as an amber FMVSS108 compliant P2PC Clearance Marker, and as a SAE J595 Class 2 Flashing Warning Light. It has 28 programmable flash patterns and functions as a single-color amber flashing warning light. M09450YCL-DC features a polycarbonate lens and housing, includes the mounting grommet, is terminated with 4 .180 male bullets, and is backed by a 5-year warranty.
FEATURES AND BENEFITS
- DOT FMVSS 108 Compliant Clearance Marker, P2PC Rated
- AND Flashing Warning Device
- SAE J595 Class 2 and Class 3
- 28 Programmable Flash Patterns
- Available in All-Amber or Amber/White
- Polycarbonate Lens and Housing
- 5 Year Warranty
PRODUCT SPECIFICATIONS
- LEDs: 4 (4 Amber)
- Voltage: 8 VDC
- Amp Draw: 140mA Max Amp
- Dimensions: Light Only: 25” Diam x 0.6” H (1.2” OAL) Grommet: 1.75” Diam. (Grommet)

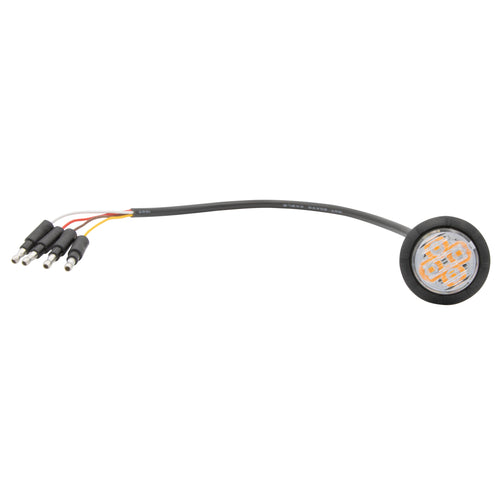

- Connector: 4 Jacketed Leads .180 Bullets, 7”
- Legal Heading: P2 P3 PC2, W-2
- DOT/SAE: J592, J595 Class 2
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
