1" X 17" Hybrid Combination Stop/Turn/Tail & Back-Up Maxxima
SKU: M85801R
1" X 17" Hybrid Combination Stop/Turn/Tail & Back-Up Maxxima

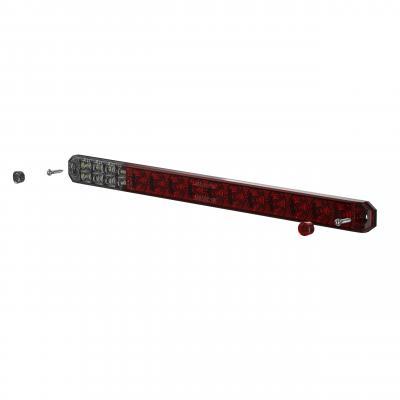

The M85801R is an LED combination stop/turn/tail and back-up light. At only 1.2" x 17", its compact size makes it the perfect all-in-one STT + BU for many applications and can be mounted horizontally or vertically. Mounting screws and caps are included for a sleek finished look - no visible screw heads once installed. This light features a polycarbonate lens and housing and is backed by a 5-year warranty.
FEATURES & BENEFITS
- Hybrid Combo STT & Back-Up
- Thin Design - Only 1.2” Wide
- Horizontal or Vertical Mount
- Mounting Screws and Screw Caps Included
- Polycarbonate Lens & Housing
- 5 Year Warranty
SPECIFICATIONS
- LEDs: 27 (11 Red, 16 White)
- Voltage: 12.8VDC
- Amp Draw: 0.4A Max
- Dimensions: 17" L x 1.2" W x 0.5" D
- Mounting: 2 Hole Surface, 16-1/8” C to C
- Connector: 4 Leads, Blunt Cut, 12”
- Legal Heading: R, I6 S2 T2
- DOT/SAE: J593, J2040, J2261
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
