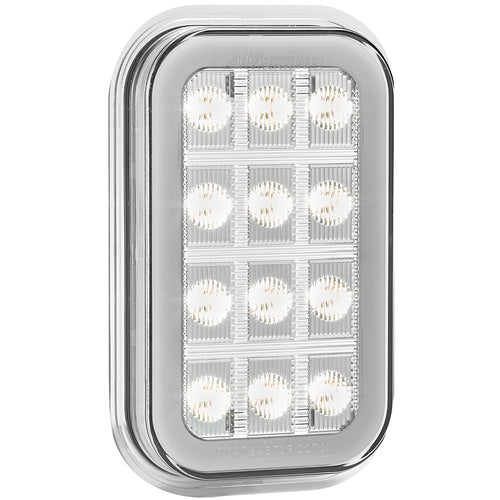

3” x 5” White Rectangular Back Up with Red Taillight Glow Edge
SKU: M42215
3” x 5” White Rectangular Back Up with Red Taillight Glow Edge
Description:

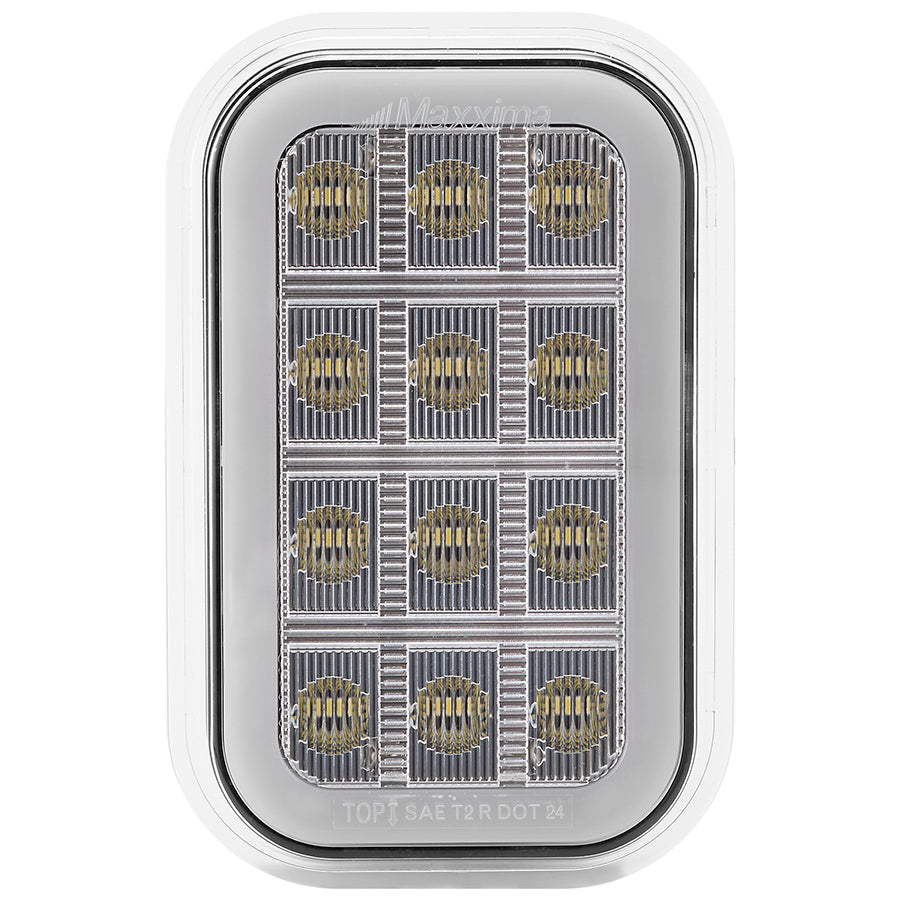

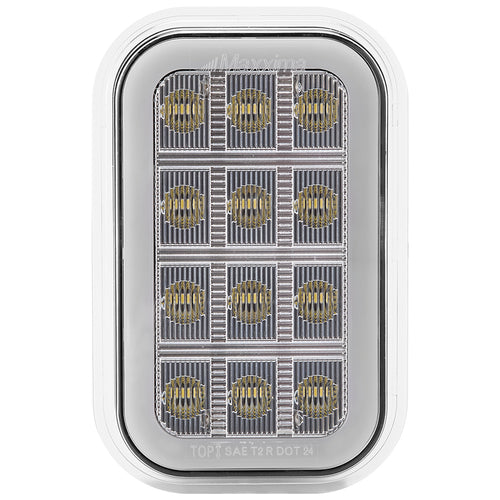

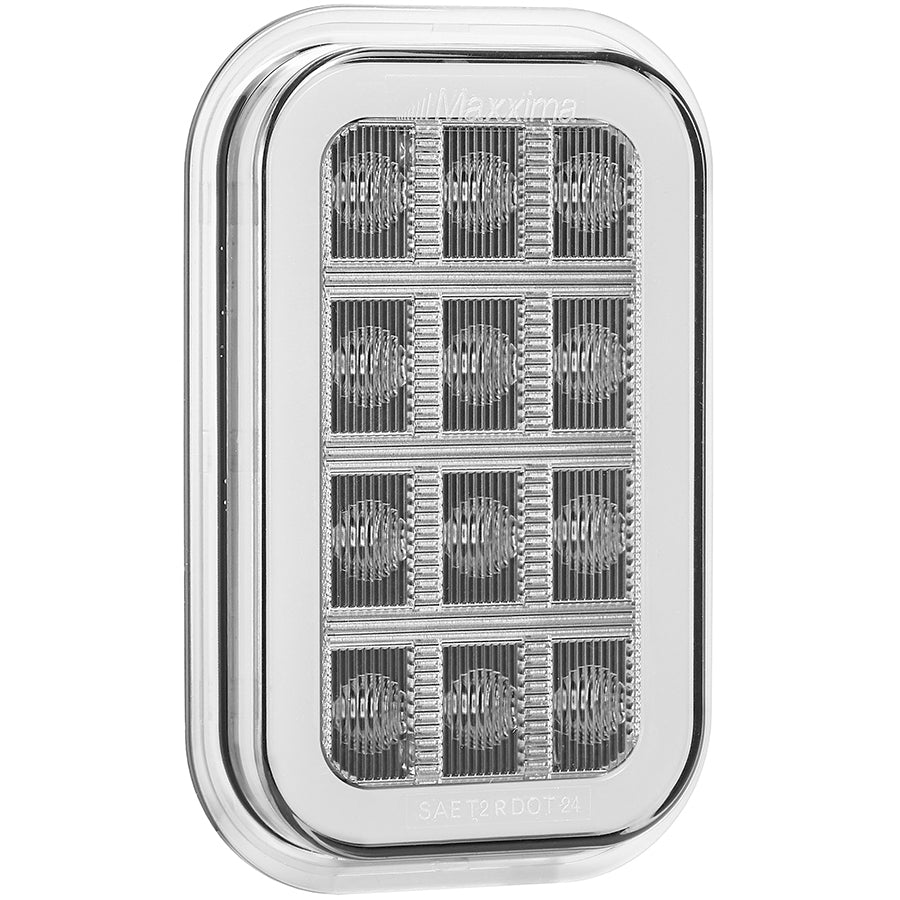

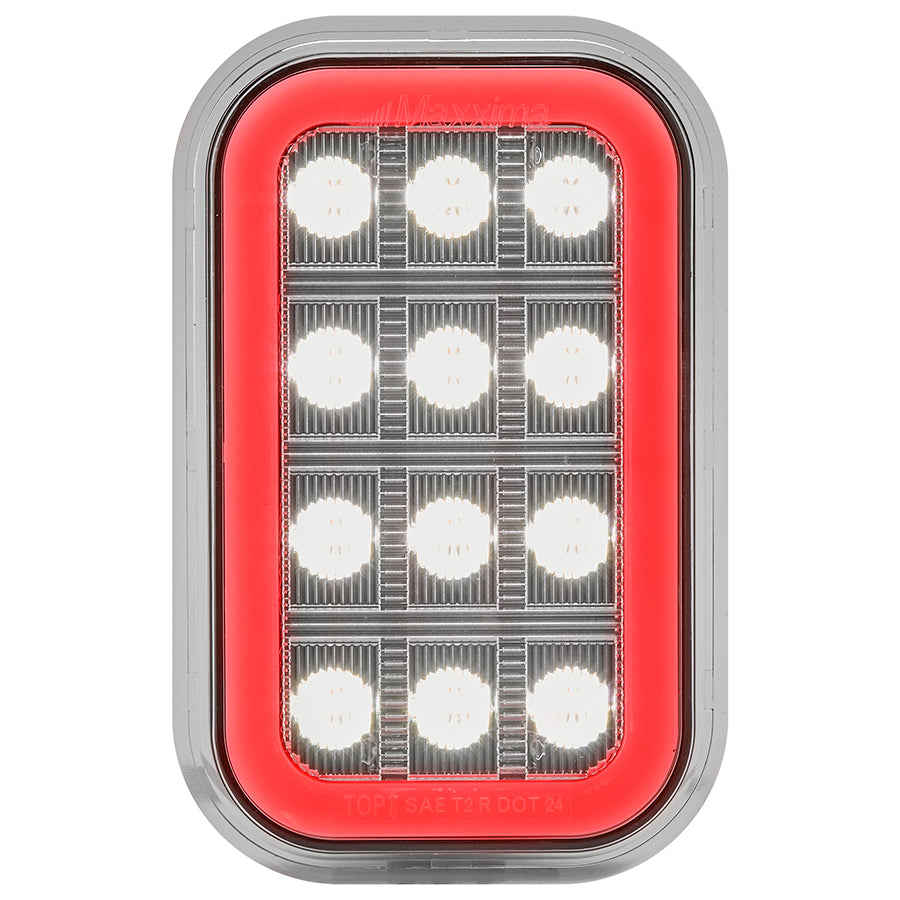

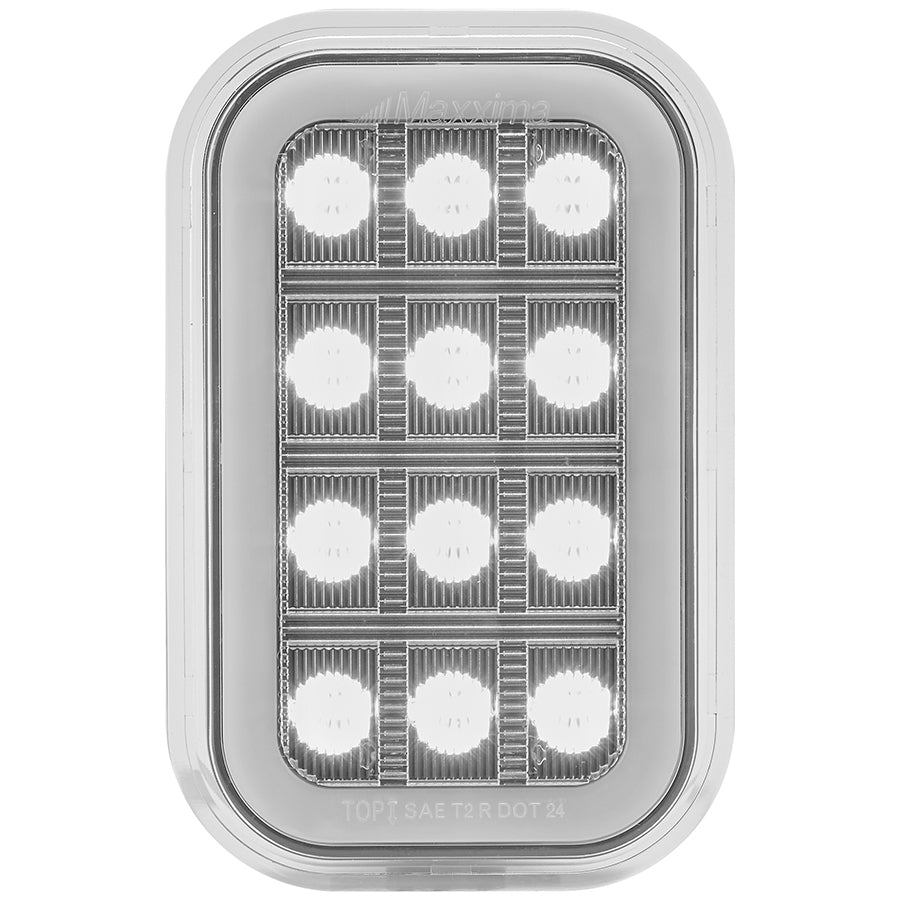

The M42215 is a 3” X 5” rectangular back-up lamp / turn signal. The center 12 LED’s illuminate in the back-up, or reverse, function. The 30 red LED’s illuminate the edge in a glow effect and function as the red turn signal. The edge of the lamp is white when in the off position. It fits industry-standard rectangular grommets like M49700 and has an integrated PL-3 connector. This light features a polycarbonate lens and housing and is backed by a 5-year warranty.
Features & Benefits:
- 3” x 5” Rectangular Back-Up & Red Tail

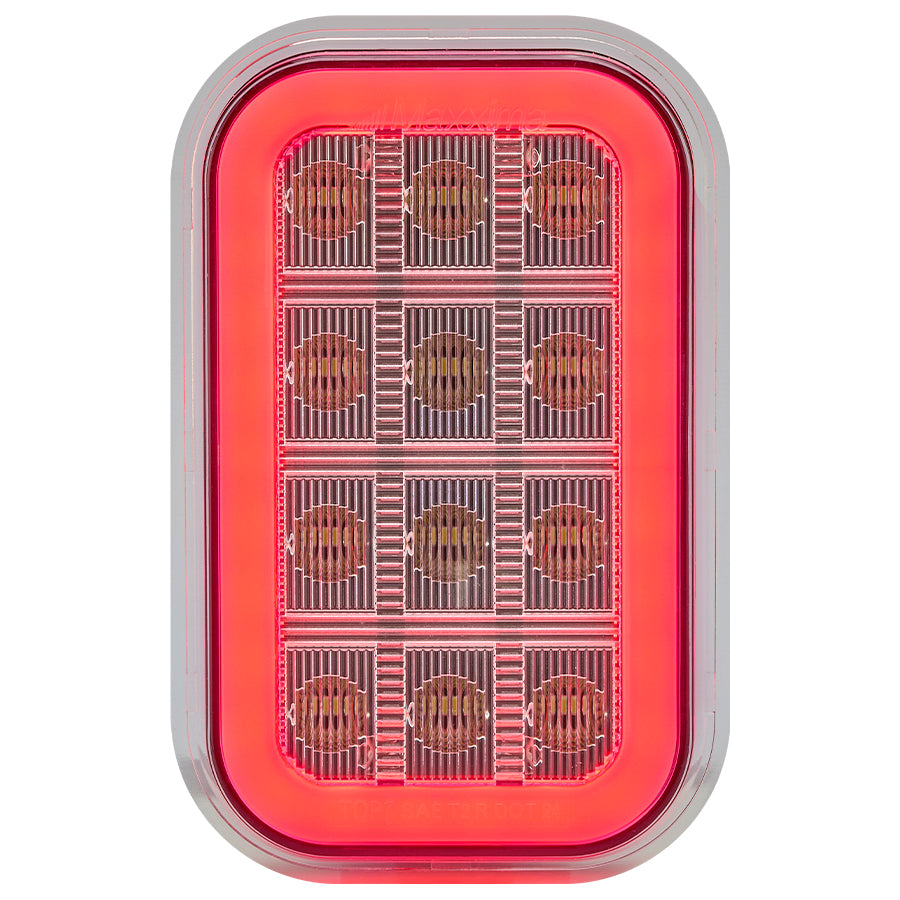

- Red Glow Edge Illuminates in Tail Light
- DOT Compliant Vertical Mount

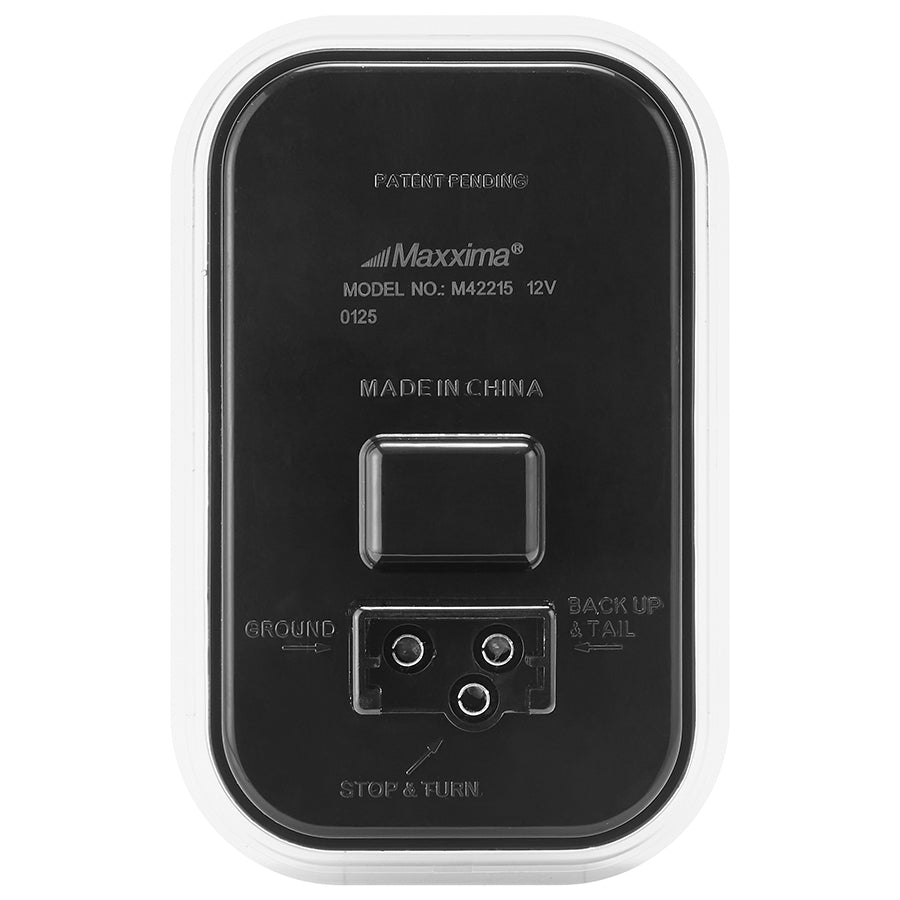

- Integrated PL-3 Connector
- Rectangle Grommet Mount (M49700 Sold Separately)
- Polycarbonate Lens & Housing
- 5 Year Warranty
Specifications:
- Voltage 12.8VDC
- Amp Draw Back-Up 0.2A, Tail 0.1A

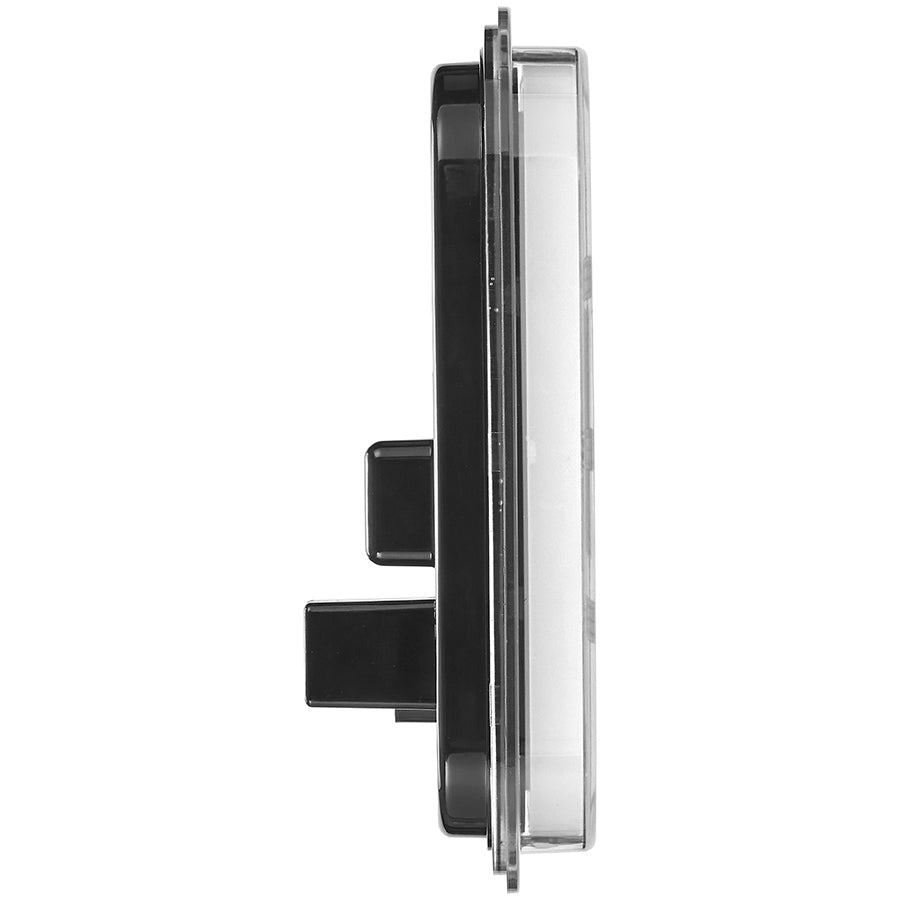

- Dimensions 3.4” W x 5.3” H x 1.3”D
- Mounting Rectangular Grommet
- Connector Integrated PL-3
- LEDs 42 (12 White, 30 Red)
- Legal Heading R, T2
- DOT/SAE J593, J2040
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
