6” Oval Hybrid Combination S/T/T & Back-Up – Grommet Mount
SKU: M85621R
6” Oval Hybrid Combination S/T/T & Back-Up – Grommet Mount
Description:

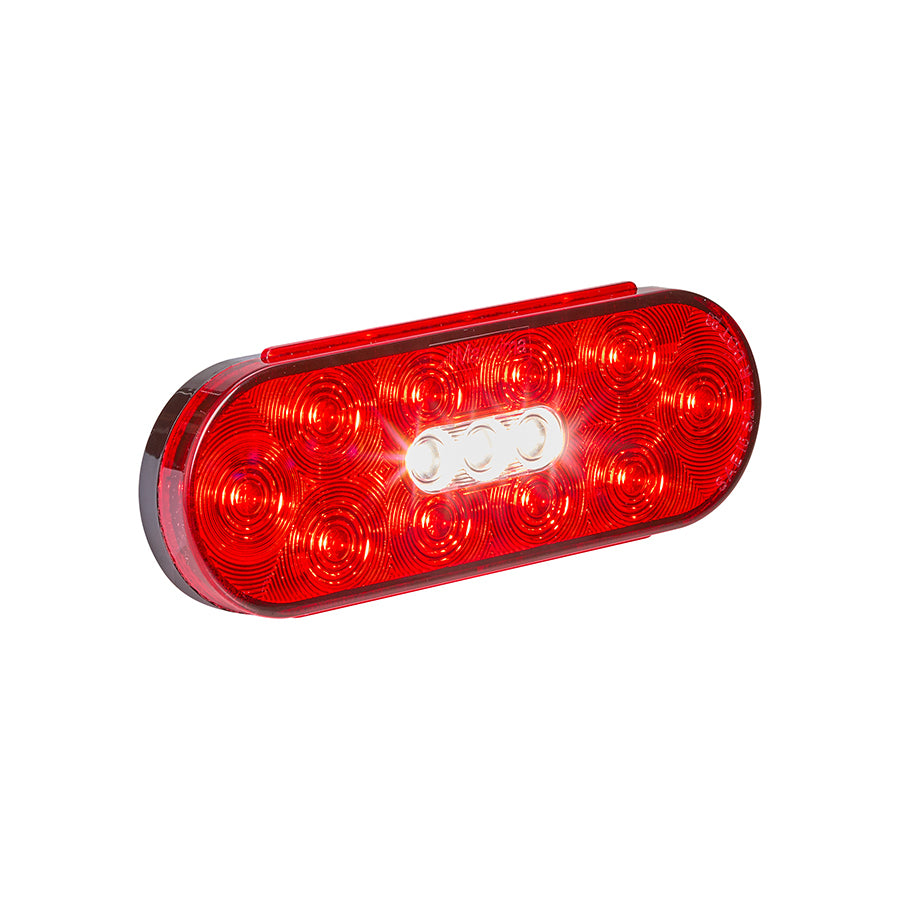

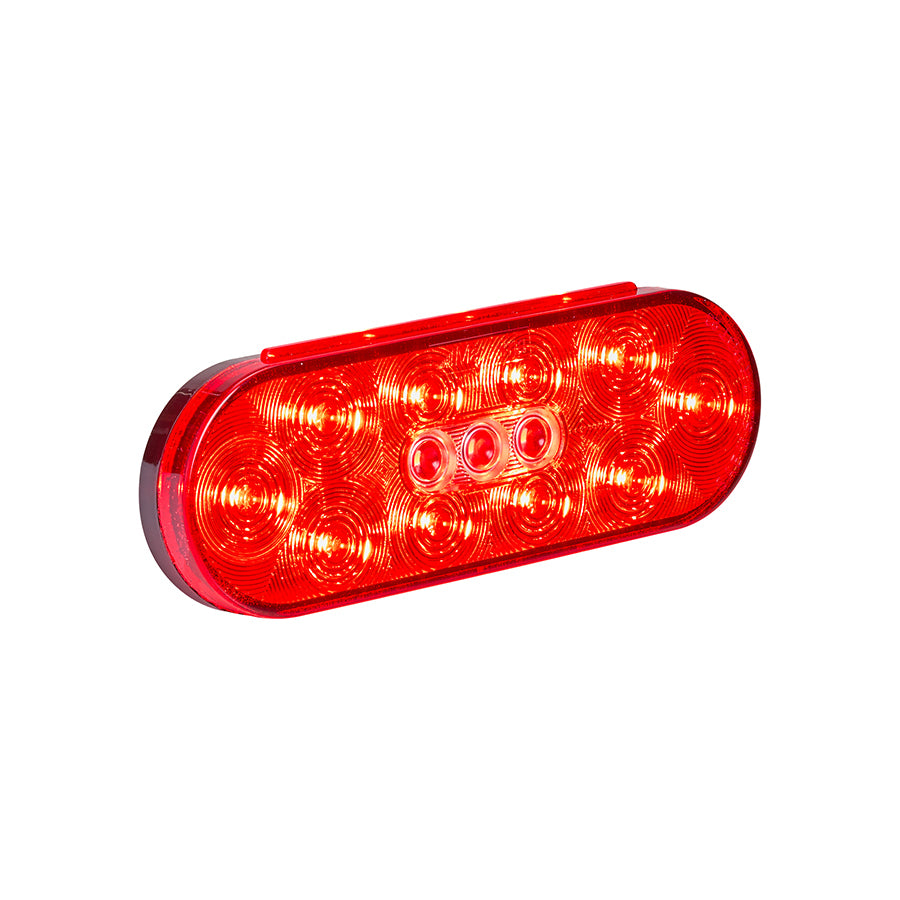

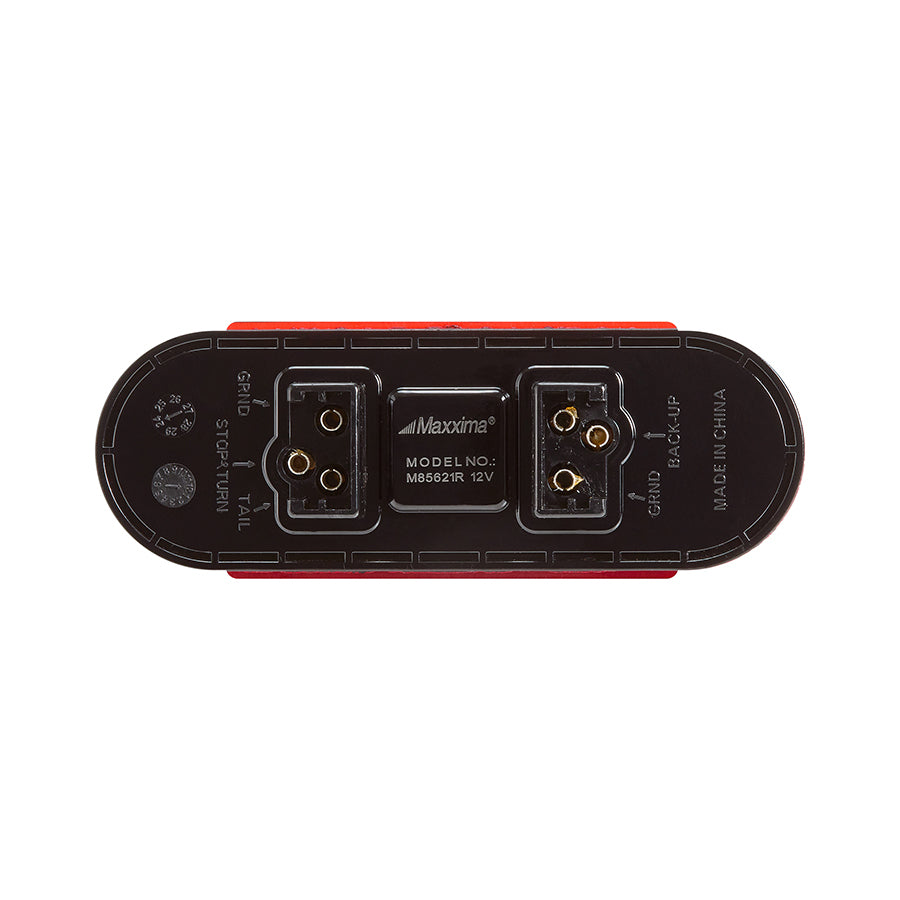

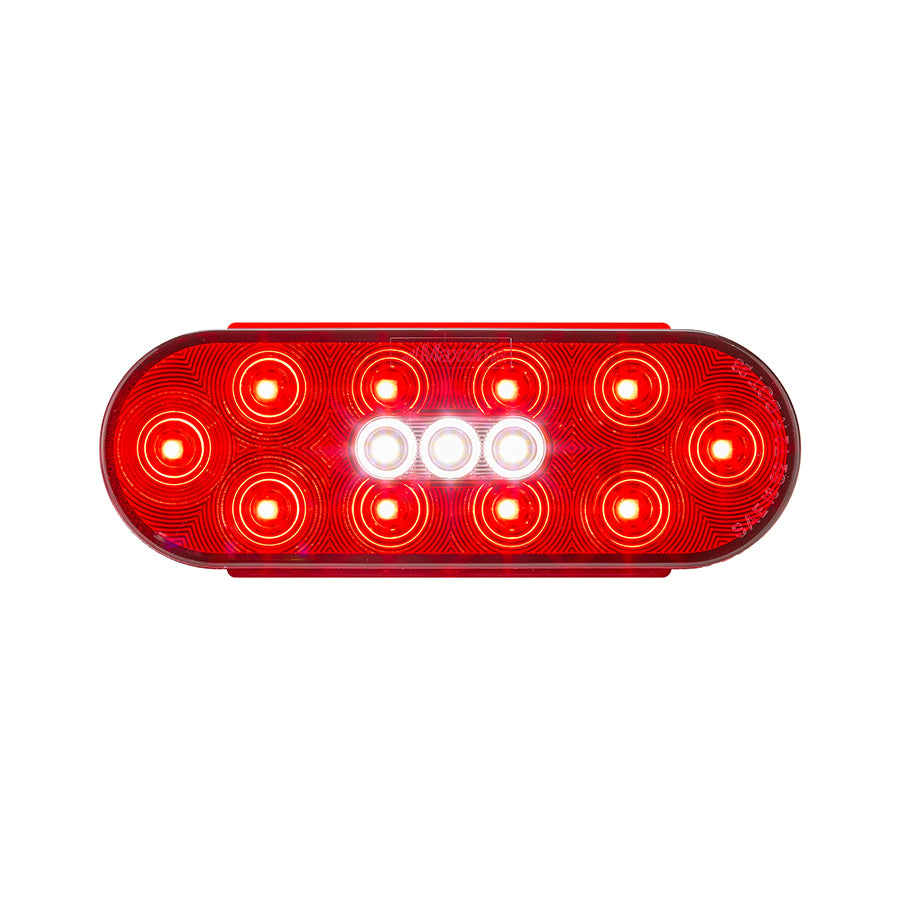

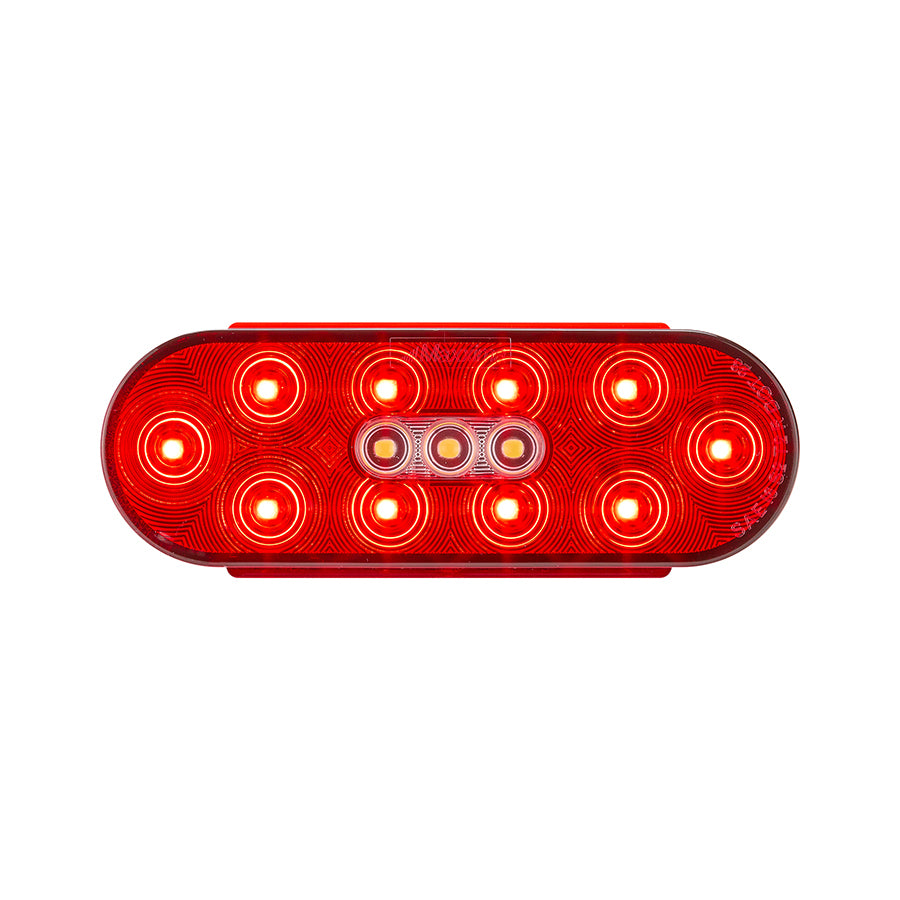

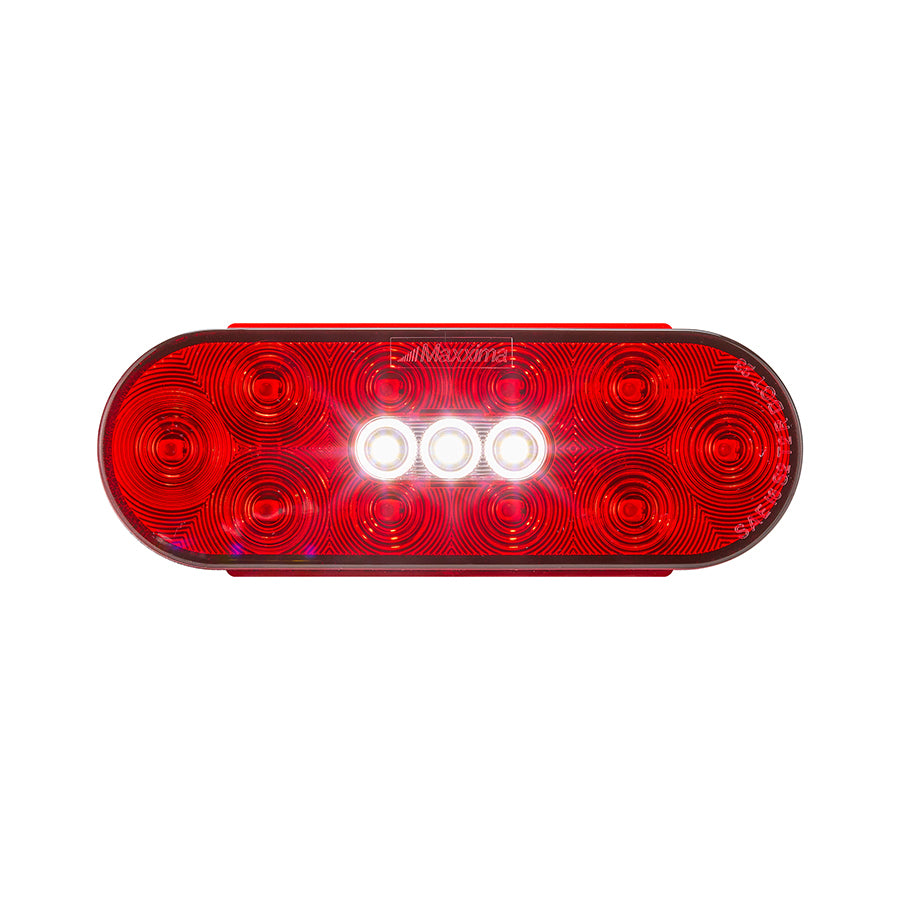

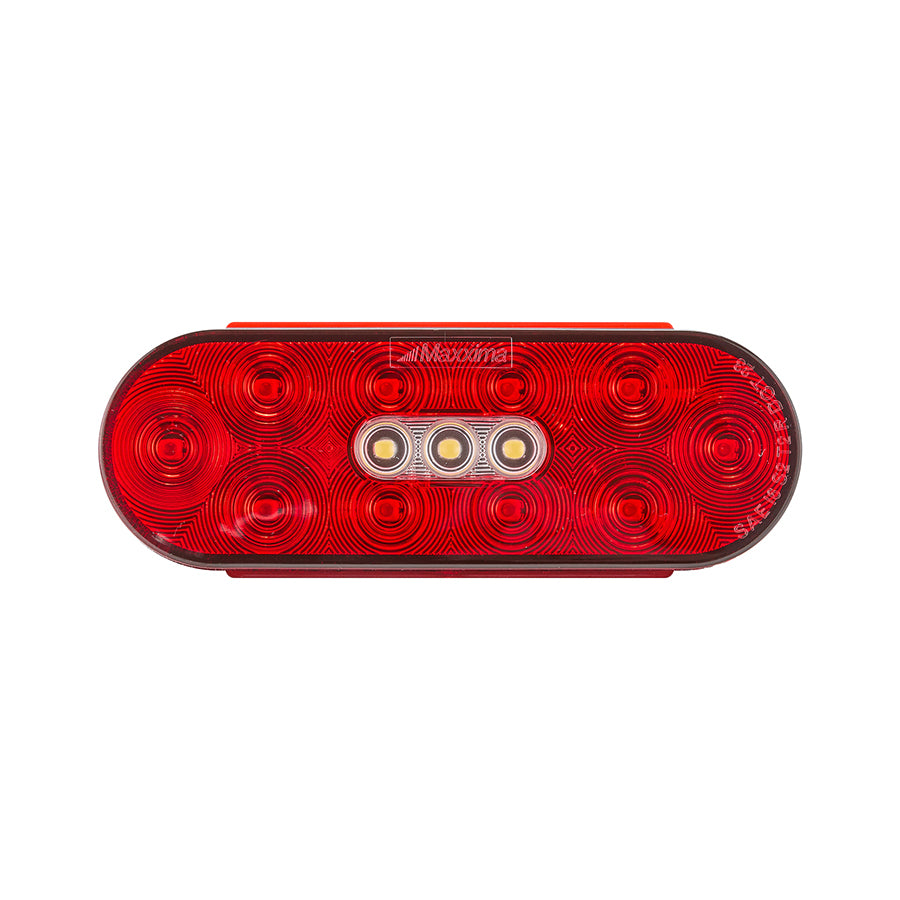

The M85621R is a 6 inch oval hybrid combination stop/turn/tail and back-up light. It features 10 LEDs for the red STT functions, and 3 LEDs for the white back-up and is DOT compliant in both horizontal and vertical mounts. It fits industry standard 6” oval grommets like the M50600-B (sold separately). The M85621R has two PL-3 connectors integrated in the rear of the housing, one for the S/T/T circuit and one for the BU circuit. This light features a polycarbonate lens & housing, and is backed by a 5-year warranty.
Features & Benefits:
- 6” Oval Hybrid Combo Stop/Turn/Tail & Back-Up
- Fits 6” Oval Grommet (M50600-B Sold Separately)
- Qty. (2) Industry Standard PL-3 Three-Pin
- Connectors Integrated (Uses M50900 Pigtail)
- Polycarbonate Lens & Housing
- DOT Compliant in Both Horizontal and Vertical Mount
- 5 Year Warranty
Specifications:
- LEDs 13 (10 Red, 3 White)
- Voltage 12.8VDC
- Amp Draw Stop 250mA, Tail 10mA, B/U 150mA
- Dimensions 6.5” W x 2.3” H x 1.6” D
- Mounting 6” Grommet
- Connector Qty. (2) PL-3 Integrated
- Legal Heading I6 S2 T2 R
- DOT/SAE J593, J2040, J2261
Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
