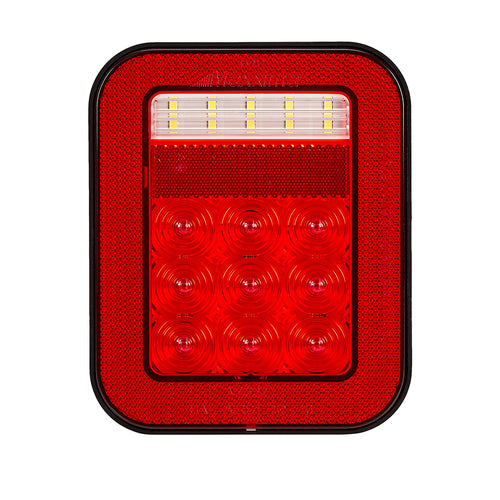

Thin Low Profile Rectangular Three Stud Stop Tail Turn / Back Up Box Light
SKU: M42221
Thin Low Profile Rectangular Three Stud Stop Tail Turn / Back Up Box Light
The M42221 is a 1.4" Thin Low Profile Design Combination Stop/Tail/Turn and Back-Up Lamp. Mounts the same as the original M42220 with Three Studs and Blunt 3 Wire Leads. Durable ABS Housing and High Impact Acrylic Lens.
Features
- Three Stud Box Light
- STT/Back-Up Function
- Built In Reflector
- Sealed Corrosion Proof Electronics
Specifications
- LEDs: 9 Red 10 White
- Dimensions 6.5" H X 5.3" W X 1.4" Depth
- Voltage 12.8 VDC
- Amp Draw Back-Up 0.20A STT 0.14A
- DOT/SAE J594, J1395, J1398, J593, J585e
- Legal Heading AIRST
- Connector Three Blunt Cut Leads 18Awg
- Mounting Three Stud
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
