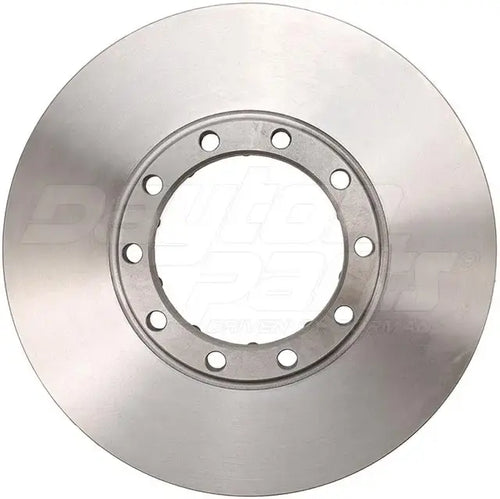

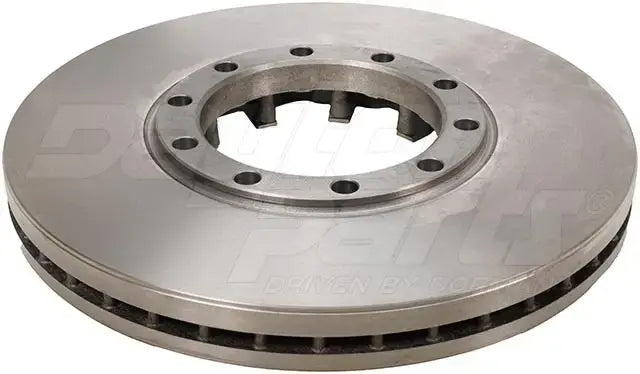

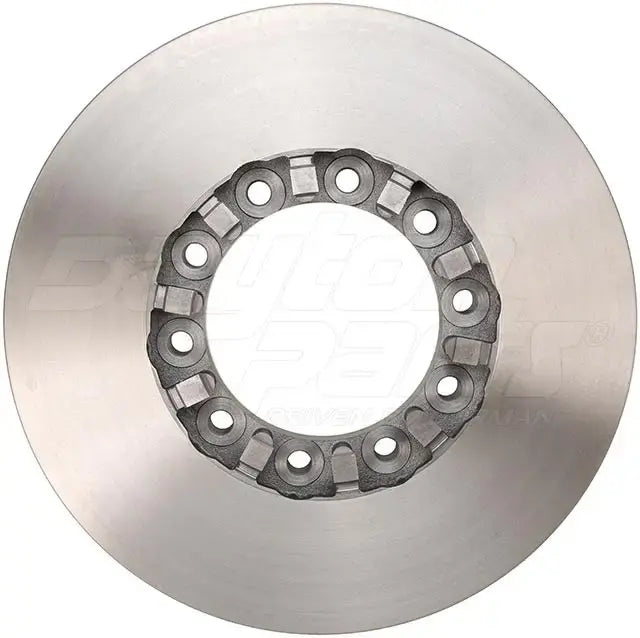

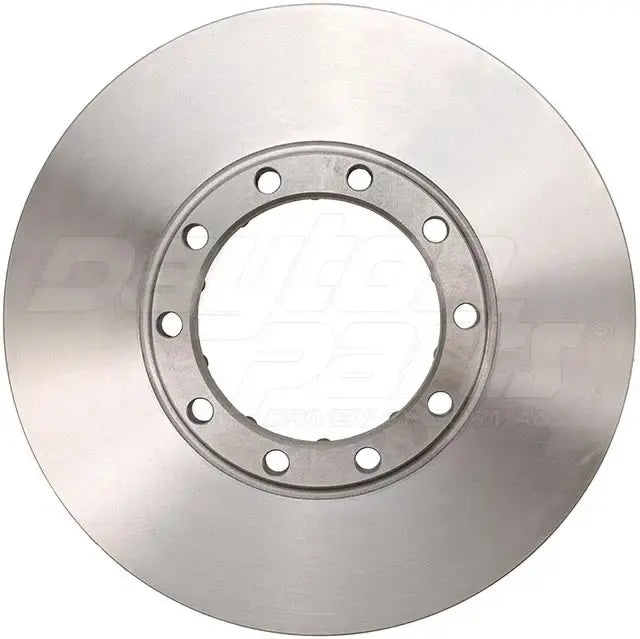

Disc Brake Rotor FF Steer 430mm Flat Rotor Bendix
SKU: ADR805
Disc Brake Rotor FF Steer 430mm Flat Rotor Bendix
ABS Tone Ring Included | Yes
Bearing(s) Included | No
Brake Surface Finish | Machined
Brake System | Air Disc
Center Hole Diameter | 166.4 mm
Construction | Full Cast
Conventional Or Drum-In-Hat Type Rotor | Conventional
Directional or Non-Directional Brake Surface | Non-Directional
Disc Finish | Machined
Discard Thickness | 37 mm
Floating | No
Grade Type | Standard Replacement
Material | G3500
Maximum Brake Diameter (Discard) | 37 mm
Mounting Bolt Hole Circle Diameter | 199.6 mm
Mounting Bolt Hole Diameter | 16.7 mm
Mounting Bolt Hole Quantity | 10
Nominal Thickness | 45 mm
Outside Diameter | 430 mm
Overall Height | 53 mm

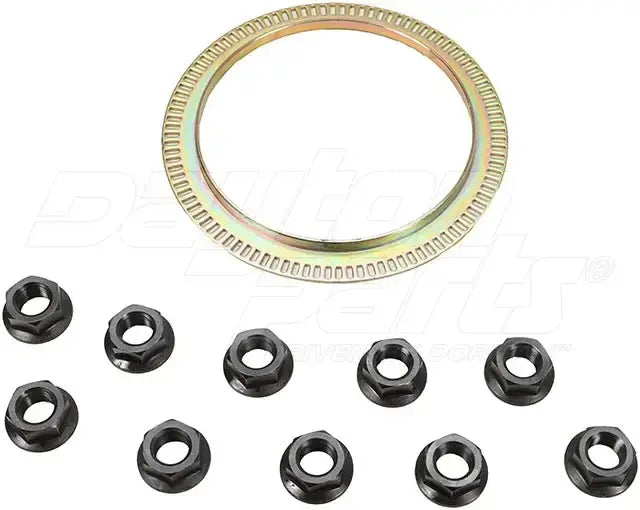

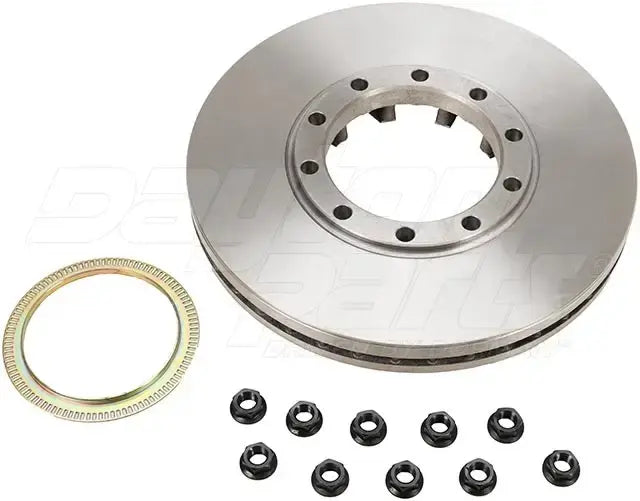

Package Contents | 1 Rotor; 1 ABS Ring; 10 Flange Lock Nuts
Pad Contact Surface Width | 93.8 mm
Part Number | ADR805
Part Type | Disc Brake Rotor
Races Included | No
Recommended Torque | Flange Lock Nuts 200 ft/lbs
Rust Resistant Coating | No
Screws Included | No
Solid Or Vented Type Rotor | Vented
Stud/Lug Hole Circle Diameter | 199.6 mm
Stud/Lug Hole Diameter | 16.7 mm
Stud/Lug Hole Quantity | 10
Surface Type | Dimpled
Weight | 71.270000
Bearing(s) Included | No
Brake Surface Finish | Machined
Brake System | Air Disc
Center Hole Diameter | 166.4 mm
Construction | Full Cast
Conventional Or Drum-In-Hat Type Rotor | Conventional
Directional or Non-Directional Brake Surface | Non-Directional
Disc Finish | Machined
Discard Thickness | 37 mm
Floating | No
Grade Type | Standard Replacement
Material | G3500
Maximum Brake Diameter (Discard) | 37 mm
Mounting Bolt Hole Circle Diameter | 199.6 mm
Mounting Bolt Hole Diameter | 16.7 mm
Mounting Bolt Hole Quantity | 10
Nominal Thickness | 45 mm
Outside Diameter | 430 mm
Overall Height | 53 mm
Package Contents | 1 Rotor; 1 ABS Ring; 10 Flange Lock Nuts
Pad Contact Surface Width | 93.8 mm
Part Number | ADR805
Part Type | Disc Brake Rotor
Races Included | No
Recommended Torque | Flange Lock Nuts 200 ft/lbs
Rust Resistant Coating | No
Screws Included | No
Solid Or Vented Type Rotor | Vented
Stud/Lug Hole Circle Diameter | 199.6 mm
Stud/Lug Hole Diameter | 16.7 mm
Stud/Lug Hole Quantity | 10
Surface Type | Dimpled
Weight | 71.270000
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
