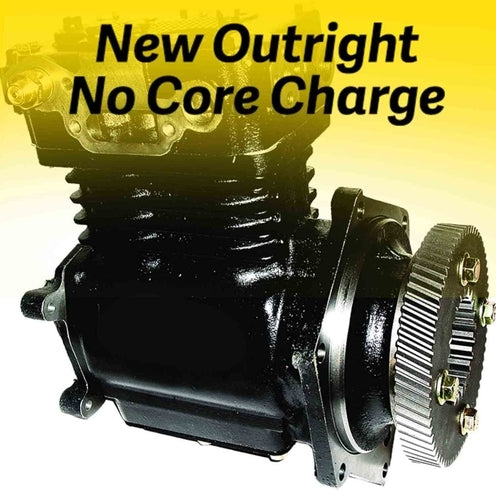

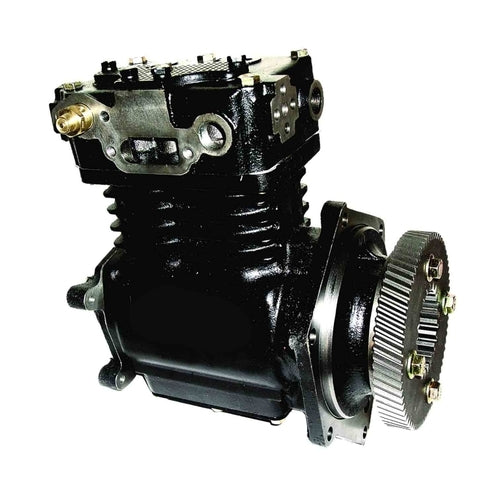

New Air Compressor Detroit Diesel 60 Series Engines 12.7 NS550 13.2CFM
SKU: US31-7860
New Air Compressor Detroit Diesel 60 Series Engines 12.7 NS550 13.2CFM
Out Of Stock
Specifications
Approx. Hp Req. At 1250 Rpm At 120 Psig:
3.2 HP
Coolant Port Thread Size:
1/2"-14 NPT
Coolant Type:
Water
Core Free:
Y
Cubic Feet Per Minute Rating:
13.2
Cylinder Quantity:
2
Discharge Port Inside Diameter:
1/2"-14 NPT
Displacement At 1250 Rpm:
16.5 CFM
Engine Manufacturer Code:
Detroit Diesel
Governor Port:
1/8"-27 NPT
Inlet Location:
Top/Left
Inlet Size:
1/2"-14 NPT
Max Inlet Air Temp:
250F
Max Rpm:
2400
Mounting Type:
Flange
Outlet Location:
Left
Piston Bore Diameter:
2.75
Prop 65 - Long Label:
WARNING: Reproductive Harm - www.p65warnings.ca.gov
Prop 65 - Short Label:
WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 Y/N:
N
Stroke Length:
1.5
Thru-drive Capacity:
100Ft/Lb
Type:
NS550
Unloader Port/type:
1/8"-27 NPT
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
