Ring and Pinion GEAR SET RT40-4N 3.58 Rear LOCKOUT CWP 43:12 (10 T ) 3.58 RTL44 04 Fits Freightliner
SKU: US67-60171400
Ring and Pinion GEAR SET RT40-4N 3.58 Rear LOCKOUT CWP 43:12 (10 T ) 3.58 RTL44 04 Fits Freightliner

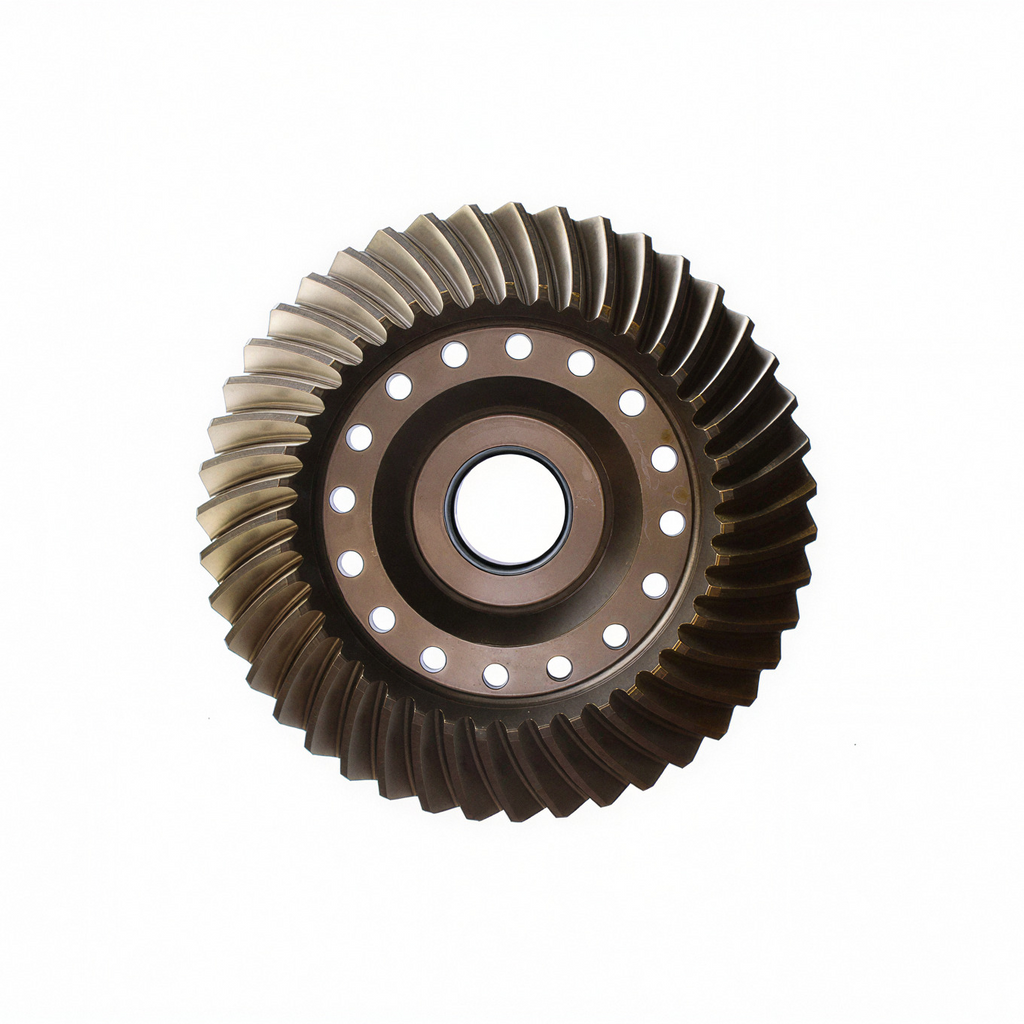

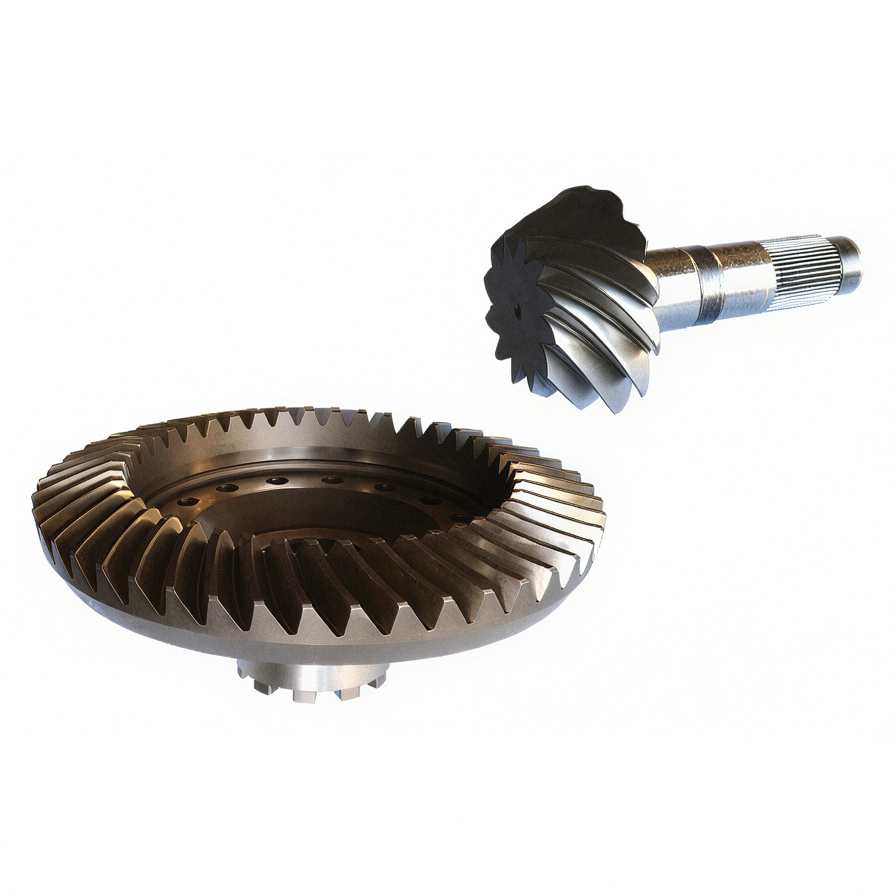

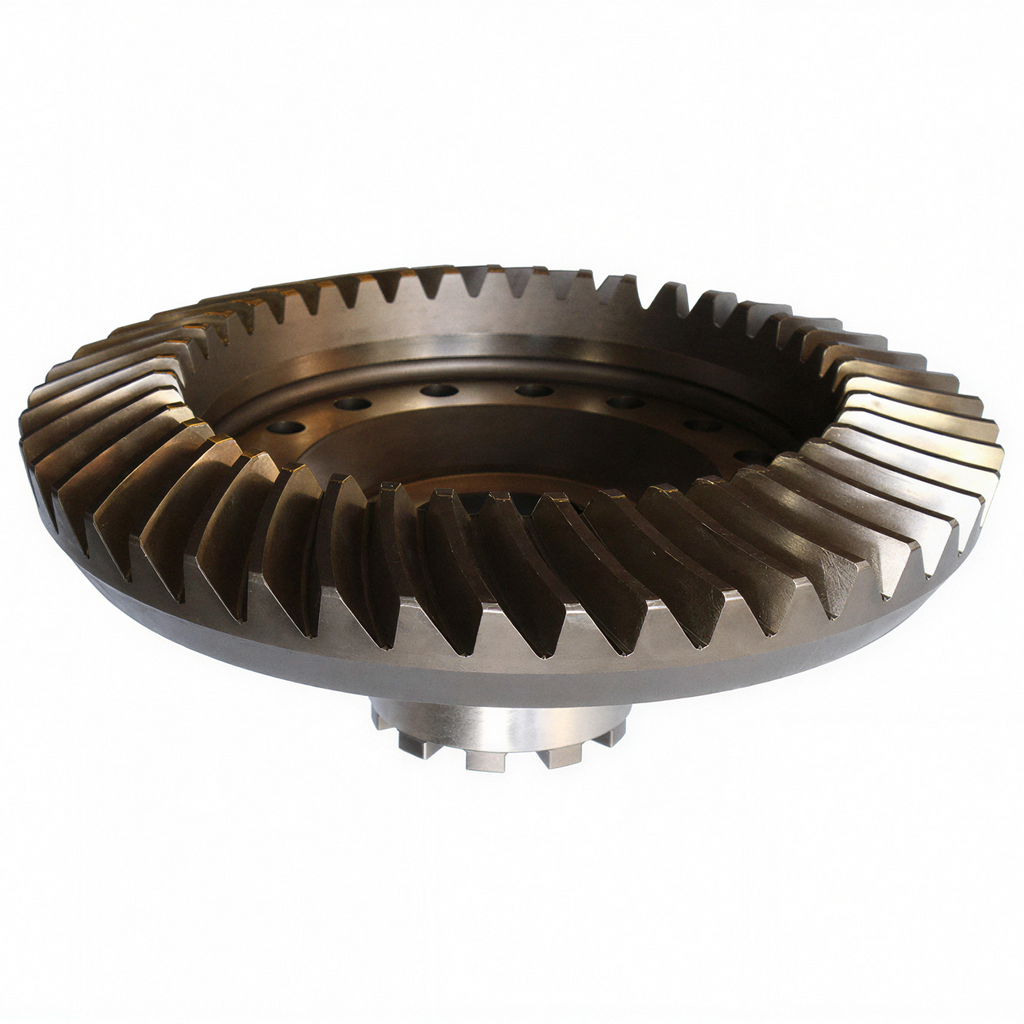

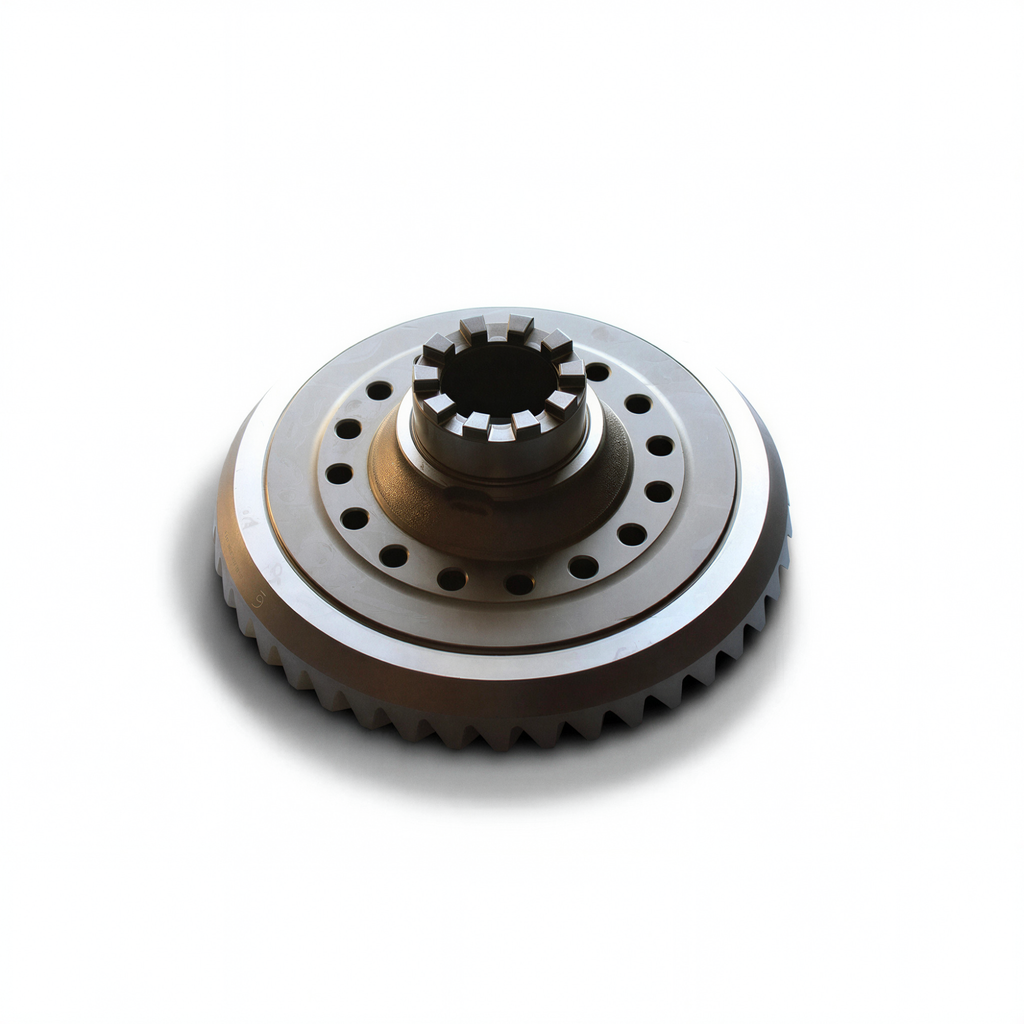

Heavy-duty differential ring and pinion gear set engineered for commercial truck rear-axle carrier assemblies, commonly utilized in Freightliner, Meritor, and MBA heavy-duty drive axle systems.
Core Characteristics & Functionality
- Primary Function: Transfers rotational power from the driveshaft to the axle shafts at a right angle while providing gear reduction to maximize drive torque.
- Gear Architecture: Features a high-precision hypoid bevel gear layout, where the pinion axis is offset from the center of the ring gear to maximize tooth surface contact, load capability, and operational smoothness under heavy haul conditions.

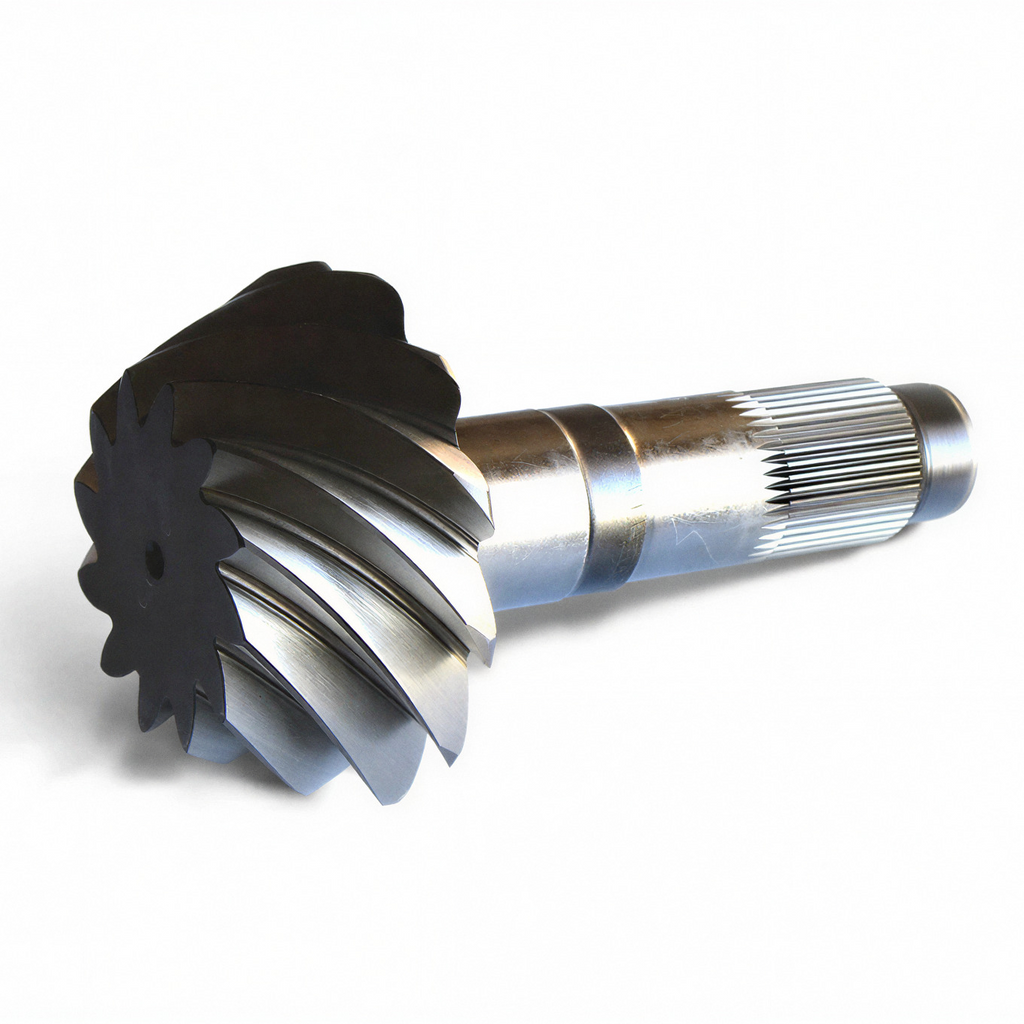

- Tooth Configuration: Features a 43-tooth ring gear paired with a matching 12-tooth pinion gear to yield a 3.58:1 gear ratio—designed to optimize highway cruise engine RPMs and fuel efficiency for long-haul fleet trucks.
- Axle Position: Engineered primarily for Forward-Rear tandem axle applications (specifically designed to fit models with or without inter-axle differential locks).
- Material & Construction: Drop-forged high-grade alloy steel (typically 8620 or 4320 steel), heat-treated and carburized for extreme impact resistance and extended fatigue life.
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
