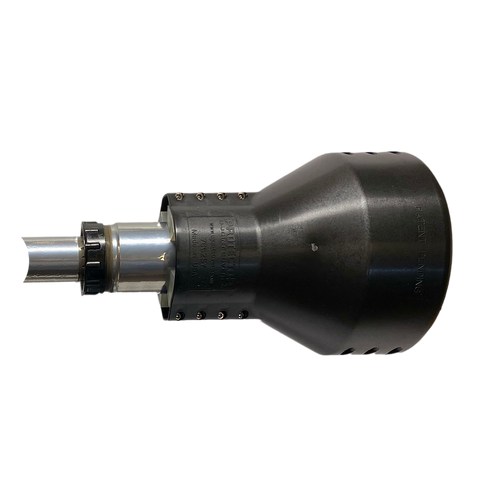

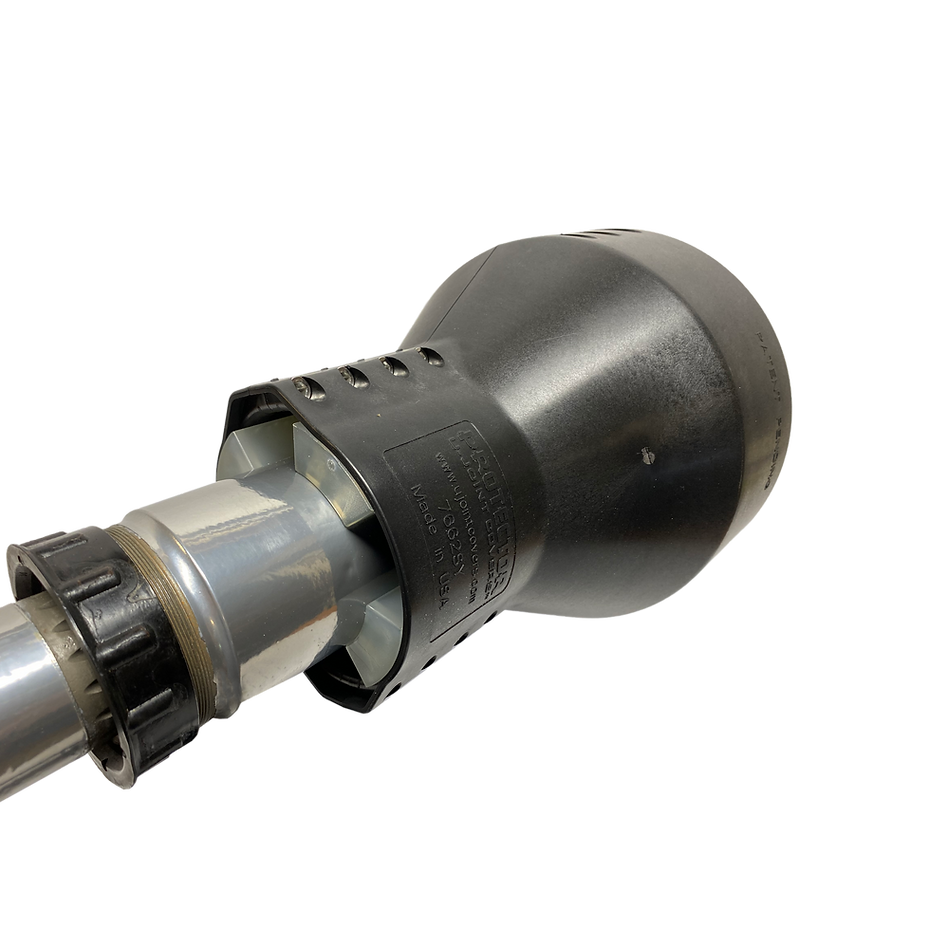

Standard U-Joint Cover Kit for Slip-Yoke Position
SKU: 7662SSK
Standard U-Joint Cover Kit for Slip-Yoke Position
Out Of Stock
-
Installation Instructions
For all heavy truck part numbers:
Step 1. Measure mounting surface diameter using deep-jaw calipers, a diameter tape measure (Stanley p/n 33-115 works well) or measure the circumference and divide by Pi (3.1417).
Step 2. Select the corresponding packet of 4 mounting-pads, the interchangeable pads are numbered to match the driveline diameters covered in the kit. Example: 4590PD fits 4.590” diameter.
Step 3. Affix the 4 mounting pads over the 2 attachment bars in each of the cover halves.

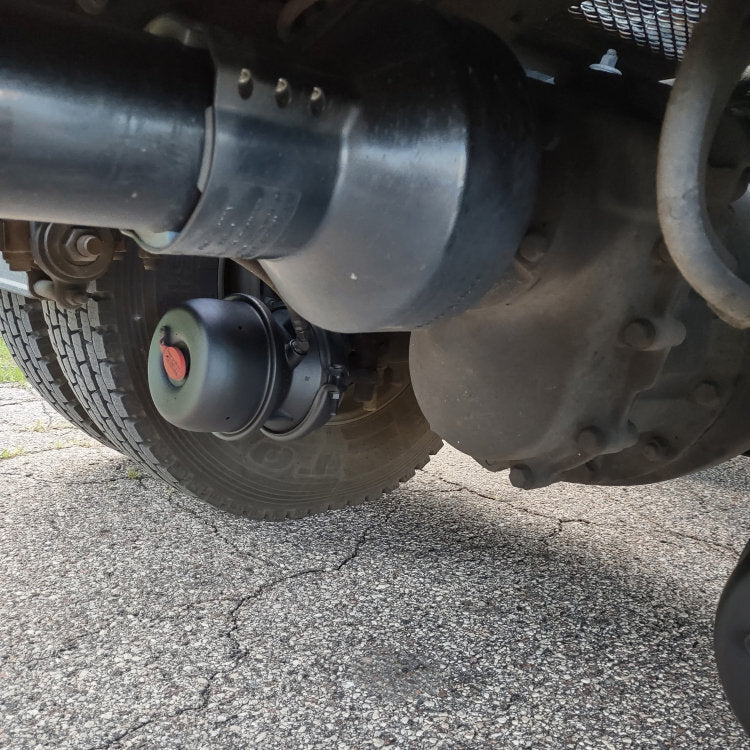

Step 4. Place the cover halves over the drive line, rotate as needed to accommodate balancing weights. A zip-tie is included to hold the cover in place (cut it off & discard once screws are tightened).
Step 5. Using a 4mm hex (Allen) driver, tighten the 12ea. M5 x 0.8 captive socket head screws. There is no need to overtighten, snug the fasteners as you would on any other lightweight cover.
* When installed properly, the cover will not move on the mounting surface. Using reasonable force on the open bell, if movement is visible at the mount area, switch-out 2 opposing pads (for balance) to the next smaller diameter.
To access grease fittings facing driveshaft with cover in-place
Step 1. Looking into the open end of the cover, visually align and mark a spot above and in-line with the zerk, on the sloping section of the cover.
Step 2. Using a 15.75mm or 5/8” diameter drill bit on slow speed, drill an access hole on the marked spot.
Step 3. Place the provided 5/8” diameter plug(s) into the access hole(s) in the cover. - Protector U-Joint Cover for Slip-Yoke mount with Standard U-Joints (Under 7" cross) including 1610, 1710, SPL 250, 5-280X, SPL170, SPL350, RPL20 on slip-yokes. Kit includes fasteners, grease port plugs and 7 sets of mounting pads to fit all common slip-yokes with outside diameters from 3.125" to 3.875" including special 3.200" tapered mount pads for Spicer slip-yokes
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
