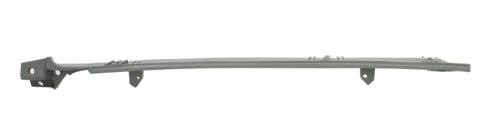

Dash Top of Gauge GRAY trim fits Freightliner Century & Columbia with Gauges enclosed. bolt distance 12-1/8”

SKU: US15-46608
3 reviews
Designed to fit and perform just like your original component, this direct replacement dashboard panel trim by USA STAR® offers a product that restores and maintains the utility and aesthetics of your truck's dash.

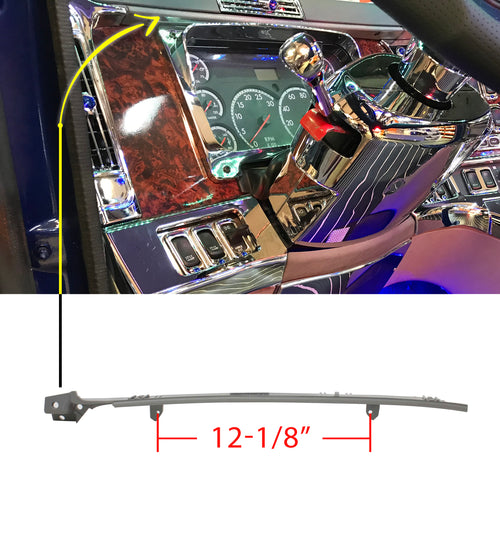

The dash panel trim is located above your gauges. You can choose from gray or chrome colored trims. The gray color will match the factory color for Freightliner Century and Columbia trucks but not the texture. The trim, whether in gray or chrome, is of a smooth finish. It should be noted that although this trim fits many Coronado model trucks, it will likely not match the original color of the dashboard assembly, so for those who plan on using this part on their Coronado, we recommend to opt for the chrome trim.

To get to this part of the dash you will have to unscrew and lift up your top dashboard panel. This way, you can get access to the bolts where this piece is mounted onto.

Although once installed the trims all look alike, there are actually 2 distinct trims for this location of your dash and the difference between one and the other is the distance between the bolt holes that would be used for installation.

Two mounting distances exist because Freightliner manufactured these trucks with 2 different gauge clusters above the steering wheel, and this dashboard trim shares the bolt mounting locations with your gauges.

For those who have one enclosed area with all your gauges together behind one single window, then the dash panel trim you need is with the spacing that is 12 1/8" from bolt hole to bolt hole. If you have the Freightliner with your gauges all individually placed on your dashboard, then your bolt to bolt measurement would be the 9 7/8" version.

Of course you can also access your original part and measure your bolt distance to be 100% sure you are getting the part you need.

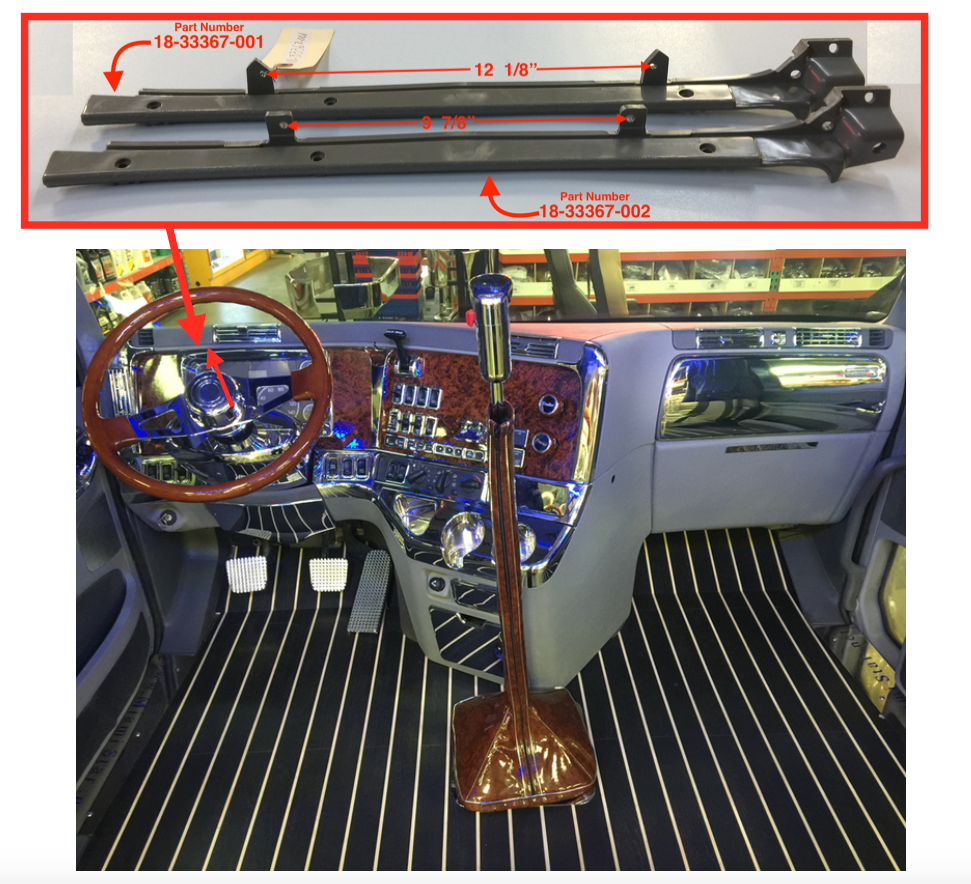

Here are the 4 options for this piece of the dashboard that are often confused:
(original Freightliner part numbers for reference)

Replacements for 18-33367-001 are (12 1/8" bolt to bolt distance) are:Replacements for 18-33367-002 (9 7/8" bolt to bolt distance) are:

Make sure to check the measurements so you get the right one:

  • This product replaces OEM # 18-33367-001
  • Gray Trim
  • Bolt Distance 12 1/8" ( from bolt hole to bolt hole )
  • Fits most Century and Columbia 2005+
  • Sold Individually
Freightliner Century, Columbia
GARANTÍA DE UN AÑO / NO APLICA SI EL PRODUCTO SE DAÑA POR UNA MALA INTALACION / NO APLICA PARA PARTES ELECTRICAS.

Dash Top of Gauge GRAY trim fits Freightliner Century & Columbia with Gauges enclosed. bolt distance 12-1/8”

SKU: US15-46608
3 reviews

$26.99 $29.99

You Saved $3.00


Ship This Item

Shipping fee is calculated during checkout

Pickup In Store In-Store Pickup

Available for pickup at our Miami location

Please select a delivery method.


In Stock

Designed to fit and perform just like your original component, this direct replacement dashboard panel trim by USA STAR® offers a product that restores and maintains the utility and aesthetics of your truck's dash.

The dash panel trim is located above your gauges. You can choose from gray or chrome colored trims. The gray color will match the factory color for Freightliner Century and Columbia trucks but not the texture. The trim, whether in gray or chrome, is of a smooth finish. It should be noted that although this trim fits many Coronado model trucks, it will likely not match the original color of the dashboard assembly, so for those who plan on using this part on their Coronado, we recommend to opt for the chrome trim.

To get to this part of the dash you will have to unscrew and lift up your top dashboard panel. This way, you can get access to the bolts where this piece is mounted onto.

Although once installed the trims all look alike, there are actually 2 distinct trims for this location of your dash and the difference between one and the other is the distance between the bolt holes that would be used for installation.

Two mounting distances exist because Freightliner manufactured these trucks with 2 different gauge clusters above the steering wheel, and this dashboard trim shares the bolt mounting locations with your gauges.

For those who have one enclosed area with all your gauges together behind one single window, then the dash panel trim you need is with the spacing that is 12 1/8" from bolt hole to bolt hole. If you have the Freightliner with your gauges all individually placed on your dashboard, then your bolt to bolt measurement would be the 9 7/8" version.

Of course you can also access your original part and measure your bolt distance to be 100% sure you are getting the part you need.

Here are the 4 options for this piece of the dashboard that are often confused:
(original Freightliner part numbers for reference)

Replacements for 18-33367-001 are (12 1/8" bolt to bolt distance) are:Replacements for 18-33367-002 (9 7/8" bolt to bolt distance) are:

Make sure to check the measurements so you get the right one:

  • This product replaces OEM # 18-33367-001
  • Gray Trim
  • Bolt Distance 12 1/8" ( from bolt hole to bolt hole )
  • Fits most Century and Columbia 2005+
  • Sold Individually
Freightliner Century, Columbia
GARANTÍA DE UN AÑO / NO APLICA SI EL PRODUCTO SE DAÑA POR UNA MALA INTALACION / NO APLICA PARA PARTES ELECTRICAS.
