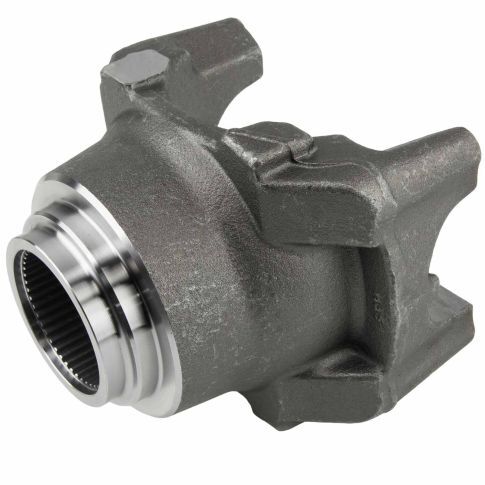

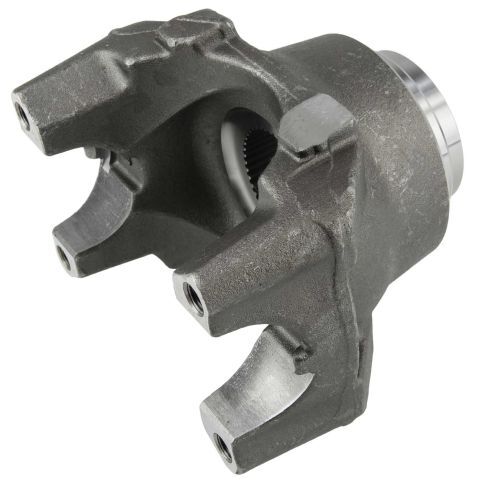

Half Round Style SPL170 Series End Yoke 46 Spline
SKU: US70-61011
Half Round Style SPL170 Series End Yoke 46 Spline
Call for price
In Stock
SPL170 COUPLING
UPC:
00698231845554
Assembly:
No
Bearing Type:
HR
Bore Diameter:
2.39 Inch
C'bore Depth:
0.157 Inch
C-Bore Depth:
0.157 Inch
C-Bore Diameter:
2.4409 Inch
Centerline to End:
5.59 Inch
Centerline To End:
5.59
Dimensions:
Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 2.879 Length Thru Hole: 2.750 Centerline To End: 5.590 CBore Depth: 0.157 Inch
Ground Hub Diameter:
2.879 Inch
Hole Diameter:
2.879 Inch
Length Thru Hole:
2.75 Inch
Major Diameter:
2.39 Inch
Material:
Steel
Maximum Hub Diameter:
2.879 Inch
Prop 65 - Long Label:
WARNING: Reproductive Harm - www.p65warnings.ca.gov
Prop 65 - Short Label:
WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 Y/N:
N
Quantity:
1
Series:
SPL170 Series
Spline Quantity:
46
Spline Size:
2.390 - 46 Inch
Style:
HR
Type:
Splined Hole
UPC:
00698231845554
Assembly:
No
Bearing Type:
HR
Bore Diameter:
2.39 Inch
C'bore Depth:
0.157 Inch
C-Bore Depth:
0.157 Inch
C-Bore Diameter:
2.4409 Inch
Centerline to End:
5.59 Inch
Centerline To End:
5.59
Dimensions:
Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 2.879 Length Thru Hole: 2.750 Centerline To End: 5.590 CBore Depth: 0.157 Inch
Ground Hub Diameter:
2.879 Inch
Hole Diameter:
2.879 Inch
Length Thru Hole:
2.75 Inch
Major Diameter:
2.39 Inch
Material:
Steel
Maximum Hub Diameter:
2.879 Inch
Prop 65 - Long Label:
WARNING: Reproductive Harm - www.p65warnings.ca.gov
Prop 65 - Short Label:
WARNING: Cancer - www.p65warnings.ca.gov
Prop 65 Y/N:
N
Quantity:
1
Series:
SPL170 Series
Spline Quantity:
46
Spline Size:
2.390 - 46 Inch
Style:
HR
Type:
Splined Hole
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
