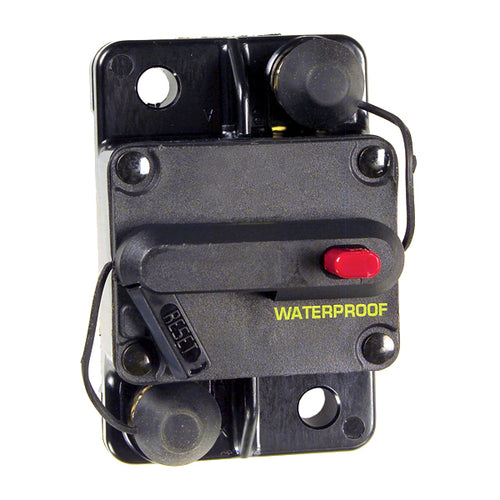

High Amperage Thermal Circuit Breakers Single Rate, 200A
SKU: 82-2217
High Amperage Thermal Circuit Breakers Single Rate, 200A
Our high amperage thermal circuit breakers range from 40A to 200A. These circuit breakers are designed to protect your vehicle's electrical system fro overcurrent, overload, and short circuit situations. All products in this category are waterproof.
Technical specifications
Technical specifications
- Color: Black
- Operating Temperature: -40°C (-40°F) to 85°C (185°F)
- Pack Quantity: 1
- Amperage: 200A
- Standards: SAE J1625, SAE J1171, UL Rated - Housing
- Stud or Tab Size: 1, 4"
- Material: Thermoplastic
- Style: High Amperage
- Type: Type III, Manual-Reset
- Voltage: 42 VDC
- Surface Mount, Type III; Single Pole
- Thermoplastic; UL Rated 94V – 0 housing
- Stud insulators provided; 1/4” – 28 thread studs
- Also used as battery chargers and DC audio systems
- Can be used in auxiliary and accessory circuits; trucks, buses, RV and marine applications
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
ONE YEAR WARRANTY / DOES NOT APPLY IF THE PRODUCT IS DAMAGED BY BAD INSTALLATION / DOES NOT APPLY TO ELECTRICAL PARTS.
