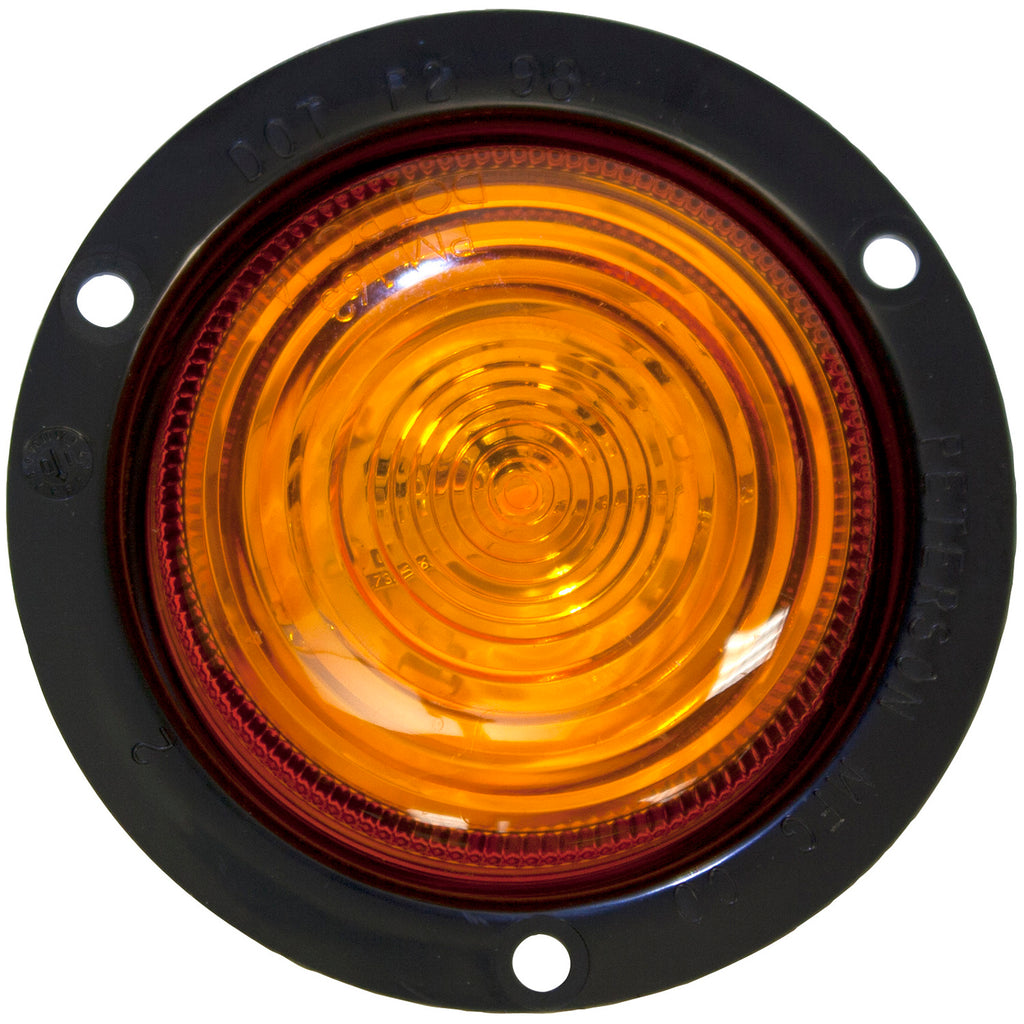

Peterson PC-Rated 2 1/2 inch Clearance & Side Marker Light Amber Flange
SKU: 207FA
Peterson PC-Rated 2 1/2 inch Clearance & Side Marker Light Amber Flange

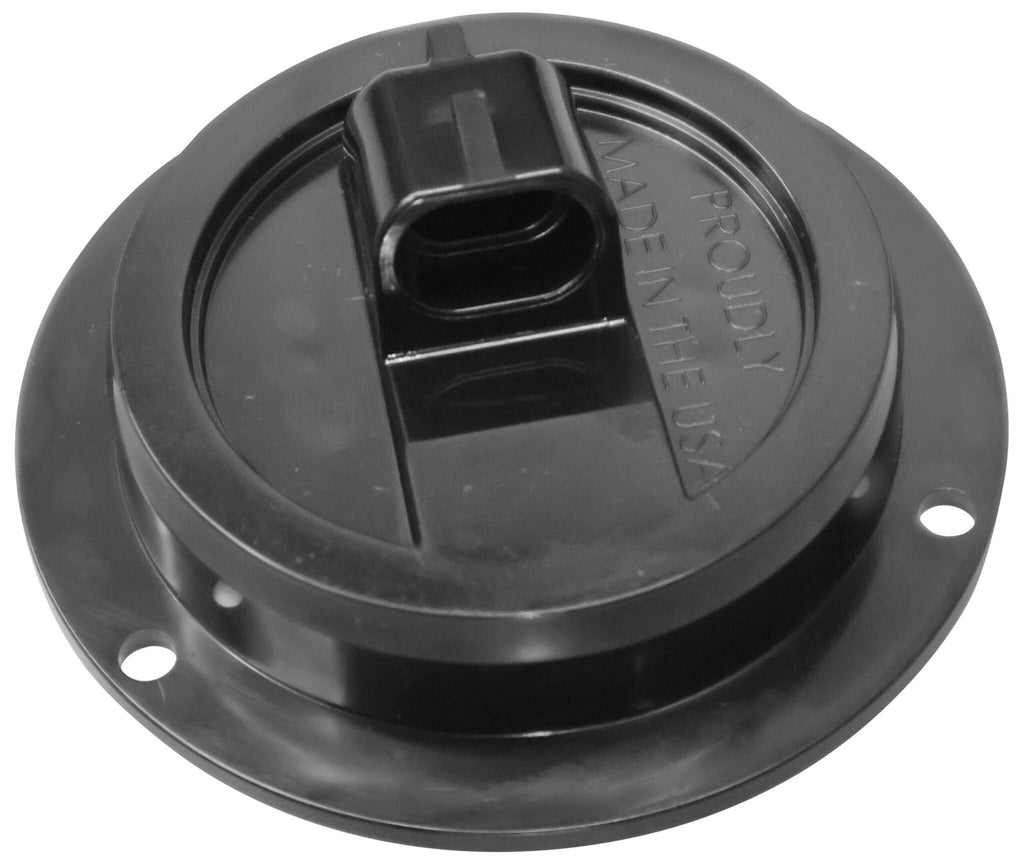

- 30 degree angle, 2-wire, silicone-sealed AMP receptacle integrated into housing.
- Attractive multi-diode look.
- Clearance & Side Marker Light
- PC-rated light functions as both clearance and side marker when properly mounted.
- See clear lens versions on Peterson LED Catalog page 45.
- Use 143-18 grommet for PC-rated grommet installation
- Maximum Voltage | 16 Volts
Minimum Voltage | 9 Volts

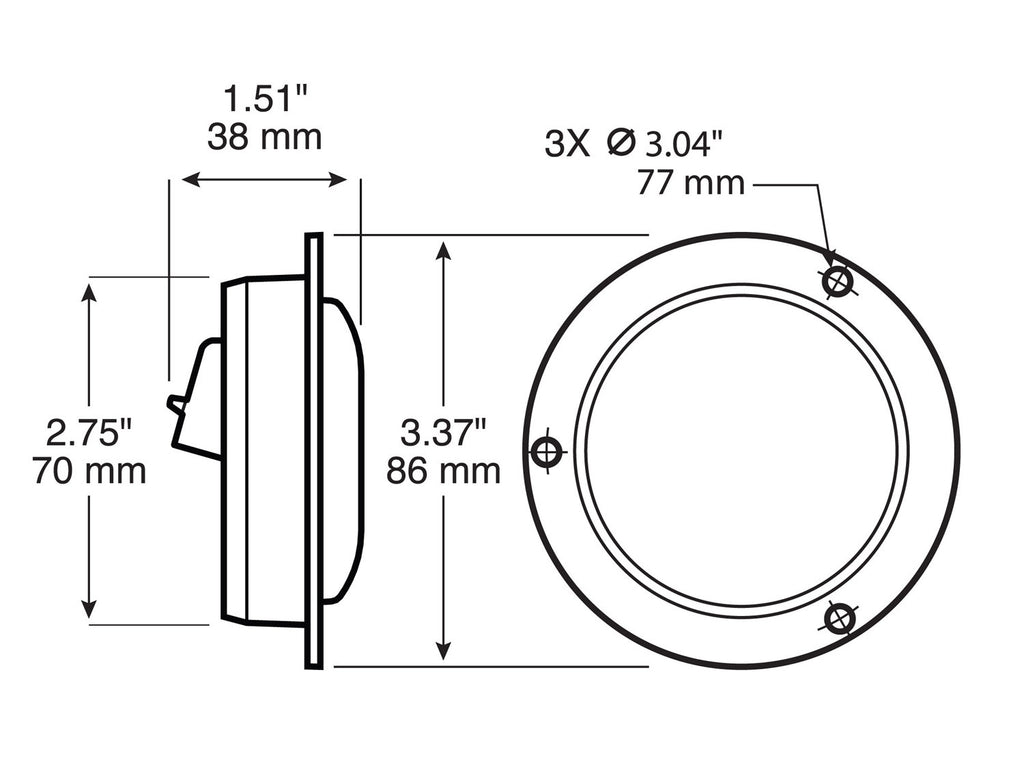

Diameter | 3.37 Inch
Height | 3.37 Inch
Length | 1.51 Inch
Voltage | 12 Volts
Width | 3.37 Inch
Integral Reflex | No
Mounting Type | Flange
PC Rated | Yes
Light Color | Amber
Bulb/Diode Count | 5
Lens Color | Amber
Bulb Technology | LED
Regulatory Compliance | DOT
Shape | 2-1/2-inch Round
Container Type | Poly Bag
Multi-Volt | No
Submersible | Yes
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
