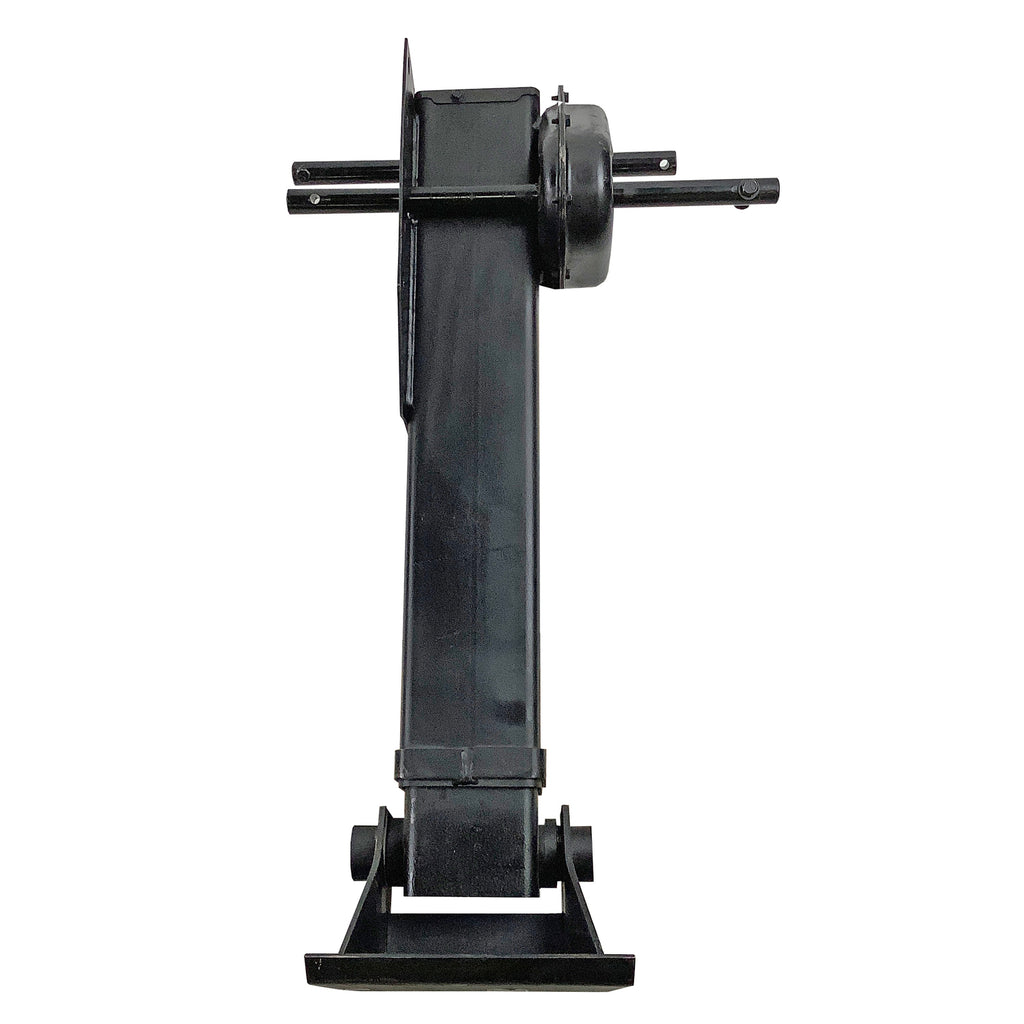

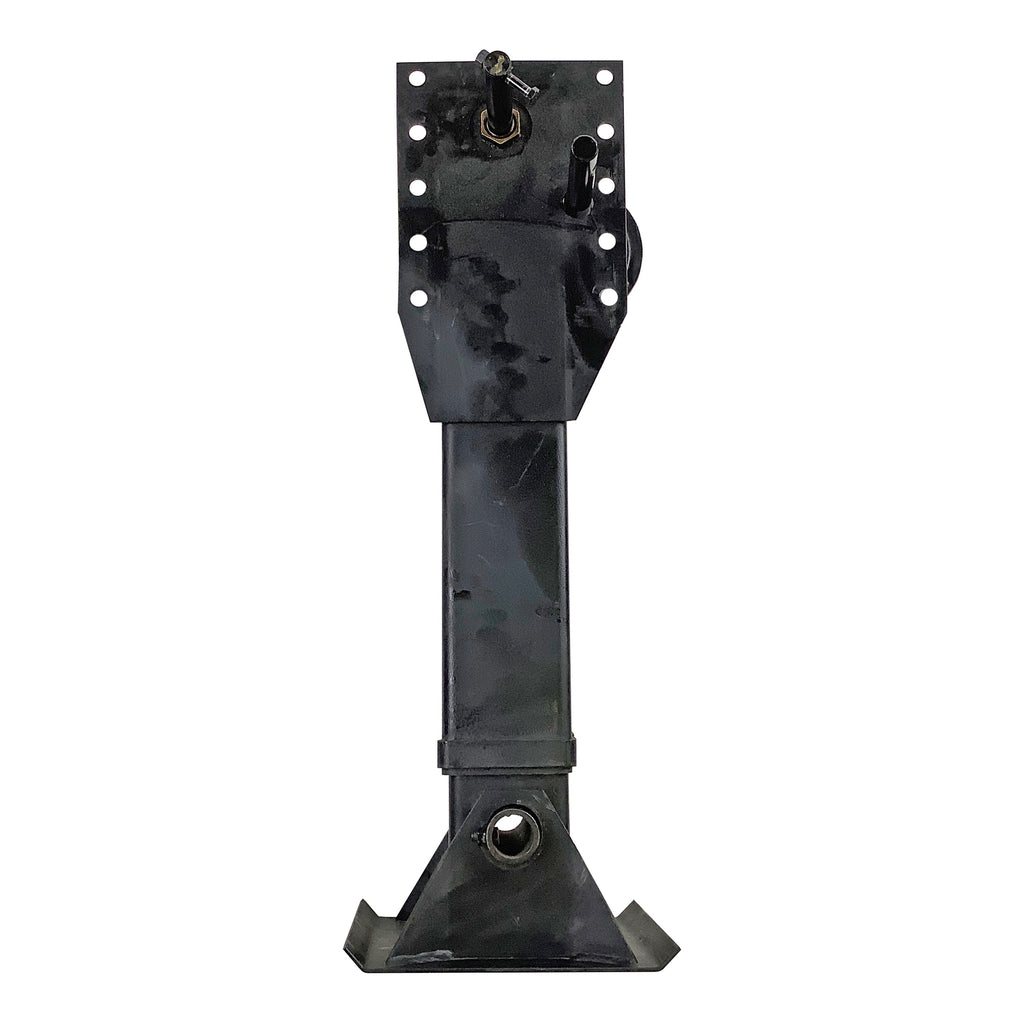

Holland 17" Atlas 65 Landing Gear Leg - Gearside
SKU: LL5B1-7200
Holland 17" Atlas 65 Landing Gear Leg - Gearside
Holland Atlas 65 Gearside Landing Gear Leg, Standard Shoe, 17 of Travel Distance
Benefit 1
Benefit 1
17" travel
Benefit 2
55K lift capacity / 170,000K ultimate load capacity / 30,000K side-load capacity
Benefit 3
Exclusive FloatingNut™ with Twin-Bulkhead construction
Benefit 4
Extra-strength ductile iron gears
Benefit 5
Black Armour® metal treatment protects against water, anti-icing chemicals, and creep corrosion for no rust penetration
Benefit 6
Includes 4.5" sand shoe
Benefit 7
Surpasses all AAR M-931 and all TTMA RP-4 performance specifications
Benefit 8
For refrigerated vans, grain trailers, dump trucks, dry bulk haulers, livestock, and other transport vehicles
Benefit 9
Standard 5-Year Warranty and optional 10-Year NoLube™ Extended Guarantee
VMRS
077003001
Sales Unit
EA
Quantity per Application
1
Height Each
12
Width Each
15.63
Length Each
38.63
Weight Each
99.10
Lifting Capacity
65000 lb
Static Load Capacity
170000 lb
Side Load Capacity
34000 lb
Leg Type
Gear side leg
Mounting Bolt Count per Leg
10
Travel
17.00 in
Extended Length
48.35 in
Retracted Length
31.35 in
Upper Leg Length
28.06 in
Foot Type
Sandshoe
Foot Size (H x W x L)
4.50 in x 10.00 in x 10.00 in
Hardware Included
No
Gear Ratio
low gear - 38.7 turns = 1" travel; high gear - 4.5 turns = 1" travel
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
