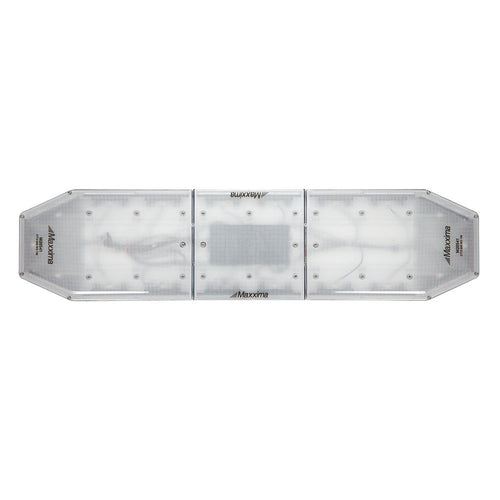

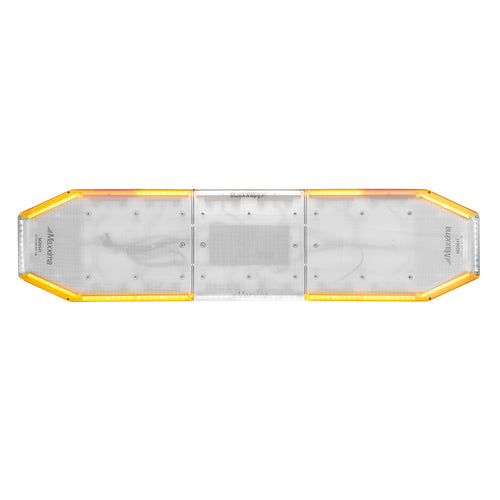

Maxxima 48" LED ELITE Lightbar, Amber / White, Work Lights, Alley Lights, Takedowns, Stop/Tail/Turn, and Traffic Director
SKU: M20541
Maxxima 48" LED ELITE Lightbar, Amber / White, Work Lights, Alley Lights, Takedowns, Stop/Tail/Turn, and Traffic Director

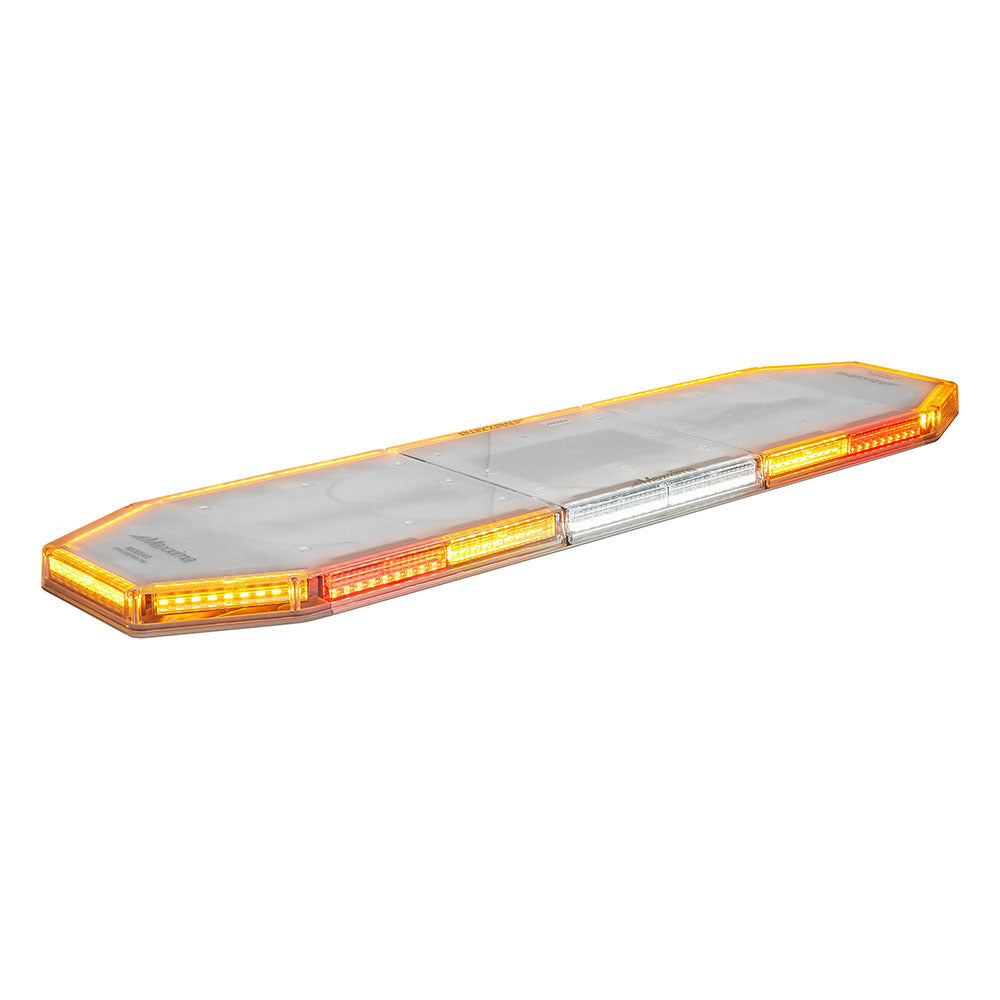

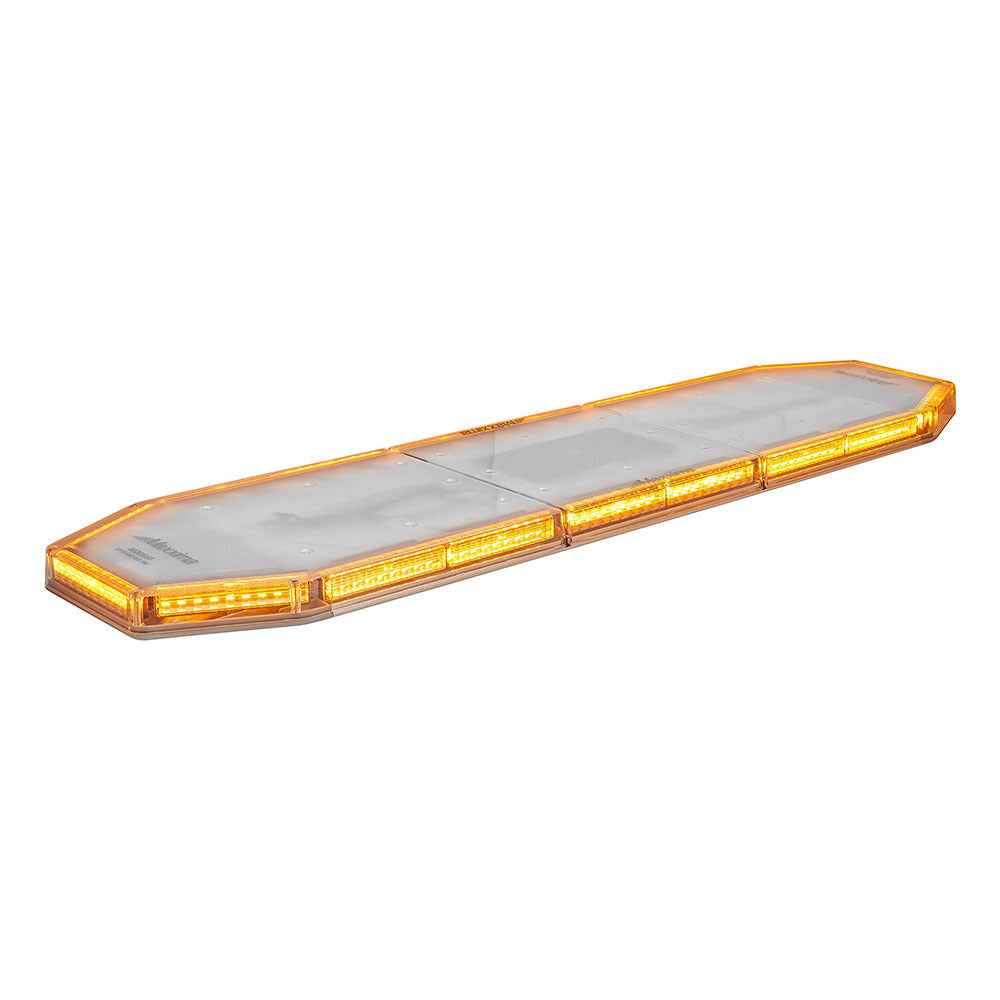

The M20541 ELITE 48” LED Lightbar is a fully populated, low-profile lighting solution built for performance and versatility. With 18 light heads and 234 LEDs, it delivers powerful warning output and includes rear-facing work lights, forward-facing takedowns, and side alley lights. Designed for 12/24V systems, it features a built-in traffic director, 30 programmable flash patterns, low power (DIM) mode, and front cut off—all configured via discrete wiring with no laptop required. Measuring 47.3” wide, it mounts flat with included U-brackets or optional roof mount feet (sold separately), and is compliant with J595 Class 1, J845 Class 1A, and CA13 standards. Backed by a 5-year warranty, it’s easily serviceable while mounted and supported by available replacement parts.
FEATURES & BENEFITS
- 48” Low Profile LED Lightbar

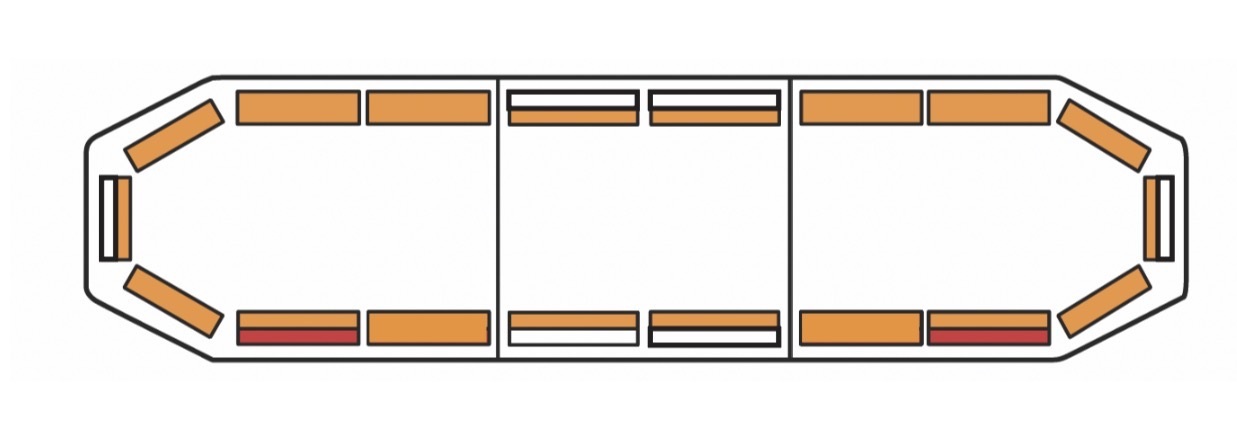

- Fully Populated, 18 Light Heads
- 30 Programmable Flashing Warning Patterns

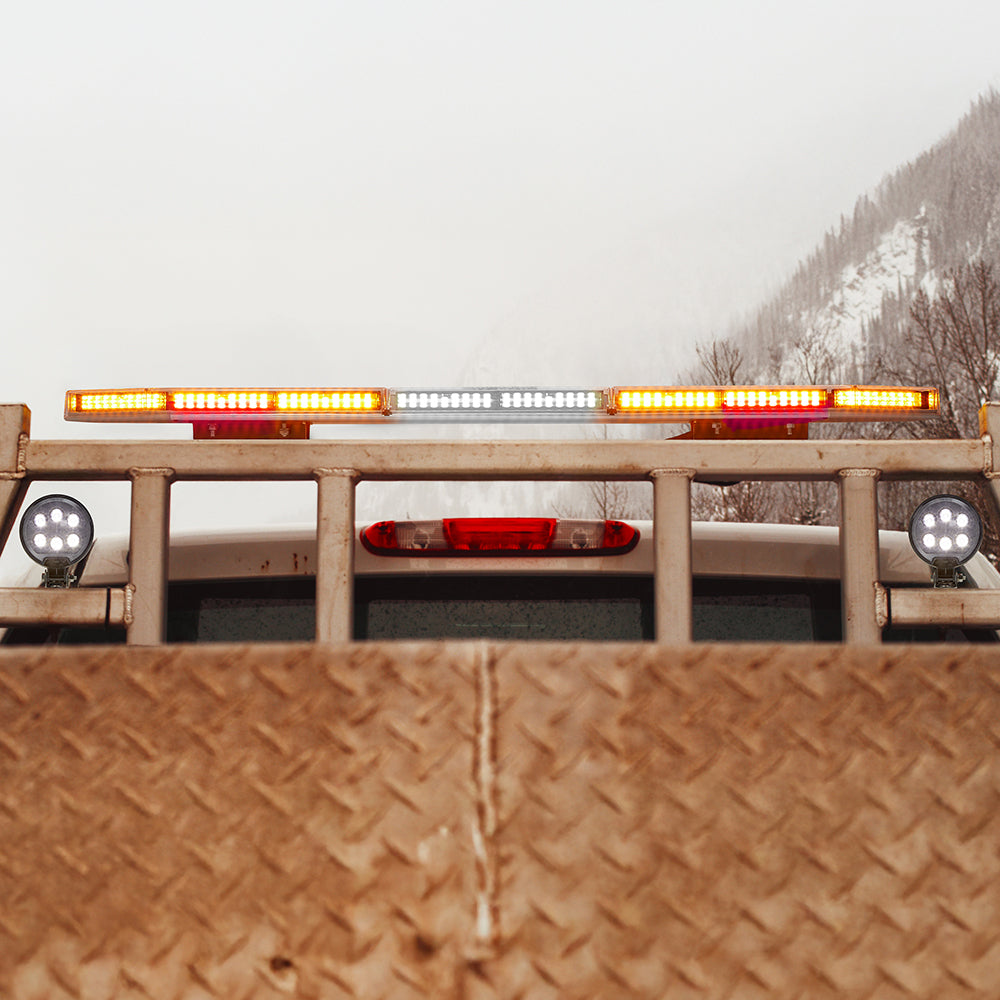

- Rear Facing Work Lights
- Forward Facing Takedowns
- Side Alley Lights

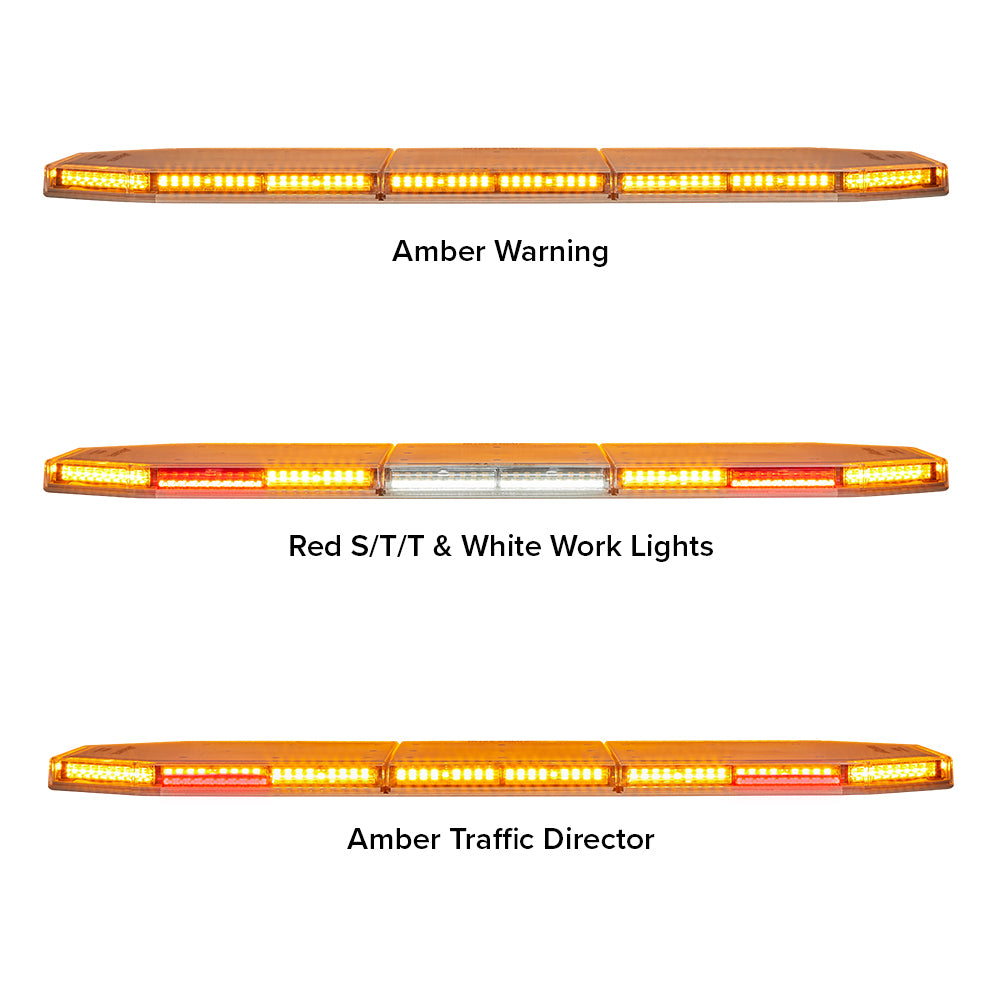

- Traffic Director - Left, Right, Center Out
- Low Power (DIM) Mode
- Front Cut Off
- Discrete Wiring - No Laptop Needed to Program
- Easily Serviceable While Mounted on Vehicle
- Replacement Parts Available
- Additional Mounting Options Available
- 5 Year Warranty
SPECIFICATIONS
- Voltage: 12/24VDC Dual Voltage
- Max Amp Draw: 10A Max 12V / 6A Max 24V
- Dimensions: 47.3” W x 1.7”H x 11.8”D
- Mounting: Flat Mount, U-Bracket Included
- Connector: 15 Jacketed Wires, 15’ Cable Length
- LEDs: 234
- Legal Heading: J595 Class 1, J845 Class 1A, CA13 W3-1M
- SAE: W-1M, CA T13
