Part Number | 79A8652

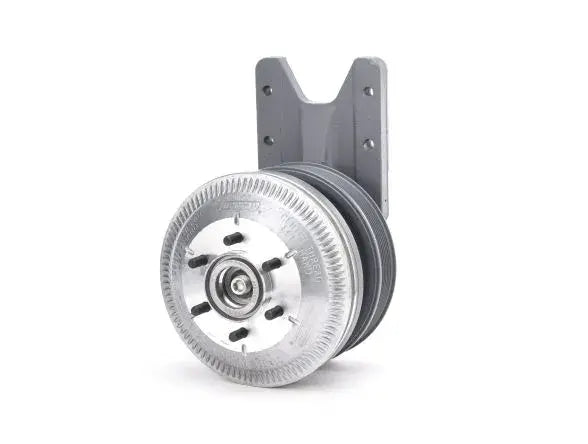

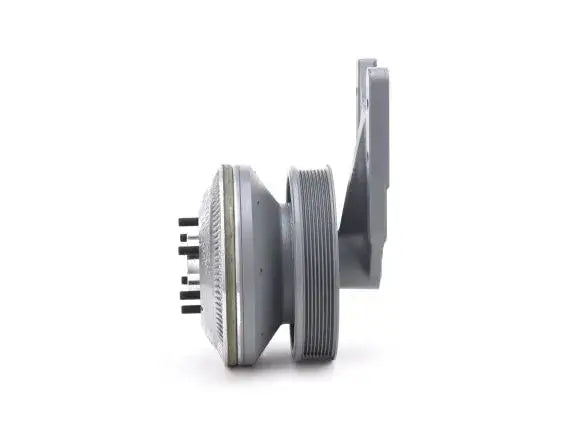

Horton System Description | CLUTCH*DMA SE 24*REMAN,CUM,190.3,8-PK,65.0 PLT,20.7 STUDS
Weight | 41.400000
Condition | Remanufactured
Application Summary | Daimler
Clutch Type | On/Off
Model Family | DMA
Application Make | FREIGHTLINER
Engine Manufacturer | CUMMINS
Belt Count | 1
Belt Groove Count | 8
Belt Groove Type | PK
Belt Type | 8PK
Engine Model | ISC
Fan Pilot Diameter (IN) | 2.56
Fan Blade Bolt Circle (IN) | 3.5
Pulley Diameter (IN) | 7
Application Model | M2
Core Charge? | Yes
Application Model Year | 2010, 2011, 2012
Fan Drive Bolt Pattern | 2.56'' Pilot, 3.5'' BC, 6x, 3/8-24 Thread, 0.81'' Long
Dimensions | BACK PULLEY DIAMETER;;FRONT PULLEY DIAMETER;;OVERALL LENGTH;;BELT CONFIGURATION;;BELT GROOVE LOCATION;;BOLT CIRCLE;;FAN PILOT DIAMETER;;FAN BLADE STUD LENGTH;;Stud Thread Size;;VERTICAL MOUNTING DISTANCE;;HORIZONTAL MOUNTING DISTANCE;;FAN CENTER;;Truck Manufacturer
