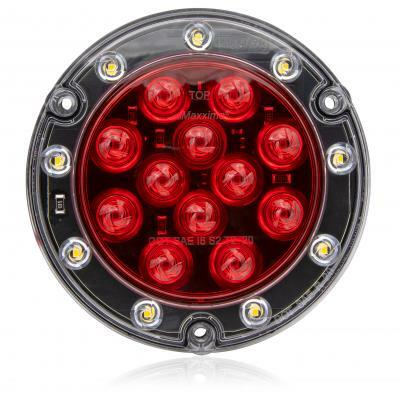

Maxxima 5.5" Round Hybrid Combination STT & Back Up Light
SKU: M85417R
Maxxima 5.5" Round Hybrid Combination STT & Back Up Light
Description
The Maxxima M85417R combines the functionality of a Stop/Turn/Tail and Back-Up light into a single, low-profile solution engineered for maximum performance and durability. Designed for commercial vehicles and trailer applications, this 5.5" round hybrid light features 21 high-output LEDs—12 red for STT functions and 9 white for back-up visibility.
The unit’s advanced patented Lightning Optics provide superior light distribution and clarity, while its sealed, moisture-proof electronics and polycarbonate construction ensure long-lasting performance in harsh environments. The M85417R installs easily with a 3-hole flange mount and PL-3 connector, and includes a pre-attached neoprene gasket for a weather-resistant seal.
Features
- Single Retail Unit
- Hybrid Series Round STT/Back Up
- Patented Lightning Optics
- Hybrid Patent No. 8,052,313
- US Patent No. 8,009,364
- US Patent No. 8,717,679 B2
- Sealed Moisture Proof Electronics
- Solid State Circuit Board
- Neoprene Gasket Included
- Polycarbonate Lens & Housing
- 5 Year Warranty
Specifications
- LEDs: 21 Total: 12 Red/9 White
- Diameter: 5.5"
- Depth: 0.5"
- DOT/SAE: J1398, J585e, J1935, J593c
- Legal Heading: R, I6S2T2
- Voltage: 12.8VDC
- Amp Draw: 250ma STT/260ma Back Up

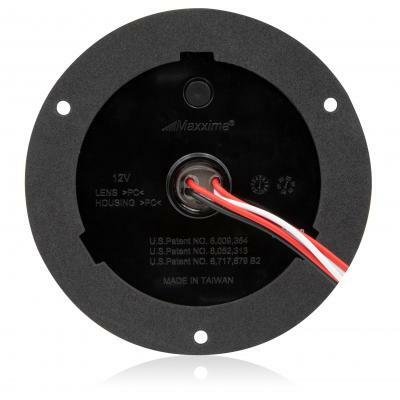

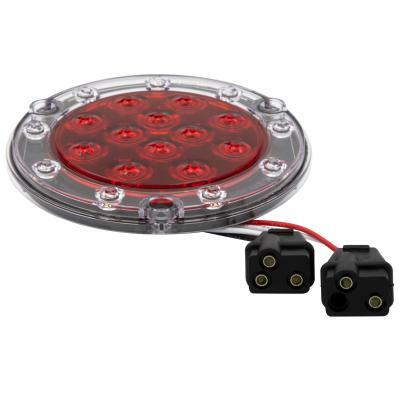

- Connector: (2) Female PL-3 Pigtail
- Mounting: Three Hole Flange
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
