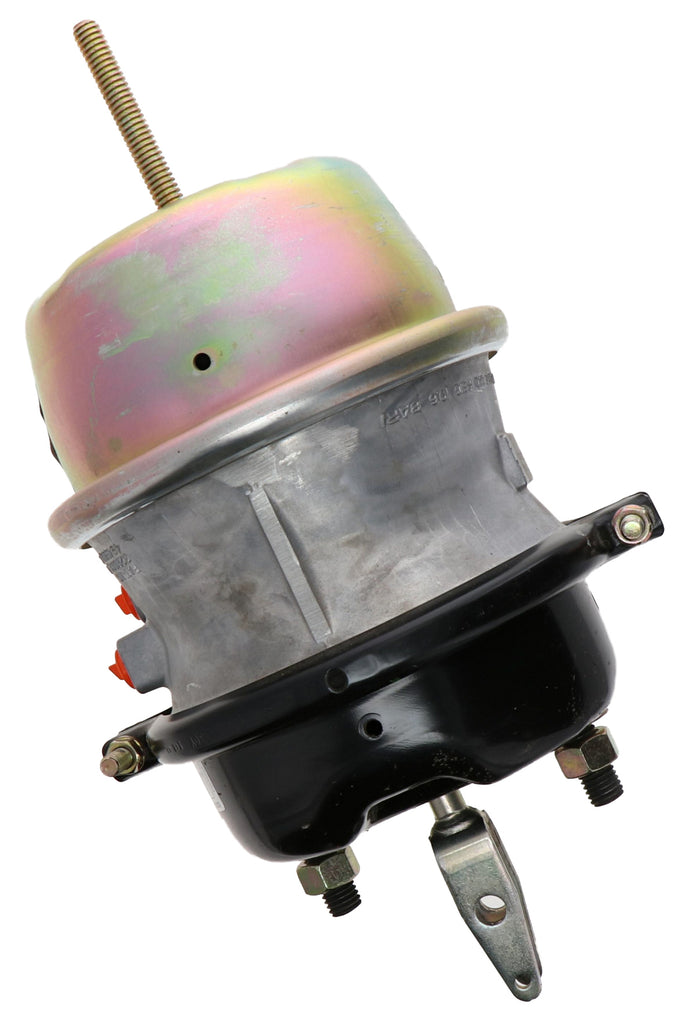

Brake Chamber - T30/36 LS
SKU: US31-11159
Brake Chamber - T30/36 LS
BRK CHAMBER - T30/36 LS
AIR PORT POSITION: 90°
AIR PORT THREAD DIAMETER: 3/8-18 NPTF
BRACKET TO END OF SPRING HOUSING LENGTH: 10.6 IN. CLEVIS PIN LENGTH: 2.25 IN.
FINISH: POWDERCOAT
FREIGHT CLASS 70
GRADE 5
HOUSING MATERIAL: 9 GAUGE STEEL
MAXIMUM PRESSURE: 150 PSI
PIGGYBACK LENGTH: 8”
PUSH ROD DIAMETER: 5/8-18 UNF
PUSH ROD LENGTH: 1”
SERIES GOLDSEAL
SERVICE CHAMBER SIZE: 30/36
SERVICE CLAMPBAND POSITION: 0°
SERVICE CLAMPBAND SIZE: 10.2”
SPRING HOUSING FLANGE SIZE: 9.1”
WELDED CLEVIS
STROKE LENGTH: 3”
STROKE TYPE: LONG
STUD DISTANCE: 4.75”
STUD LENGTH: 1.5”
STUD TYPE: 5/8-11 UNC
AIR PORT THREAD DIAMETER: 3/8-18 NPTF
BRACKET TO END OF SPRING HOUSING LENGTH: 10.6 IN. CLEVIS PIN LENGTH: 2.25 IN.
FINISH: POWDERCOAT
FREIGHT CLASS 70
GRADE 5
HOUSING MATERIAL: 9 GAUGE STEEL
MAXIMUM PRESSURE: 150 PSI
PIGGYBACK LENGTH: 8”
PUSH ROD DIAMETER: 5/8-18 UNF
PUSH ROD LENGTH: 1”
SERIES GOLDSEAL
SERVICE CHAMBER SIZE: 30/36
SERVICE CLAMPBAND POSITION: 0°
SERVICE CLAMPBAND SIZE: 10.2”
SPRING HOUSING FLANGE SIZE: 9.1”
WELDED CLEVIS
STROKE LENGTH: 3”
STROKE TYPE: LONG
STUD DISTANCE: 4.75”
STUD LENGTH: 1.5”
STUD TYPE: 5/8-11 UNC
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
