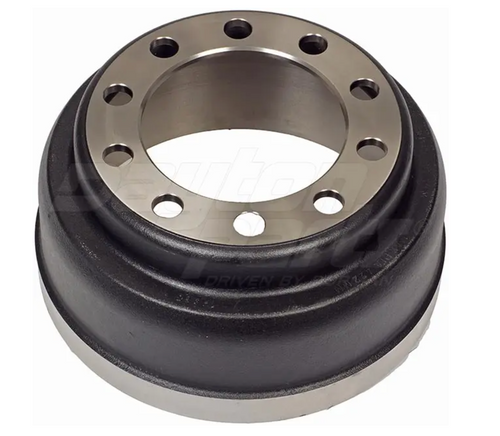

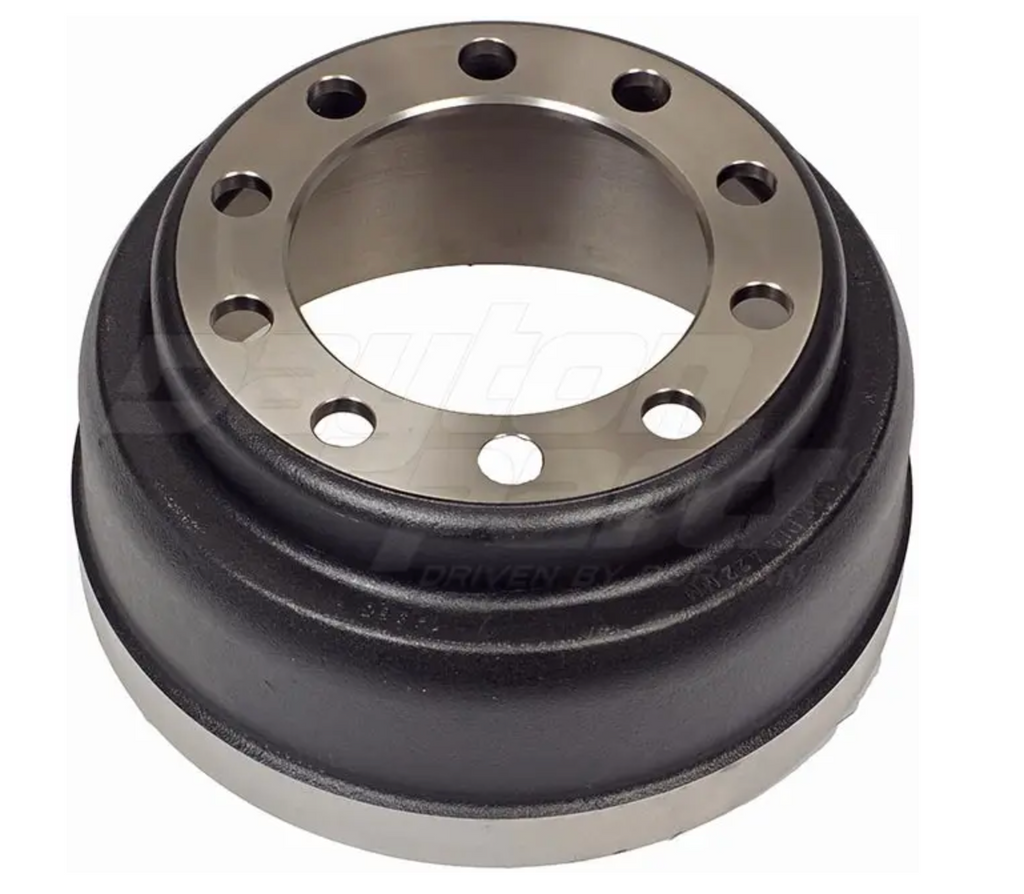

Brake Drum 16.50” X 5.00”, Center Hole Diameter 8.78 in, Front
SKU: HD18M
Brake Drum 16.50” X 5.00”, Center Hole Diameter 8.78 in, Front
ABS Tone Ring Included | No
Balanced | Yes

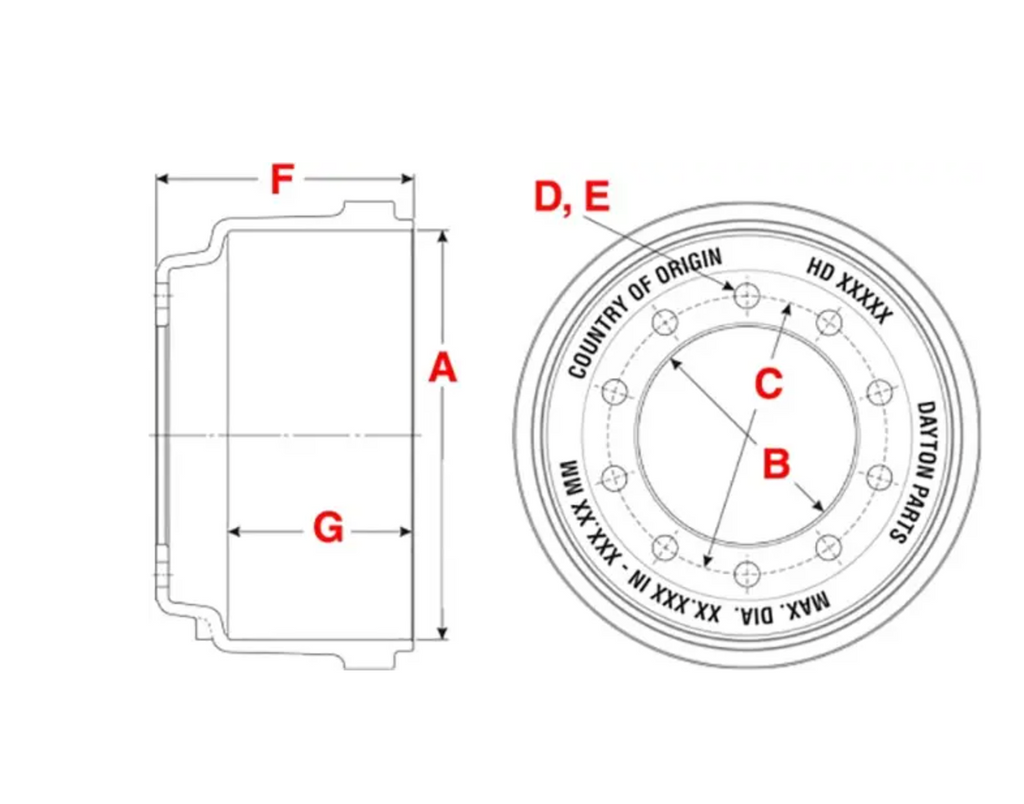

Bolt Circle Dia. (C) | 11.25 in
Bolt Circle Diameter | 11.25 in
Bolt Hole Diameter | 1.31 in
Bolt Hole Quantity | 10
Bolt Hole Sz. (E) | 1.31 in
Bolt Holes (D) | 10
Brake Drum | Air Brake
Brake Shoe Length | 5.98 in
Brake Size | 16.5 in; 5 in
Brake Size (A) | 16.5 in x 5 in
Brake Surface Finish | Machined
Brake Surface Wid. (G) | 5.98 in
Center Hole Diameter | 8.78 in
Depth | 9.04 in
Directional or Non-Directional Brake Surface | Non-Directional
Drum Bolt Circle Diameter | 11.25 in
Drum Brake Hardware Included | No
Drum Weight | 91 lb
Hardware Included | No
Hole Size | 1.28 in
Inside Diameter | 16.5 in
Material | Gray Iron
Maximum Brake Diameter (Discard) | 16.5 in
Maximum Drum Diameter | 16.62 in
Mount Type | Outboard
Mounting Hole Diameter | 1.31 in
Nominal Drum Diameter | 16.5 in
Outer Cooling Fins | No
Outside Diameter | 18.76 in
Overall Height | 9.04 in
Overall Height (F) | 9.04 in
Package Contents | 1 Brake Drum
Pallet Quantity | 20
Part Number | HD18M
Part Type | Brake Drum
Pilot Dia. (B) | 8.78 in
Rust Resistant Coating | Yes
Weight | 90.800000
Balanced | Yes
Bolt Circle Dia. (C) | 11.25 in
Bolt Circle Diameter | 11.25 in
Bolt Hole Diameter | 1.31 in
Bolt Hole Quantity | 10
Bolt Hole Sz. (E) | 1.31 in
Bolt Holes (D) | 10
Brake Drum | Air Brake
Brake Shoe Length | 5.98 in
Brake Size | 16.5 in; 5 in
Brake Size (A) | 16.5 in x 5 in
Brake Surface Finish | Machined
Brake Surface Wid. (G) | 5.98 in
Center Hole Diameter | 8.78 in
Depth | 9.04 in
Directional or Non-Directional Brake Surface | Non-Directional
Drum Bolt Circle Diameter | 11.25 in
Drum Brake Hardware Included | No
Drum Weight | 91 lb
Hardware Included | No
Hole Size | 1.28 in
Inside Diameter | 16.5 in
Material | Gray Iron
Maximum Brake Diameter (Discard) | 16.5 in
Maximum Drum Diameter | 16.62 in
Mount Type | Outboard
Mounting Hole Diameter | 1.31 in
Nominal Drum Diameter | 16.5 in
Outer Cooling Fins | No
Outside Diameter | 18.76 in
Overall Height | 9.04 in
Overall Height (F) | 9.04 in
Package Contents | 1 Brake Drum
Pallet Quantity | 20
Part Number | HD18M
Part Type | Brake Drum
Pilot Dia. (B) | 8.78 in
Rust Resistant Coating | Yes
Weight | 90.800000
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
