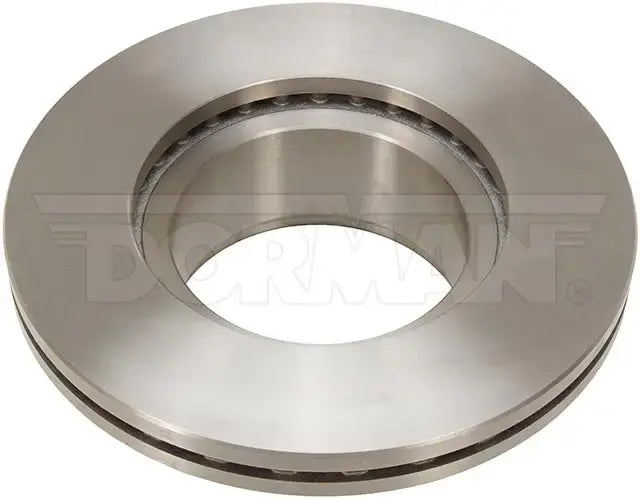

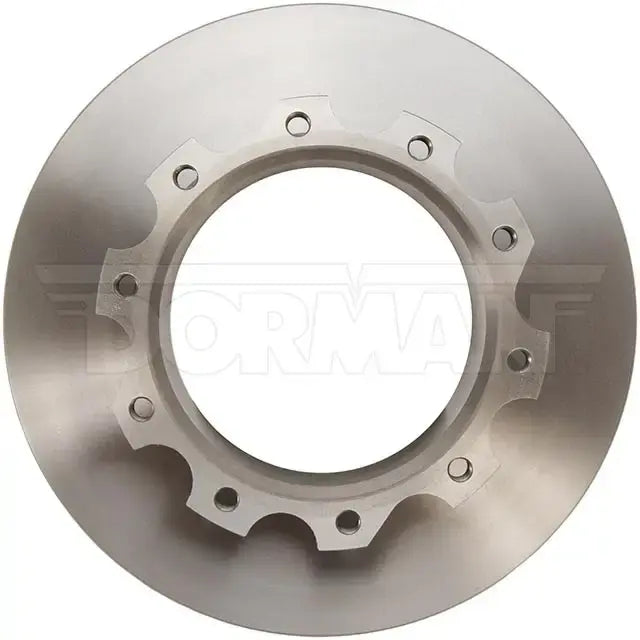

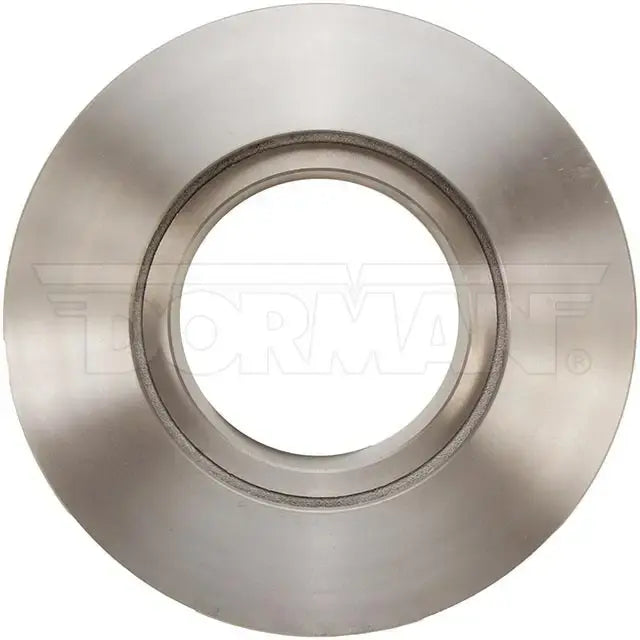

Disc Brake Rotor Air Disc - Rotor ADB22X 5.44 Tall
SKU: 10082589
Disc Brake Rotor Air Disc - Rotor ADB22X 5.44 Tall
Axle Manufacturer | Paccar
Bearings Included | No
Brake Surface Directional Non-Directional | Non-Directional
Brake Surface Finish | Machined
Brake System | Air Disc
Center Hole Diameter | 220.0 mm
Construction | Full Cast
Disc Finish | Plain
Discard Thickness | 37.0 mm
Grade Type | Standard Replacement
Inner Bearing Cup | No
Mounting Bolt Hole Circle Diameter | 249.5 mm
Mounting Bolt Hole Diameter | 5/8 in-11
Mounting Bolt Hole Quantity | 10.0
Nominal Thickness | 45.0 mm
Outer Bearing Cup | No
Outside Diameter | 430.0 mm
Overall Height | 138.2 mm

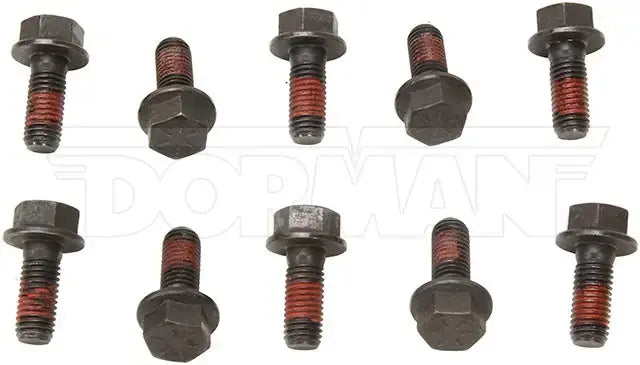

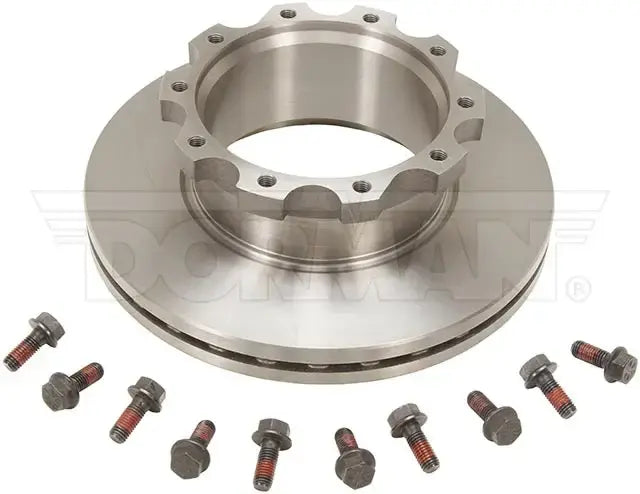

Package Contents | 1 Rotor, Mounting Hardware
Part Number | ADR803
Part Type | Disc Brake Rotor
Races Included | No
Rotor Type | U-Shaped
Rust Resistant Coating | No
Screws Included | No
Solid Or Vented Type Rotor | Vented
Weight | 80.100000
Bearings Included | No
Brake Surface Directional Non-Directional | Non-Directional
Brake Surface Finish | Machined
Brake System | Air Disc
Center Hole Diameter | 220.0 mm
Construction | Full Cast
Disc Finish | Plain
Discard Thickness | 37.0 mm
Grade Type | Standard Replacement
Inner Bearing Cup | No
Mounting Bolt Hole Circle Diameter | 249.5 mm
Mounting Bolt Hole Diameter | 5/8 in-11
Mounting Bolt Hole Quantity | 10.0
Nominal Thickness | 45.0 mm
Outer Bearing Cup | No
Outside Diameter | 430.0 mm
Overall Height | 138.2 mm
Package Contents | 1 Rotor, Mounting Hardware
Part Number | ADR803
Part Type | Disc Brake Rotor
Races Included | No
Rotor Type | U-Shaped
Rust Resistant Coating | No
Screws Included | No
Solid Or Vented Type Rotor | Vented
Weight | 80.100000
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
