Maxxima Warning Minibar, Amber/White Dual Color, Clear Lens, Permanent Mount Light Bar
SKU: M20488YWCL-DC
Maxxima Warning Minibar, Amber/White Dual Color, Clear Lens, Permanent Mount Light Bar

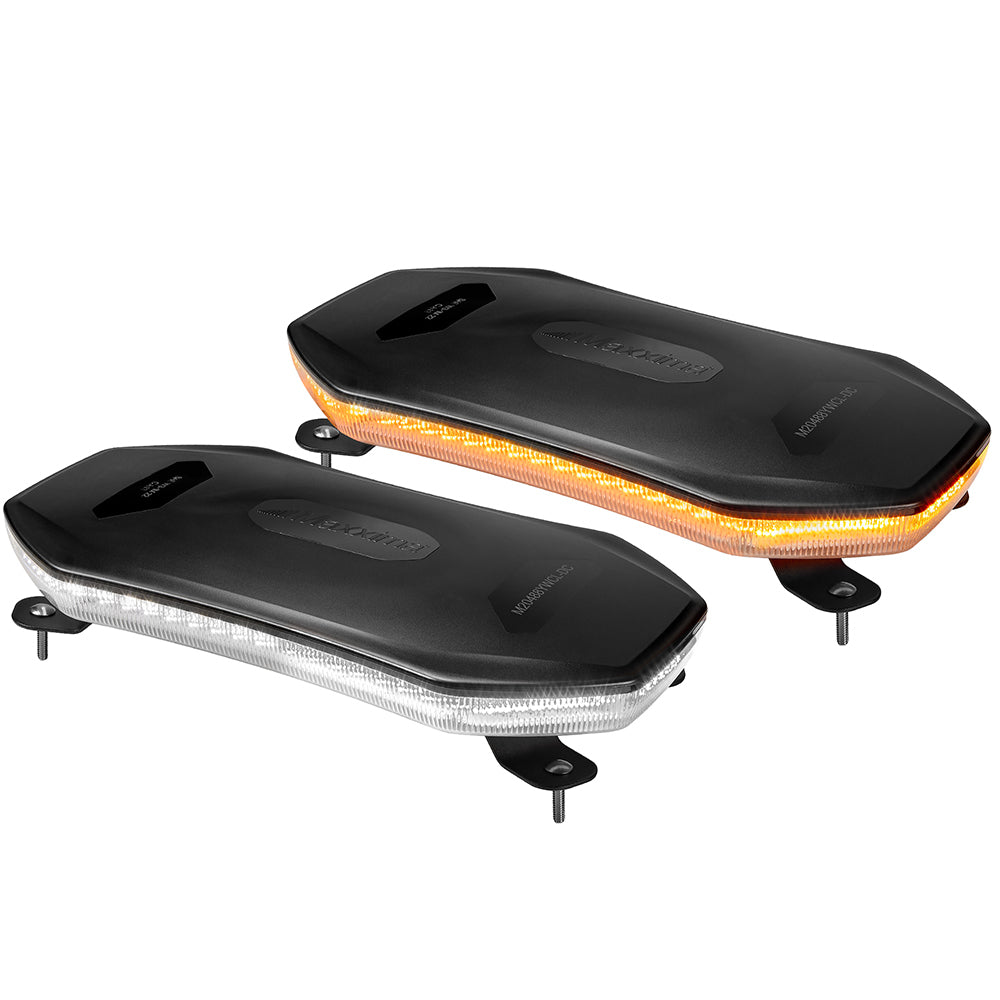

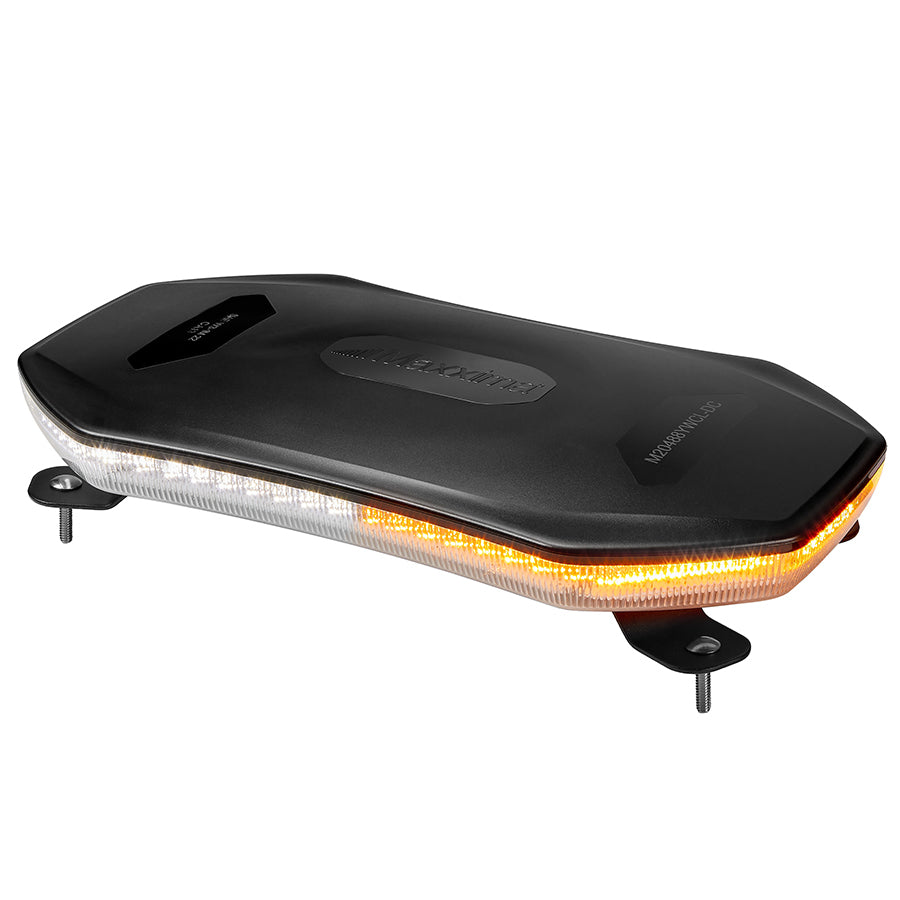

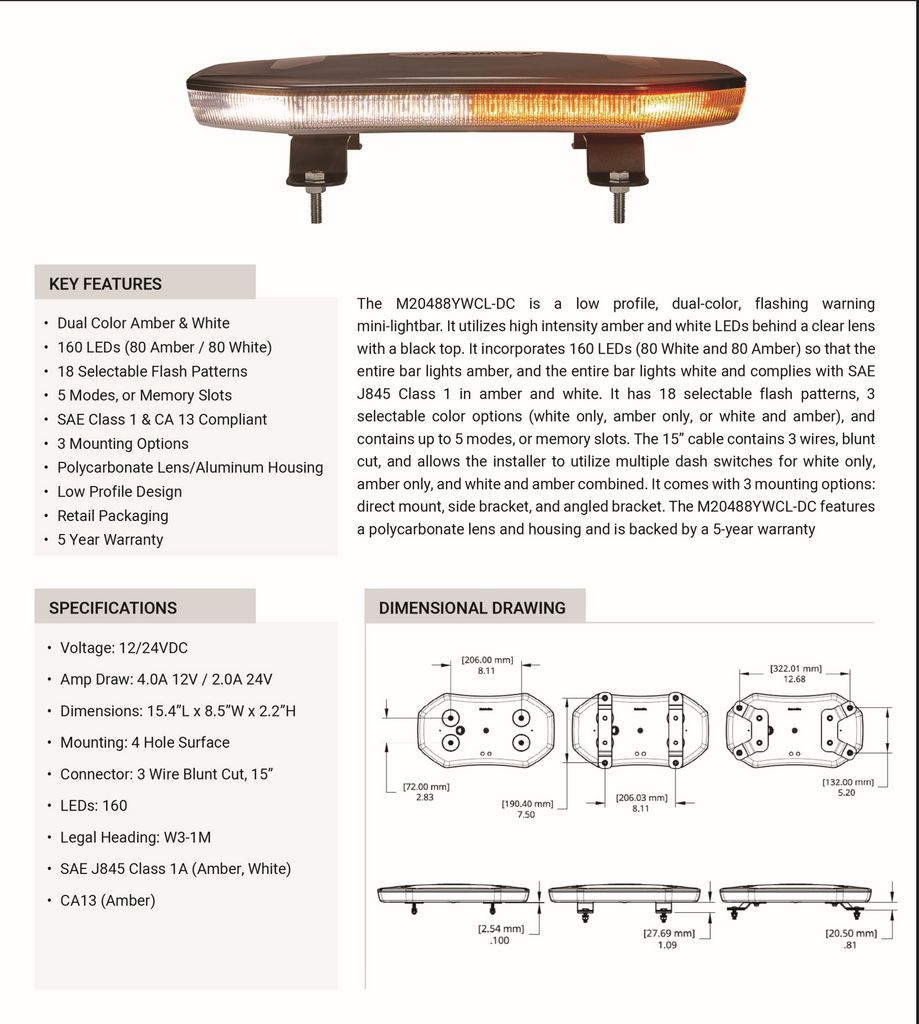

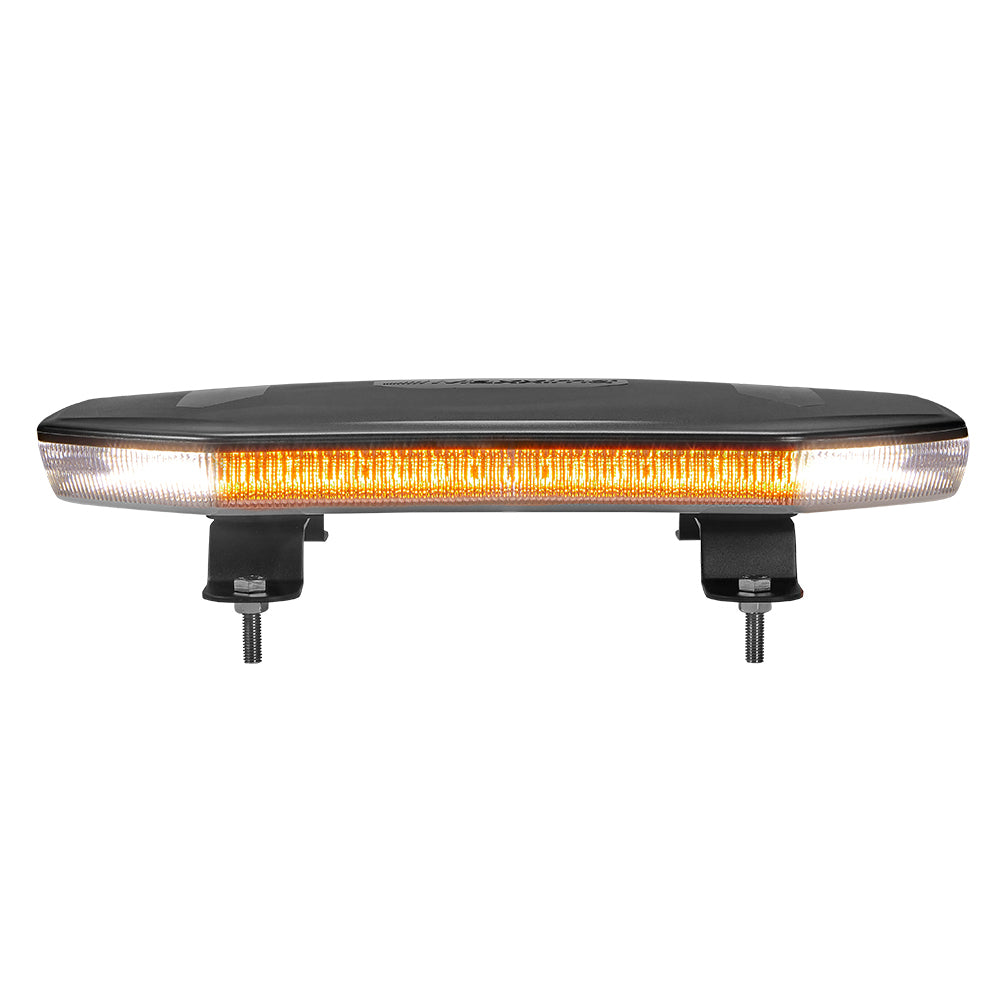

The M20488YWCL-DC is a low profile, dual-color, flashing warning mini-lightbar. It utilizes high intensity amber and white LEDs behind a clear lens with a black top. It incorporates 160 LEDs (80 White and 80 Amber) so that the entire bar lights amber, and the entire bar lights white and complies with SAE J845 Class 1 in amber and white. It has 18 selectable flash patterns, 3 selectable color options (white only, amber only, or white and amber), and contains up to 5 modes, or memory slots. The 15” cable contains 3 wires, blunt cut, and allows the installer to utilize multiple dash switches for white only, amber only, and white and amber combined. It comes with 3 mounting options: direct mount, side bracket, and angled bracket. The M20488YWCL-DC features a polycarbonate lens and housing and is backed by a 5-year warranty.
FEATURES & BENEFITS
- Dual Color Amber & White
- Entire Bar Lights Amber / Entire Bar Lights White
- 160 LEDs (80 Amber, 80 White)
- 18 Selectable Flash Patterns
- Up to 5 modes, or memory slots
- SAE Class 1 Compliant in Amber and White
- CA 13 Compliant in Amber
- Also available in All-Amber, Amber/Blue, and Amber/Green

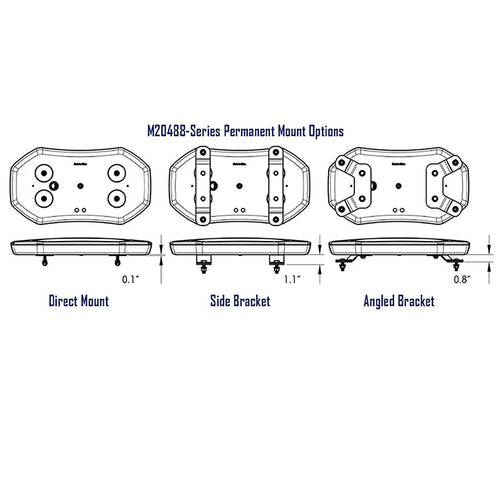

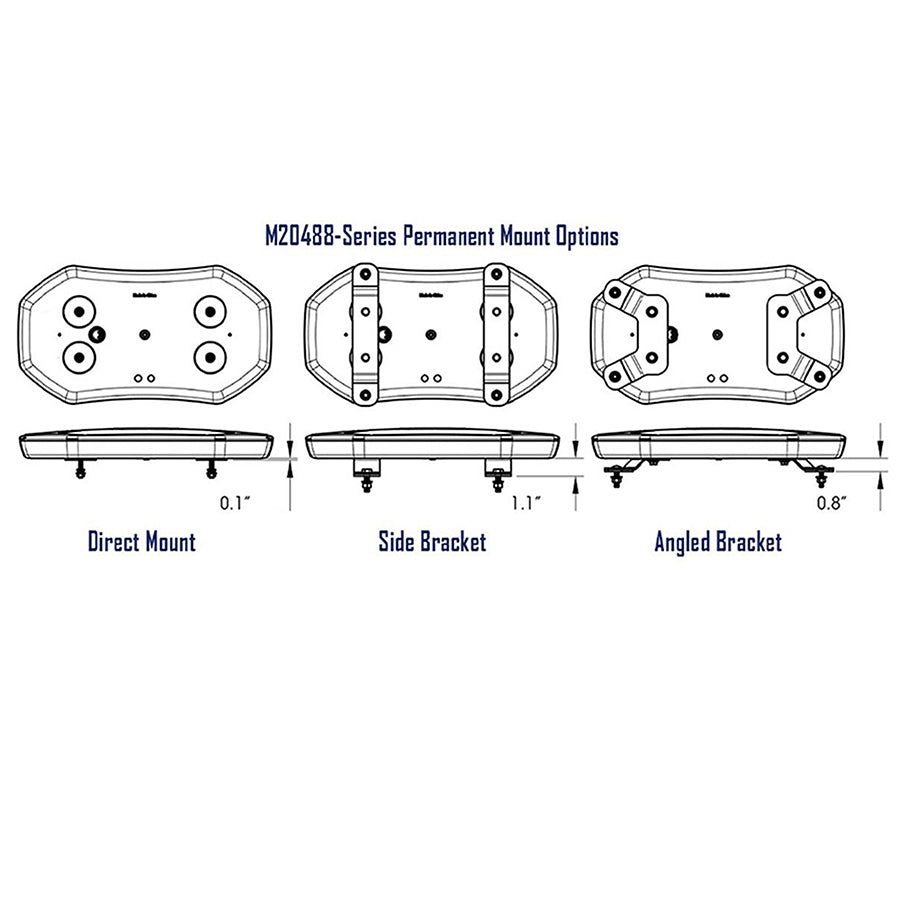

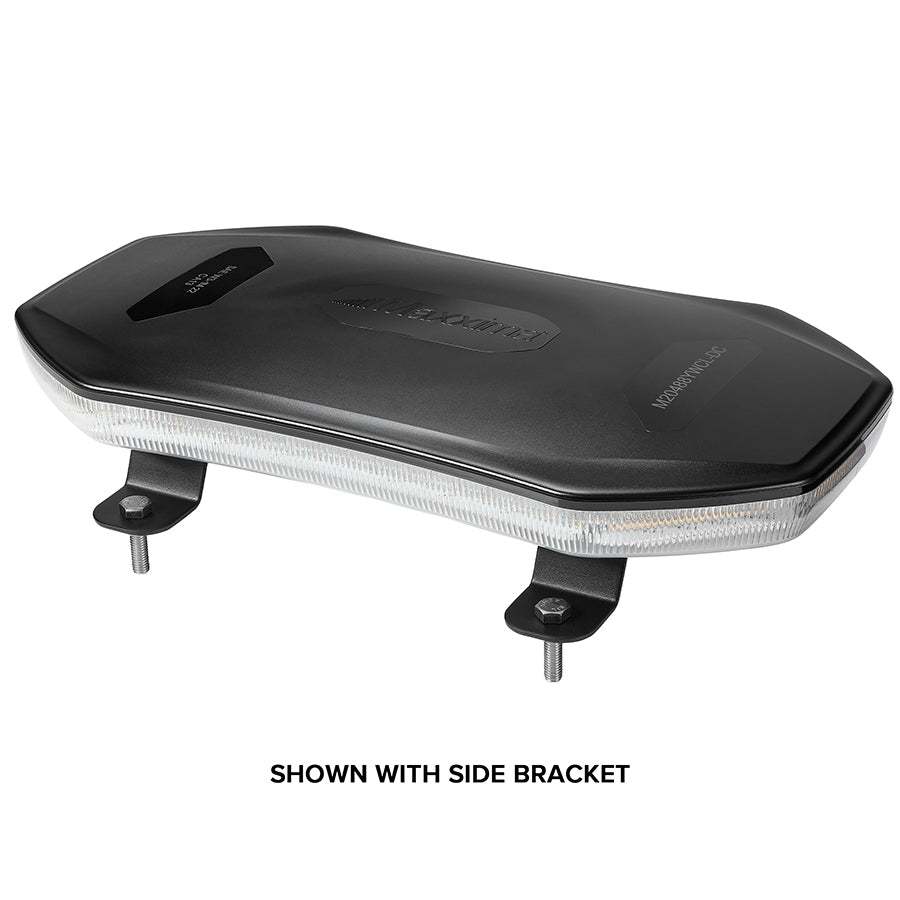

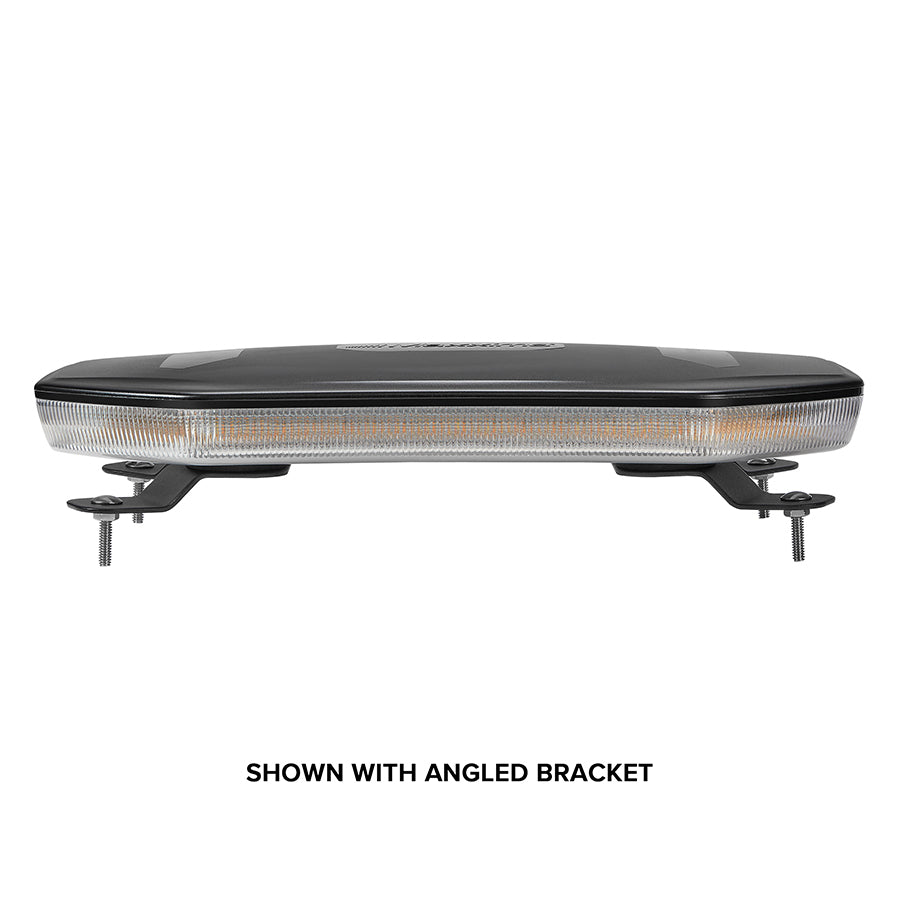

- Includes 3 Mounting Options: Direct Mount, Side Bracket, and Angled Bracket
- Polycarbonate Lens & Aluminum Housing
- Low Profile Design
- Retail Packaging
- 5 Year Warranty

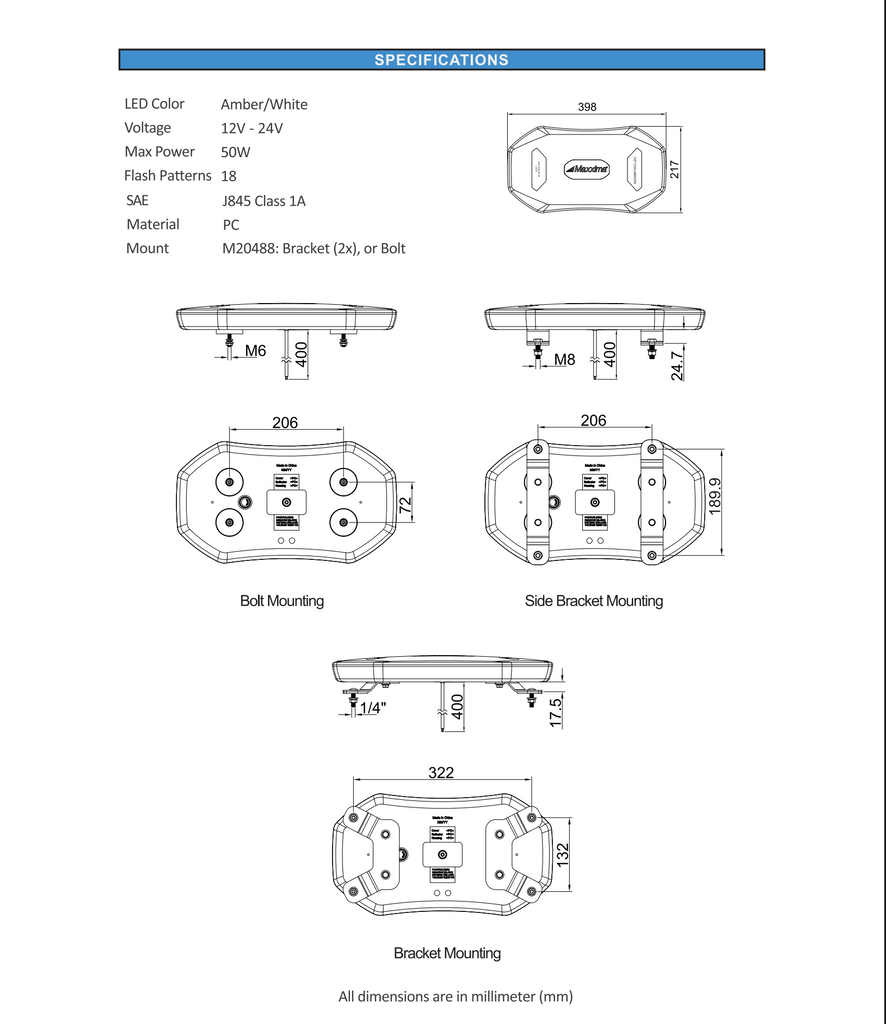

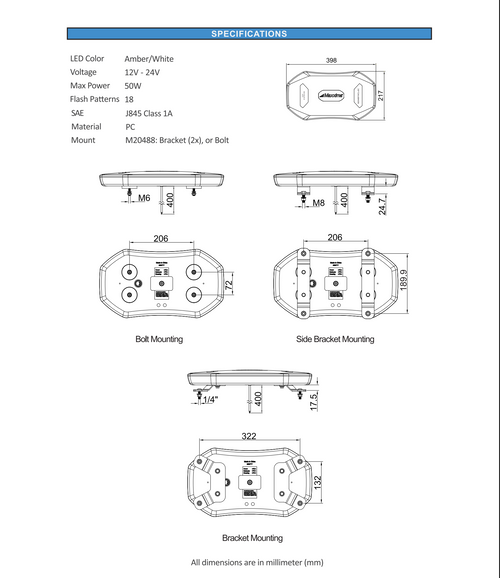

SPECIFICATIONS
- Voltage: 12/24VDC
- Amp Draw: 4.0A 12V / 2.0A 24V
- Dimensions: 15.4”L x 8.5”W x 2.2” H
- Mounting: 4 Hole Surface

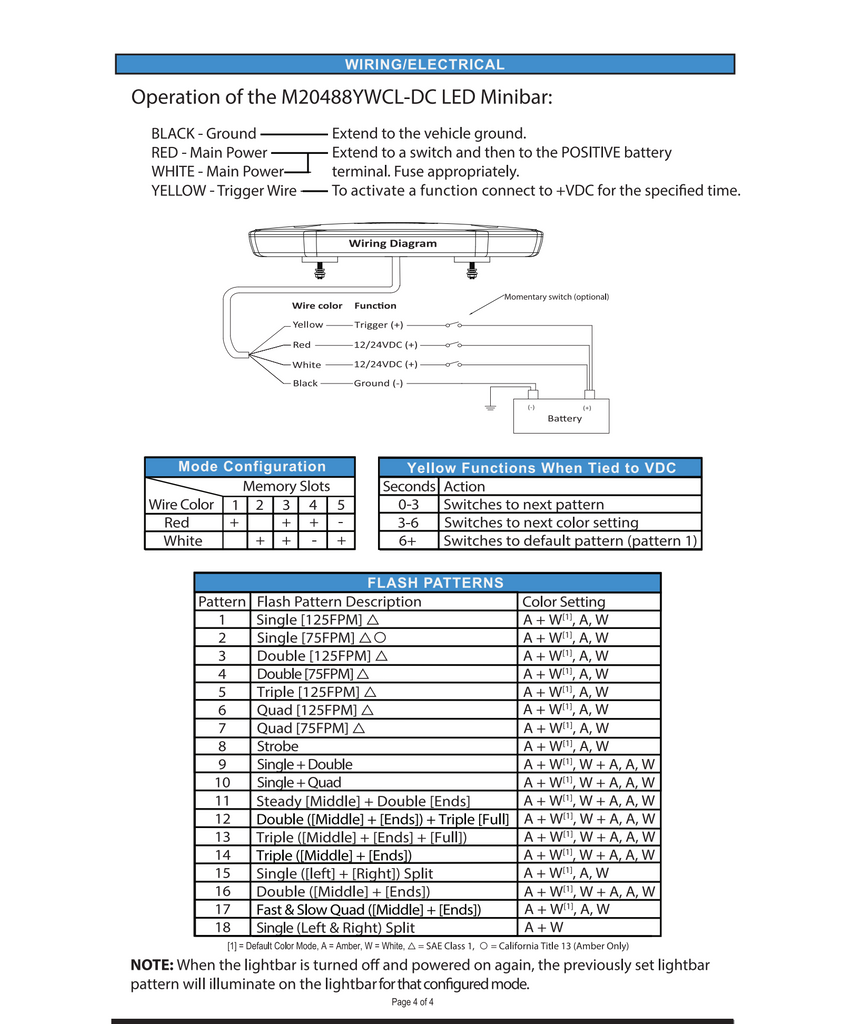

- Connector: 3 Wire Blunt Cut, 15”
- LEDs: 160
- Legal Heading: W3-1M
- SAE J845 Class 1A (amber, white), CA13 (amber)
WARNING: Cancer, birth defects or other reproductive harm. www.p65warnings.ca.gov
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
