Maxxima 1.25" Round P2/P3/PC2 Clearance Marker Amber Clear Lens, 3/4" Mounting
SKU: M09410YCL
Maxxima 1.25" Round P2/P3/PC2 Clearance Marker Amber Clear Lens, 3/4" Mounting
Description

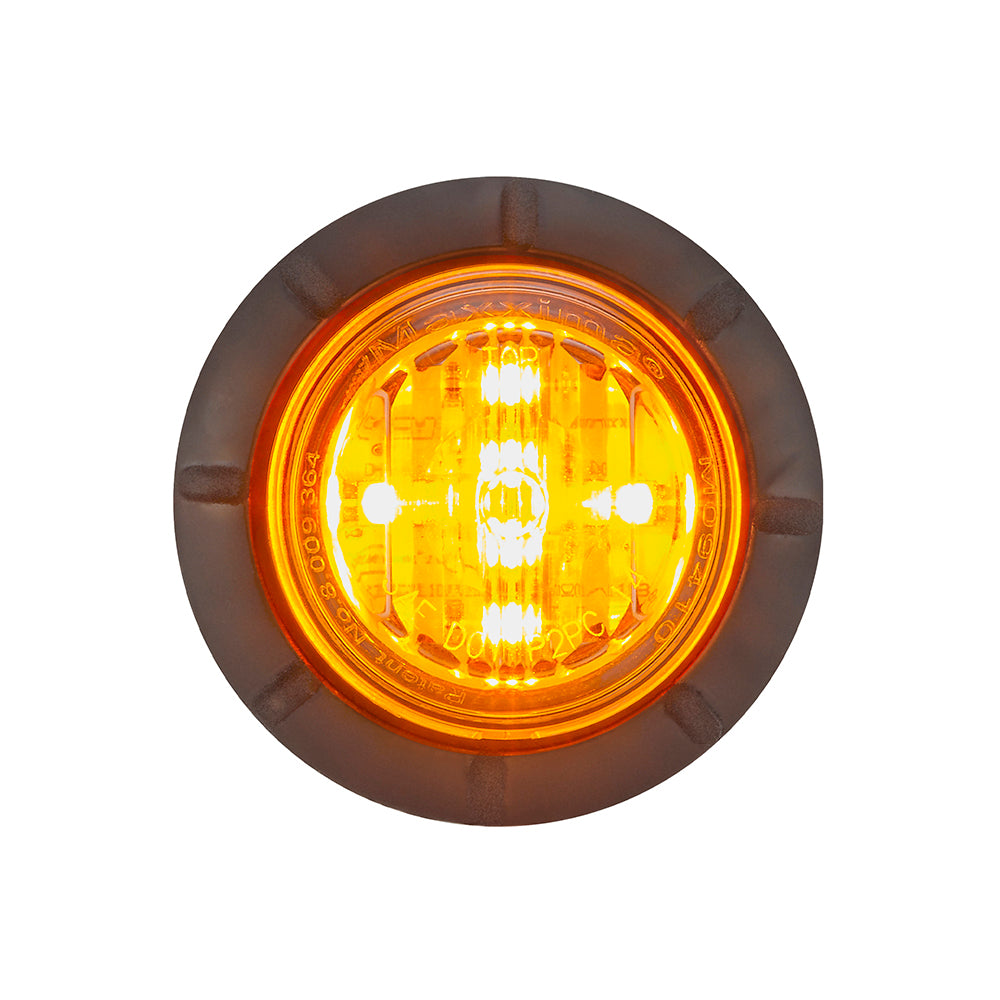

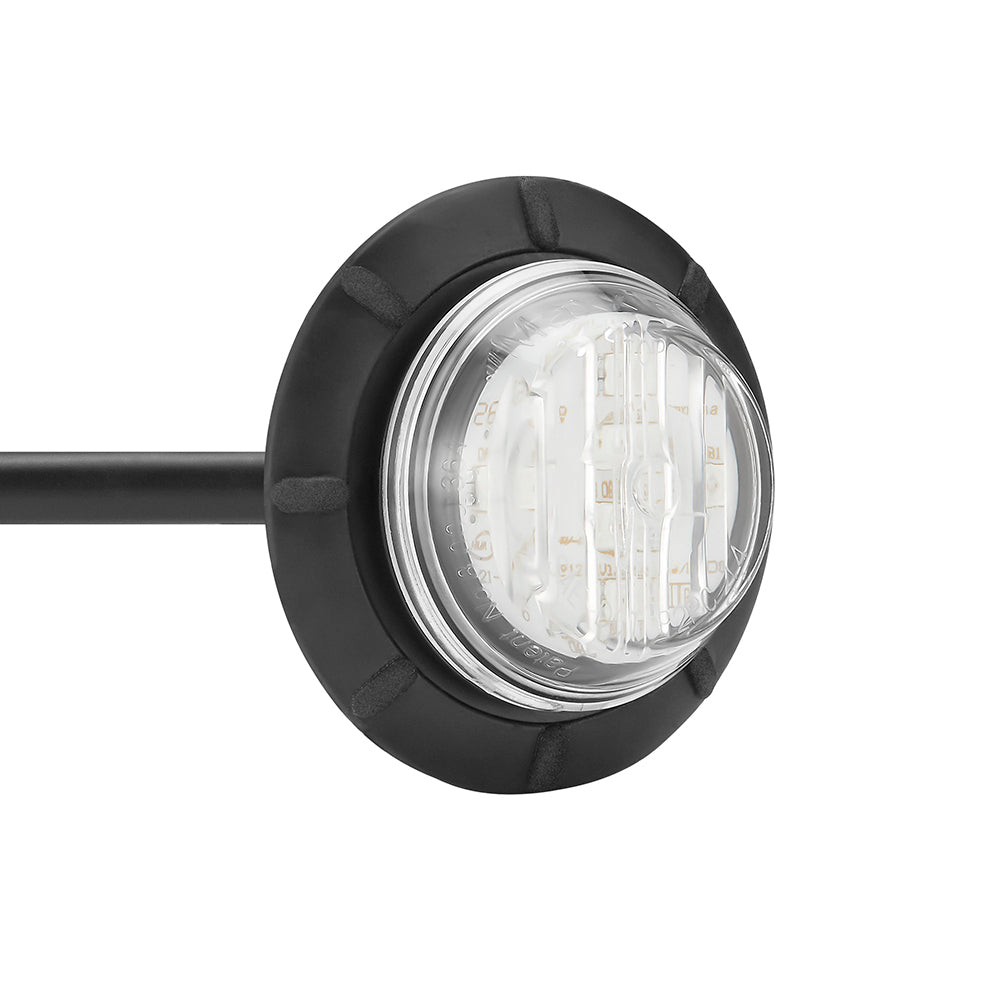

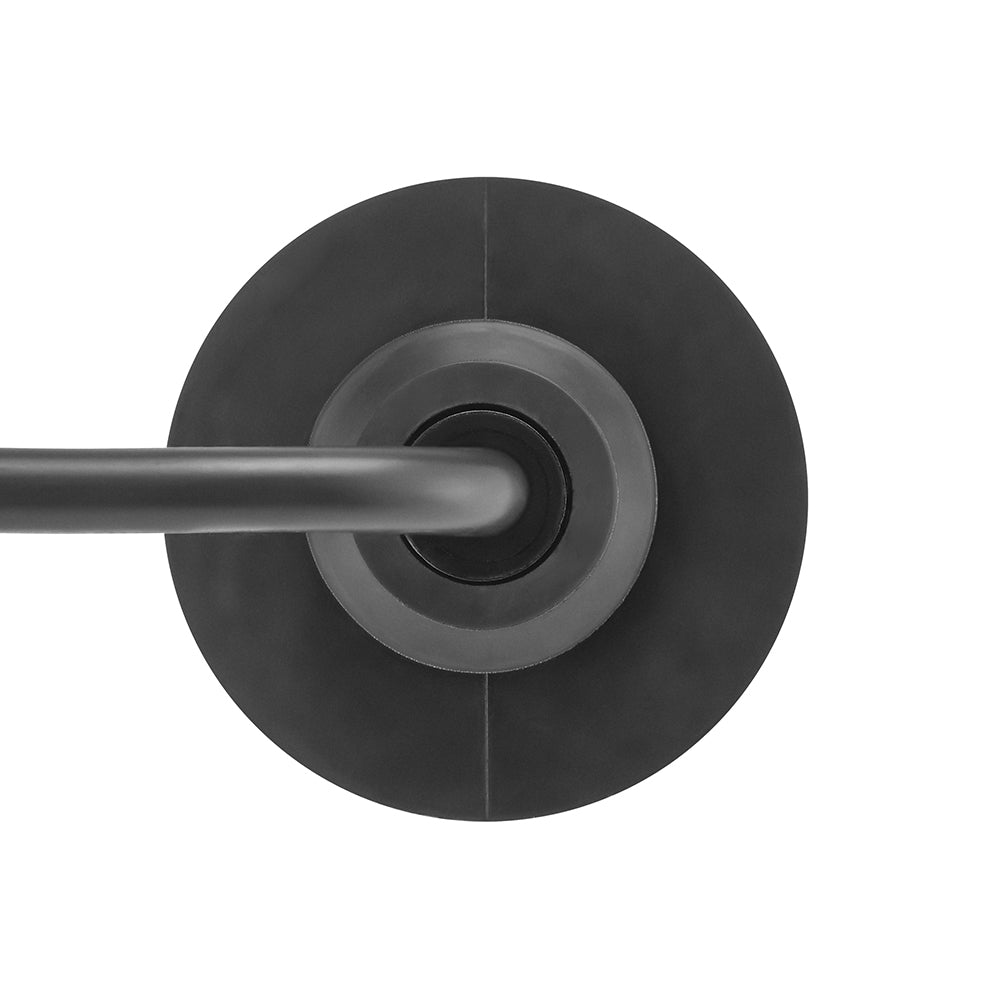

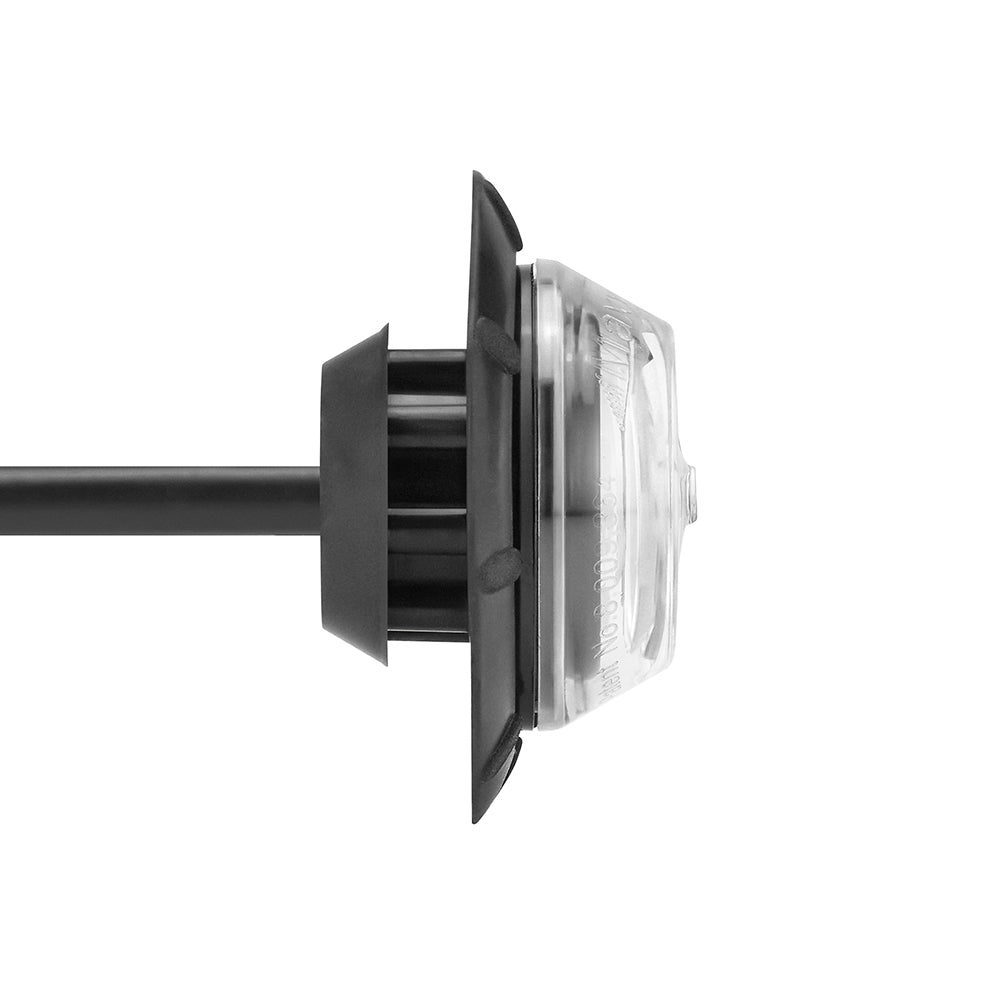

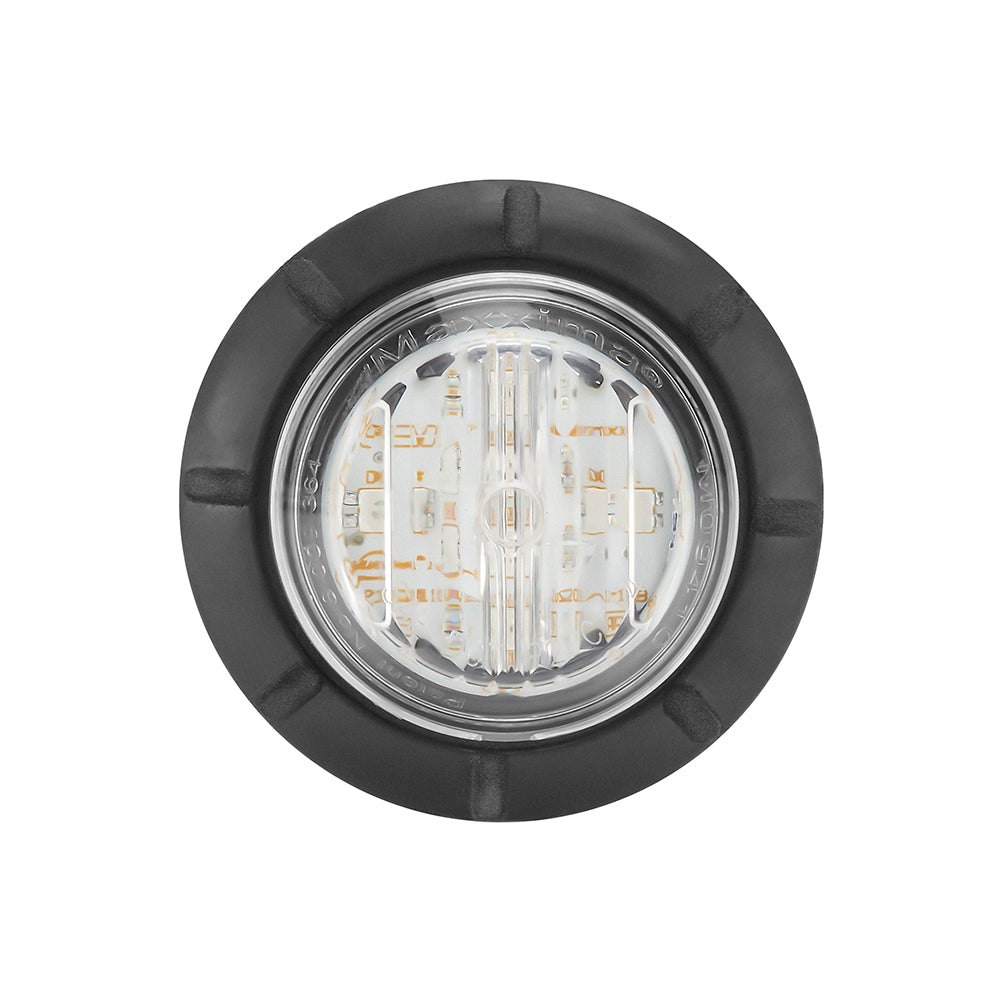

The Maxxima M09410YCL is a compact 1.25” round LED clearance and marker light featuring a clear lens with amber illumination, designed to deliver reliable performance and maximum visibility in a low-profile form. Built with Maxxima’s patented Lightning Lens® optic, it provides bright, uniform output with 180° visibility and meets P2, P3, and PC2 requirements for commercial applications. This versatile light installs easily using either the included grommet or 3M tape, requiring only a ¾” mounting hole, and comes pre-wired with 7” leads and .180” bullet connectors for quick installation. Constructed from durable polycarbonate to withstand harsh environments, the M09410YCL is ideal for trucks, trailers, and fleet vehicles, and is backed by a 5-year warranty for long-term reliability.
FEATURES & BENEFITS
- Includes Mounting Grommet & 3M Tape
- Requires 3/4" Hole
- Grommet Mount or 3M Tape Mount
- 180° Visibility - PC/PC2 Rated
- Patented Lightning Lens Optic
- US Patent No 8,009,364
- US Patent No 8,717,679 B2
- Also Available in Bulk Pack (M09410Y-X)
- Optional Steel Bezel (M50118)
- Polycarbonate Lens & Housing
- 5 Year Warranty
SPECIFICATIONS
- LEDs: 6
- Voltage: 12.8VDC
- Amp Draw: 80 mA
- Dimensions: 1.25” Diam. x 1.0” D
- Mounting: Grommet or 3M Tape, 3/4" Hole Cutout

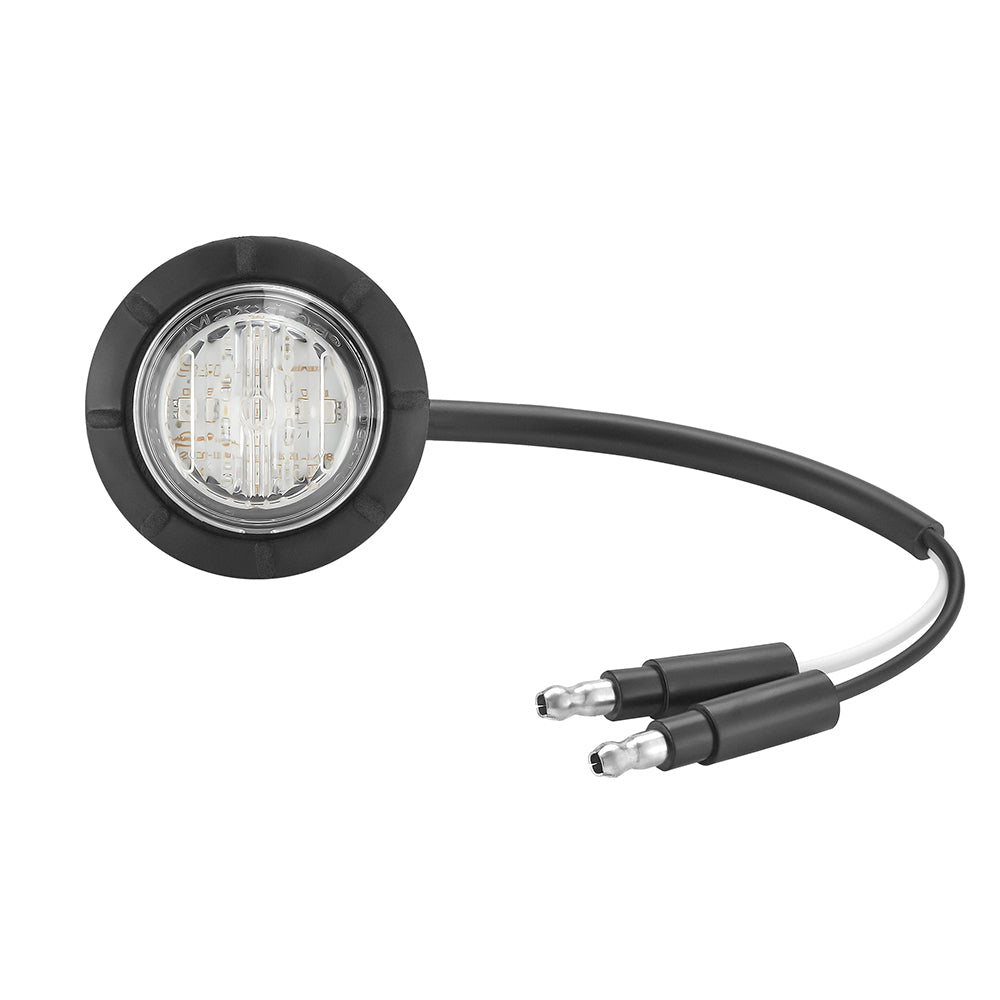

- Connector: (2) 7” Leads with .180” Bullet Connectors
- Legal Heading: P2/P3/PC2
- DOT/SAE: J592, J2042
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
