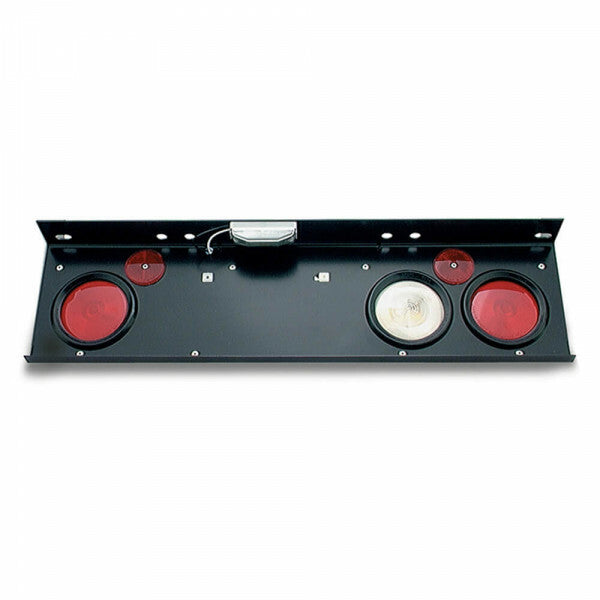

Grote Rear Center Panel - Unit Module Female Pin
SKU: 50820
Grote Rear Center Panel - Unit Module Female Pin
Technical specifications
- Material: Polycarbonate Lens, Steel Housing, PVC Grommet
- Color: Red, White
- Lens Color: Red/Clear
- Housing Color: Black
- Voltage: 12 V
- Amperage: 0.66–4.2 A
- Mounting Type: Screw
- Connection Type: Packard
- Regulations: FMVSS 108
- Functions: A, I, L, R, S, T
- Bulb: 32, 2 CP, Backup - (2) 32 CP, License - 2 CP
- VMRS: 034-002-022
- Product Type: Power Module
- Shape: Rectangular
- Warranty: 1 Year
Features & benefits
- Includes reflector
- Heavy-gauge steel plate and can
- Torsion Mount® II 4" round female pin S/T/T lamps

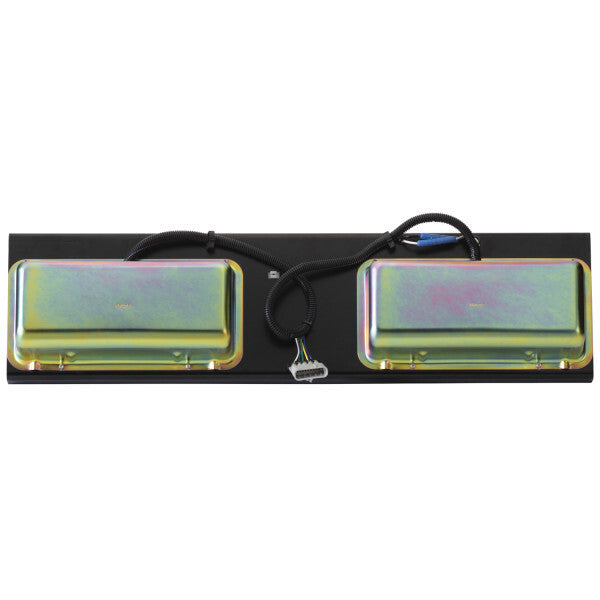

- Pre-assembled wiring harness and five-way connector
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
