Maxxima Boundary Lamp - Red Clear Lens - Straight Beam
SKU: MWL-54R
Maxxima Boundary Lamp - Red Clear Lens - Straight Beam
Description

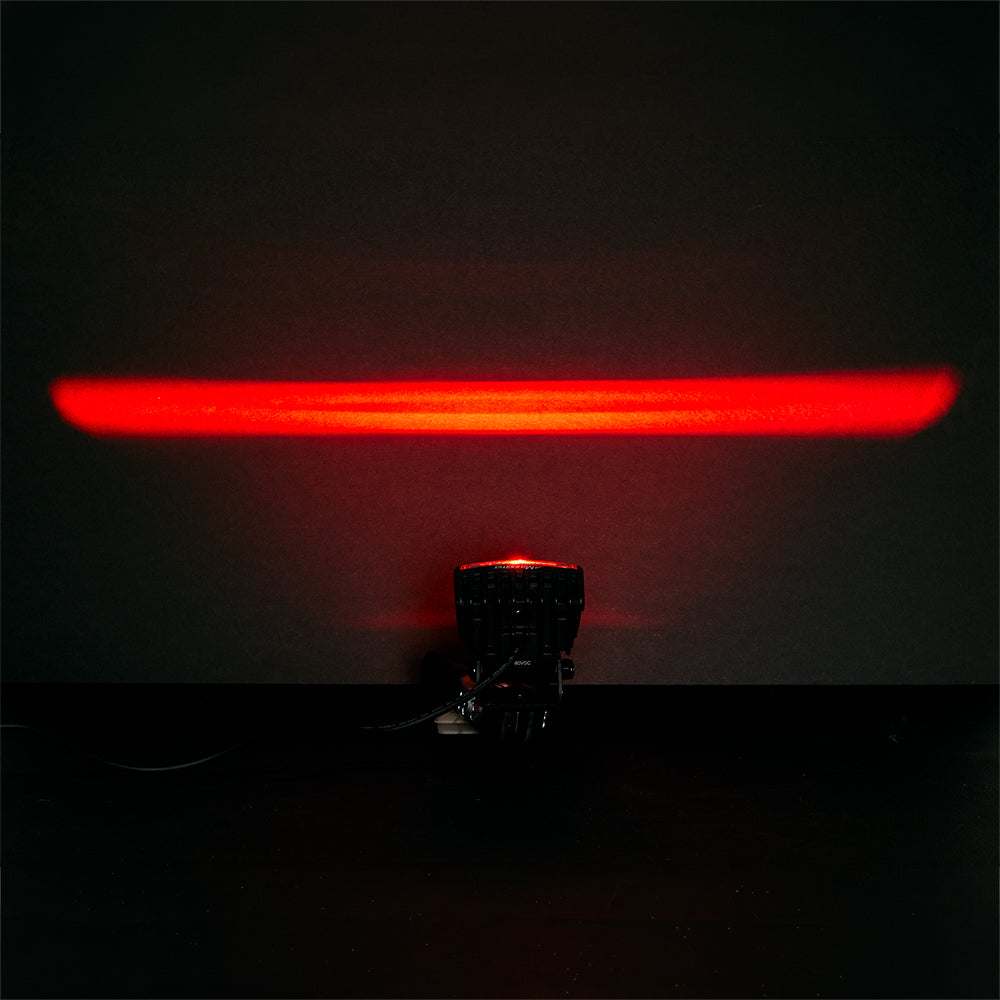

The MWL-54R Boundary Lamp features a red clear lens with a straight beam that projects a sharp, highly visible warning light onto the ground, improving safety around stationary vehicles or specific vehicles in motion. Ideal for material handling, fuel trucks & trailers, forklifts, and other work environments, the crisp red beam serves as an effective pedestrian warning in high-traffic areas. Constructed with a rugged aluminum body and polycarbonate lens, this lamp is fully sealed for heavy-duty exterior use and operates on a wide 12–80VDC multi-voltage range. The single stud mount with stainless steel bolt and swivel base allows for easy, adjustable installation, while the 22” blunt-cut leads provide flexible wiring. Also available in an arc beam version (MWL-53R). Backed by a 5-year warranty.
SPECIFICATIONS
- Voltage: 12-80 VDC Multi-Voltage
- Amp Draw: 0.9A 12V / 0.5A 24V
- Dimensions: 3.3”W x 3.0”H x 2.5”D
- Mounting: M8 Stainless Steel Bolt
- Connector: 2 Jacketed Leads, Blunt Cut, 22”
- LEDs: 1
FEATURES & BENEFITS
- Red LED Light Projects to the Ground - Provides Additional Safety
- Pedestrian Warning
- Great for Material Handling, Fuel Truck / Trailer, Forklift, and Others
- Sealed, Heavy Duty Construction - Exterior Use

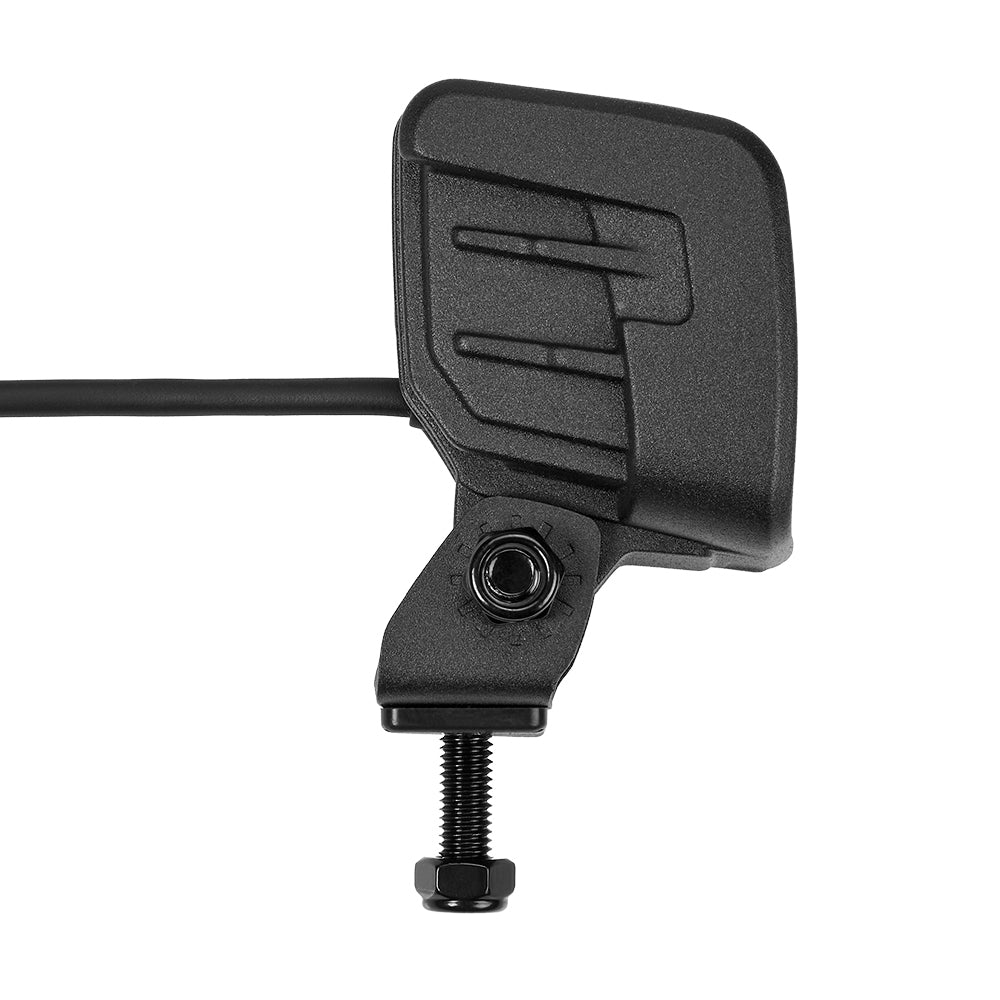

- Single Stud Mount, Swivel Base - Stainless Bolt & Bracket
- Aluminum Body, Polycarbonate Lens
- Also Available in Arc Beam MWL-53R
- 5 Year Warranty
WARNING: Cancer, birth defects or other reproductive harm. www.p65warnings.ca.gov
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
