Specifications

Adjustable | No
Adjusting Sleeve Included | No
Ball Studs | Same

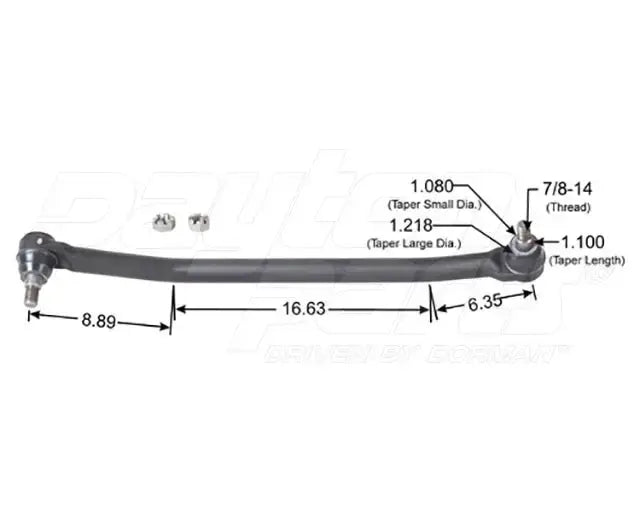

Bend Length 1 | 8.89 in
Bend Length 2 | 16.63 in
Bends | Two Bends
Boot Color | Black
Boot Material | Rubber
Castle Nut Included | Yes
Color | Black
Cotter Pin Included | Yes
Drag Link Type | Non-Replaceable Ends; Two Bends; Ball Studs Same Each End
Dust Boot Included | Yes
End 1 Castle Nut | 346-781475
End 1 Gender | Male
End 1 Large Dia | 1.218 in
End 1 Small Dia. | 1.080 in
End 1 Taper Length | 1.100 in
End 1 Thread Diameter | 0.875 in
End 1 Thread Size | 0.875-14 in
End 1 Threads Per Inch | 14
End 2 Castle Nut | 346-781475
End 2 Gender | Male
End 2 Large Dia | 1.218 in
End 2 Small Dia. | 1.080 in
End 2 Taper Length | 1.100 in
End 2 Thread Diameter | 0.875 in
End 2 Thread Size | 0.875-14 in
End 2 Threads Per Inch | 14
Ends | Non-Replaceable Ends
Finish | Zinc Clear
Grade Type | Standard
Grease Fittings Included | Yes
Greaseable | Yes
Length | 31.56 in
Locking Nut Included | No
Material | Steel
Mounting Hardware Included | Yes
Number of Bends | 2
OE Application | Freightliner
Package Contents | 1 Drag Link, Cotter Pins, and Castle Nuts
Part Number | 346-527

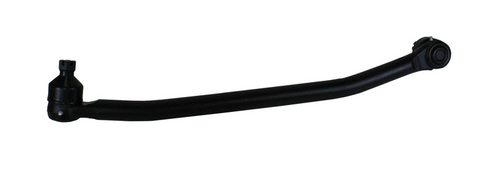

Part Type | Steering - Drag Link
Pre-Greased | Yes
Reference Number | DS4630
Replaceable End | No
Safety Rating | 1
Shaft Diameter | 1.62 in
Stud Length | 1.100 in
Stud Thread Diameter 1 | 0.875 in
Stud Thread Diameter 2 | 0.875 in
Weight | 24.850000
