DS18 10" Active Subwoofer Shallow Enclosure with 10" Passive Subwoofer For Pickup Trucks
SKU: PU210A
DS18 10" Active Subwoofer Shallow Enclosure with 10" Passive Subwoofer For Pickup Trucks
Out Of Stock
ey Features
- Active Subwoofer Enclosure
- 2 X 10" Shallow Mount
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 2 Ohm
- Class D ~ Bass Knob
- 5/8" MDF with Black Carpet
Specifications
SKU
PU210A
Speaker Type / Size
10" Active + 10" Passive (261+261mm)
RMS Power Handling (14.4V)
350W
MAX Power Handling (14.4V)
700W
Sensitivity (1w/1m)
87dB
Frequency Response
30-250Hz
Speaker Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
EISV
Cone Material
IPP
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
40 Oz
Amplifier Specifications
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1CH
Minimum Impedance
2-ohms
Signal to Noise Ratio
75 dB
Efficiency @ 4ohm
75%
Total Harmonic Distortion (THD)
0.30%
Low Level Input Range
0.1-0.6V
High Level Input
Yes (Auto Turn-On)
Selectable X-Over
LPF Fixed
X-Over Filter Range
50-200Hz
Bass Boost Range
0-6 dB
Bass Boost Frequency
50Hz
Phase Selector
0-180?
LED Indicator
Power / Protection
Power Input Terminal Size
8Ga (Quick Connector)
Fuse Size
30A
Remote Level Control
Yes
Thermal Protection
Yes (75? / 167?F)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (<9v,>16v)
Signal Output (Pass-Through RCA)
Yes
Box Specifications
Internal Volume
16L / 0.56ft3
Load Configuration
Single 2-Ohms
Box Type
Sealed Box
Box Material
5/8" / 15mm MDF
Finish Material
Black Carpet
-3dB Dropping Point
45Hz

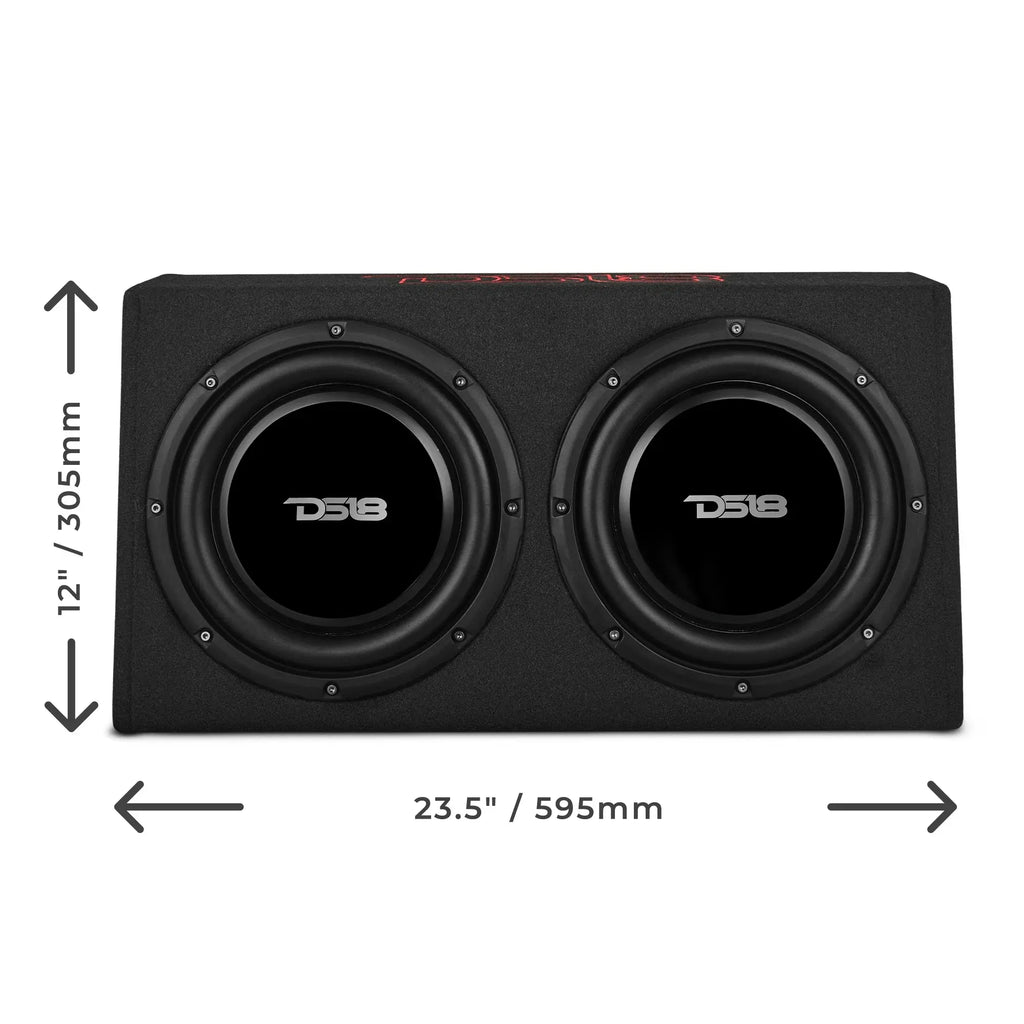

Measurement
Height
12" / 305mm
Width
23.5" / 595mm
Depth 1 (Top)
4.25" / 108mm
Depth 2 (Bottom)
7" / 176mm
Product Overview

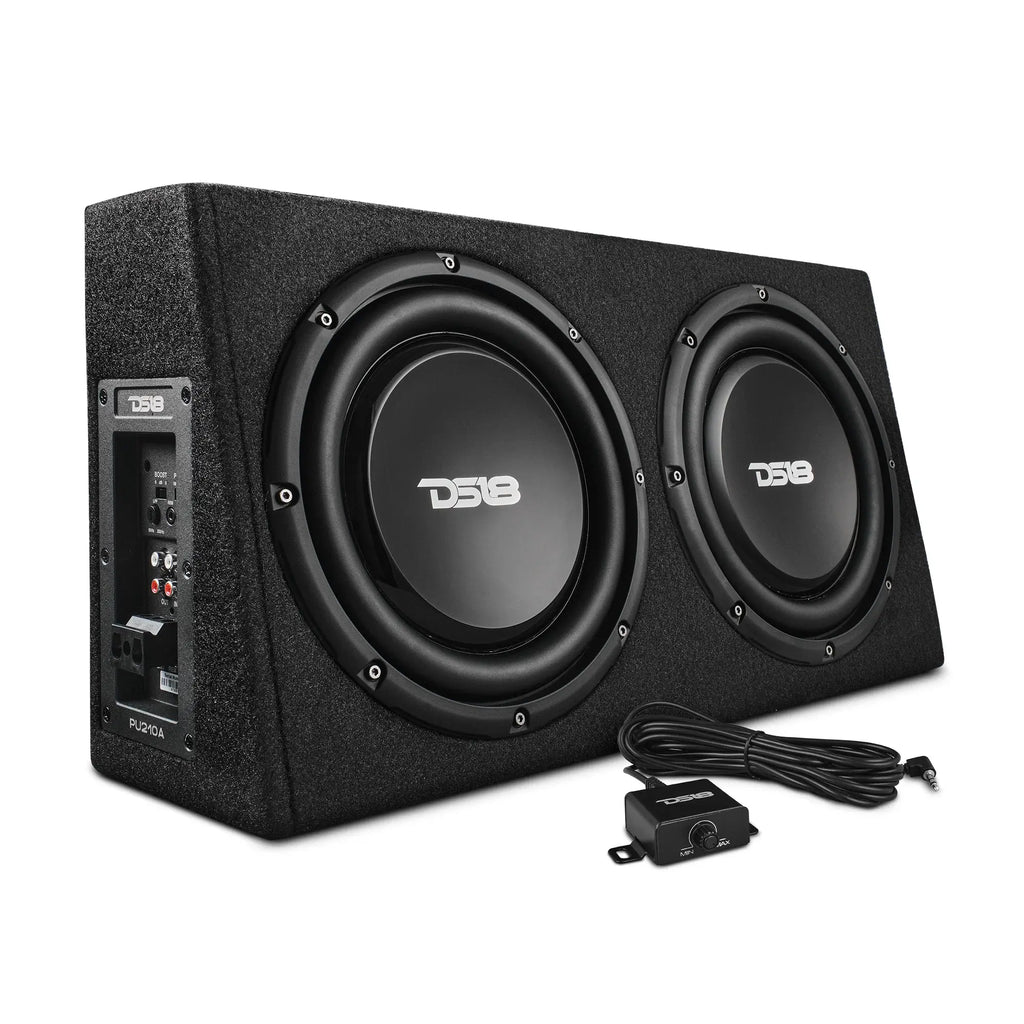

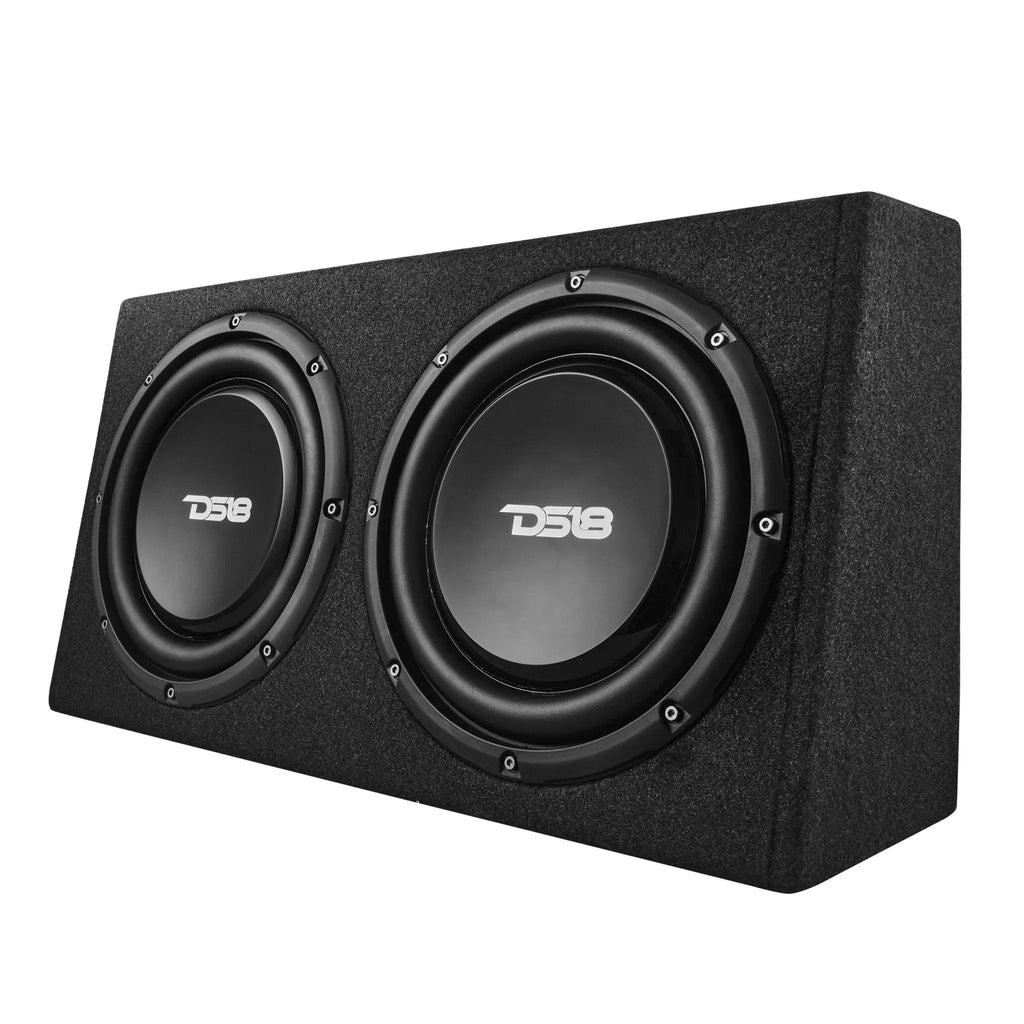

DS18 PU210A
10” Active Subwoofer Shallow Enclosure With 10” Passive Subwoofer For Pickup Trucks

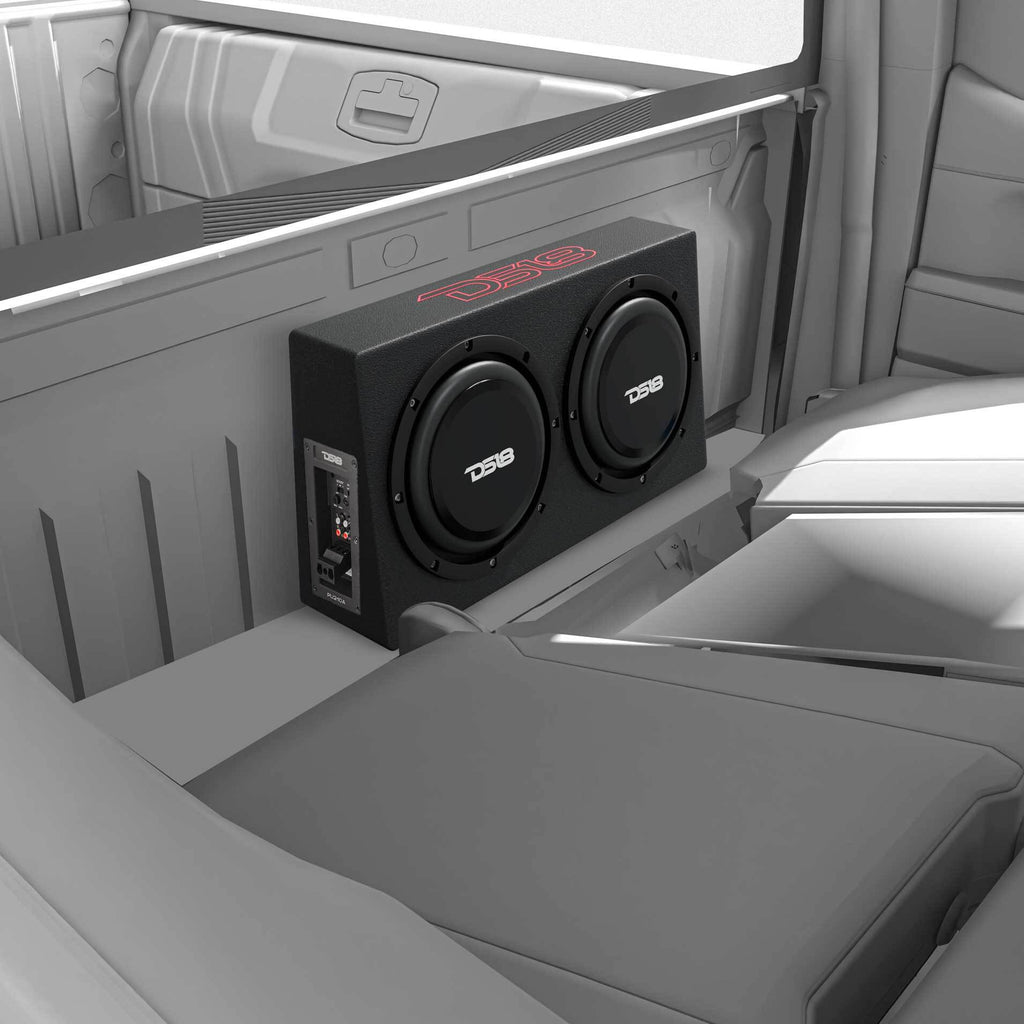

Unleash high-performance bass in your pickup with DS18’s PU210A subwoofer. This 10-inch active and passive subwoofer work in harmony to deliver punchy bass in tight spaces. Specifically designed for compact settings, its shallow enclosure seamlessly fits into tight spaces, ensuring your vehicle's cabin remains uncluttered while elevating your sound system to new heights.
DS18’s PU210A handles an impressive 350W RMS and peaks at 700W, providing powerful car audio that resonates with deep and impactful bass. Its frequency response ranges from 30–250Hz, capturing every nuance of your music with remarkable clarity. The sensitivity of 87dB ensures efficient sound reproduction, making it a top choice for truck audio upgrades.

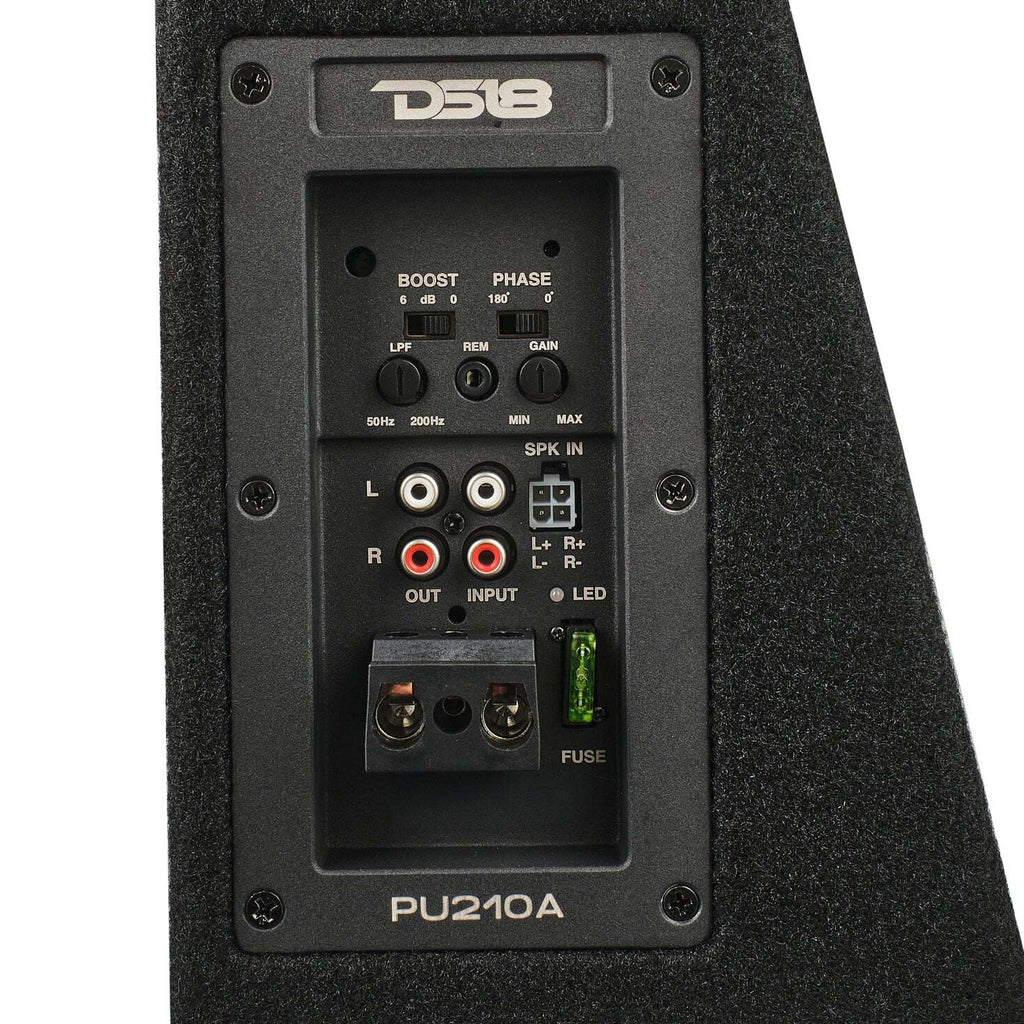

Equipped with advanced controls such as a remote controller for gain adjustment, phase selector, and adjustable low-pass filter (LPF), this compact subwoofer for trucks allows you to tailor your listening experience to perfection. The bass boost feature further enhances the depth of sound, offering up to a 6dB increase.

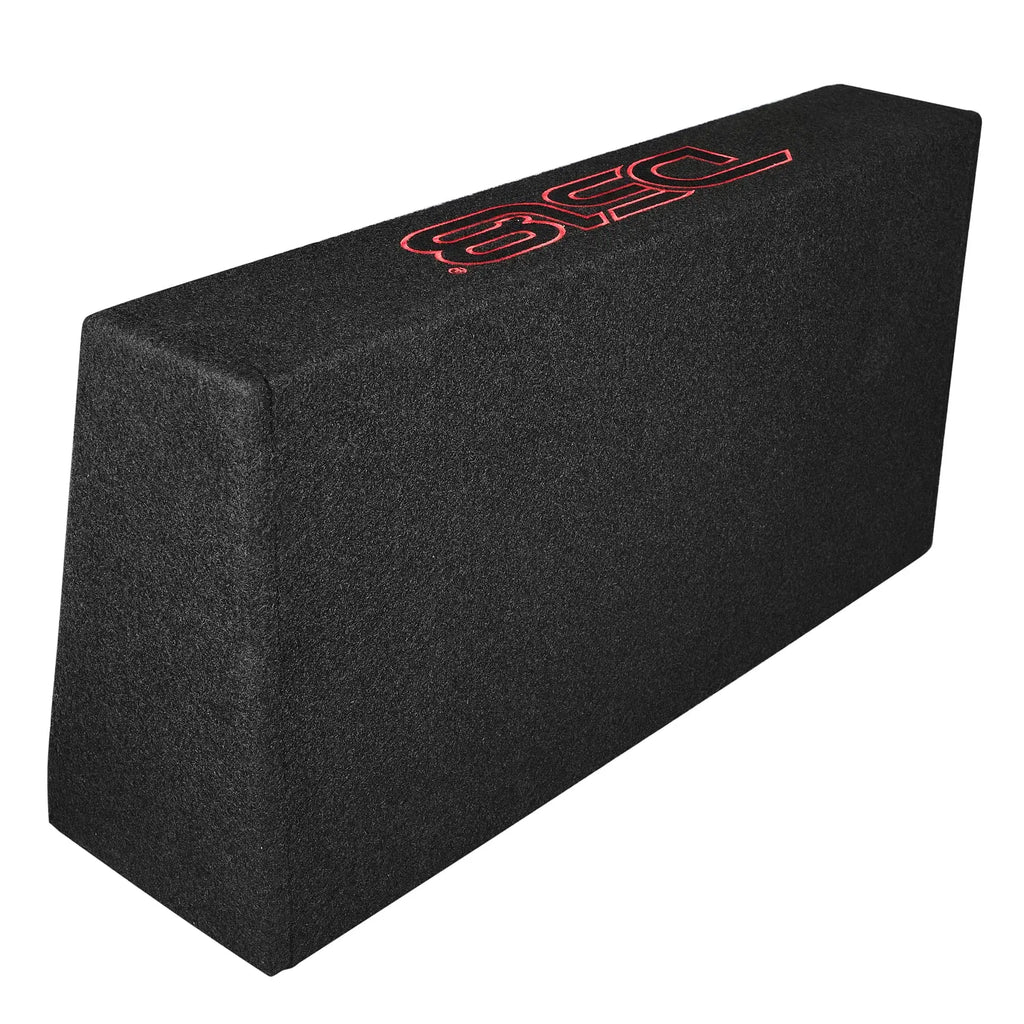

Crafted with durability in mind, the PU210A features a robust sealed subwoofer box made from 5/8" MDF with a sleek black carpet finish. It houses a digital monoblock amplifier that includes thermal, overload, short circuit, and DC output protections, ensuring longevity and reliability.
Upgrade to high-performance bass with the expertly crafted PU210A!
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
