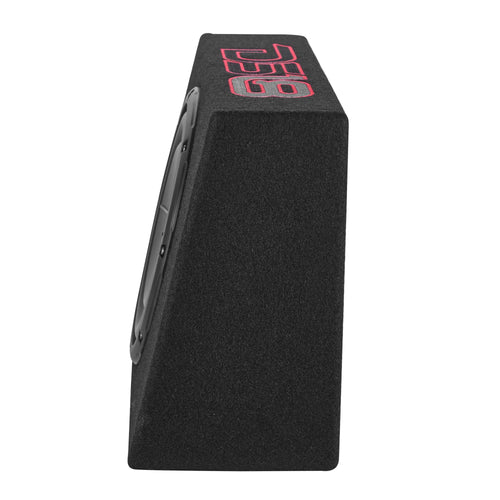

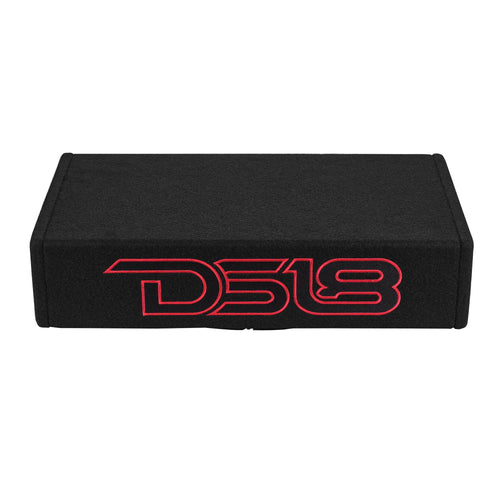

DS18 10” Amplified Shallow Subwoofer Enclosure for Pickup Trucks
SKU: PU110A
DS18 10” Amplified Shallow Subwoofer Enclosure for Pickup Trucks
Out Of Stock
Key Features
- All-in-one active 10" subwoofer enclosure
- 350W RMS / 700W MAX power ratings
- Built-in Class D monoblock amplifier (2-ohm stable)
- Auto turn-on with high-level input (no REM wire needed)
- Frequency response: 30–250Hz
- Quick-connect terminal for fast, clean installation and easy removal of the enclosure
General
Specifications
Speaker Type / Size
10" / 261mm
RMS Power Handling (14.4V)
350W
MAX Power Handling (14.4V)
700W
Sensitivity (1w/1m)
85dB
Frequency Response
30-250Hz
Speaker Specifications
Nominal Impedance
2 Ohms
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
IPP
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
40 Oz
Amplifier Specifications
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1CH
Minimum Impedance
2-ohms
Signal to Noise Ratio
75 dB
Efficiency @ 4ohm
75%
Total Harmonic Distortion (THD)
0.30%
Low Level Input Range
0.1-0.6V
High Level Input
Yes (Auto Turn-On)
Selectable X-Over
LPF Fixed
X-Over Filter Range
50-200Hz
Bass Boost Range
0-6 dB
Bass Boost Frequency
50Hz
Phase Selector
0-180°
Led Indicator
Power / Protection
Power Input Terminal Size
8Ga (Quick Connector)
Fuse Size
30A
Remote Level Control
Yes
Thermal Protection
Yes (75°/ 167°F)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (<9v,>16v)
Signal Output (Pass-Through RCA)
Yes
Box Specifications
Internal Volume
13L / 0.48ft3
Load Configuration
Single 2-Ohms
Box Type
Sealed Box
Box Material
5/8" / 15mm MDF
Finish Material
Black Carpet
-3Db Dropping Point
45Hz

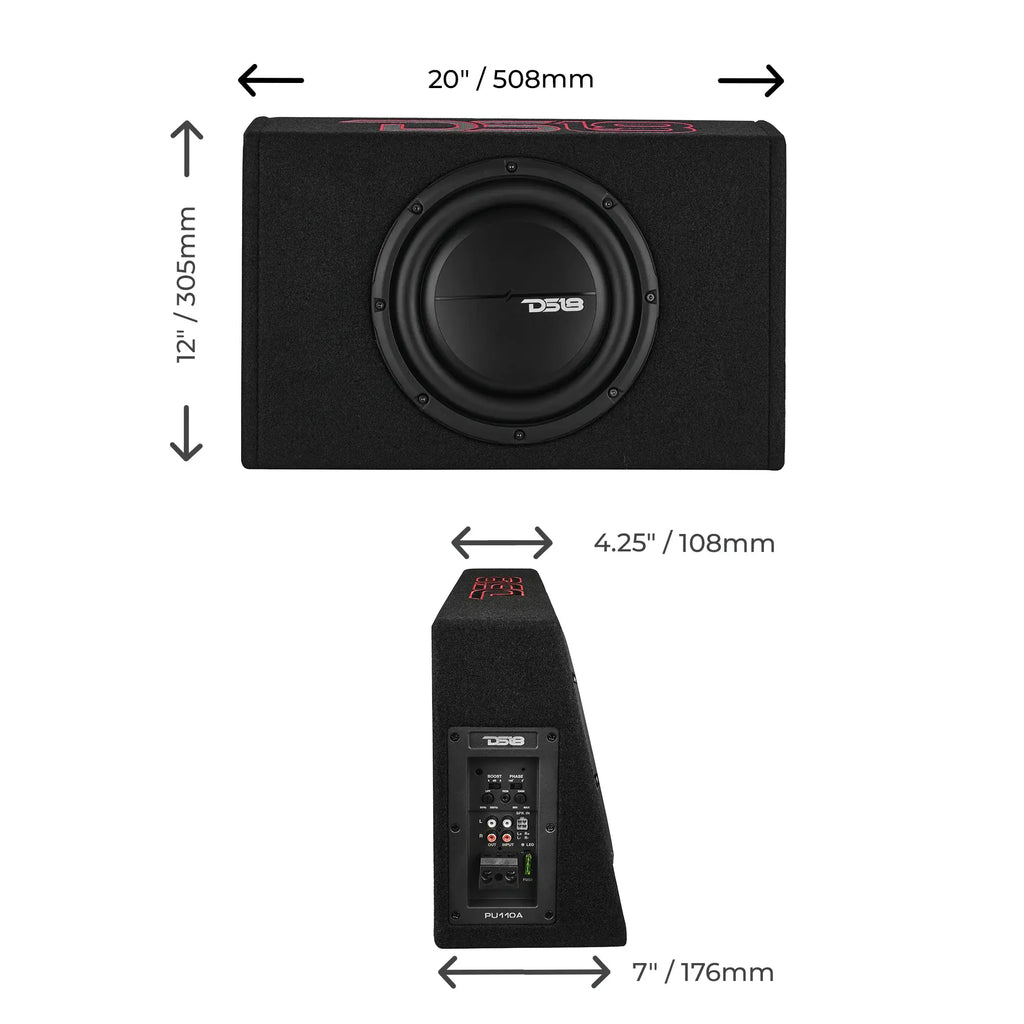

Measurement
Height
12" / 305mm
Width
20" / 508mm
Depth 1 (Top)
4.25" / 108mm
Depth 2 (Bottom)
7" / 176 mm
Product Overview
10” Active Shallow Subwoofer Enclosure for Pickup Trucks
Bass made easy!
The PU110A is a powered under-seat subwoofer solution designed to give truck owners clean bass without a separate amplifier or bulky enclosures. Built with an integrated digital mono amp and loaded 10” subwoofer, this all-in-one setup makes getting LOUD easy!
Amp + Sub in One Box

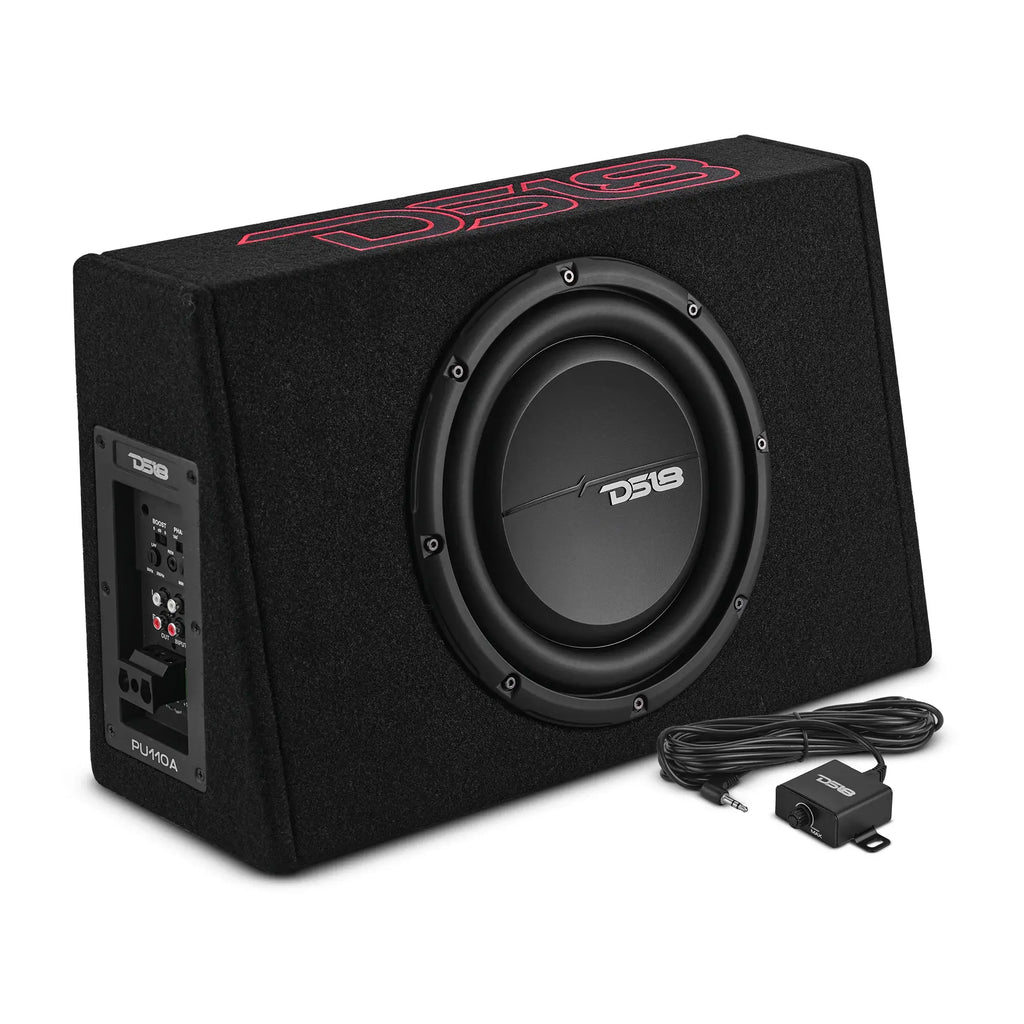

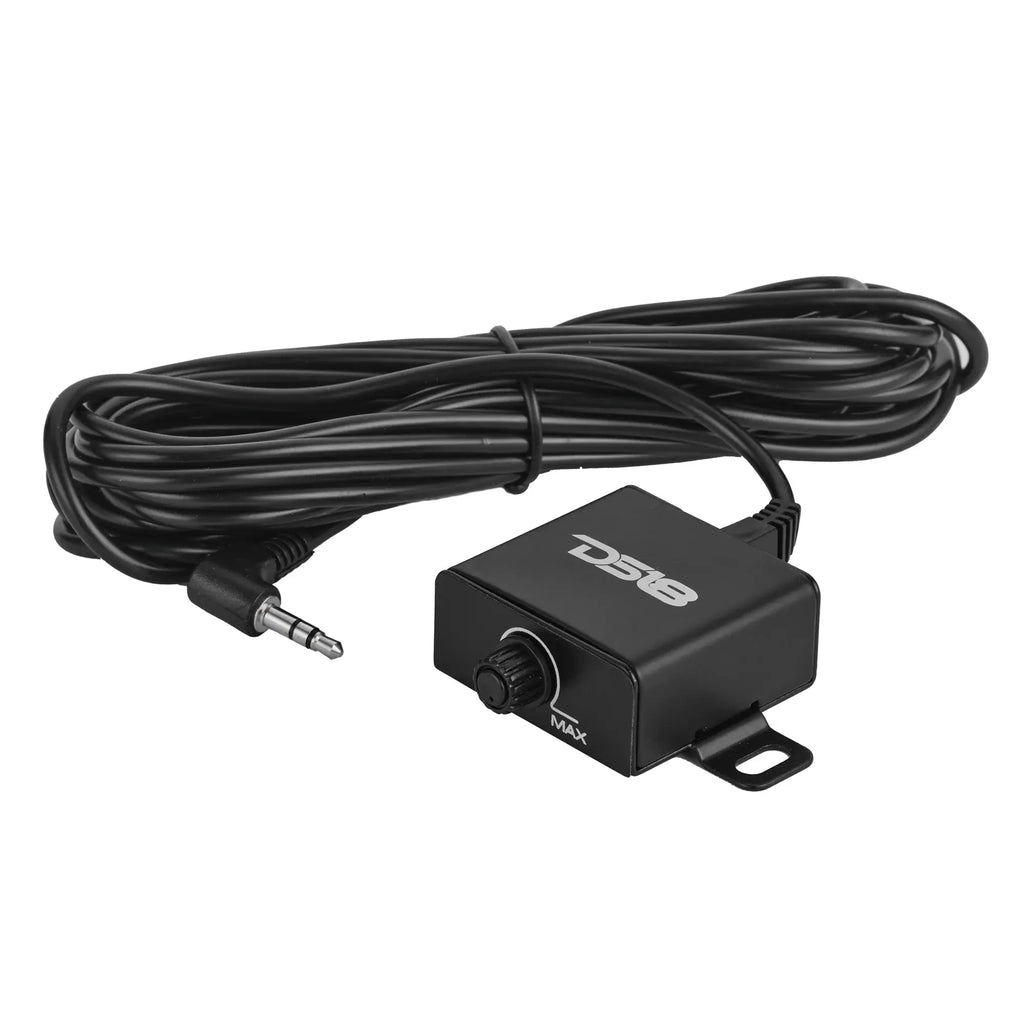

With 350W RMS (700W MAX) of sub-bass power, the PU110A features a built-in Class D monoblock amp tuned specifically for the 10” shallow sub inside. It comes ready with high- and low-level inputs, RCA pass-through, auto turn-on functionality, and a bass knob remote for convenient level control.
Designed for Tight Spaces

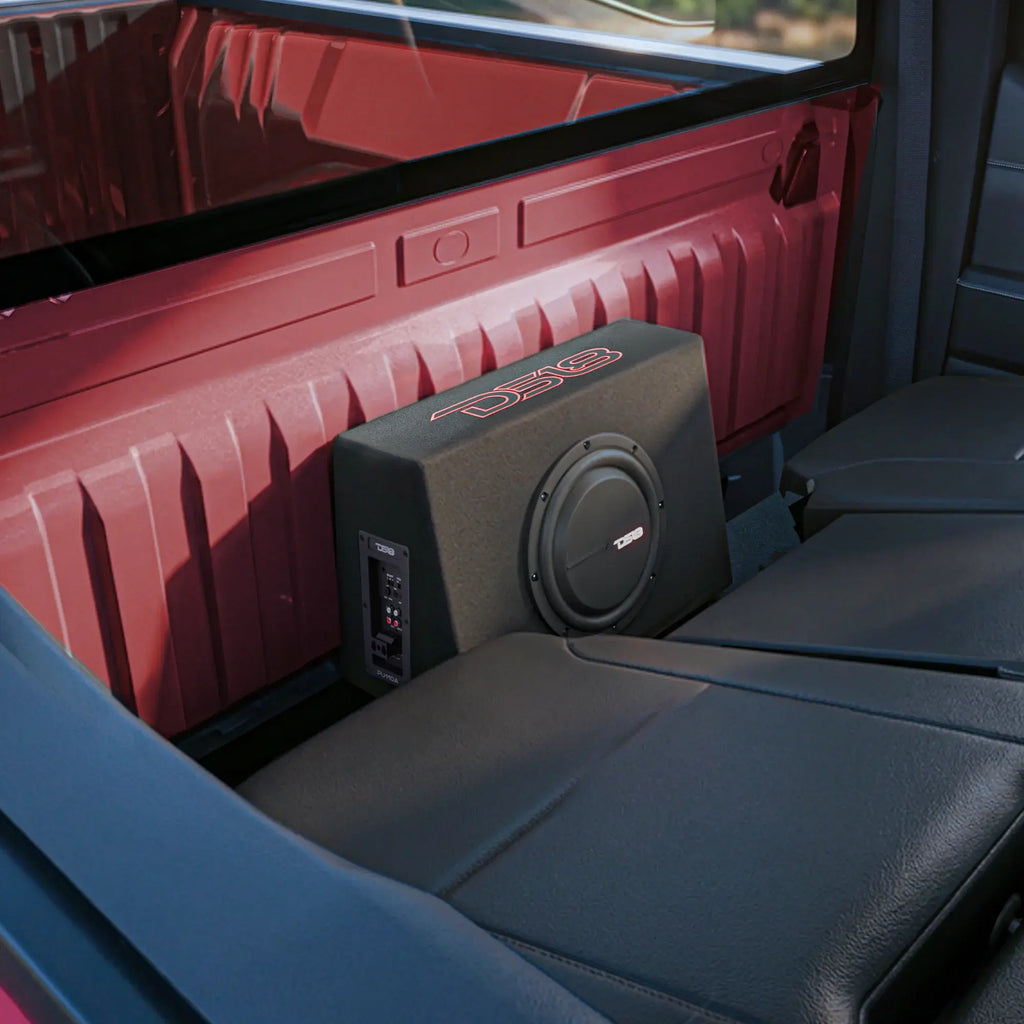

Built for trucks and pickups, the PU110A tucks away easily under or behind your seat. The internal sealed enclosure is tuned to 45Hz (-3dB drop-off), giving you subsonic response from 30–250Hz.
Smart Protection & Easy Setup
Equipped with thermal, overload, short-circuit, and voltage protection, the PU110A is engineered for long life and worry-free performance.

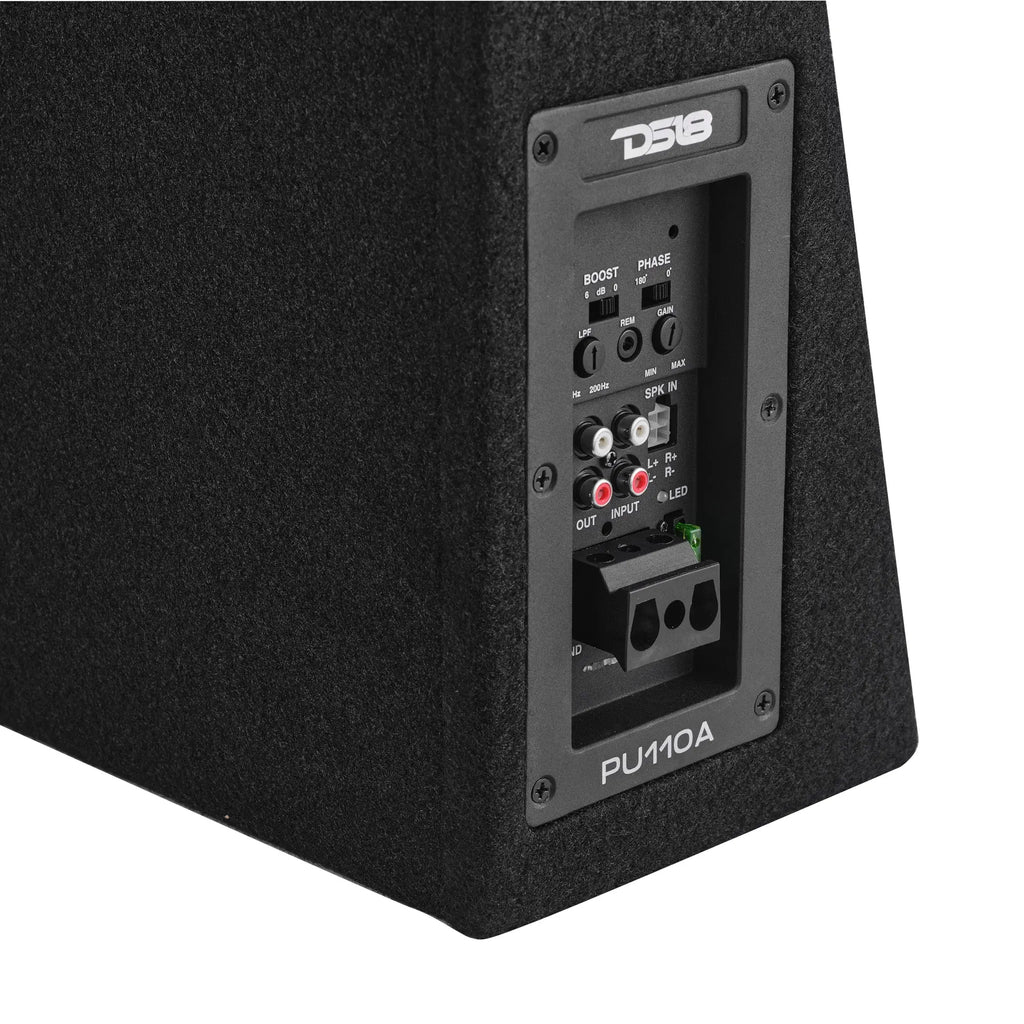

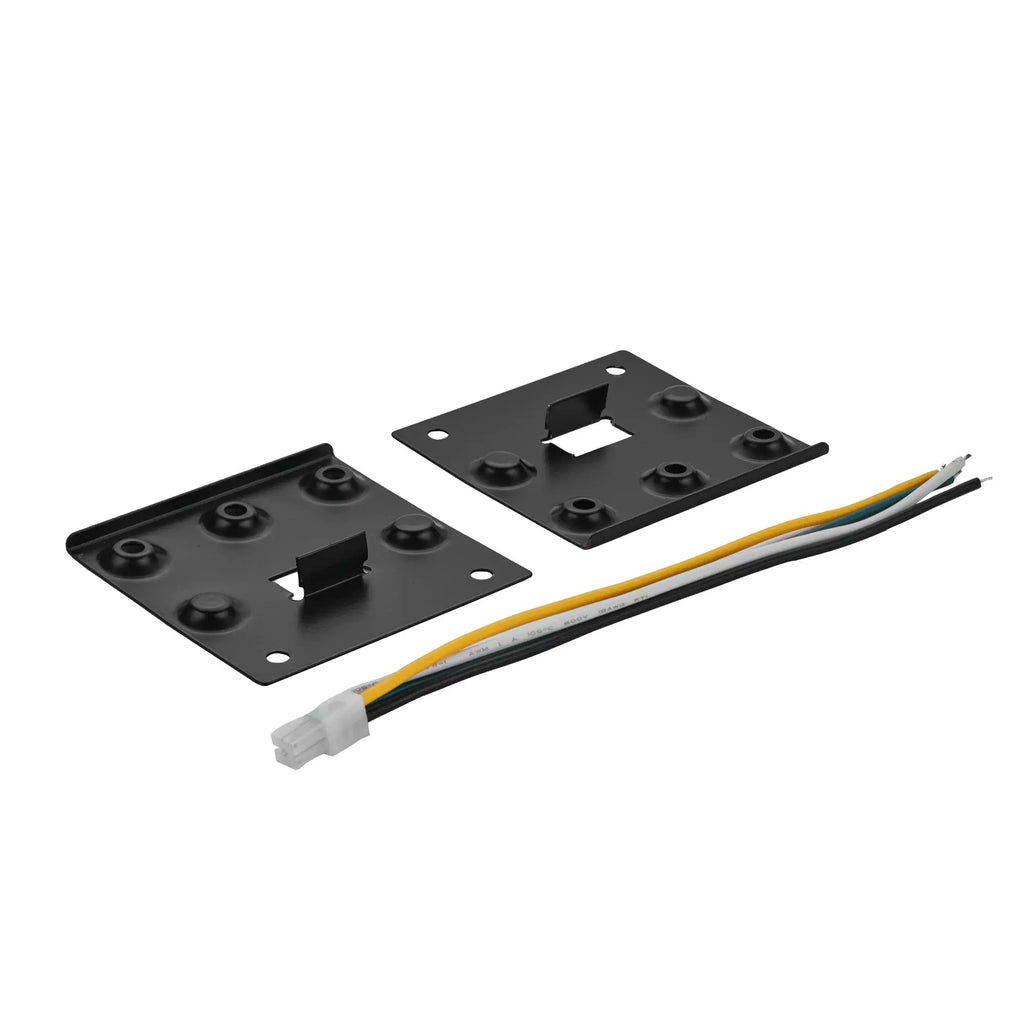

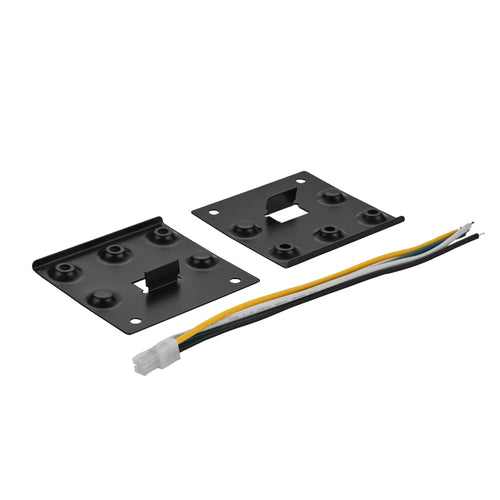

The quick-connect power terminal ensures fast and clean installation, and its removable design makes unplugging easy when you need to remove the enclosure. With an 8GA input and a standard 30A fuse, setup is simple. Adjustable phase and bass boost controls let you easily fine-tune the sound to get the perfect tone.
Bass made easy!
The PU110A is a powered under-seat subwoofer solution designed to give truck owners clean bass without a separate amplifier or bulky enclosures. Built with an integrated digital mono amp and loaded 10” subwoofer, this all-in-one setup makes getting LOUD easy!
Amp + Sub in One Box
With 350W RMS (700W MAX) of sub-bass power, the PU110A features a built-in Class D monoblock amp tuned specifically for the 10” shallow sub inside. It comes ready with high- and low-level inputs, RCA pass-through, auto turn-on functionality, and a bass knob remote for convenient level control.
Designed for Tight Spaces
Built for trucks and pickups, the PU110A tucks away easily under or behind your seat. The internal sealed enclosure is tuned to 45Hz (-3dB drop-off), giving you subsonic response from 30–250Hz.
Smart Protection & Easy Setup
Equipped with thermal, overload, short-circuit, and voltage protection, the PU110A is engineered for long life and worry-free performance.
The quick-connect power terminal ensures fast and clean installation, and its removable design makes unplugging easy when you need to remove the enclosure. With an 8GA input and a standard 30A fuse, setup is simple. Adjustable phase and bass boost controls let you easily fine-tune the sound to get the perfect tone.
