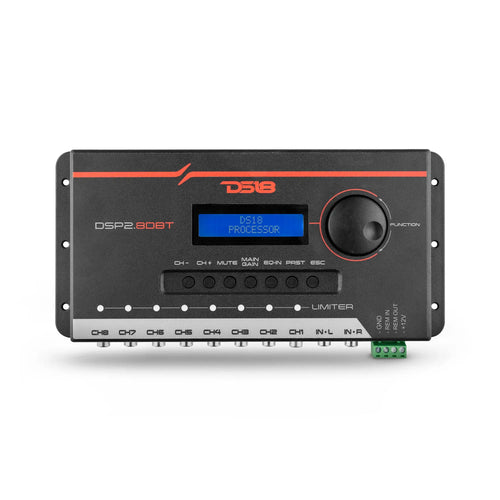

DS18 2-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth and LCD Screen
SKU: DSP2.8DBT
DS18 2-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth and LCD Screen
Out Of Stock
Key Features
- Digital Sound Processor
- 2 Channel In
- 8 Channel Out
- LCD Screen
- Bluetooth Connectivity Via APP
- IOS and Android Compatible
SPECS
Type
Unbalanced
Connection
RCA
Max level
Up to 6 Volts RMS
Impedance
47k Ω
OUTPUTS (1,2,3,4,5,6,7,8)
Type
Unbalanced
Connection
RCA
Max Level
2 Volts RMS
Impedance
470k Ω
TECHNICAL INFORMATION
Resolution
24 Bits
Sample Frequency
48KHz
Latency Frequency
1.08ms
Range Frequency
15Hz a 22KHz (-1db)
THD+N max
0.01%
Signal Noise Ratio
100dB
POWER SUPPLY
Voltage
10~15Vdc
Consumption
300mA (5w)
Fuse
2A
DIMENSIONS
Dimensions (H x L x D)
4.72" x 9.84" x 1.18" / 120 x 250 x 30mm
Weight
382g / 13.4 Oz
SHIPPING INFO
Dimensions L x W x H (Inches)
10 x 5.25 x 1.5
Weight (lb)
1
M/C Dimension L x W x H (Inches)
21.25 x 13.75 x 11
M/C Weight (lb)
31
M/C Qty
30 Pcs
Product Overview
DS18 DSP2.8DBT
2-Channel In / 8-Channel Out DSP with Bluetooth, LCD Screen, and App Control
DS18’s DSP2.8DBT is audio customization at its best: with eight output channels, powerful filtration tools, and app-driven signal tuning, you have everything you need to build your perfect soundstage.
Total Audio Control
The DSP2.8DBT gives you fine-grain control over your entire system—from sub to tweeter. Two input channels feed eight fully customizable outputs, each with independent settings that can be sculpted for any setup.
The DSP2.8DBT gives you fine-grain control over your entire system—from sub to tweeter. Two input channels feed eight fully customizable outputs, each with independent settings that can be sculpted for any setup.
Hear Every Detail
The DSP2.8DBT includes a 3-band independent parametric equalizer per output channel, so you can target specific frequencies with pinpoint accuracy.
The DSP2.8DBT includes a 3-band independent parametric equalizer per output channel, so you can target specific frequencies with pinpoint accuracy.
Advanced Crossovers
Activate your crossover then choose your filter—Butterworth, Linkwitz-Riley, or Bessel—and take full command of your frequency split points.
Activate your crossover then choose your filter—Butterworth, Linkwitz-Riley, or Bessel—and take full command of your frequency split points.
LCD Display with Bluetooth Control
Monitor all changes and active settings via the integrated LCD screen. The built-in Bluetooth interface keeps things wireless, streamlined, and easily accessible.
Monitor all changes and active settings via the integrated LCD screen. The built-in Bluetooth interface keeps things wireless, streamlined, and easily accessible.
App-Driven Audio
Download the DS18 DSP App for iOS or Download the DS18 DSP App for Android and instantly adjust time alignment, EQ, crossover filters, and more directly from your phone—and save custom presets for genres, moods, or driving conditions.
Download the DS18 DSP App for iOS or Download the DS18 DSP App for Android and instantly adjust time alignment, EQ, crossover filters, and more directly from your phone—and save custom presets for genres, moods, or driving conditions.
Start building your perfect soundstage with DS18’s DSP2.8DBT.
