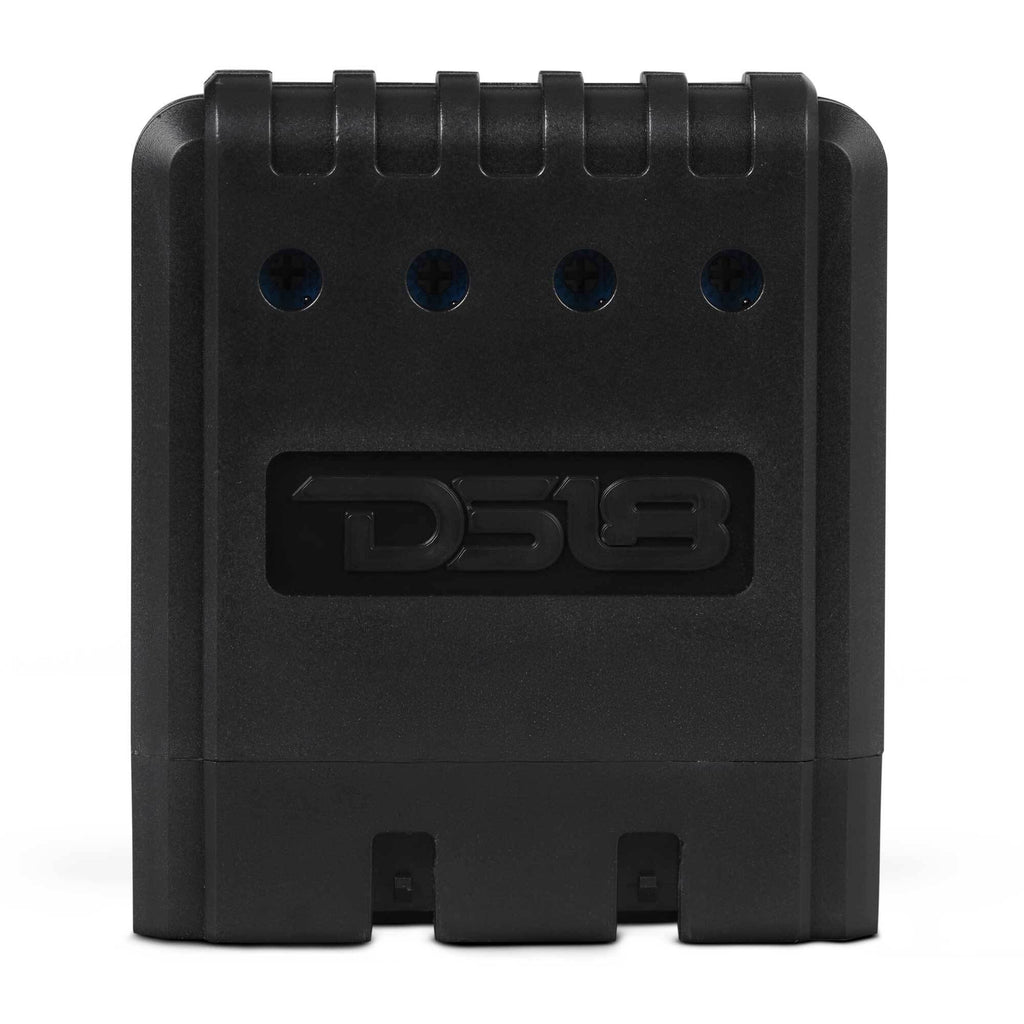

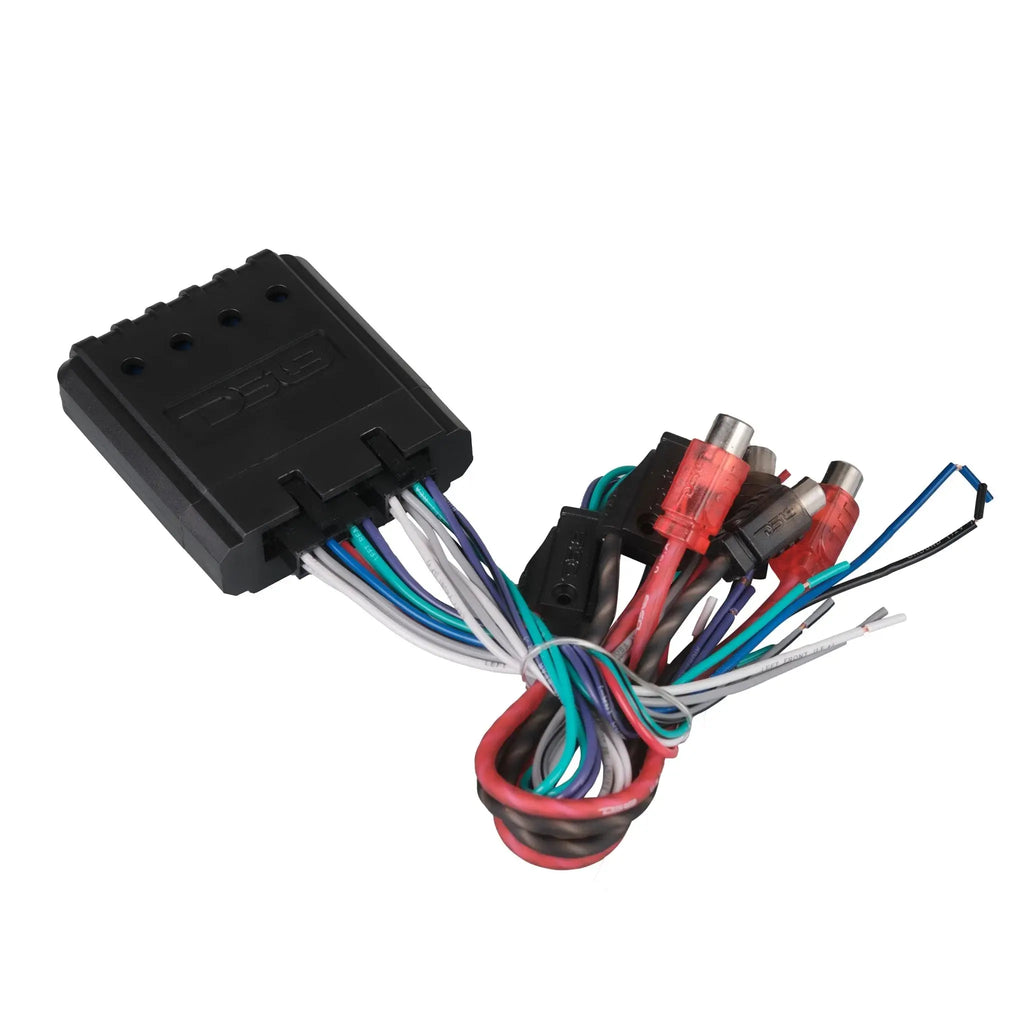

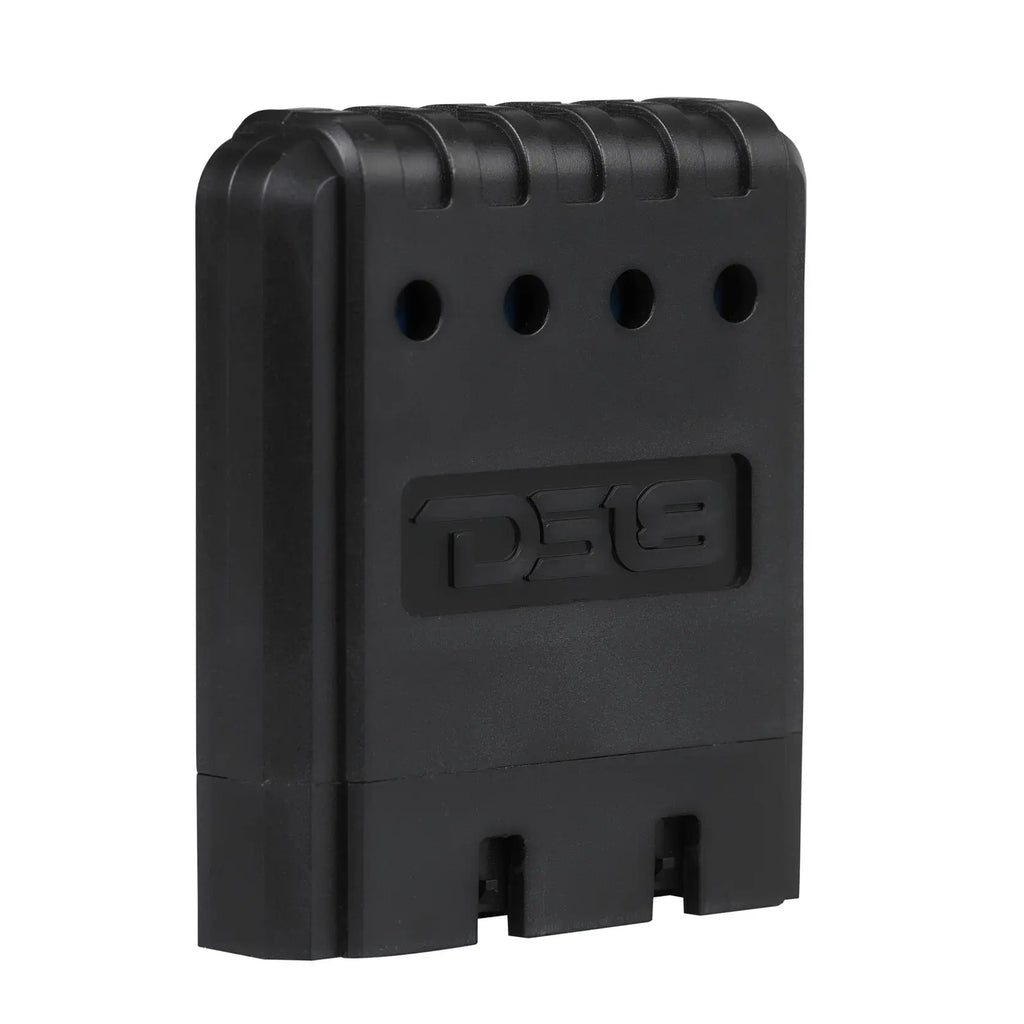

DS18 4 Channel Line Output Converter with Auto Turn-On and Speaker Emulator
SKU: VX4HL
DS18 4 Channel Line Output Converter with Auto Turn-On and Speaker Emulator
Out Of Stock
Key Features
- Line Output Converter
- 4 Channel
- Level Matching Controls(FL,FR,RL,RR)
- Remote Out ~ Auto Turn On
- Speaker Emulator ~ Compact
- Step-Down Method: Electronic / SMC
Specifications
SKU
VX4HL
Speaker Level Input Channels
4 Channels (FL/FR/RL/RR)
Auto Turn-On
Yes, DC (3V)
Remote Output
Yes, 12v DC 100mA max
Remote Output Short Circuit Protection
Yes, <10 Seconds
Amplifier Outputs
4 Channels RCA (FL/FR/RL/RR)
Level Matching Controls
Yes, (FL/FR/RL/RR)
LED Indicators
No

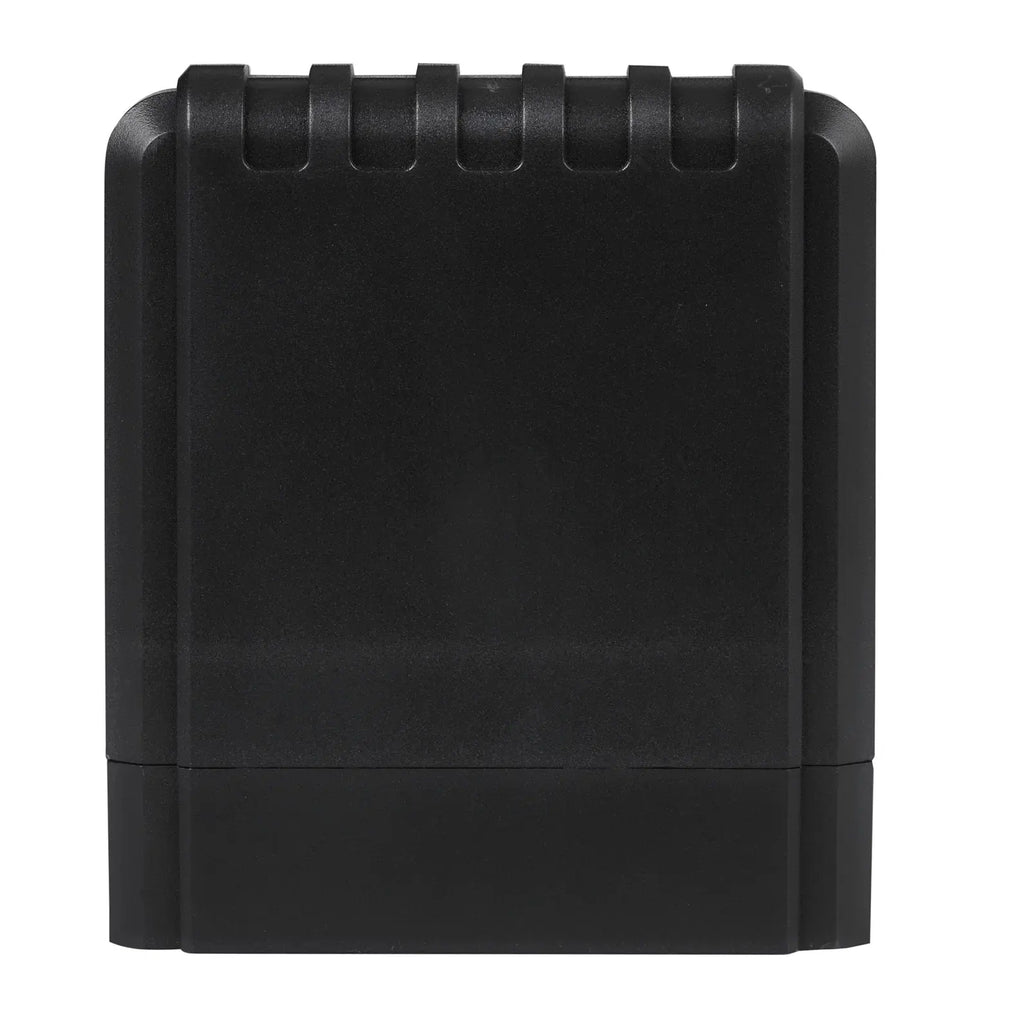

Housing Material / Color
ABS / Black

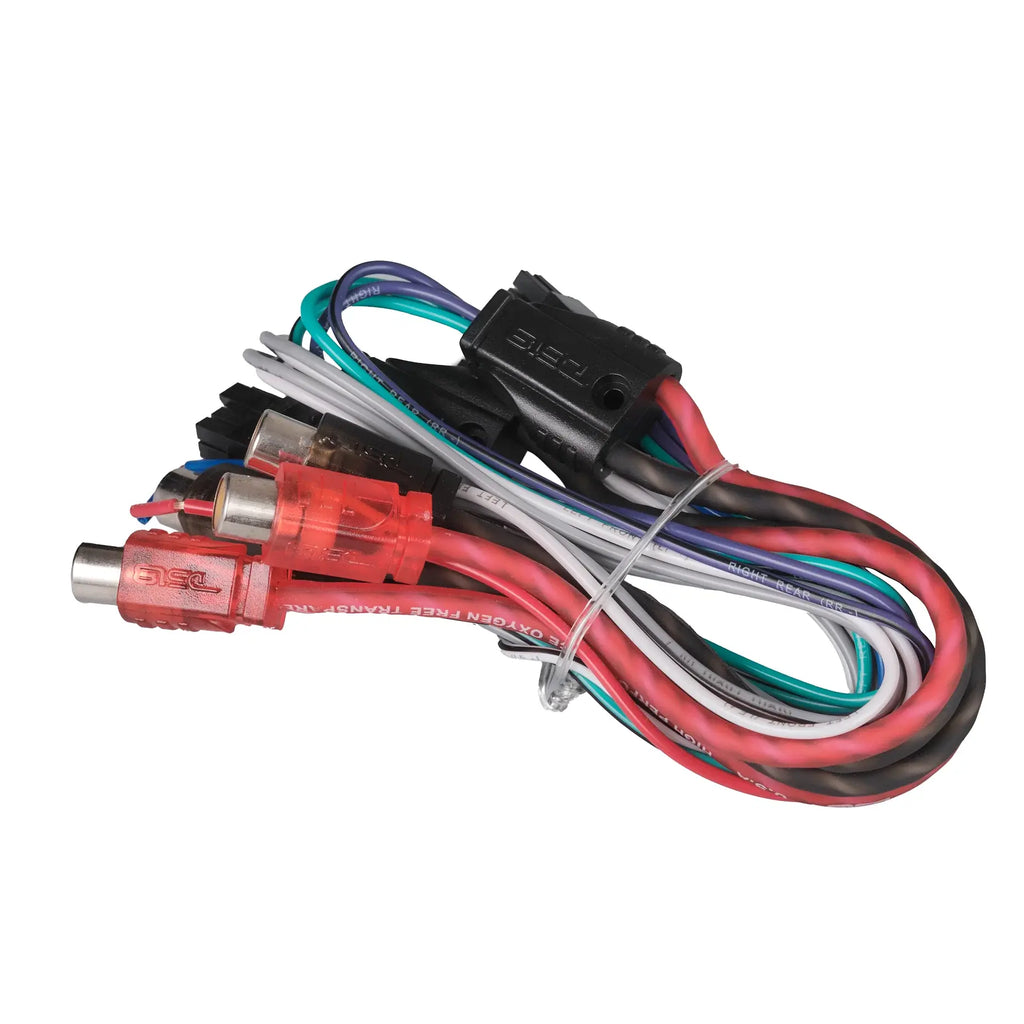

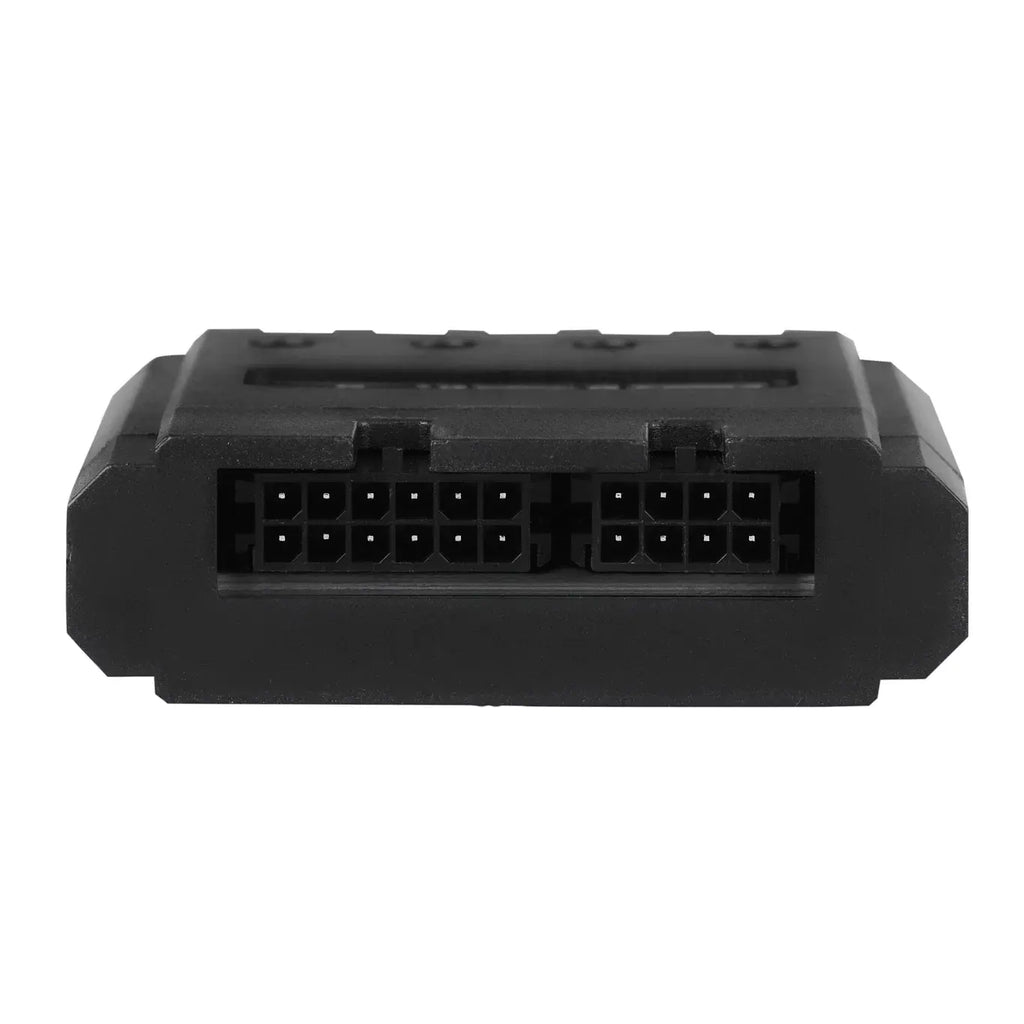

Wiring Connector
Dual Molex (12/8pins)
Step-Down Method
Electronic / SMC
Specifications
Maximum Speaker Level Input
50W RMS
Maximum Preamp Output
3.2V
Nominal Conversion Ratio
4:1
Frequency Response
10Hz-30kHz
Total Harmonic Distortion
0.02% (1kHz)
Input Impedance
45 ohms (Speaker Emulator)
Output Impedance
2K-ohms
S/N Ratio
>100dB
Channel Separation
>60dB
Noise Rejection
>60dB
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
