DS18 6.5" 2-Way Coaxial Speakers 50 Watts Rms 4-Ohm
SKU: G6.5XI
DS18 6.5" 2-Way Coaxial Speakers 50 Watts Rms 4-Ohm
Out Of Stock
Key Features
- 6.5" 2-Way Coaxial
- MAX Power: 150 Watts
- RMS Power: 50 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 86dB
SPECS
SKU
G6.5XI

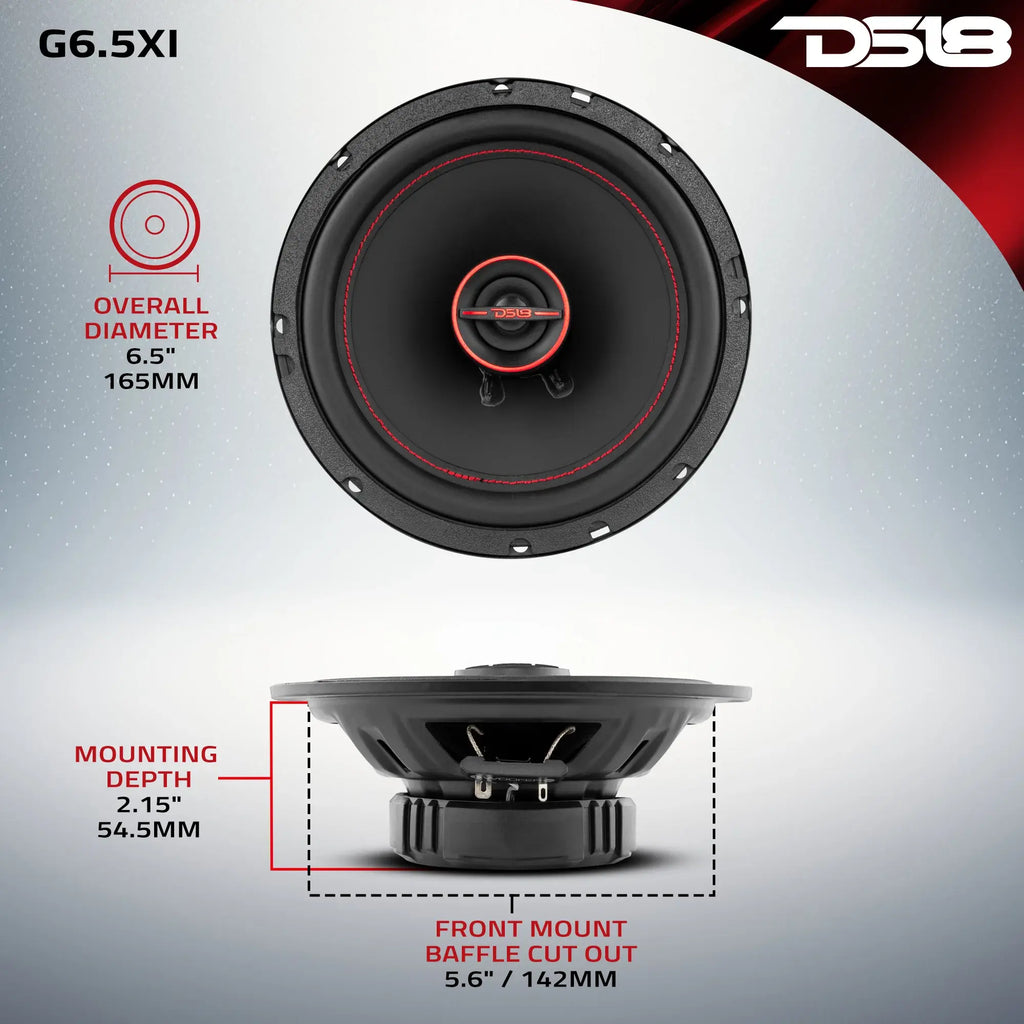

Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
50W
Maximum Power Handling
150W
Sensitivity (1w/1m)
86dB
Frequency Response
35Hz-20KHz
Recommended HI Pass Crossover
60Hz
Number of ways
2
Pair or single
Pair
Grill Included
Yes
WOOFER SPECS
Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
9.87oz / 280g
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
9.47L / 0.33ft3
Excursion (one way) Xmax
2.7mm
Free Air Resonance Fs
76Hz
Mechanical Factor Qms
4.6
Electrical Factor Qes
2
Total Factor Qts
1.4
Mechanical Mass Mms
11.4g
Mechanical Compliance Cms
350mm/N
Bl Factor Bl
3.2
Voice Coil Inductance Le
172uH
Cone Area Sd
136.8cm2
DC Resistance Re
3.7 Ohms
Mechanical Mass w/o air Mmd
10.5g
Product Overview
DS18 G6.5XI
2-Way Coaxial Speakers 150 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G6.5Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G6.5Xi is notable for its 2-way design consisting of a woofer and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.5Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.
These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.5Xi will deliver.
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
