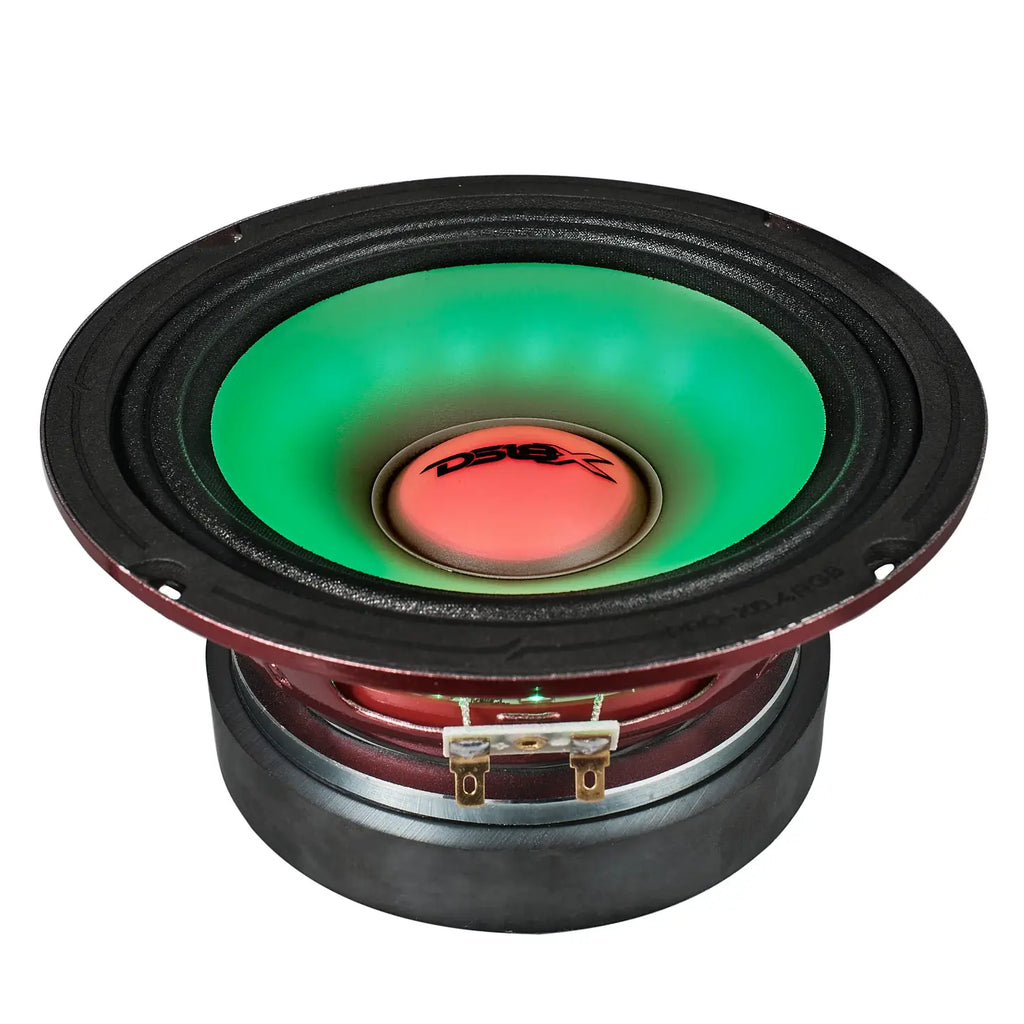

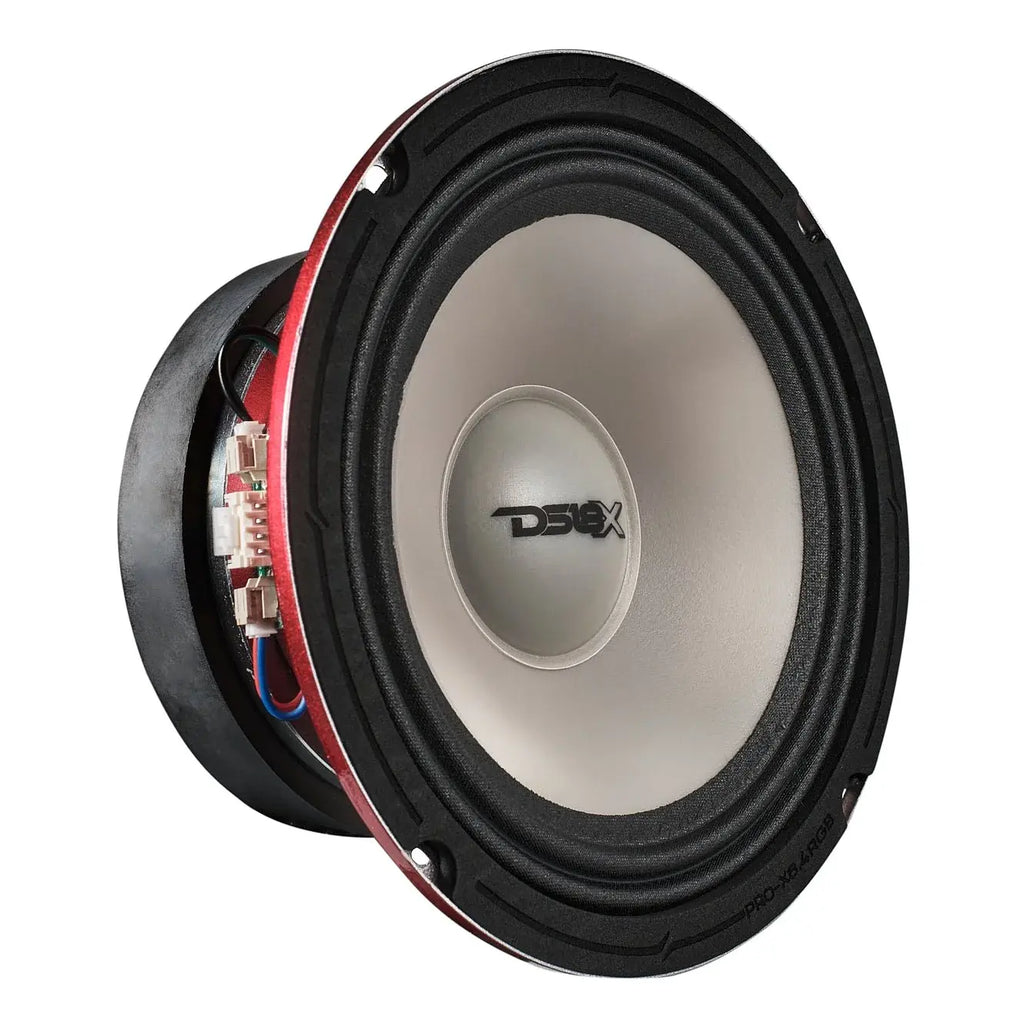

DS18 6.5" Mid-Range Loudspeaker with Dual RGB LED For Cone & Dust Cap 250 Watts 4-Ohm EACH
SKU: PRO-X6.4RGB
DS18 6.5" Mid-Range Loudspeaker with Dual RGB LED For Cone & Dust Cap 250 Watts 4-Ohm EACH
Out Of Stock
Key Features
- 6.5" Mid-Range w/RGB LED Cone & Dust Cap
- RMS Power: 250 Watts
- MAX Power: 500 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 94dB
Specifications
SKU
PRO-X6.4RGB
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 ohm
RMS Power Handing
250w
MAX Power Handing
500w
Sensitivity (1w/1m)
94dB
Frequency Response
100Hz-8KHz
Recommended HI Pass Crossover
120 Hz
Sold in Pair or Single
Single
Grill Included
No
Water Resistant
IP65 rating
Motor
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Translucid PP with RGB LED
Bullet Material
N/A
Dust Cap Material
Translucid PP with RGB LED
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
30 Oz
Displacement Volume
0.034L / 0.0012ft3
Thiele & Small Parameters
Equivalent Volume Vas
4.4L / 0.15ft3
Excursion (one way) Xmax
6mm
Free Air Resonance Fs
100Hz
Mechanical Factor Qms
7.34
Electrical Factor Qes
0.74
Total Factor Qts
0.67
Mechanical Mass Mms
13.4g
Mechanical Compliance Cms
0.16mm/N
BL Factor BL
6.48
Voice Coil Inductance Le
4.22mH
Cone Area Sd
138.93 cm2
DC Resistance Re
3.4 ohms
Mechanical Mass w/o air Mmd
10.2g

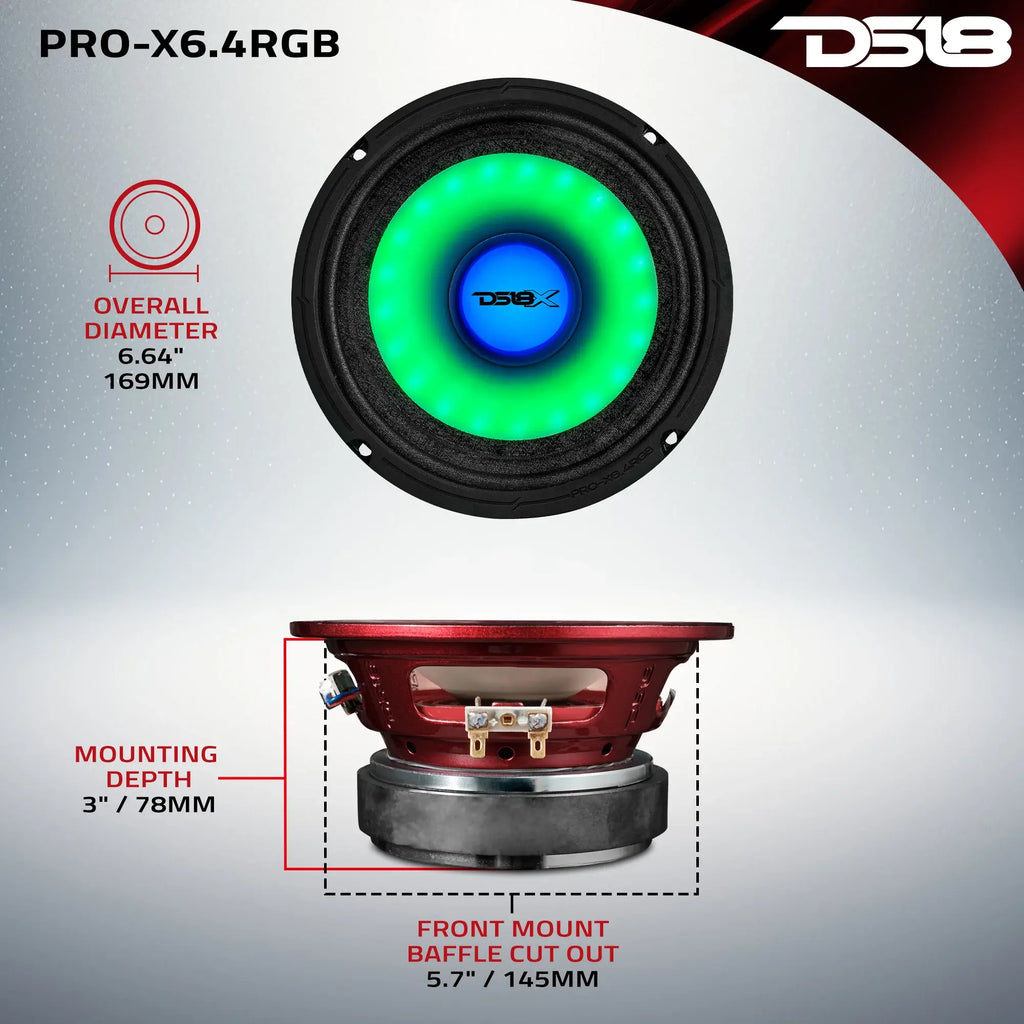

Measurement
Overall Diameter
6.64" / 169mm
Overall Depth
3.3" / 84.6mm
Front Mount Baffle Cutout
5.7" / 145mm
Mounting Depth
3" / 78mm
Motor Diameter
4.7" / 120mm
Product Overview
DS18 PRO-X6.4RGB
6.5" Mid-Range Loudspeaker with Dual RGB LED for Cone & Dust Cap
The PRO-X6.4RGB is for car audio builds that demand attention, this 6.5” mid-range loudspeaker delivers an unbeatable combo of sound pressure and style!
Next-Level Power
Pushing 250W RMS and 500W MAX, the PRO-X6.4RGB brings high volume with insane clarity. A wide frequency response from 100Hz–8kHz and a 94dB sensitivity rating means every note punches through!
Pushing 250W RMS and 500W MAX, the PRO-X6.4RGB brings high volume with insane clarity. A wide frequency response from 100Hz–8kHz and a 94dB sensitivity rating means every note punches through!
Built to Perform

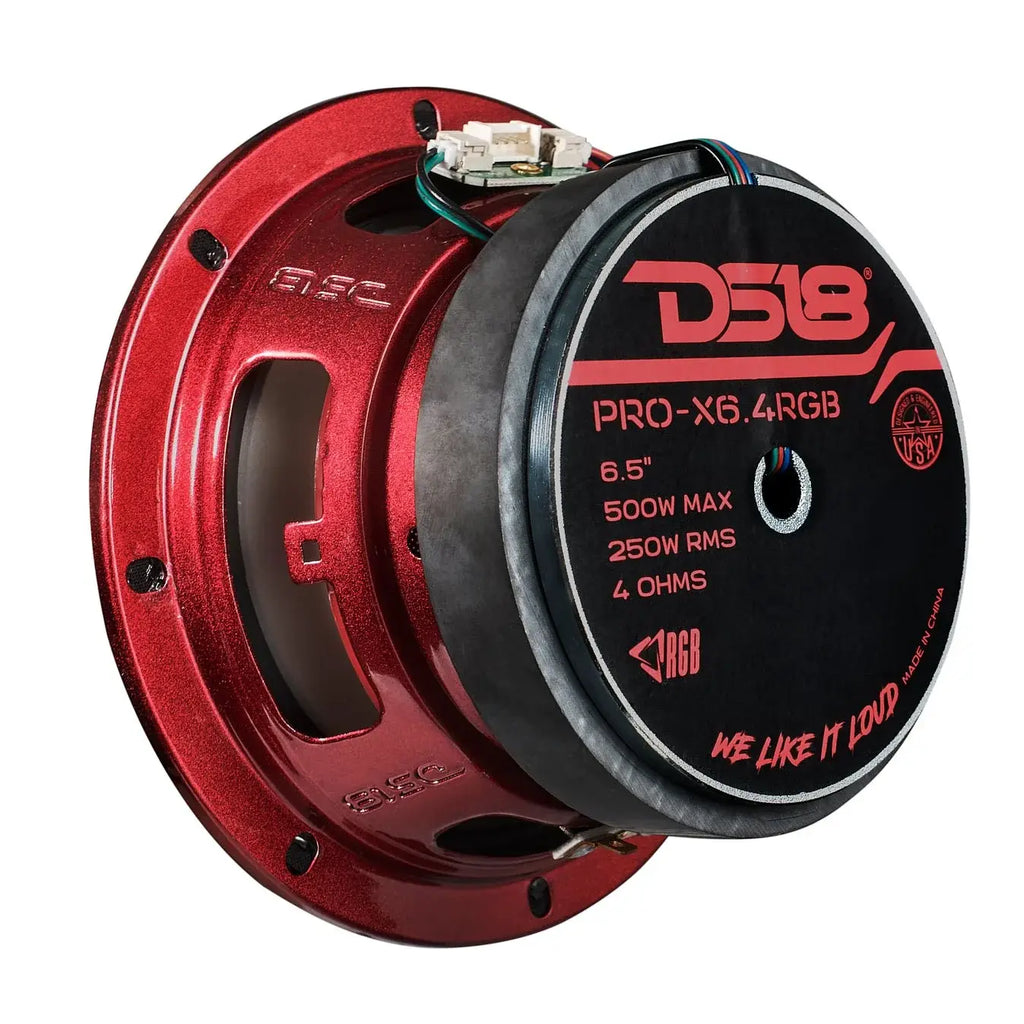

At the core is a 1.5” CCAW voice coil on a Kapton former, backed by a 30 oz ferrite magnet and a glossy red steel basket. This driver is all about high output and reliability.
At the core is a 1.5” CCAW voice coil on a Kapton former, backed by a 30 oz ferrite magnet and a glossy red steel basket. This driver is all about high output and reliability.
Customizable RGB Lighting

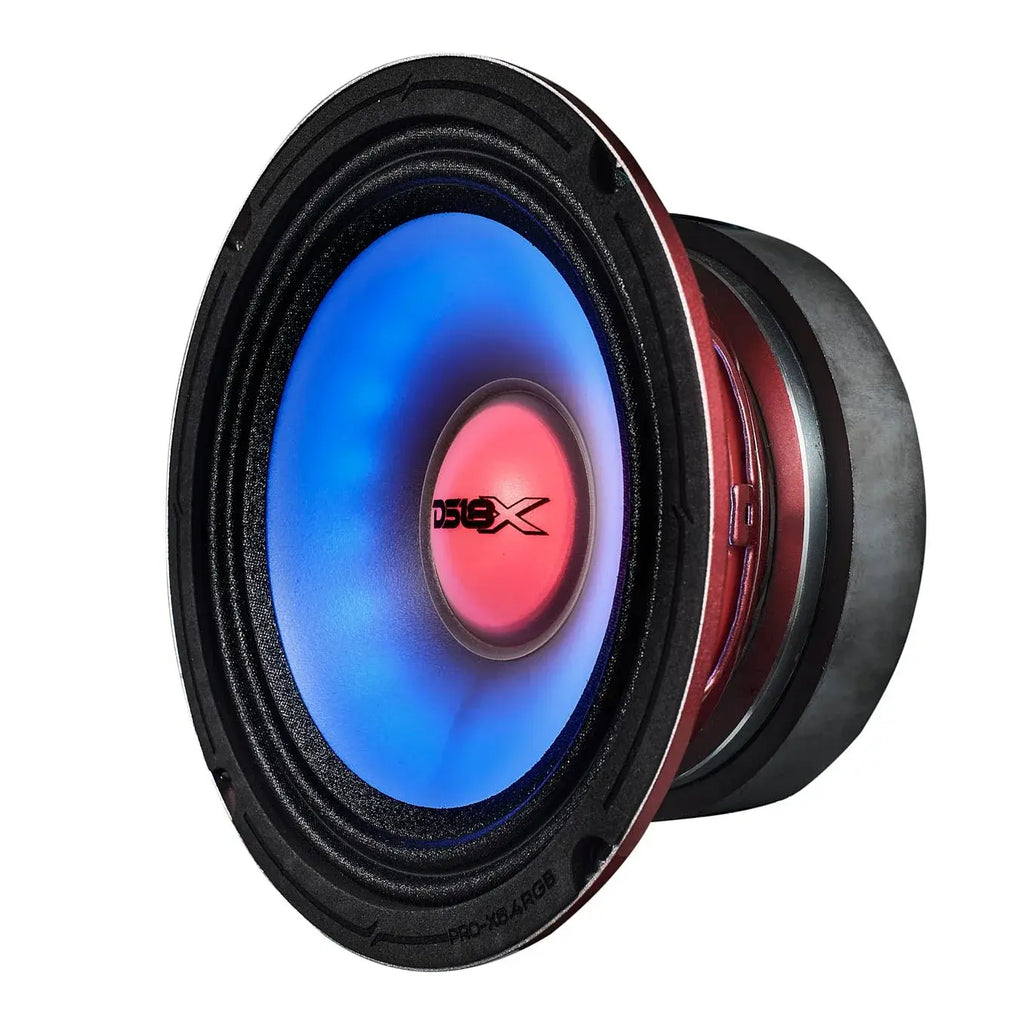

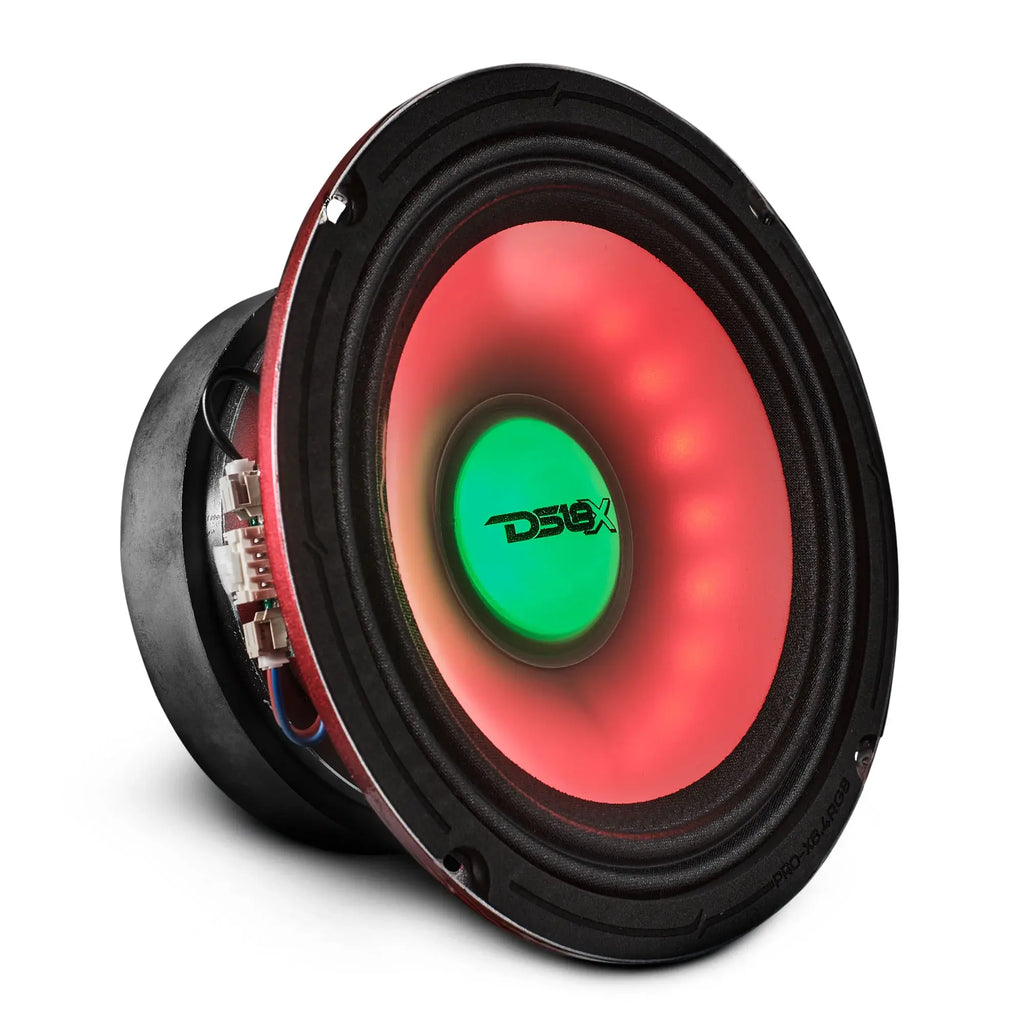

Dual RGB lighting modes let you light up the translucid polypropylene cone and dust cap independently. Use DS18’s LC-RGB LED controller (sold separately) and DS18 LC App to fully customize your lighting setup!
Dual RGB lighting modes let you light up the translucid polypropylene cone and dust cap independently. Use DS18’s LC-RGB LED controller (sold separately) and DS18 LC App to fully customize your lighting setup!
Drop-In Ready
With a 4-ohm impedance and only 3" mounting depth, the PRO-X6.4RGB installs easily into most builds. This is the perfect for speaker for any serious show builds!
With a 4-ohm impedance and only 3" mounting depth, the PRO-X6.4RGB installs easily into most builds. This is the perfect for speaker for any serious show builds!
