DS18 6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link
SKU: DDX6.9
DS18 6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link
Out Of Stock
Key Features
- 6.9" Double-Din Digital Media Receiver
- CD ~ DVD
- BT ~ USB ~ AUX ~ SD ~ AM/FM
- Mirror Link ~ SWC
- Touchscreen
- IOS and Android Compatible
SPECS
SKU
DDX6.9
Rated power source
14.4V DC (10.8V to 15V operation)
Maximum Current Consumption
10 Amp
Dimensions (W x H x D)
Chassis: 178mm x 100mm x 135mm Bezel frame: 170mm x 96mm x 5mm
Weight
1.52 Kg
Display
Screen Size / Aspect Ratio
6.9 inch / Wide 16:9
Pixels
1024 x 600
Display Type
TFT / WSVGA / Capacitive Touch Screen
Temperature Operation
-20C to +60C (14F to 140F)
Audio
Maximum Power Output
40W X 4 Ch / 4 ohm
Continuous Power Output
15W x 4 Ch / 4 ohm
Pre-output Level
4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
Equalizer
16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)
Gain
+/- 12dB
Audio Control
Volume / Balance / Fader /Loudness
Tuner
Frequency Range
FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory
30 Stations (18 FM/12 AM)
Region
Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment
LOC (On/Off) / ST (On/Off)
USB / SD Player
Type / Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported
1080P Video
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (USB)
Number of USB Ports
2 (1 x Front, 1 x Rear)
Connectivity
Bluetooth Version / Services
V4.1 / Audio Streaming / Hands Free calls
Camera Input
RCA Analog Video up to HD 720p (Front/Rear)
Video Output
Dual RCA (1 Volt/75 ohm)
A/V Aux Input
Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone
3.5mm Jack external MIC Input
Remote Control
Frontal IR Receptor / Wired (3.5mm jack) Input
Product Overview
DS18 DDX6.9
6.9" Double Din Digital Media Receiver | DVD/CD | Bluetooth | Touchscreen | Mirror Link | USB/SD
Take full control of your entertainment with DS18’s DDX6.9, the ultimate multimedia receiver for today’s connected driver. Featuring a vibrant 6.9” capacitive touchscreen and full DVD/CD playback, this double-DIN turns your dash into a digital command center.
MIRROR LINK & BLUETOOTH CONNECTIVITY

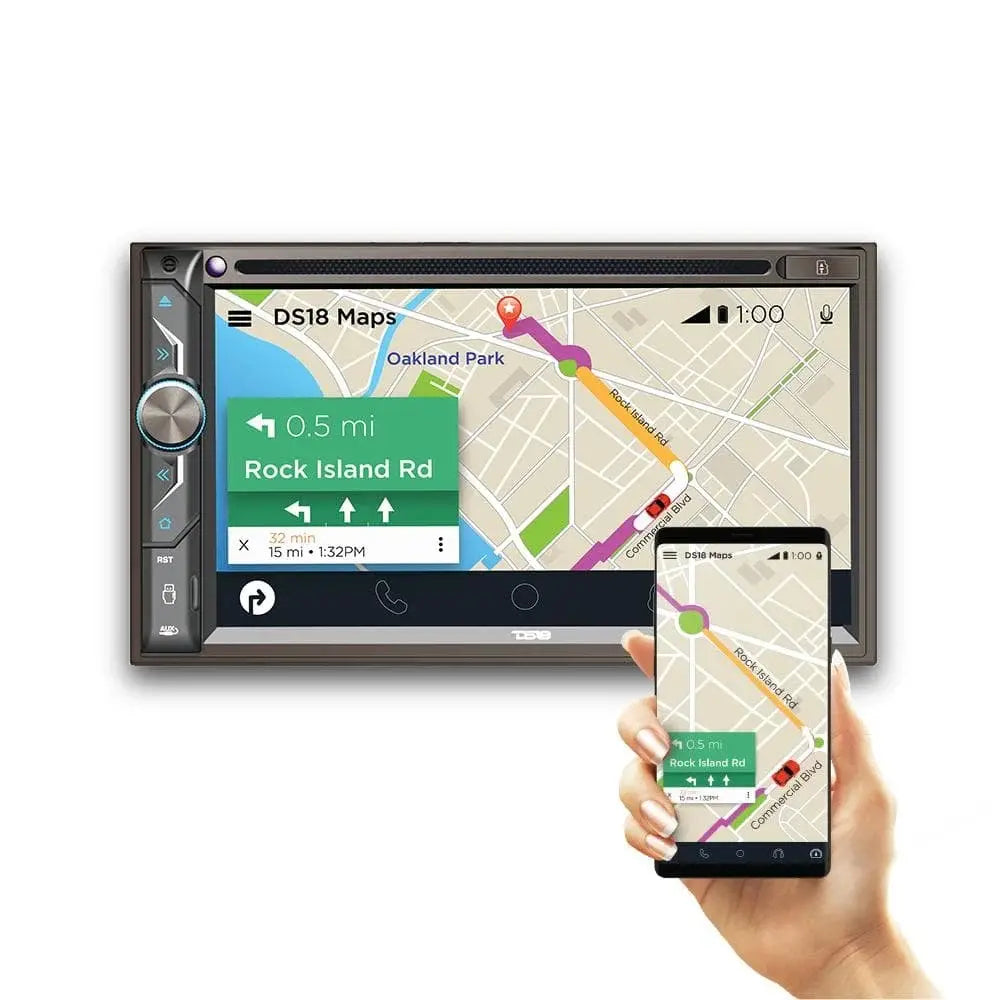

The DDX6.9 supports Mirror Link for both iOS (iPhone 5 to XS) and Android (5.0+), letting you mirror your smartphone directly onto the screen. With Bluetooth v4.1, enjoy seamless audio streaming and hands-free calling for safer, smarter driving.
The DDX6.9 supports Mirror Link for both iOS (iPhone 5 to XS) and Android (5.0+), letting you mirror your smartphone directly onto the screen. With Bluetooth v4.1, enjoy seamless audio streaming and hands-free calling for safer, smarter driving.
MULTIMEDIA VERSATILITY
Play your favorite media through USB, SD card (up to 64GB), DVD/CD, or AUX input. Supports a wide range of file formats including MP4, AVI, MP3, WMA, and even 1080p video playback. Dual RCA pre-outs with 4.5V output and subwoofer channel make system expansion easy.
Play your favorite media through USB, SD card (up to 64GB), DVD/CD, or AUX input. Supports a wide range of file formats including MP4, AVI, MP3, WMA, and even 1080p video playback. Dual RCA pre-outs with 4.5V output and subwoofer channel make system expansion easy.
BUILT-IN POWER, EXPANDABLE CONTROL
This receiver offers 40W x 4 MAX and 15W x 4 RMS @ 4Ω, perfect for powering your factory or entry-level speakers. For system builders, 4.5V pre-outs ensure clean signal to your amps, and the DDXRC App gives you advanced EQ control straight from your phone.
This receiver offers 40W x 4 MAX and 15W x 4 RMS @ 4Ω, perfect for powering your factory or entry-level speakers. For system builders, 4.5V pre-outs ensure clean signal to your amps, and the DDXRC App gives you advanced EQ control straight from your phone.
EVERYTHING YOU NEED, READY TO INSTALL
From AM/FM radio to a responsive 16:9 TFT touchscreen (1024x600), this unit is built for convenience and performance. Camera inputs (front/rear), steering wheel control, and a customizable 16-band EQ bring pro-level customization to your dash.
From AM/FM radio to a responsive 16:9 TFT touchscreen (1024x600), this unit is built for convenience and performance. Camera inputs (front/rear), steering wheel control, and a customizable 16-band EQ bring pro-level customization to your dash.
DS18’s DDX6.9 is your digital manager in motion. Upgrade the way you ride today!
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
