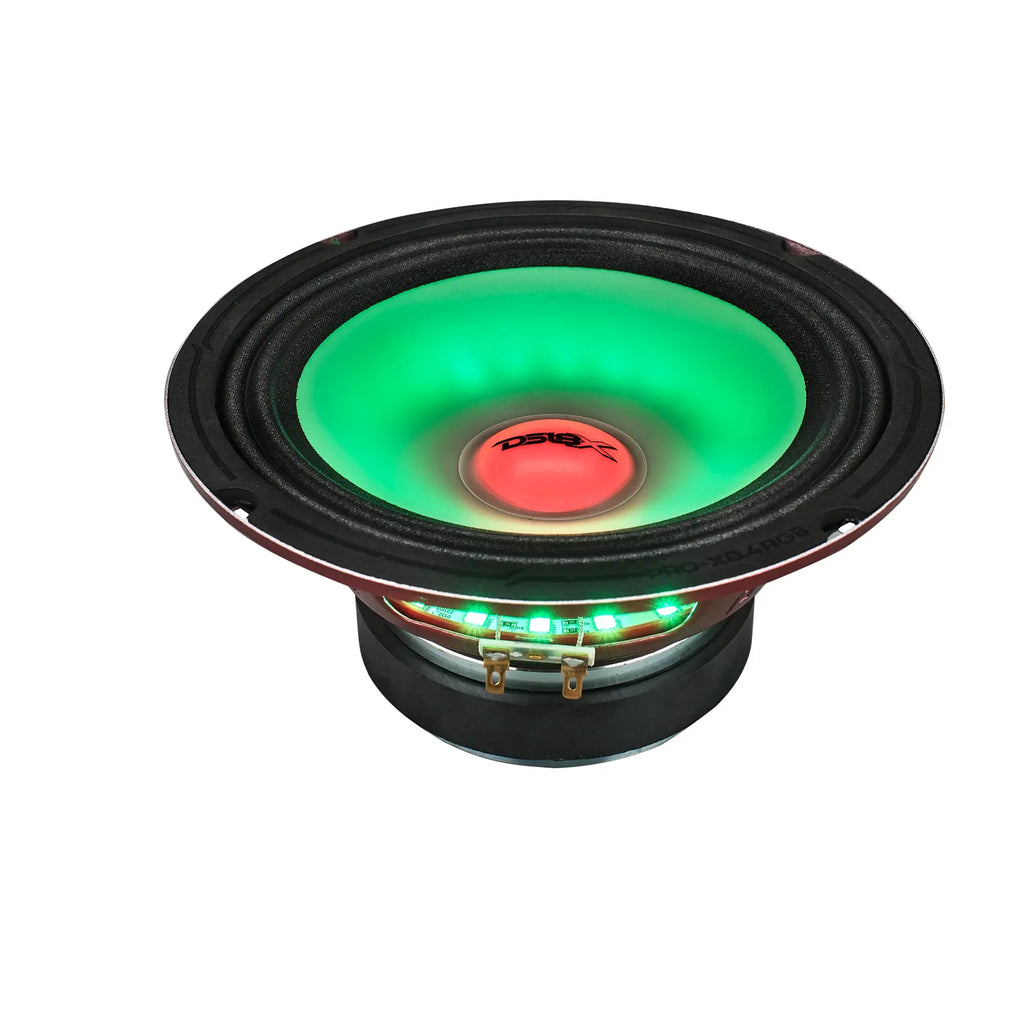

DS18 8" Mid-Range Loudspeaker with Dual RGB LED For Cone & Dust Cap 275 Watts 4-Ohm EACH
SKU: PRO-X8.4RGB
DS18 8" Mid-Range Loudspeaker with Dual RGB LED For Cone & Dust Cap 275 Watts 4-Ohm EACH
Out Of Stock
Key Features
- 8" Mid-Range w/RGB LED Cone & Dust Cap
- RMS Power: 275 Watts
- MAX Power: 550 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 95dB
-
Specifications
SKU
PRO-X8.4RGB
Nominal Diameter
8" / 203.2mm
Nominal Impedance
4 ohm
RMS Power Handing
275w
MAX Power Handing
550w
Sensitivity (1w/1m)
95dB
Frequency Response
80Hz-5KHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No
Water Resistant
IP65 rating
Motor
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Translucid PP with RGB LED
Bullet Material
N/A
Dust Cap Material
Translucid PP with RGB LED
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
30 Oz
Displacement Volume
0.049L / 0.0017ft3
Thiele & Small Parameters
Equivalent Volume Vas
13.2L / 0.46ft3
Excursion (one way) Xmax
7mm
Free Air Resonance Fs
80Hz
Mechanical Factor Qms
9.31
Electrical Factor Qes
0.75
Total Factor Qts
0.7
Mechanical Mass Mms
22.3g
Mechanical Compliance Cms
0.19mm/N
BL Factor BL
6.96
Voice Coil Inductance Le
0.03mH
Cone Area Sd
219.04cm2
DC Resistance Re
3.5 ohms
Mechanical Mass w/o air Mmd
20.5g

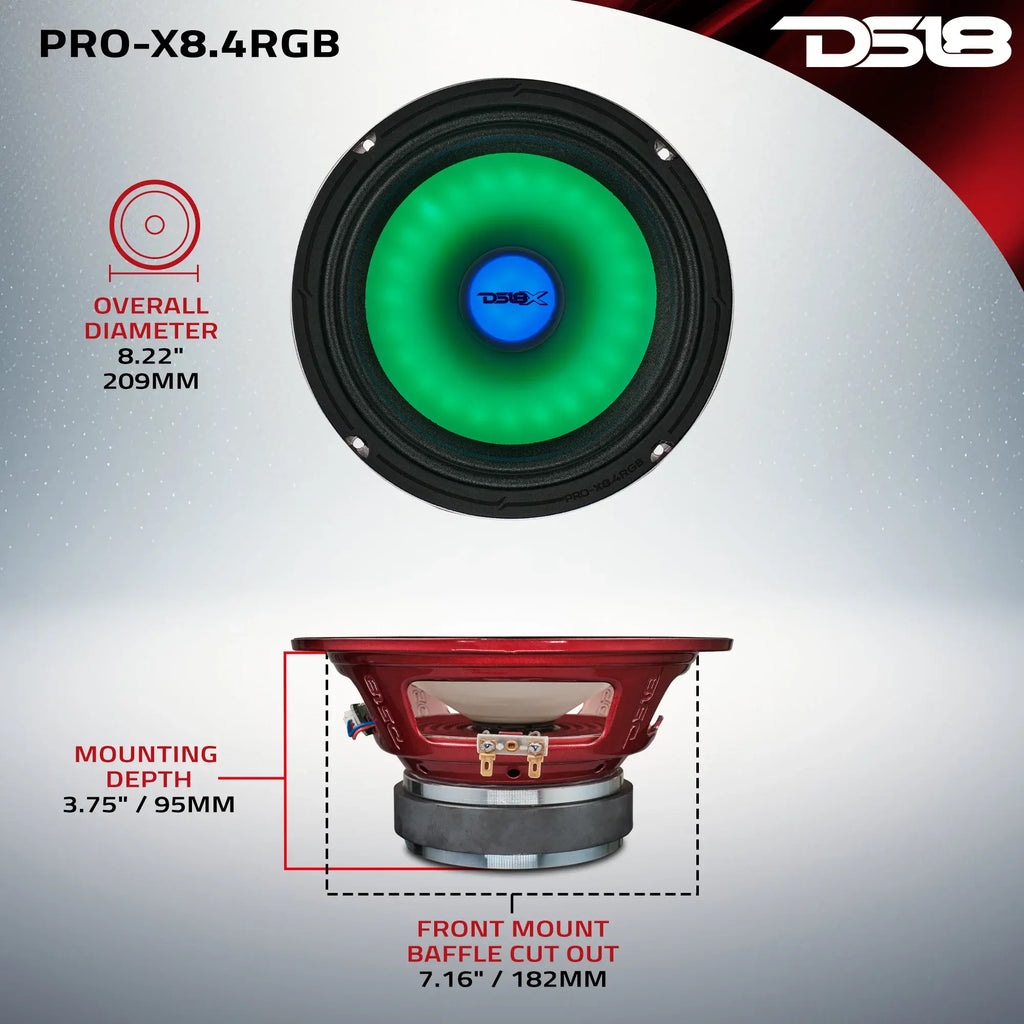

Measurement
Overall Diameter
8.22" / 209mm
Overall Depth
4" / 101.6mm
Front Mount Baffle Cutout
7.16" / 182mm
Mounting Depth
3.75" / 95mm
Product Overview
DS18 PRO-X8.4RGB
8" Mid-Range Loudspeaker With Dual RGB LED For Cone & Dust Cap
Get LOUD with DS18’s PRO-X8.4RGB, an 8-inch loudspeaker engineered for excellence. This loudspeaker combines high-power audio with a striking visual flair, making it the perfect upgrade for competitive and casual systems.
The PRO-X8.4RGB handles up to 275W RMS and peaks at 550W, guaranteeing distortion-free sound even at high volumes. Its wide frequency response from 80Hz to 5kHz captures rich mid-range tones, while the exceptional sensitivity of 95 dB guarantees loud, detailed audio with minimal power input.

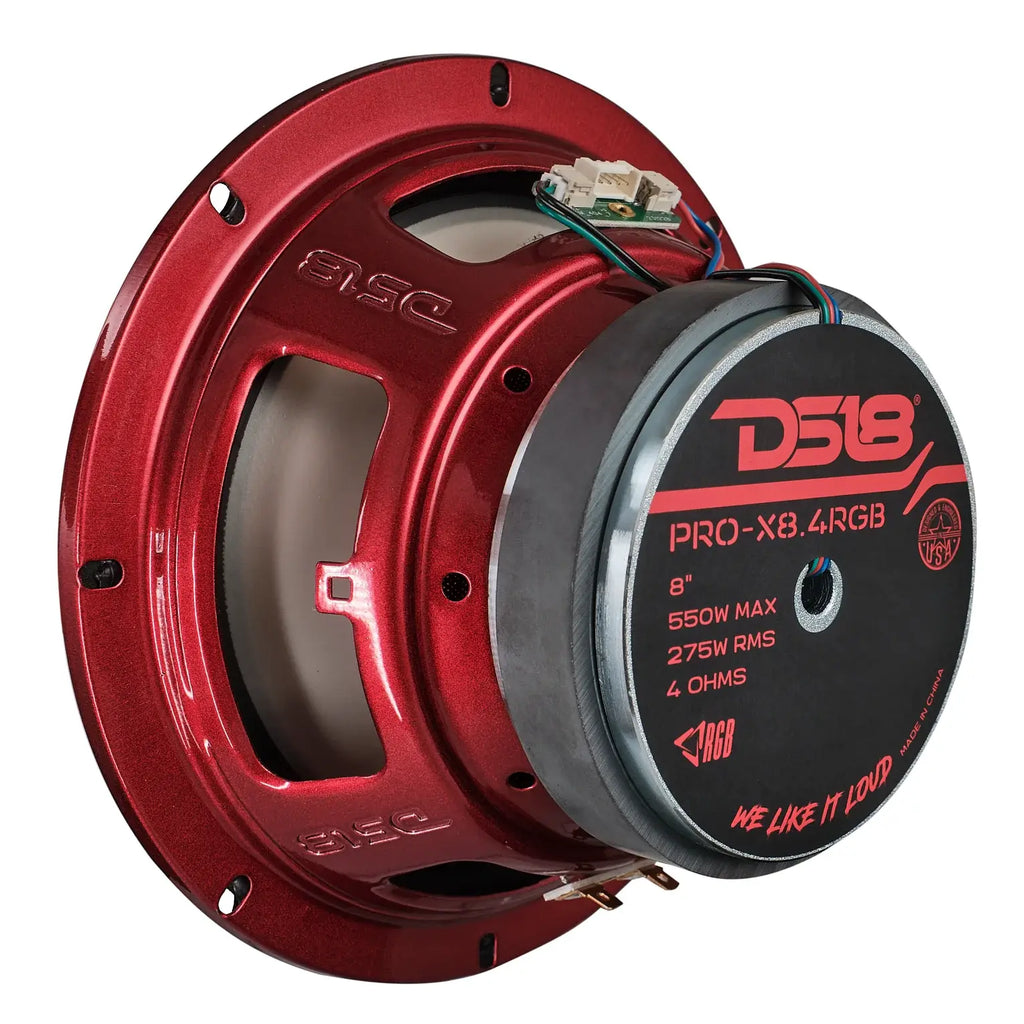

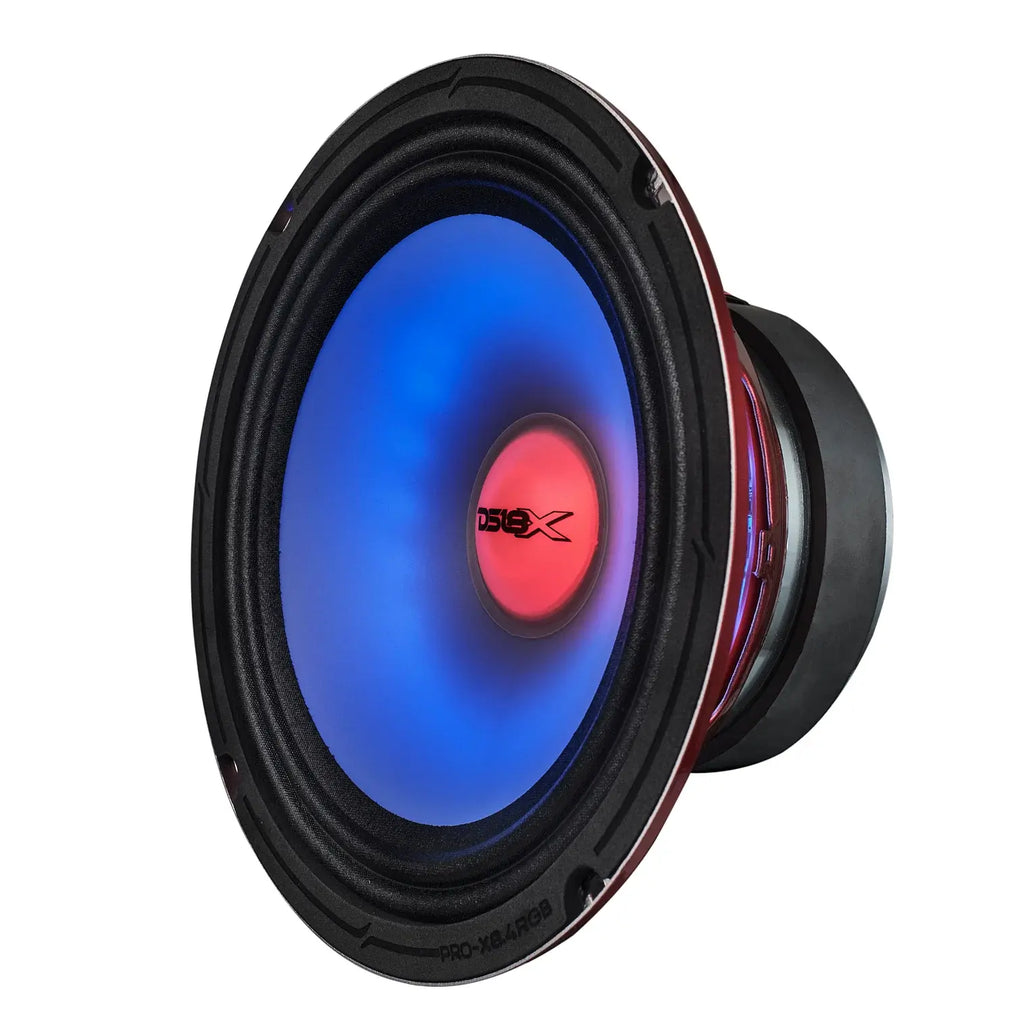

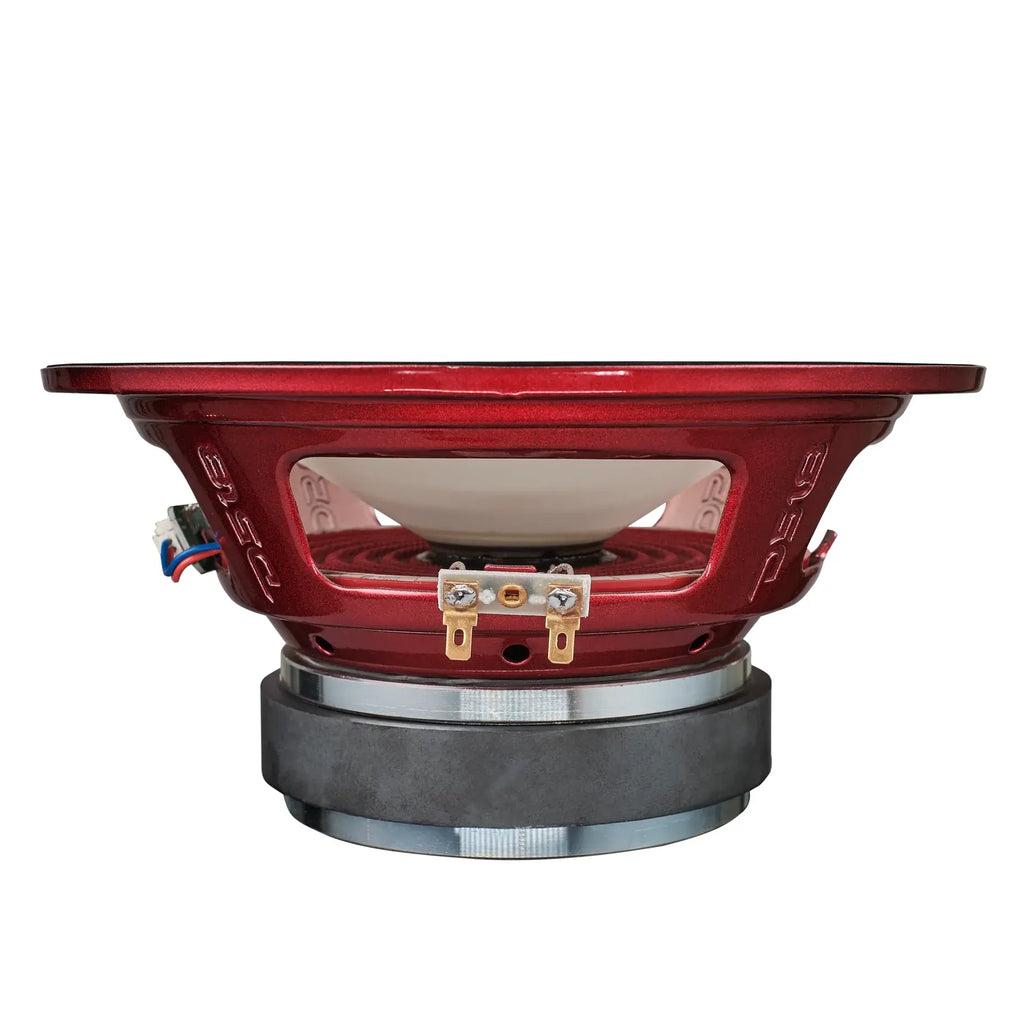

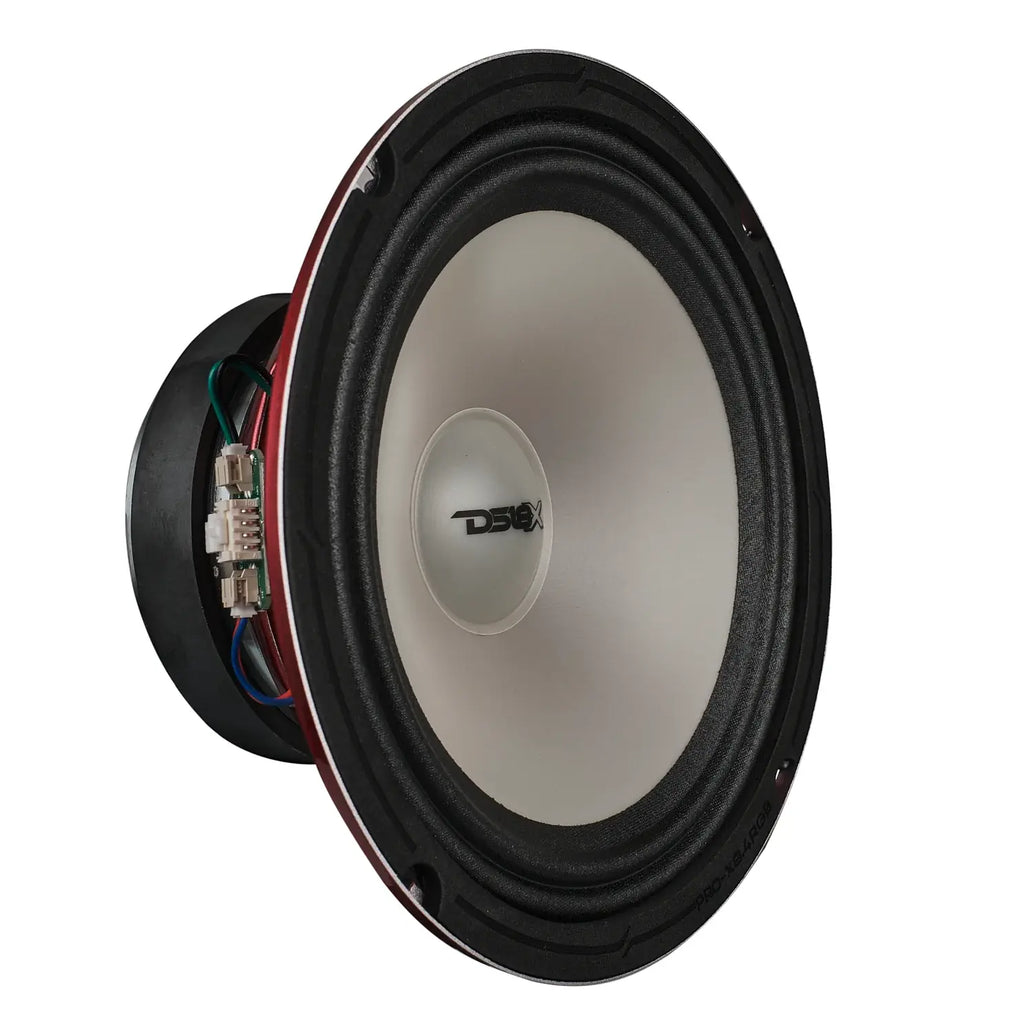

This mid-range speaker features a translucent polypropylene cone and dust cap integrated with RGB LEDs for dynamic lighting effects that can transform any show build from runner up to first place. The 1.5-inch voice coil with Kapton former and CCAW winding enhances durability and precision, while the glossy red steel basket ensures structural integrity. Its rugged ferrite magnet weighing 30 oz boosts reliability, making it perfect for any setup.

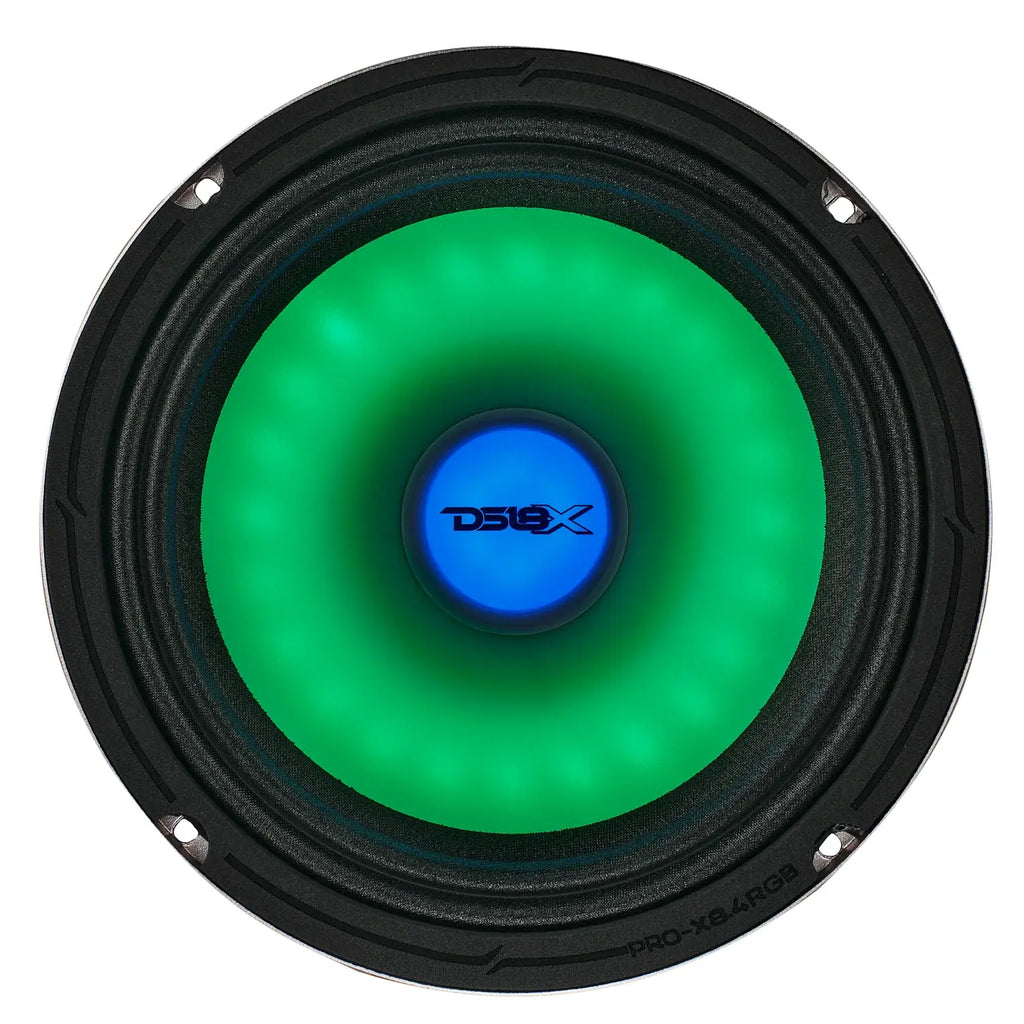

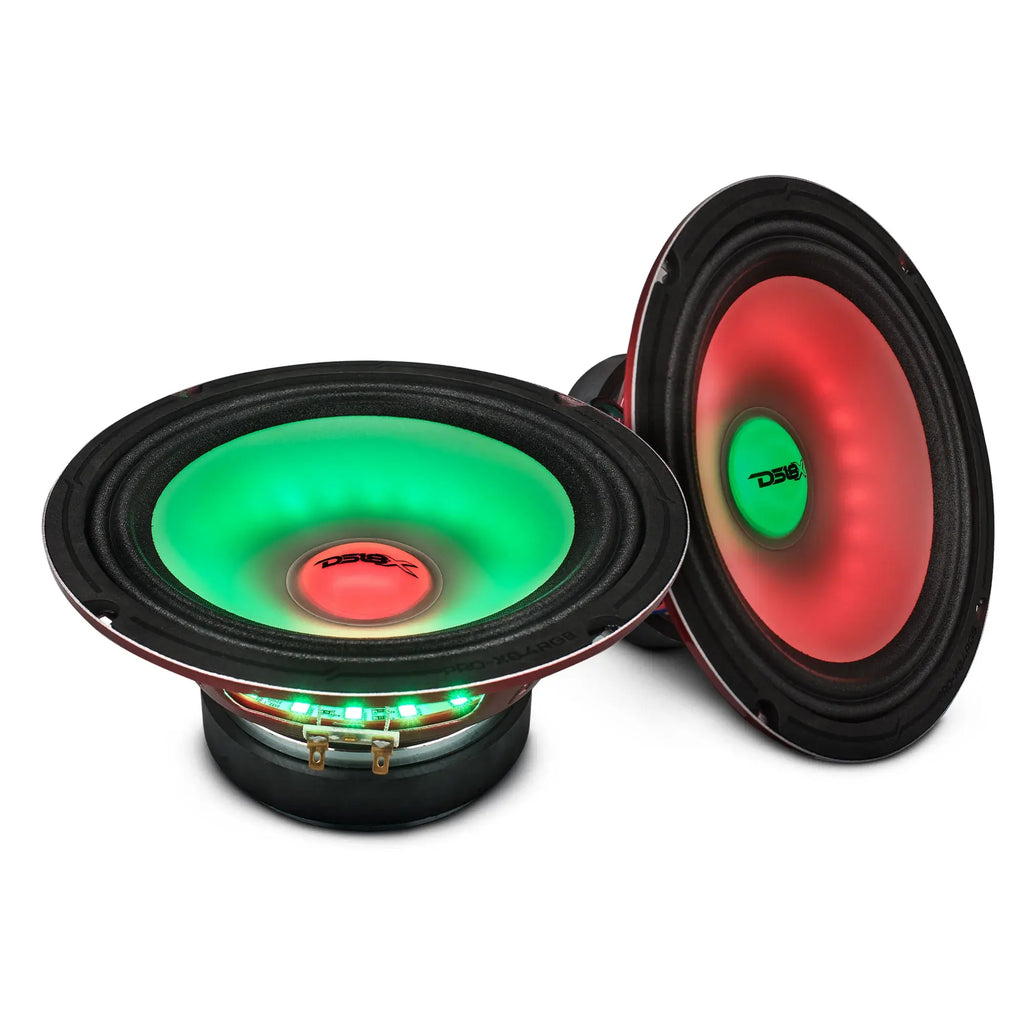

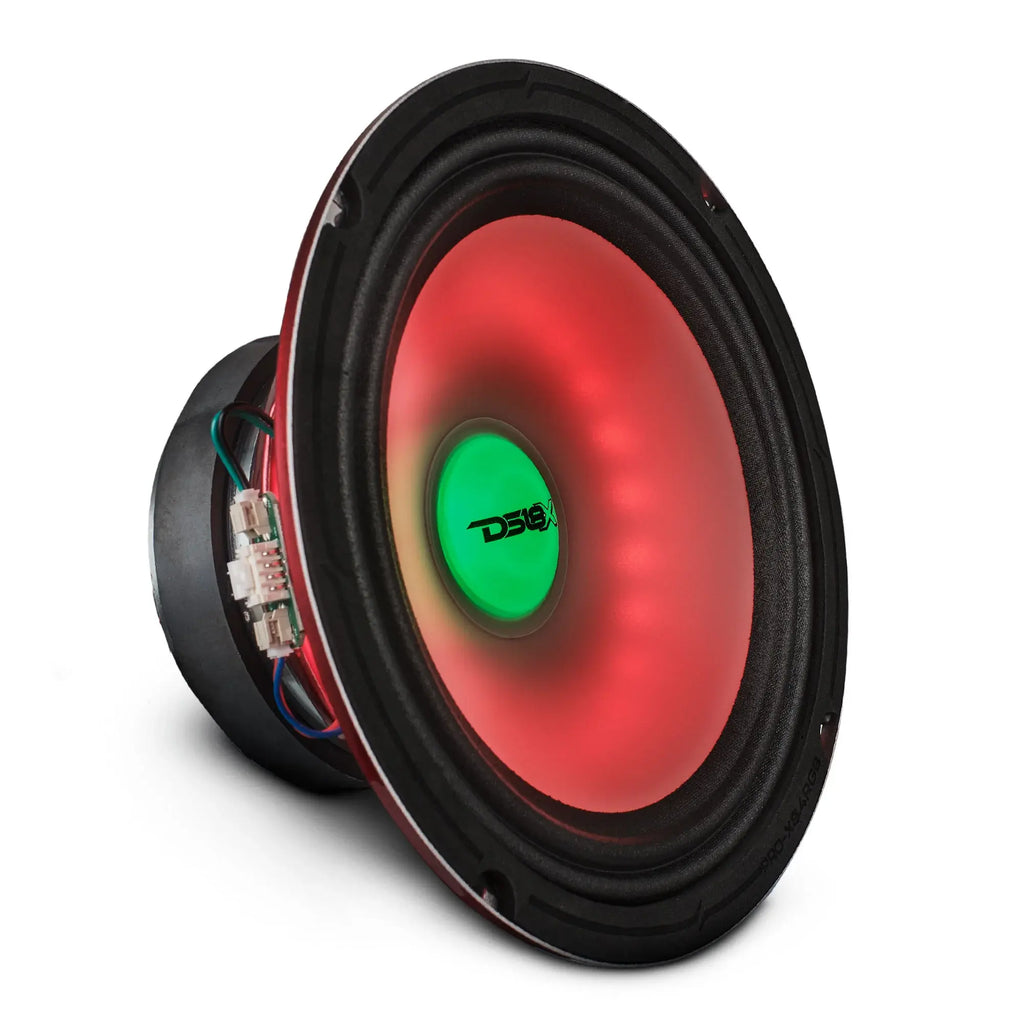

What sets the PRO-X8.4RGB apart is its customizable LED lighting system, offering both dual and single-color modes suitable for wet or dry environments. This feature allows you to tailor your setup's aesthetics to your liking.
This speaker is perfect for every enthusiast. Its compact design with a 4-ohm impedance and 3.75" mounting depth ensures effortless integration into various setups.
Choose the PRO-X8.4RGB for a speaker that stands out not just in sound but in style too.
