SKU
SDX-P100
Nominal DIN Size
1-DIN
Rated Power Voltage
14.4V
Voltage Operation
9.6-15 Volts
Maximum Current Consumption
15A
Temperature Operation
0~60°C / 32~140°F
Screen Size
4" / 104mm
Display Type
LCD Dots
Buttons / Controls
ABS
Backlight Illumination Type
RGB / 3 Zones
Body Material / Color / Finish
Steel / Bronze

Maximum Power Output (Peak)
4x40W
Continuous Power Output (RMS)
4x15W
Minimum Impedance
4 Ohms
Frequency Response
20Hz-20KHz
Pre-Output Level (RCA)
3V / 3.5V (Subwoofer)
Equalizer Bands
48 Bands
Equalizer Gain
+ / - 9dB
Crossover
3-Way
Crossover Slope
6 / 12 / 24 dB/Oct
Time Alignment
0~25ms / 0~850cm
Audio Control
Subwoofer Level, Fader, Balance, Loudness

Frequency Range (FM)
87.5 - 108.0 MHz
Frequency Range (AM)
522 - 1620 KHz
Presets Memory
18 FM / 12 AM
Region
Europe, America, Asia, Russia
Sensitivity Adjustment
Local / DX
Version
4.2
Services
Hands Free Calls, Audio Streaming, APP Remote Control
Audio Protocols
A2DP, AVRCP, HFP
Range
32ft / 10m

Type / Class
2.0, 3.0 / FAT 16, FAT32
Format Files Supported
FLAC (16 Bit), WAV, AAC, APE, MP3
Max Memory Size Reader
64 Gb
Max Current USB Charger
1A
Number of Ports
1 (Front)

A/V Aux Input
Yes, Front 3.5mm Jack (2V Max)
Microphone
Yes, Built-In / External Mic Input
Remote Control (SWC)
Yes, 3.5mm Jack Input
Remote Control (Handset)
Yes, Card Type with Rubber Buttons
APP Control
Yes, (Android Devices)

Overall Width (Chassis)
7" / 178mm
Overall Height (Chassis)
1.96" / 50mm
Overall Depth (Chassis)
4" / 104mm
Overall Width (Bezel Frame)
7.4" / 188mm
Overall Height (Bezel Frame)
2.2" / 58mm
Overall Depth (Bezel Frame)
0.98" / 25mm

Product Overview

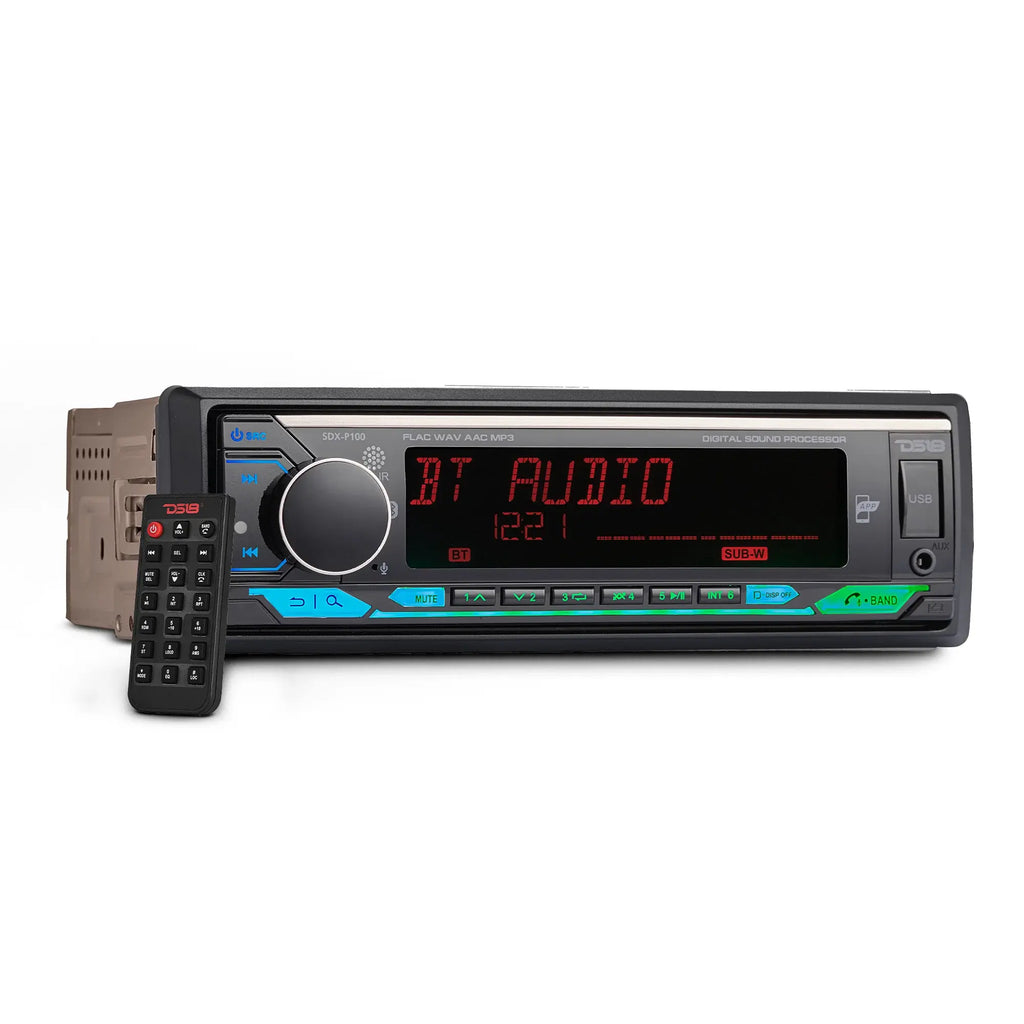

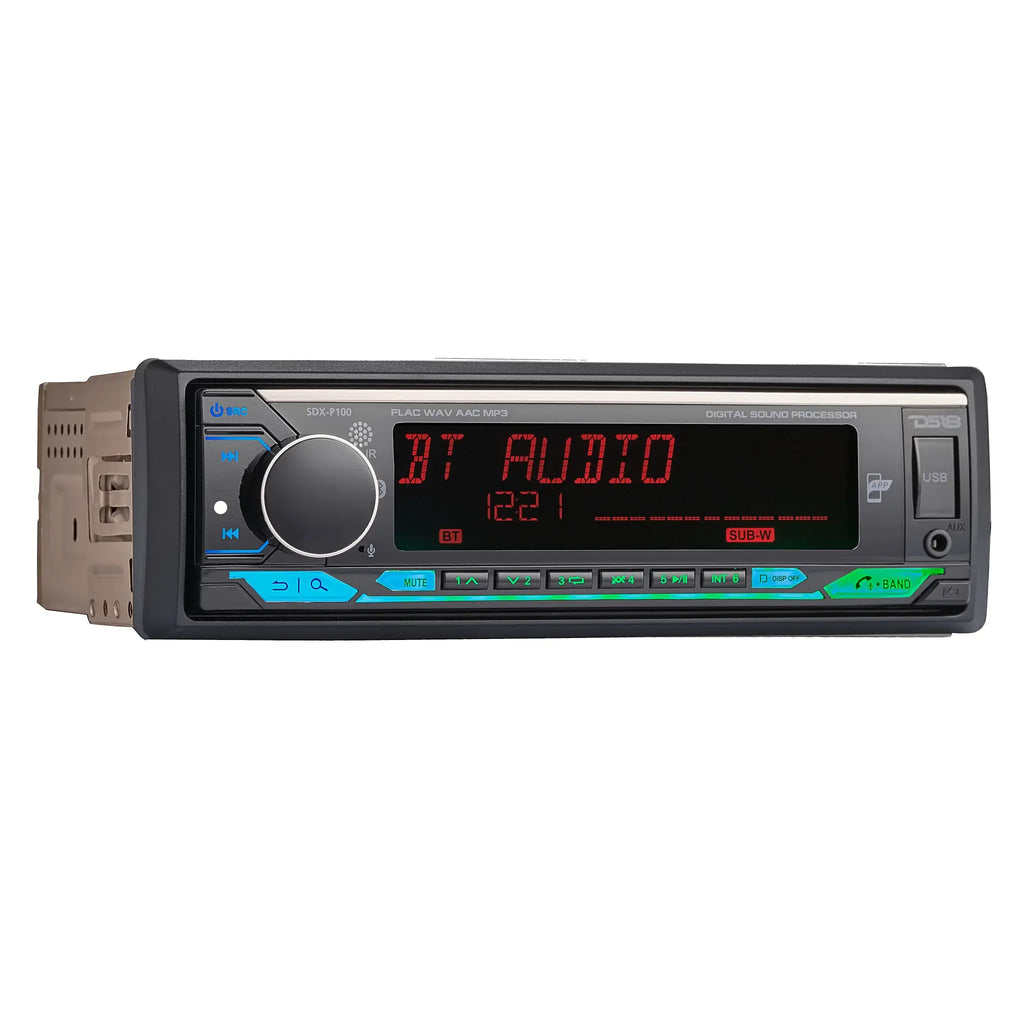

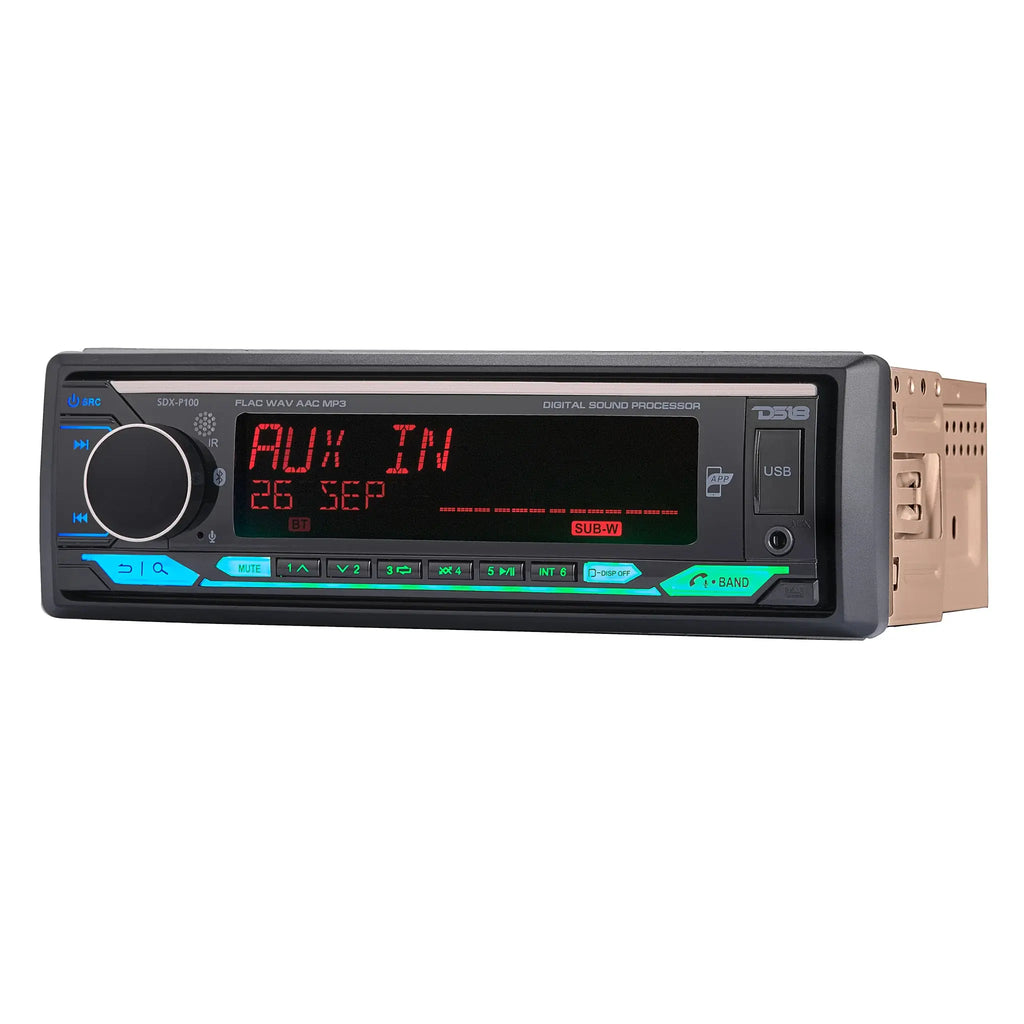

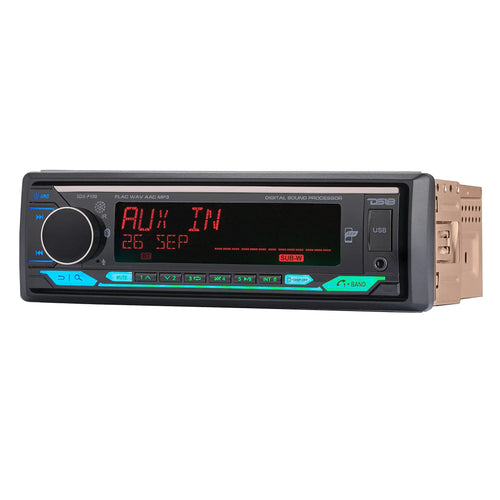

Single DIN Digital Media Receiver With DSP / BT / USB / APP / AUX

Ready for the ultimate in-car audio experience? DS18’s SDX-P100 offers a full audio command center in a sleek single DIN design that’s easy to install and fully loaded with features.

Connect Your Devices

The SDX-P100 keeps your music at your fingertips. Enjoy 30 preset AM/FM stations, plus USB playback supporting high-quality audio formats including FLAC, WAV, AAC, APE, and MP3. Bluetooth lets you wirelessly stream your favorite playlists and take hands-free calls on the go.

Customize Your Sound

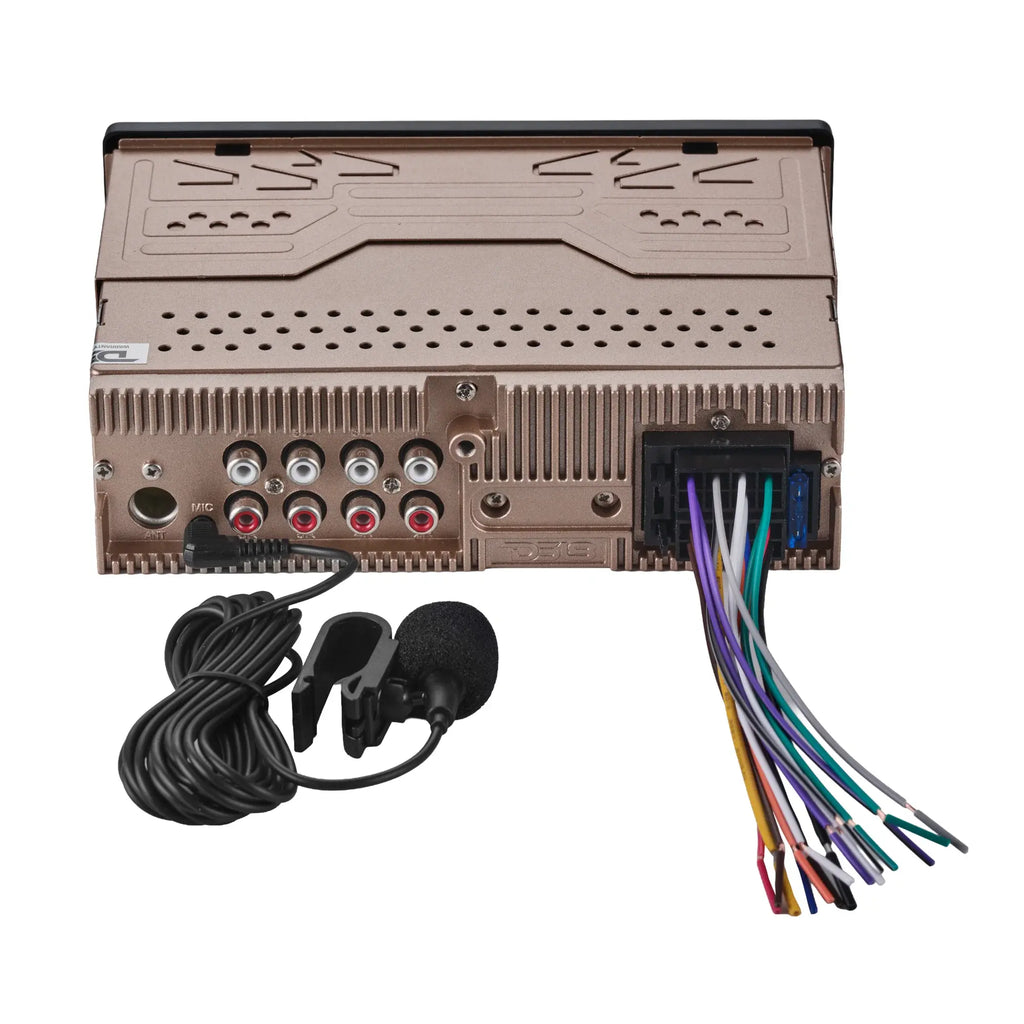

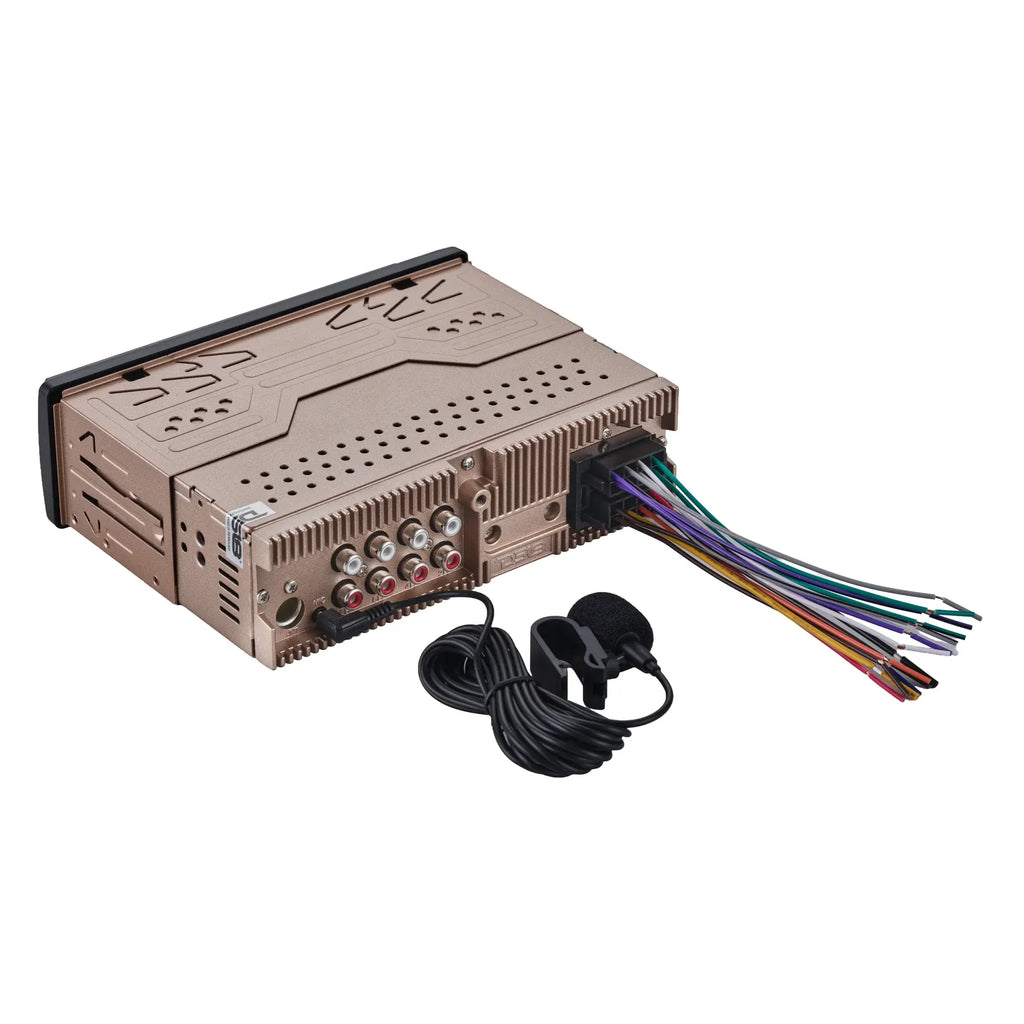

With 8-channel 6-volt RCA pre-outputs and a built-in DSP, the SDX-P100 gives you complete control over your system. Fine-tune your setup with time alignment and 4-way crossover capability for precise tuning. Shape your soundstage with a 48-band graphic equalizer and adjust volume, subwoofer level, balance, and fader to create a personalized listening experience.

Vibrant Display

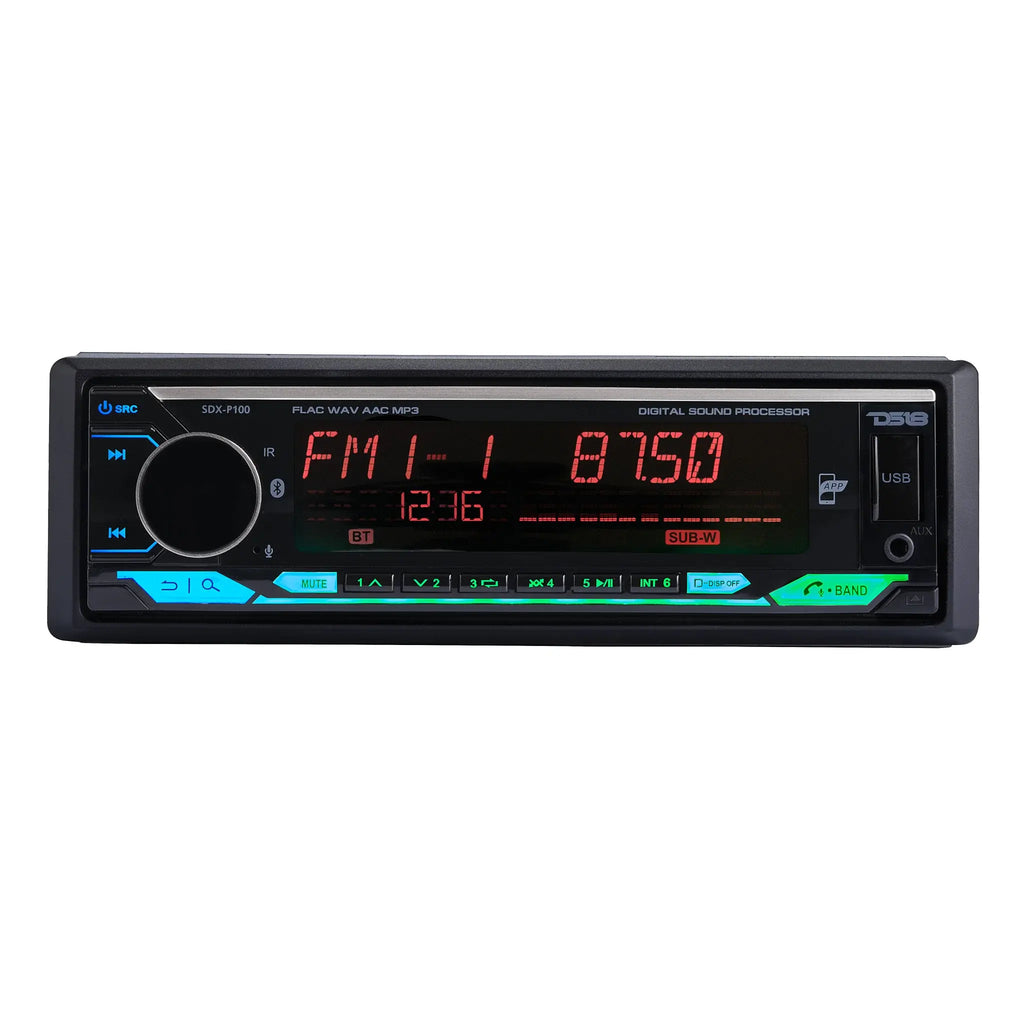

The vibrant 4" LCD screen delivers clean, easy-to-read visuals. Dynamic multi-color LED backlighting with 3-zone RGB illumination lets you set the vibe to match your ride.

Powerful Performance

The SDX-P100 pumps out up to 40W x 4 MAX power and a solid 13W x 4 RMS, delivering audio that hits harder and cleaner than ever before.

Control at Your Fingertips

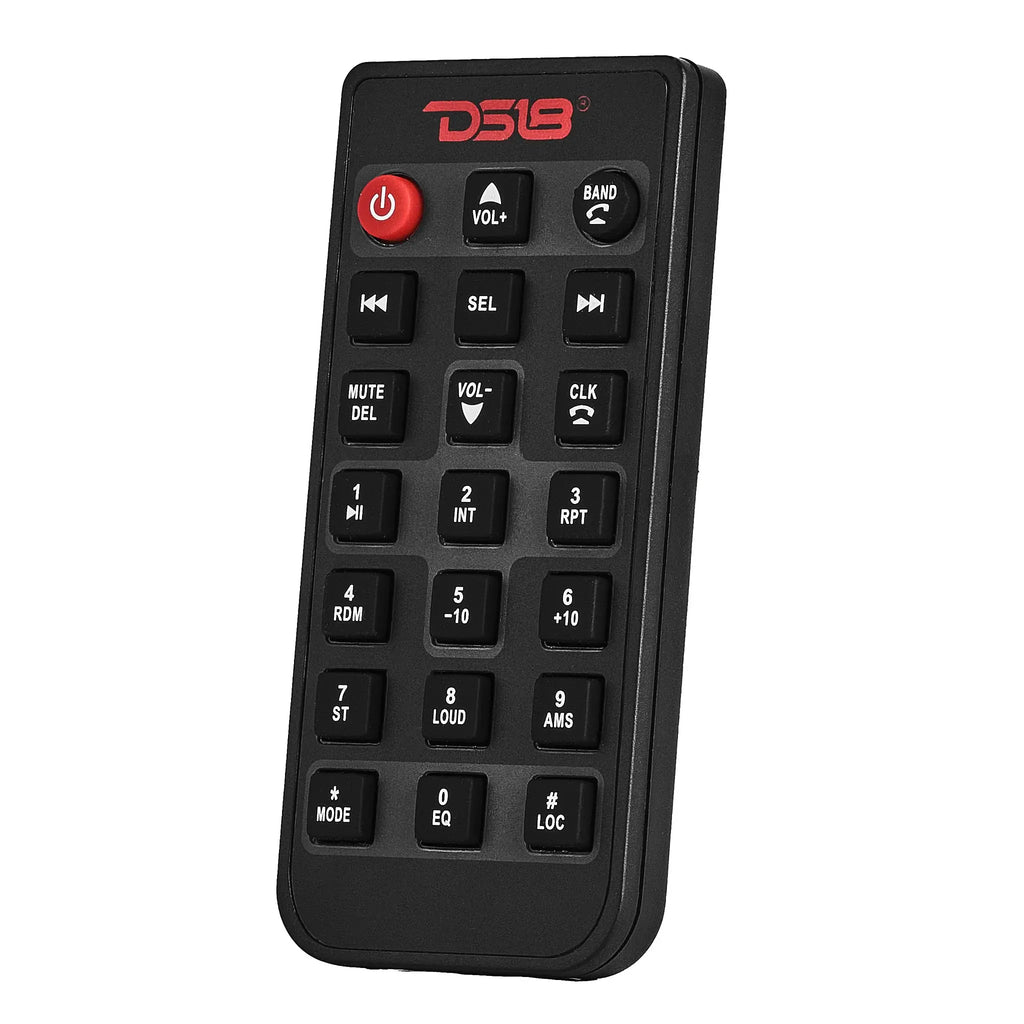

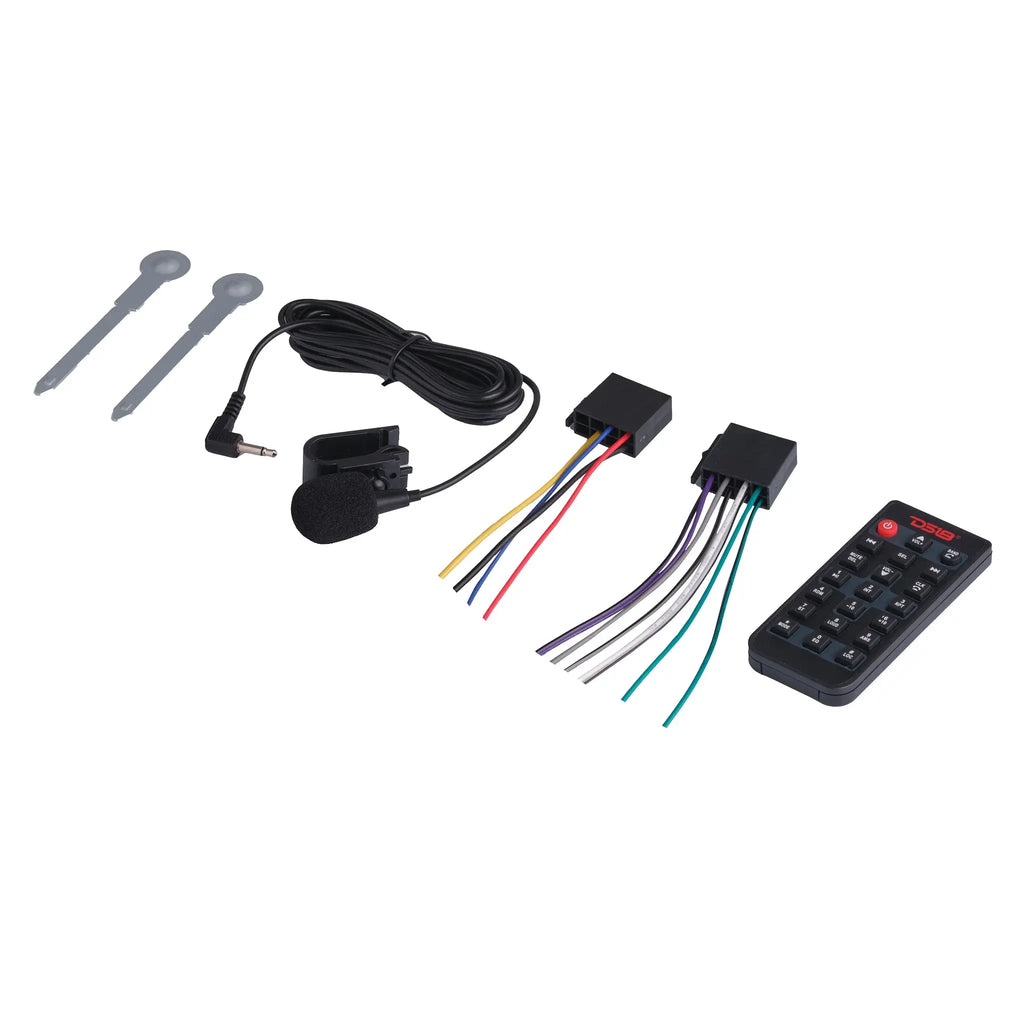

Download the DS18 SDX Remote Control App for iOS or Android and manage your receiver settings, DSP features, and audio controls directly from your smartphone. You can also use the included wireless remote to control your system without needing a steering wheel interface.

The SDX-P100 is engineered to give your dash a serious audio upgrade that’s built to outlast and outperform.
