DS18 NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm PAIR
SKU: NXL-6M/WH
DS18 NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm PAIR
Out Of Stock
Key Features
- 6.5” 2-Way Marine Coaxial Speaker
- Rated at 100W RMS / 300W MAX
- Full-Range Response with 25mm PEN Tweeter: 45Hz–23KHz
- IP65 Water-Resistant Construction with UV-Resistant Materials
- Integrated RGB LED Lighting (LC-RGB Recommended)

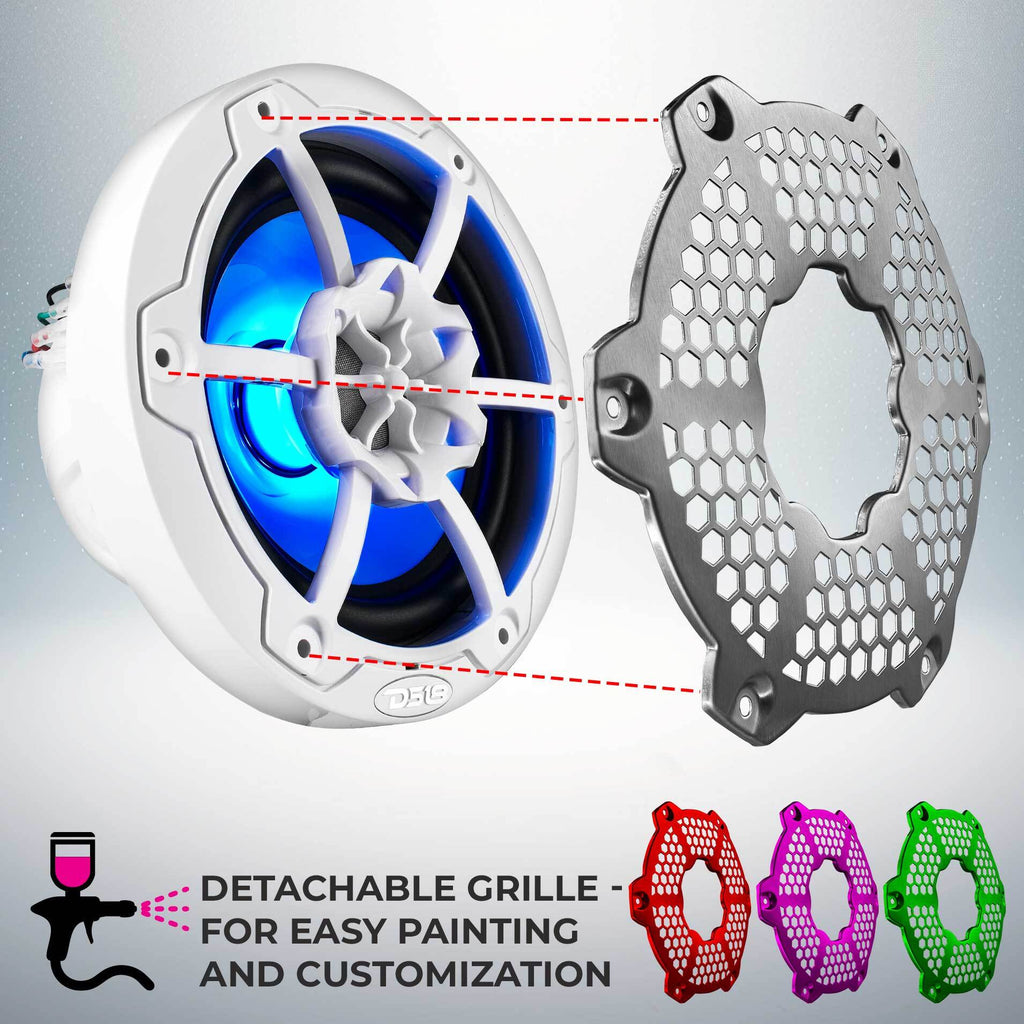

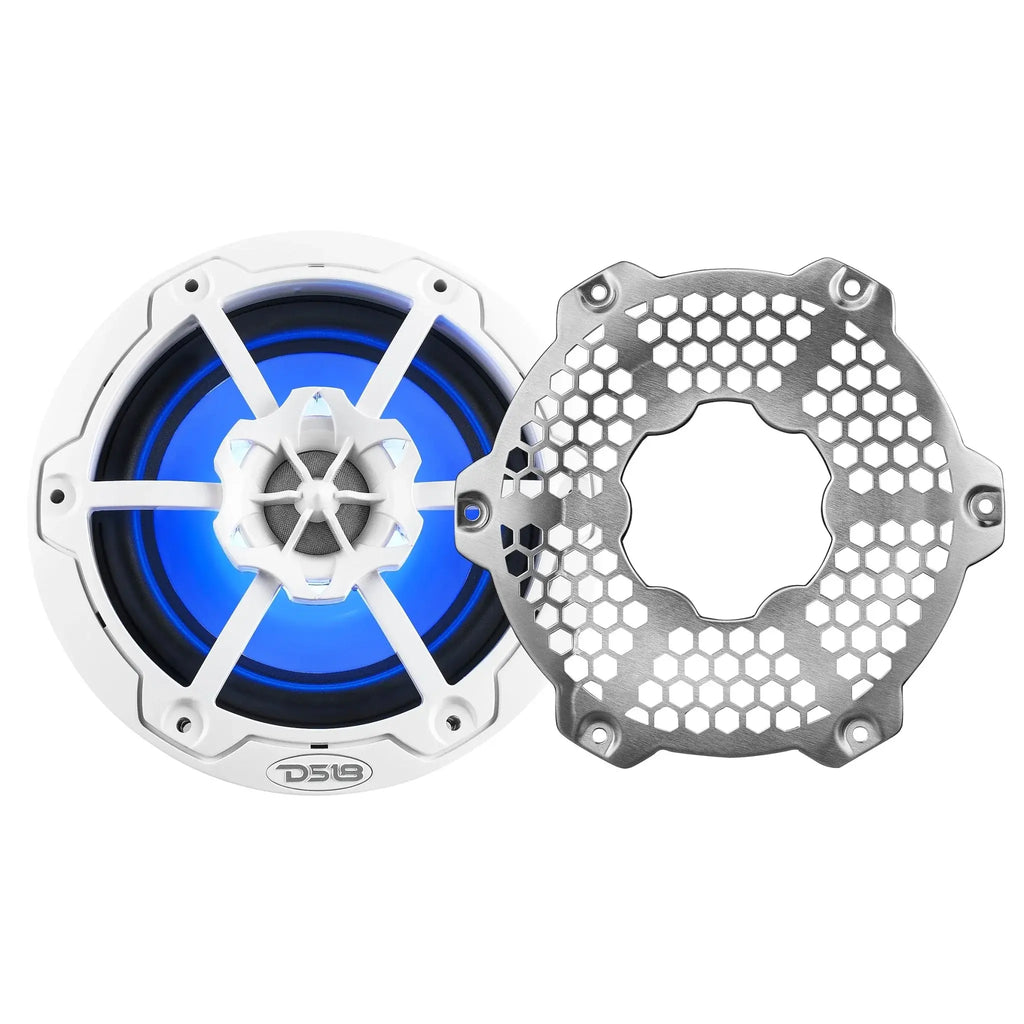

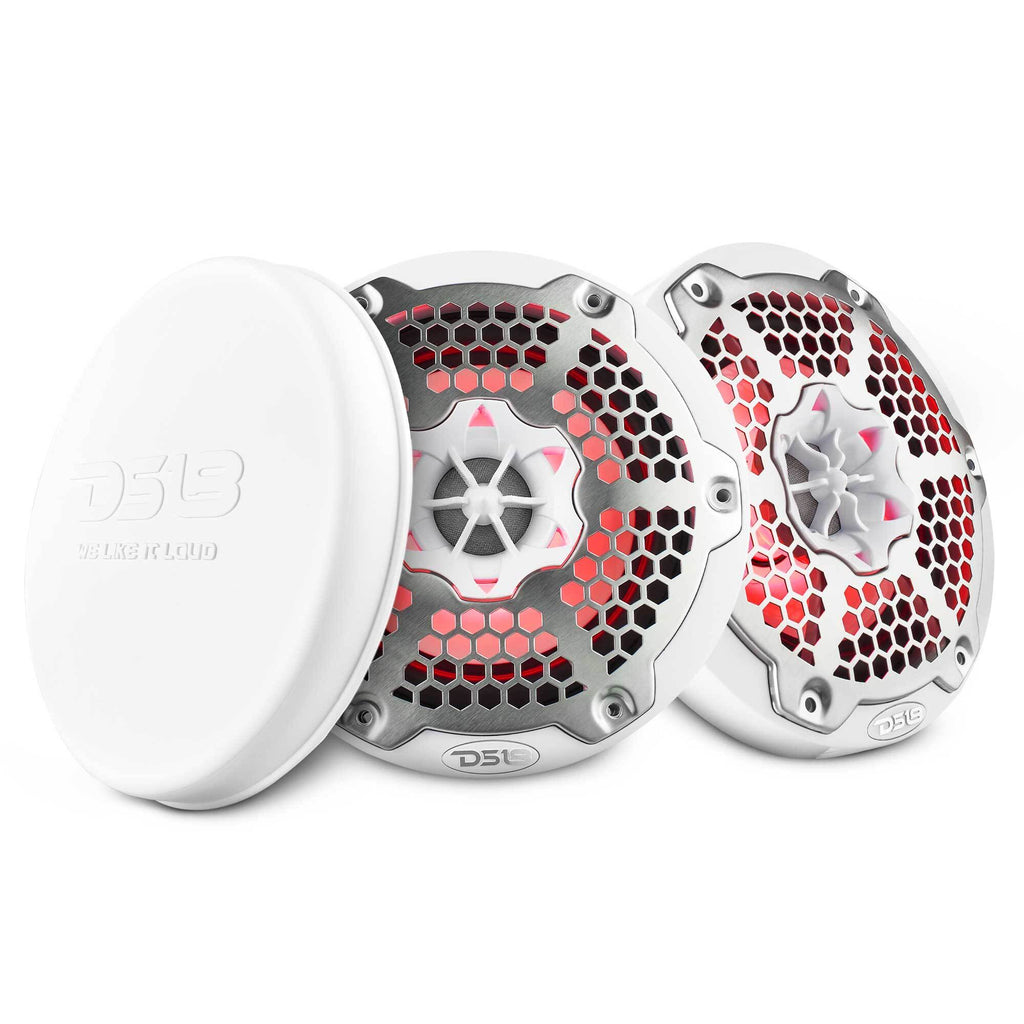

- Stainless Steel Mesh Grill & Butyl Rubber Surround
SPECS
SKU
NXL-6M/WH

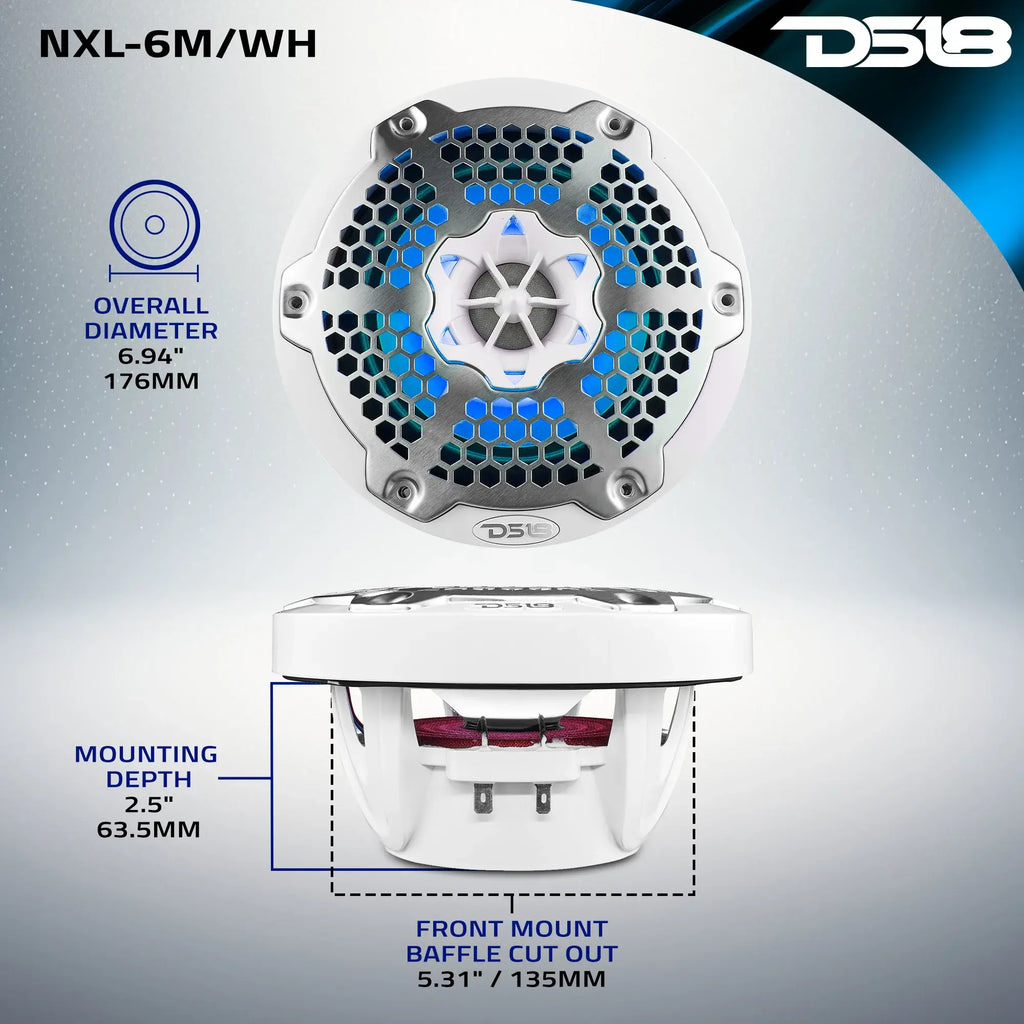

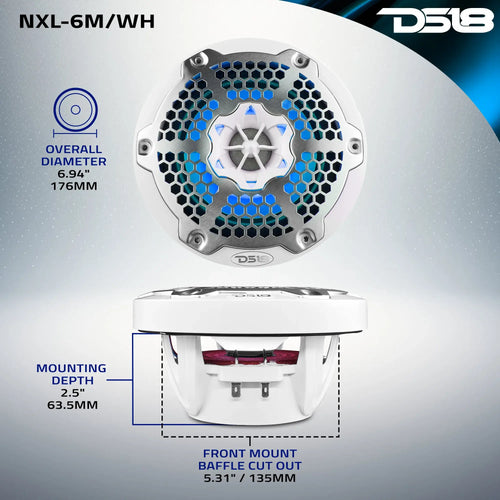

Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz
Body / Features
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite ASA with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Glossy White
Woofer Specifications
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
14oz + 0.32oz
Tweeter Specifications
Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz
Thiele & Small Parameters
Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9
Product Overview
DS18 NXL-6M/WH
6.5” 2-Way Marine Coaxial Speaker with Integrated RGB Lighting
The NXL-6M/WH is built to perform. This 6.5” coaxial speaker brings full-range response to your boat, UTV, or ATV while adding high-powered style with integrated RGB lighting.
Full-Range Performance
Rated at 100W RMS and 300W MAX at 4 ohms, the NXL-6M/WH covers 45Hz–23KHz for full-range audio with impressive sensitivity (91dB @ 1W/1M). A 25mm PEN tweeter and powerful woofer deliver accurate and loud sound on the move.
Rated at 100W RMS and 300W MAX at 4 ohms, the NXL-6M/WH covers 45Hz–23KHz for full-range audio with impressive sensitivity (91dB @ 1W/1M). A 25mm PEN tweeter and powerful woofer deliver accurate and loud sound on the move.
Made for the Outdoors
From trail to tide, this IP65-rated speaker features UV-protected polypropylene cones, butyl rubber surrounds, and a marine-grade ASA basket—all shielded by a stainless steel mesh grille and sealed for extreme durability.
From trail to tide, this IP65-rated speaker features UV-protected polypropylene cones, butyl rubber surrounds, and a marine-grade ASA basket—all shielded by a stainless steel mesh grille and sealed for extreme durability.

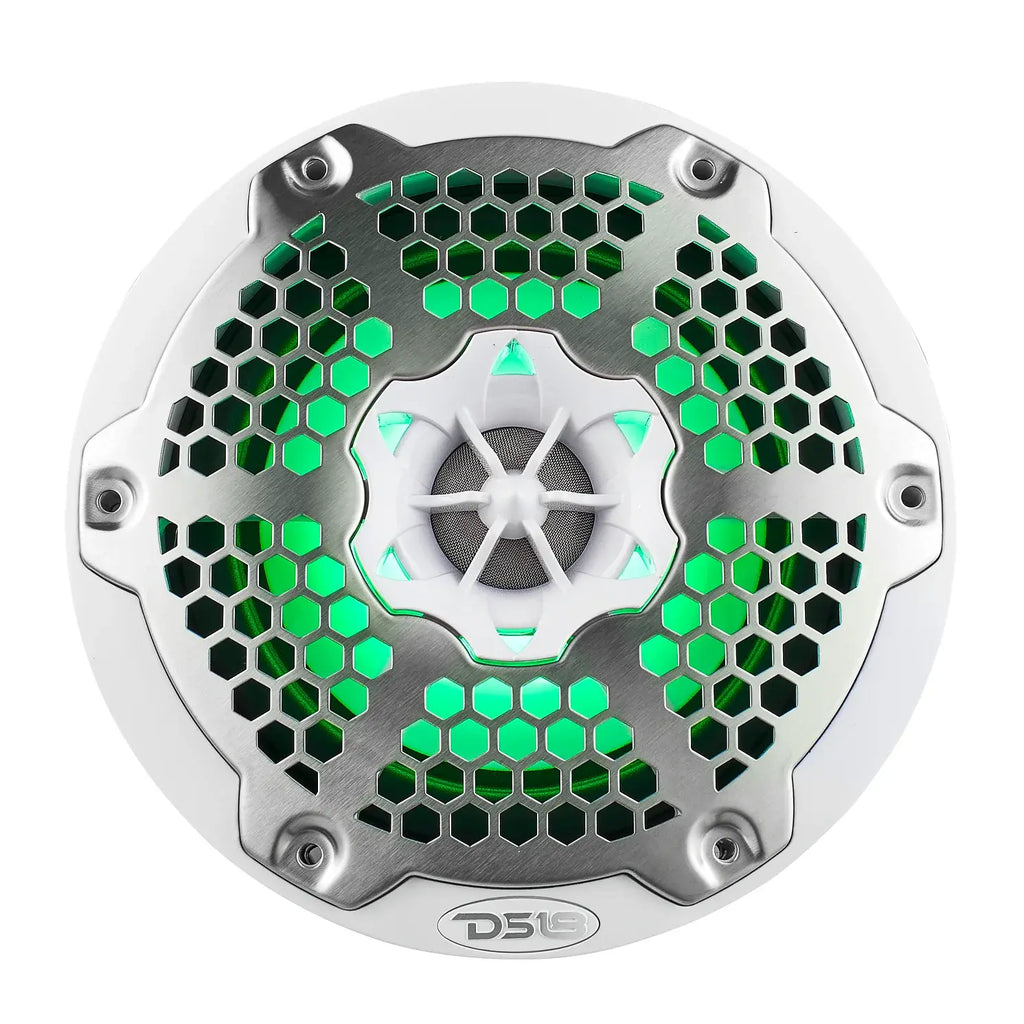

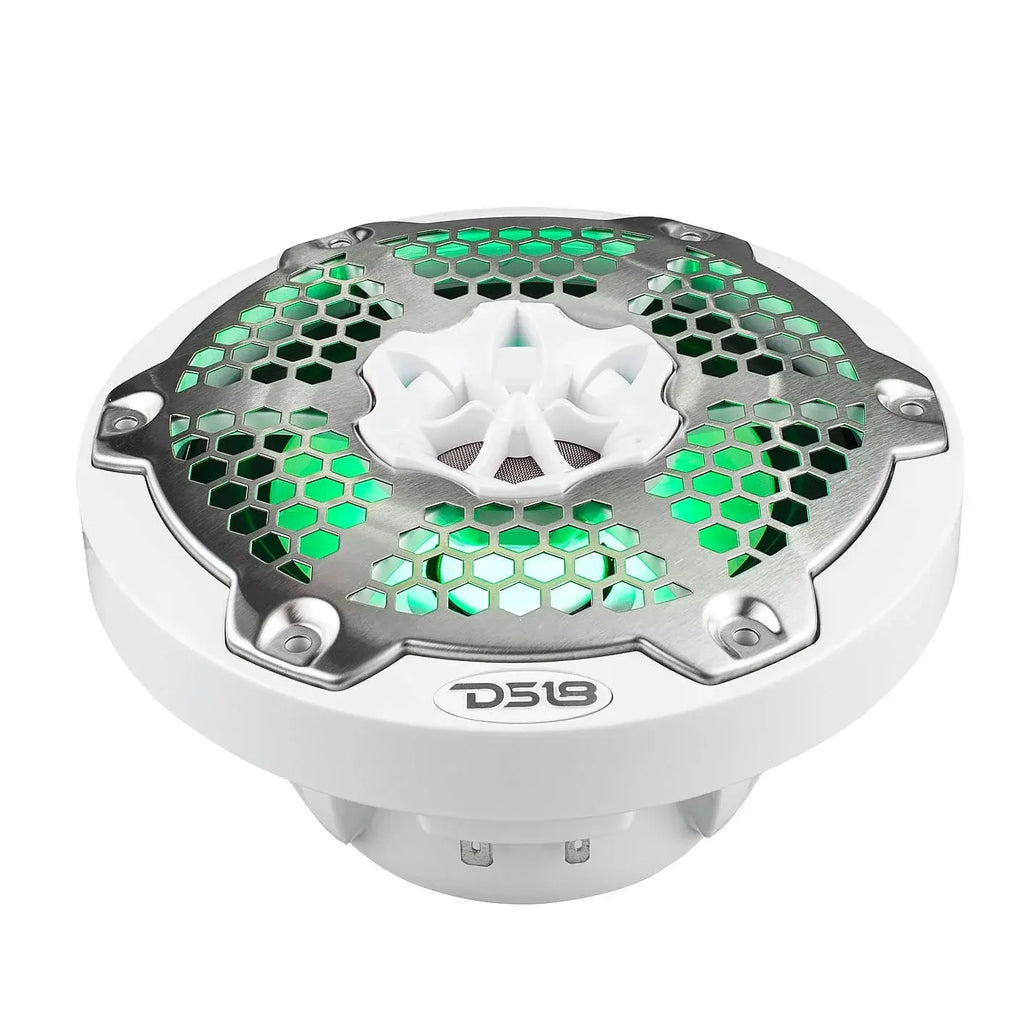

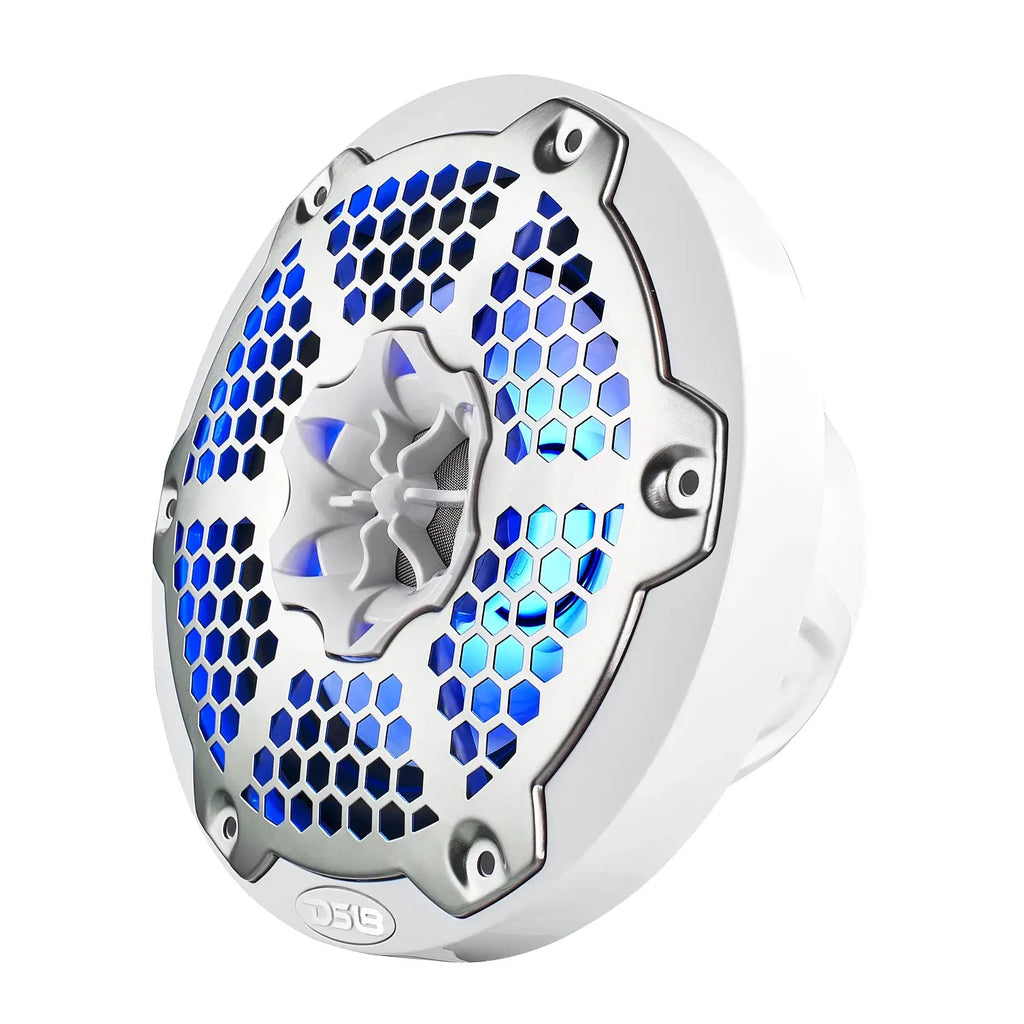

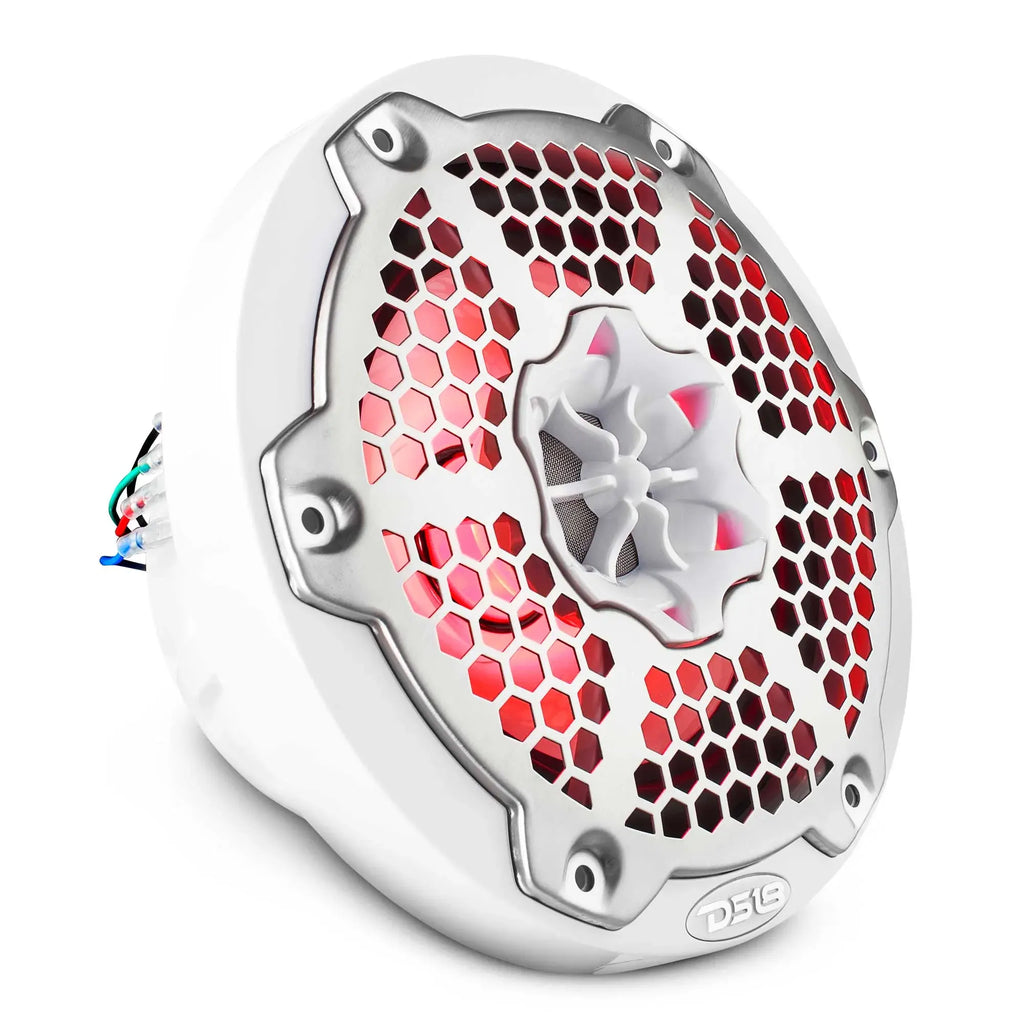

Light It Your Way
Turn your ride into a show with RGB LEDs built right in. Use the DS18 LC App and LC-RGB Bluetooth® Controller (sold separately) to fully customize your colors, patterns, and sync options from your phone, up to 100 ft away.
Turn your ride into a show with RGB LEDs built right in. Use the DS18 LC App and LC-RGB Bluetooth® Controller (sold separately) to fully customize your colors, patterns, and sync options from your phone, up to 100 ft away.
