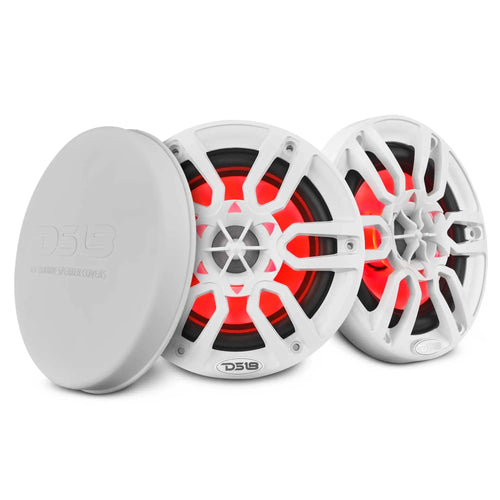

DS18 NXL 6.5" 2-Way Coaxial Marine Speaker with LED RGB Lights | 100W RMS 4-Ohm PAIR
SKU: NXL-6
DS18 NXL 6.5" 2-Way Coaxial Marine Speaker with LED RGB Lights | 100W RMS 4-Ohm PAIR
Out Of Stock
Key Features
- 6.5" 2-Way Marine Speaker
- RMS Power: 100 Watts / 4-Ohm
- Ferrite & Neodymium Magnets
- RGB LED Light
- Water Resistant IP65

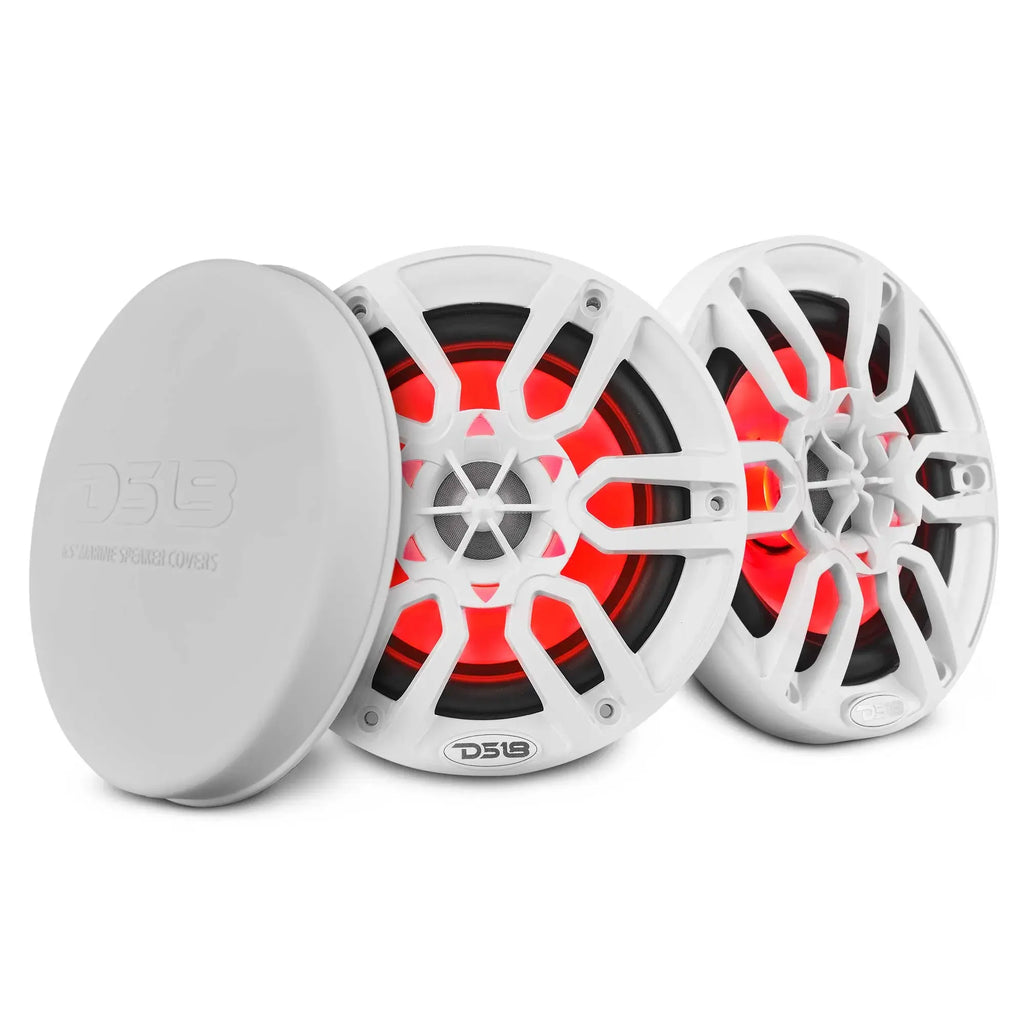

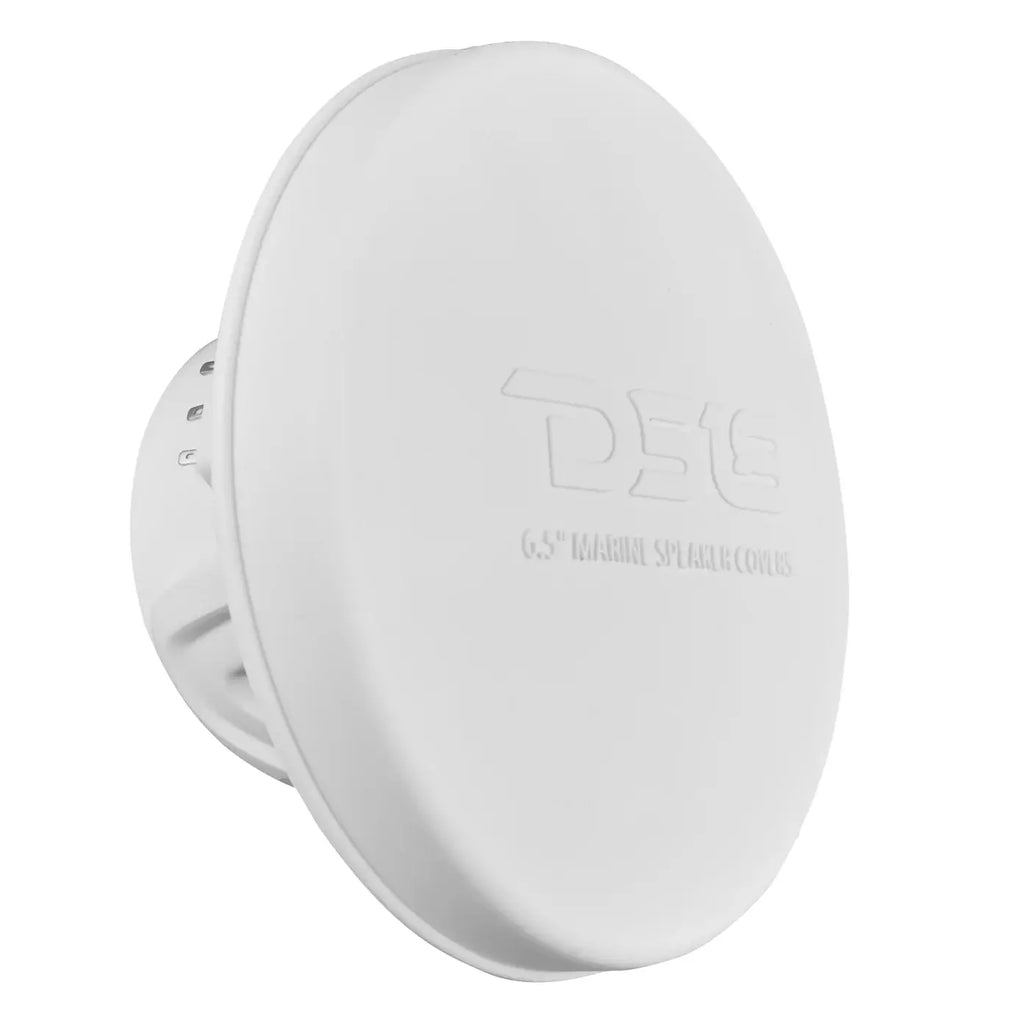

- Silicone Covers Included
-
SPECS
SKU
NXL-6/WH
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz
Body / Features
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite ASA with UV Protection coating
Pair
Yes
Color / Finish
Glossy White
Woofer Specifications
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
14oz + 0.32oz
Tweeter Specifications
Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz
Thiele & Small Parameters
Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9

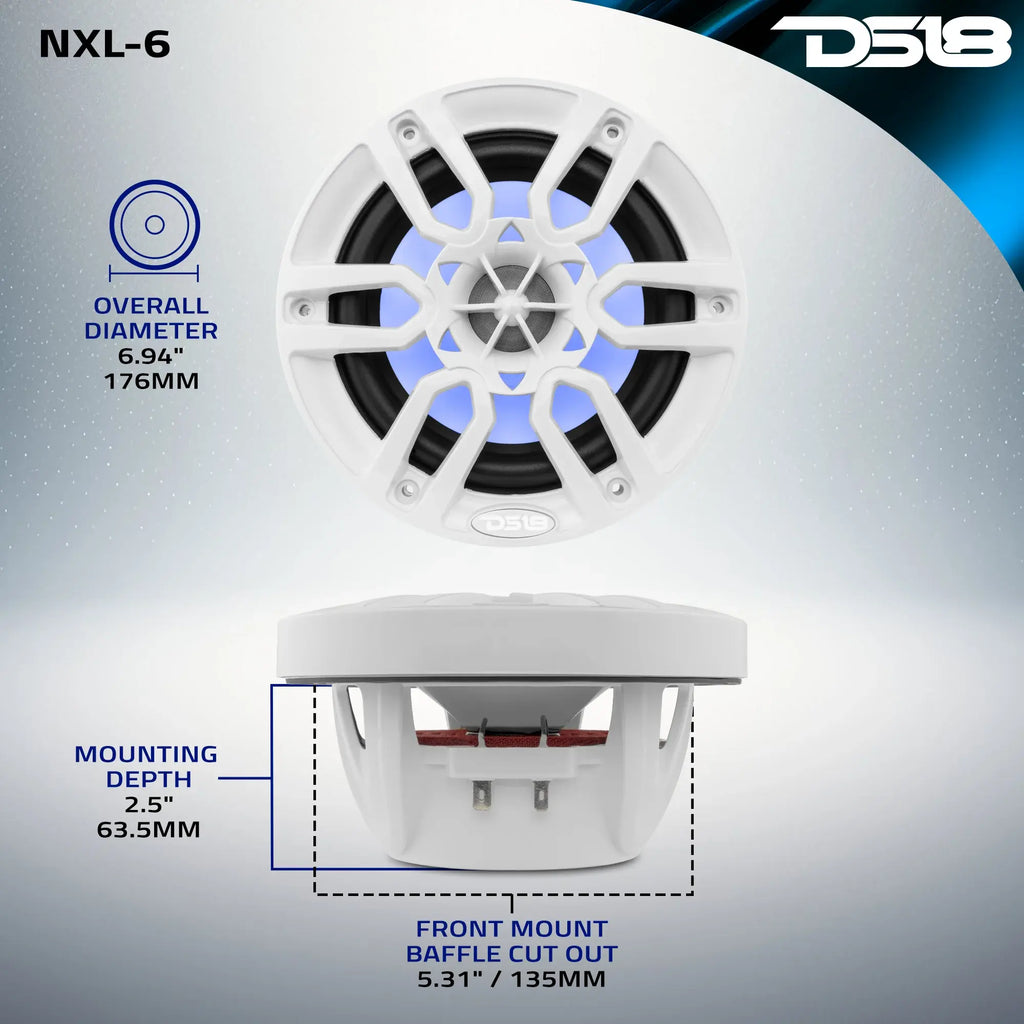

Speaker Measurement
Overall Diameter
6.94" / 176mm
Overall Depth
3.72" / 94.4mm
Front Mount Baffle Cutout
5.31" / 135mm
Mounting Depth
2.5" / 63.5mm
Motor Diameter
3.54" / 90mm
Gross Single Unit Weight (lb)
7
Single Unit Box Dimensions W x L x H (Inches)
106.5 x 8.75 x 4.75
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
30.5
Master Carton Dimensions W x L x H (Inches)
19.75 x 17.25 x 9.75
Product Overview
DS18 NXL-6/WH
Marine-Grade 6.5” Coaxial Speakers with RGB Lights
The NXL-6 is designed for extreme environments. With an IP65 rating and UV-coated ASA grills, these coaxial speakers are built to handle the toughest abuse. A high-temp injection-molded composite frame and added silicone cover ensure long-term durability, even in the harshest rides.
Clean Power That Cuts Through Anything
At 100W RMS and 300W MAX, the NXL-6 delivers crystal-clear output. A Y35 ferrite magnet combined with reverse neodymium technology drives strong mids and deep detail, while the 25mm titanium dome tweeter adds crisp highs that cut through all noise.
At 100W RMS and 300W MAX, the NXL-6 delivers crystal-clear output. A Y35 ferrite magnet combined with reverse neodymium technology drives strong mids and deep detail, while the 25mm titanium dome tweeter adds crisp highs that cut through all noise.
True 2-Way Design for Full-Range Sound
The integrated two-way system gives you balanced sound across the full frequency range. Built with a 4-ohm voice coil and engineered for 91dB sensitivity, the NXL-6 maximizes volume and clarity without demanding a massive amp.
The integrated two-way system gives you balanced sound across the full frequency range. Built with a 4-ohm voice coil and engineered for 91dB sensitivity, the NXL-6 maximizes volume and clarity without demanding a massive amp.

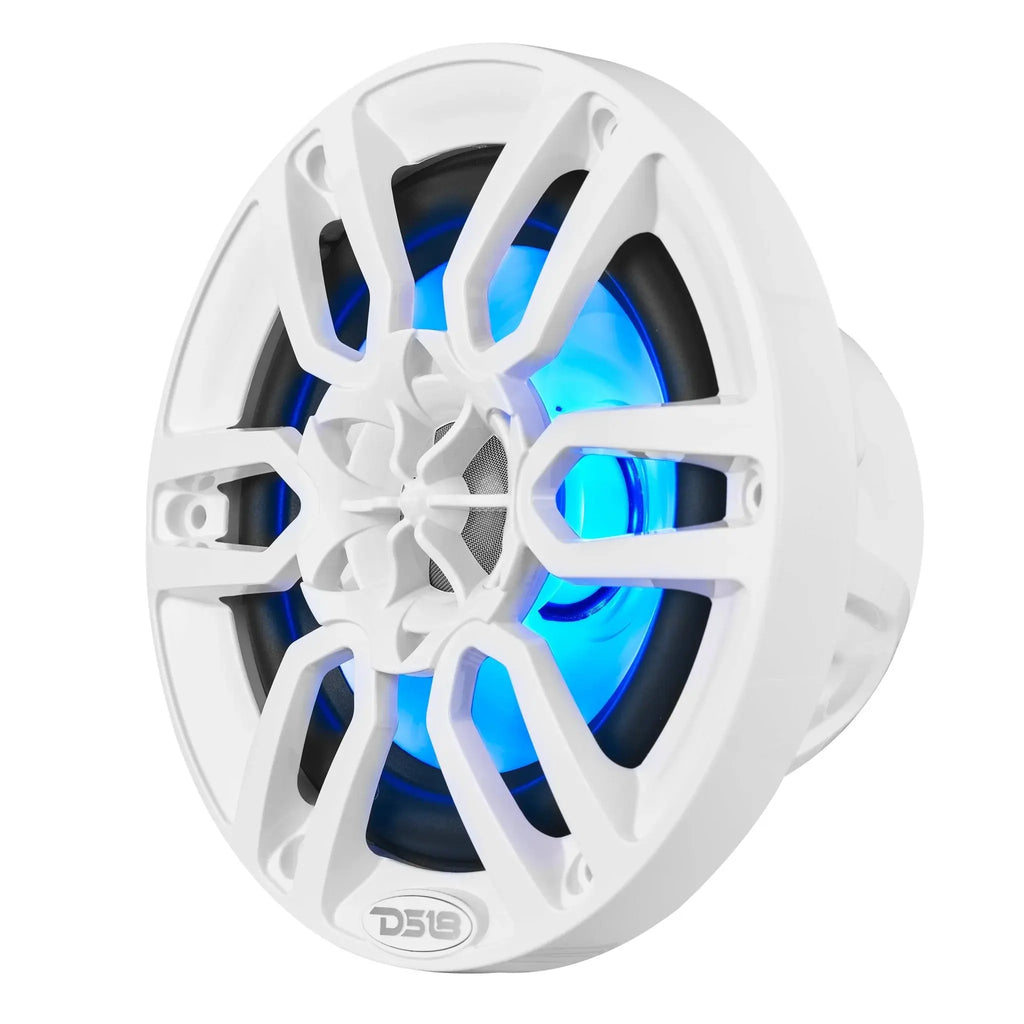

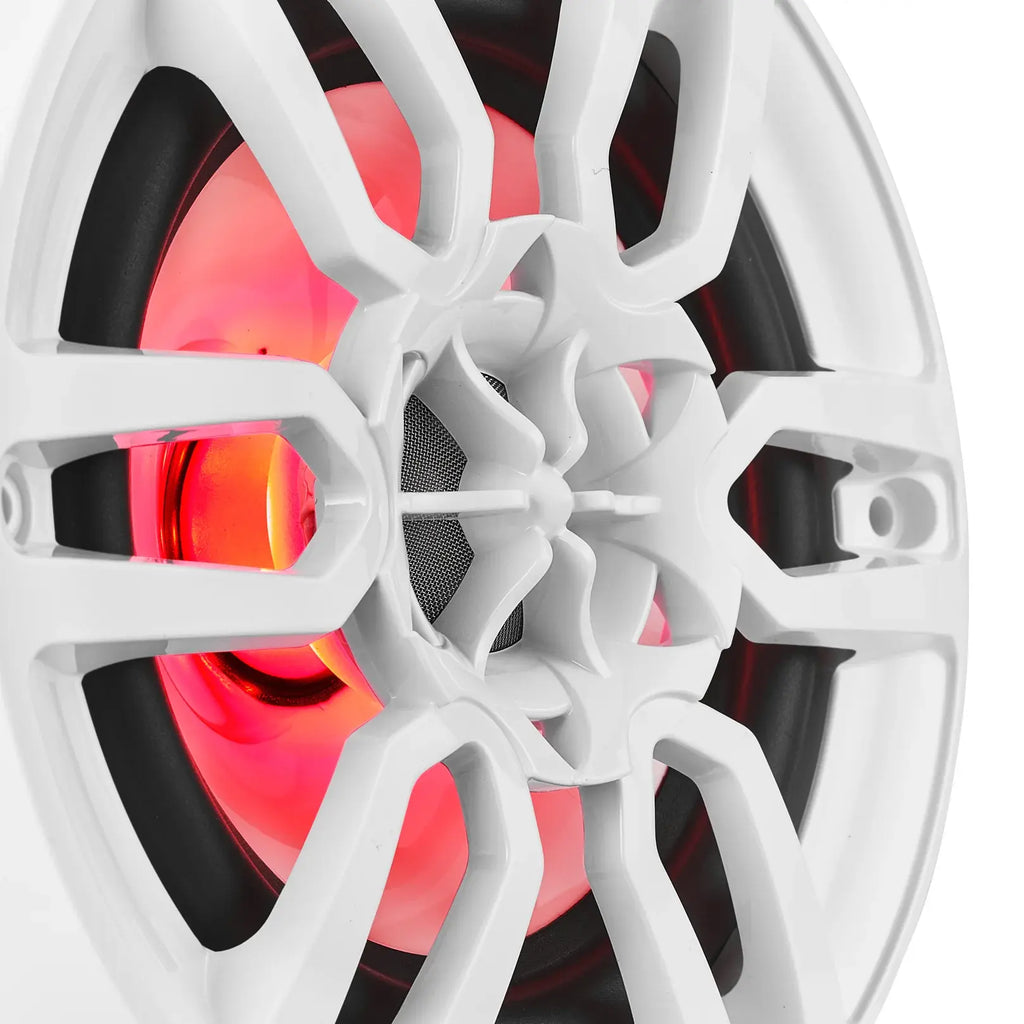

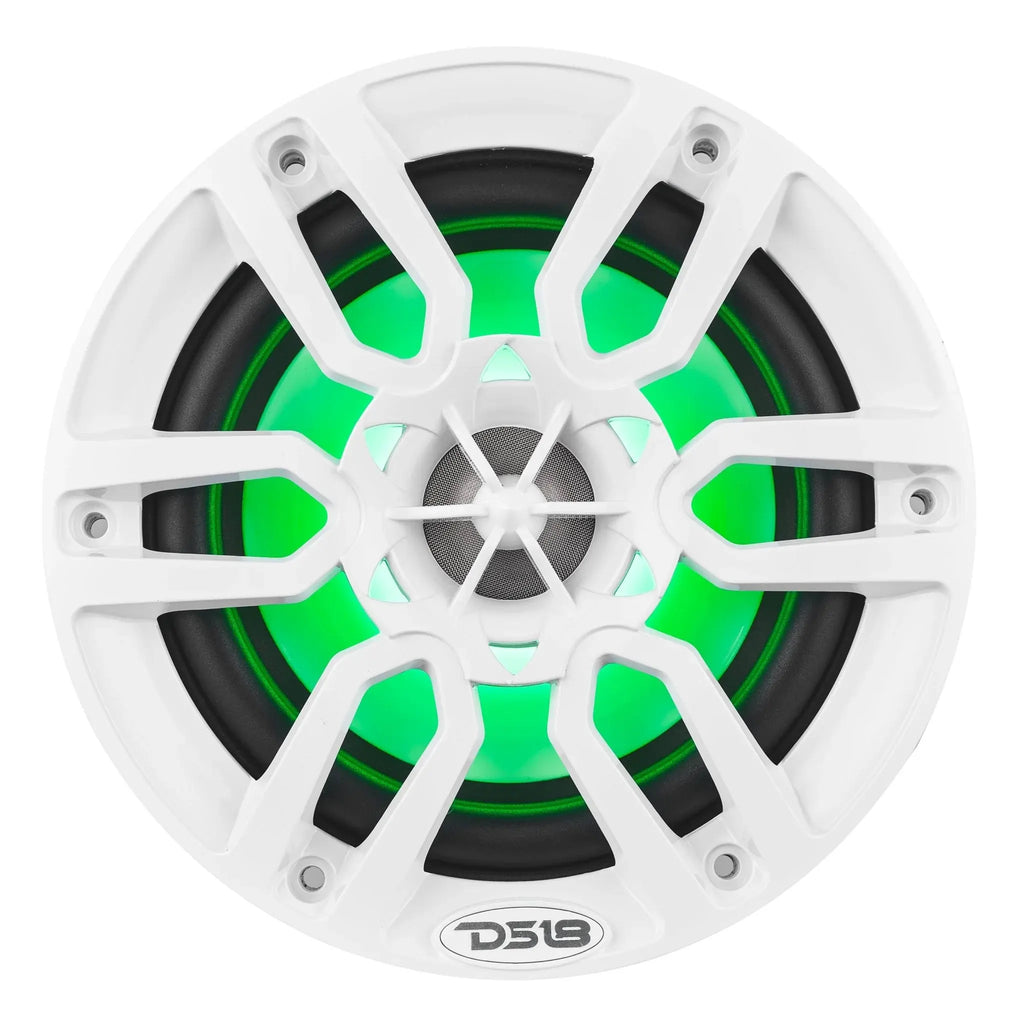

RGB Lighting That Moves With Your Music
Built-in RGB LED lighting behind the speaker grille lets you sync your audio with vibrant, multi-color lighting effects. Pair it with DS18’s LED-BTC Bluetooth® controller (sold separately) for full lighting control right from your phone.
Built-in RGB LED lighting behind the speaker grille lets you sync your audio with vibrant, multi-color lighting effects. Pair it with DS18’s LED-BTC Bluetooth® controller (sold separately) for full lighting control right from your phone.
Built for Custom Installs
The NXL-6 is the go-to marine coaxial for high-output audio in any application. Compact, weatherproof, and engineered for clean installs across all platforms.
The NXL-6 is the go-to marine coaxial for high-output audio in any application. Compact, weatherproof, and engineered for clean installs across all platforms.
