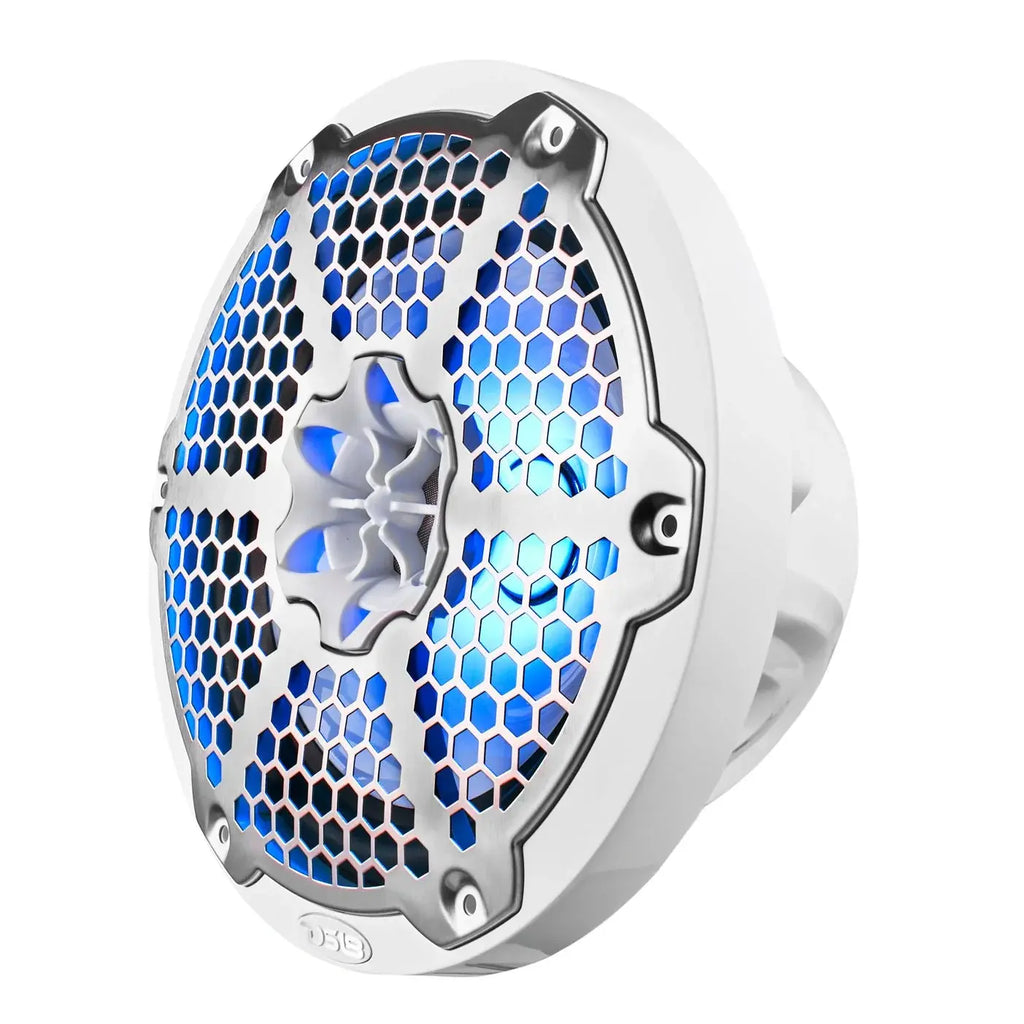

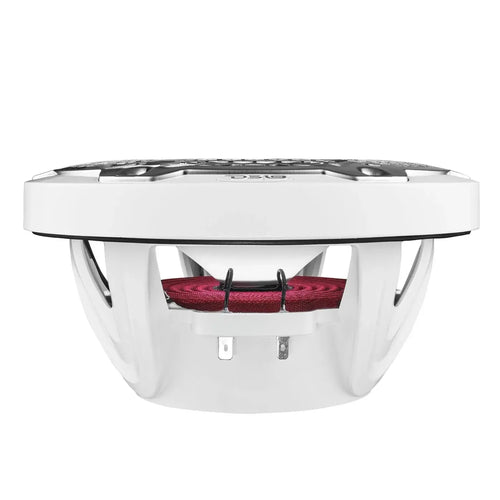

DS18 NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125 Watts Rms 4-Ohm PAIR
SKU: NXL-8M/WH
DS18 NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125 Watts Rms 4-Ohm PAIR
Out Of Stock
Key Features
- 8" 2-Way Marine Speaker
- RMS Power: 125 Watts / 4-Ohm
- Ferrite & Neodymium Magnets
- RGB LED Light
- Water Resistant IP65
- Silicone Covers Included
SPECS
SKU
NXL-8M/WH
Nominal Diameter
8" / 203mm
Nominal Impedance
4 Ohm
RMS Power Handling
125W
MAX Power Handling
375W
Sensitivity (1w/1m)
93dB
Frequency Response
35Hz-23KHz
Recommended HI Pass Crossover
50 Hz
Body / Features
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type

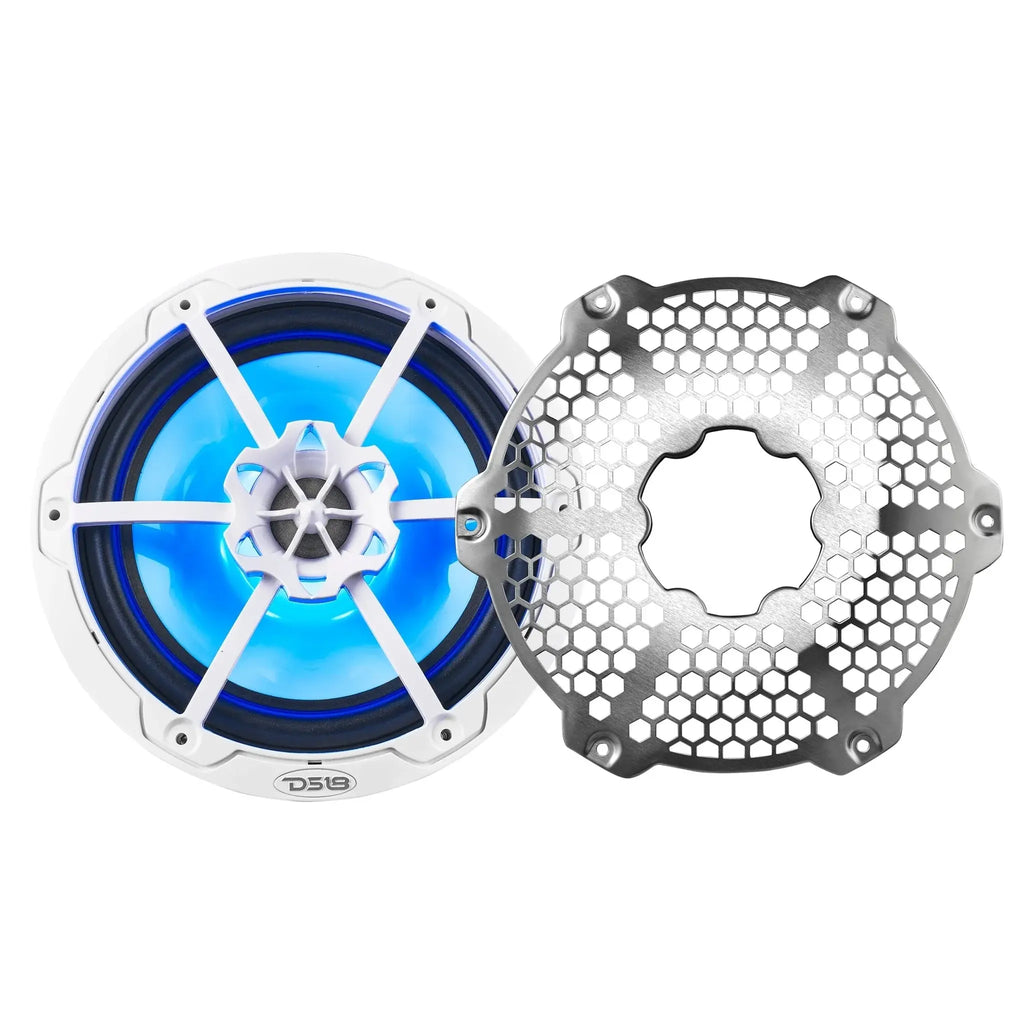

Injection Molded Composite ASA with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Glossy White
Woofer Specifications
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
24oz + 0.32oz
Tweeter Specifications
Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz
Thiele & Small Parameters
Equivalent Volume Vas
66.7L / 2.35ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
56Hz
Mechanical Factor Qms
7.701
Electrical Factor Qes
0.899
Total Factor Qts
0.805
Moving Mass Mms
7.265g
Compliance Cms
1.119mm/N
Bl Factor Bl
2.98
Voice Coil Inductance Le
0.49mH
Cone Area Sd
206.12cm2
DC Resistance Re
3.15ohms
Efficiency Bandwidth Product EBP
62.2
Product Overview
DS18 NXL-8M/WH
8” 2-Way Marine Speakers With RGB LED Lights
The NXL-8M is the perfect upgrade for your boat, ATV, or powersport rig. These 8” beasts are built marine-tough with IP65 protection, UV-stable components, and a rugged ASA grille with stainless steel mesh.
Sonic Power
You get 125W RMS and 375W MAX of crisp, full-range sound—loud enough to drown out wind and waves without breaking a sweat. With a 93dB sensitivity rating, they stay loud and clear even at low power. The 25mm titanium dome tweeter, paired with the reverse Neodymium magnet, captures every note from 35Hz to 23KHz with stunning clarity and punch.
You get 125W RMS and 375W MAX of crisp, full-range sound—loud enough to drown out wind and waves without breaking a sweat. With a 93dB sensitivity rating, they stay loud and clear even at low power. The 25mm titanium dome tweeter, paired with the reverse Neodymium magnet, captures every note from 35Hz to 23KHz with stunning clarity and punch.
Ready to Shine

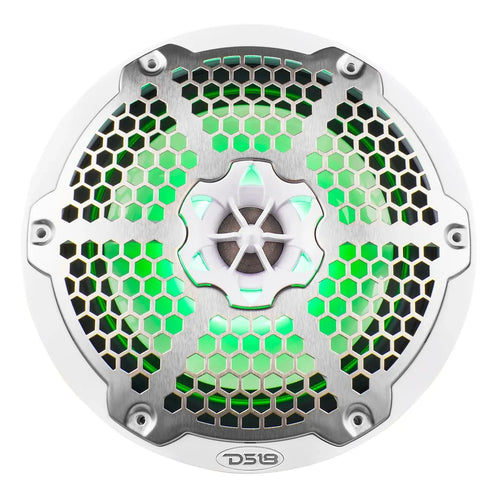

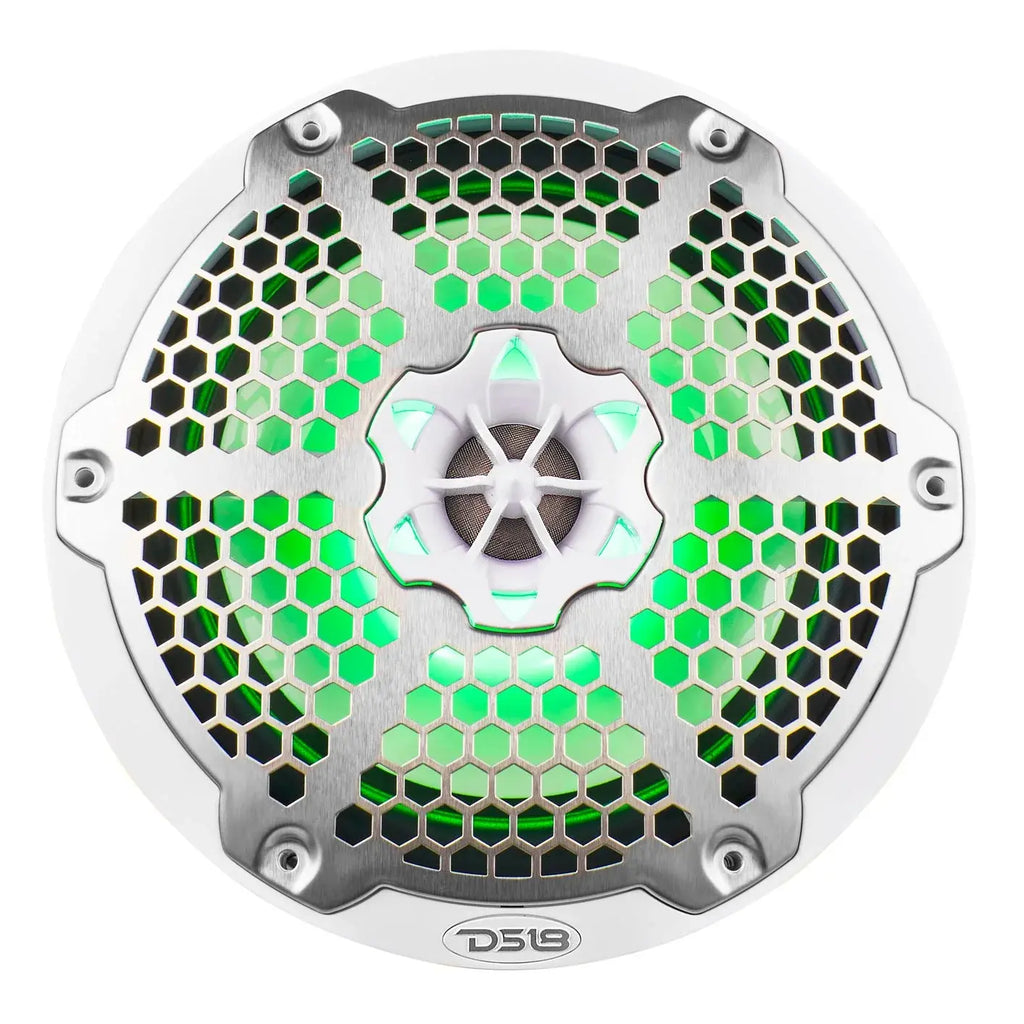

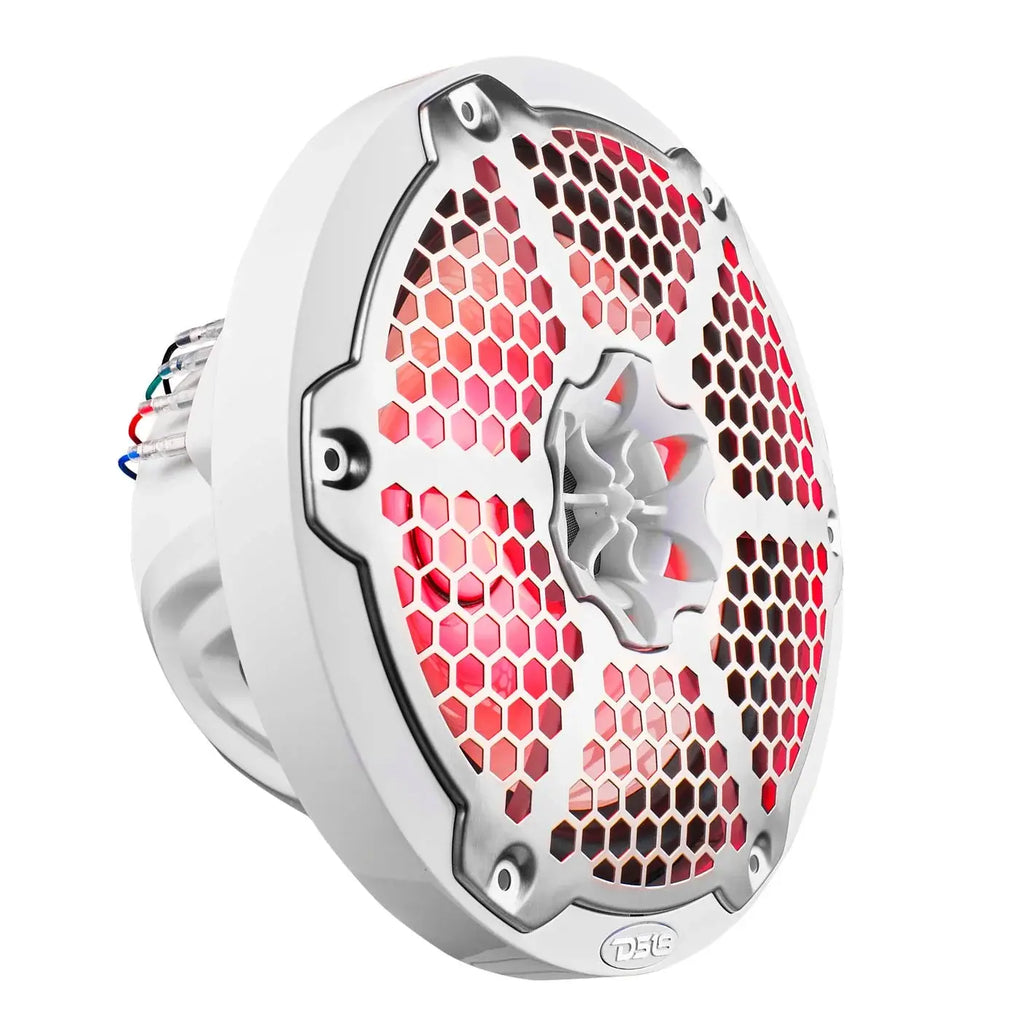

Integrated RGB LED lighting gives your setup a whole new vibe. Sync with DS18’s LED-BTC controller (sold separately) to unlock full color control and animation.
Integrated RGB LED lighting gives your setup a whole new vibe. Sync with DS18’s LED-BTC controller (sold separately) to unlock full color control and animation.
Design That Goes the Distance

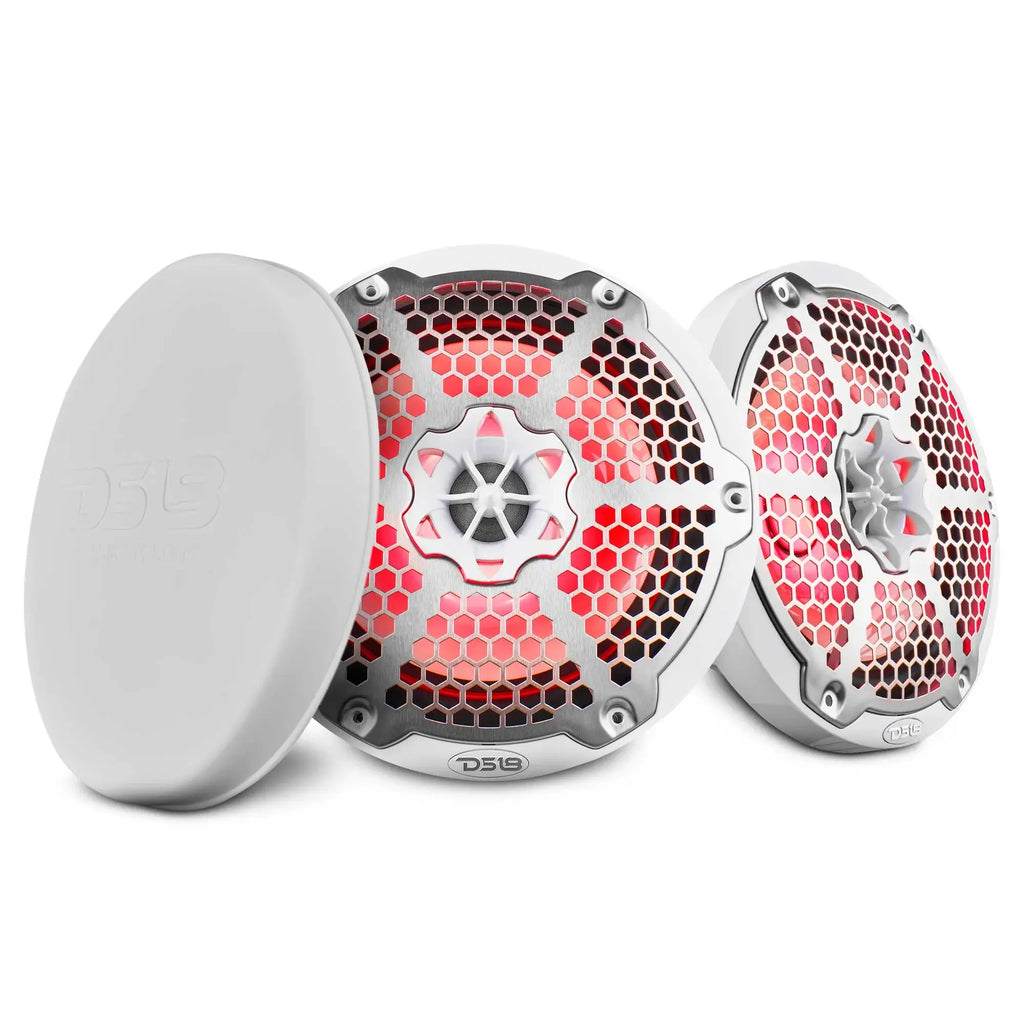

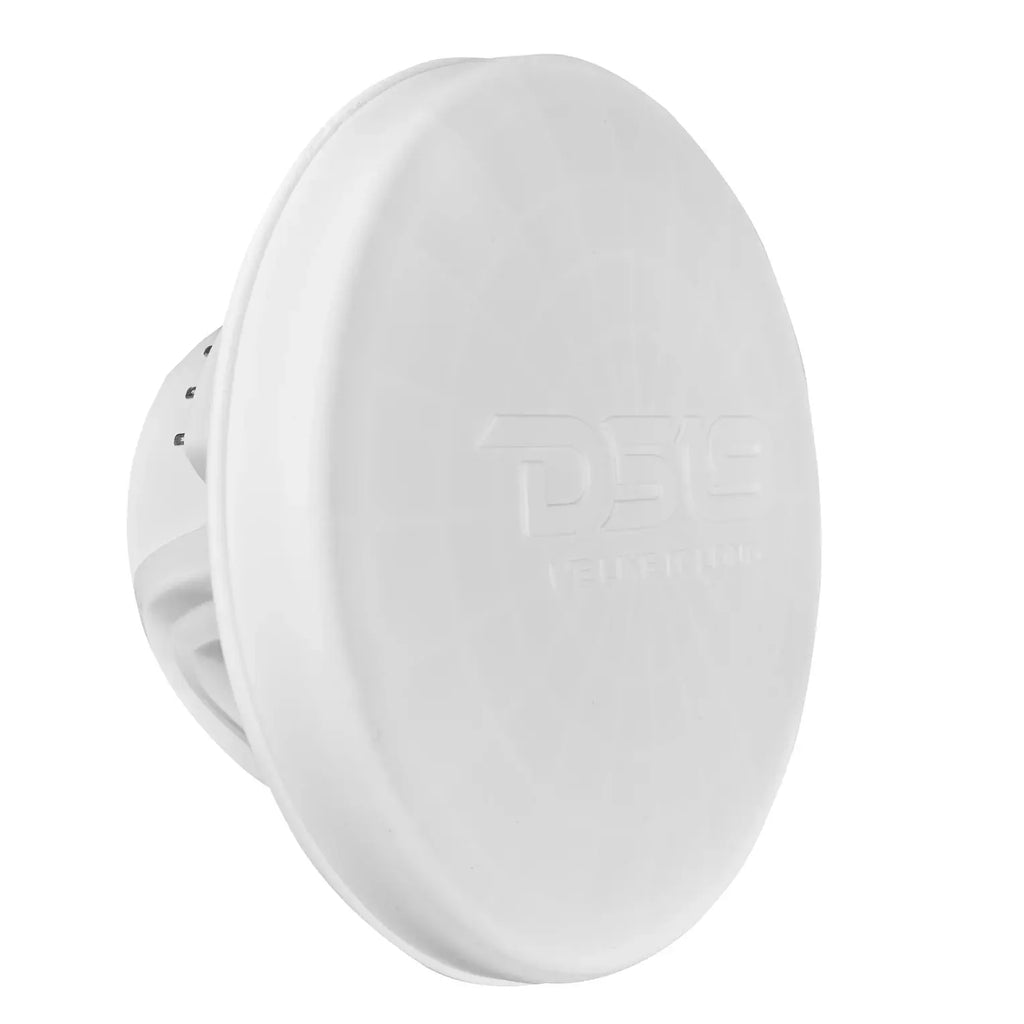

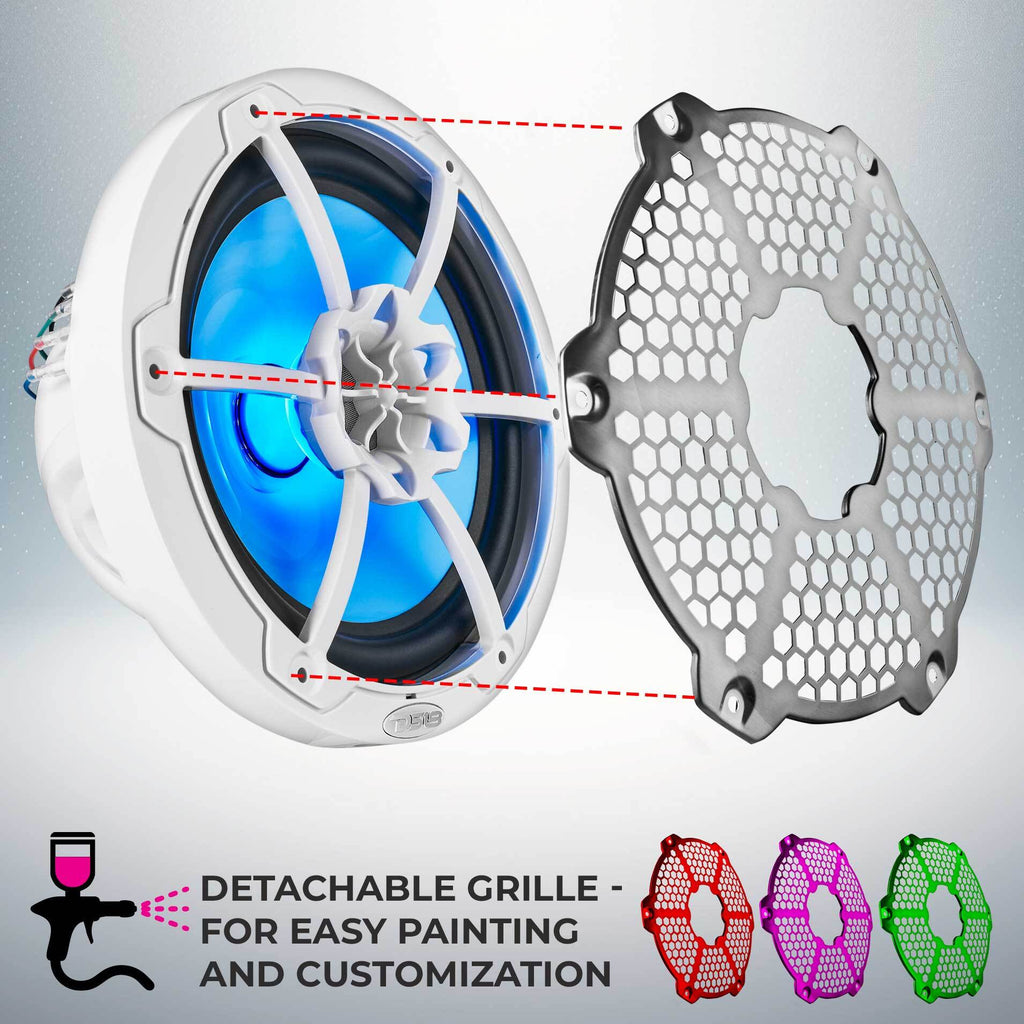

Crafted from high-temp injection-molded composite with UV protection, the NXL-8M is designed to last and stay looking sharp. The new silicone cover adds even more durability.
Crafted from high-temp injection-molded composite with UV protection, the NXL-8M is designed to last and stay looking sharp. The new silicone cover adds even more durability.
The NXL-8M delivers DS18’s signature style, performance, and attitude in one killer package!
