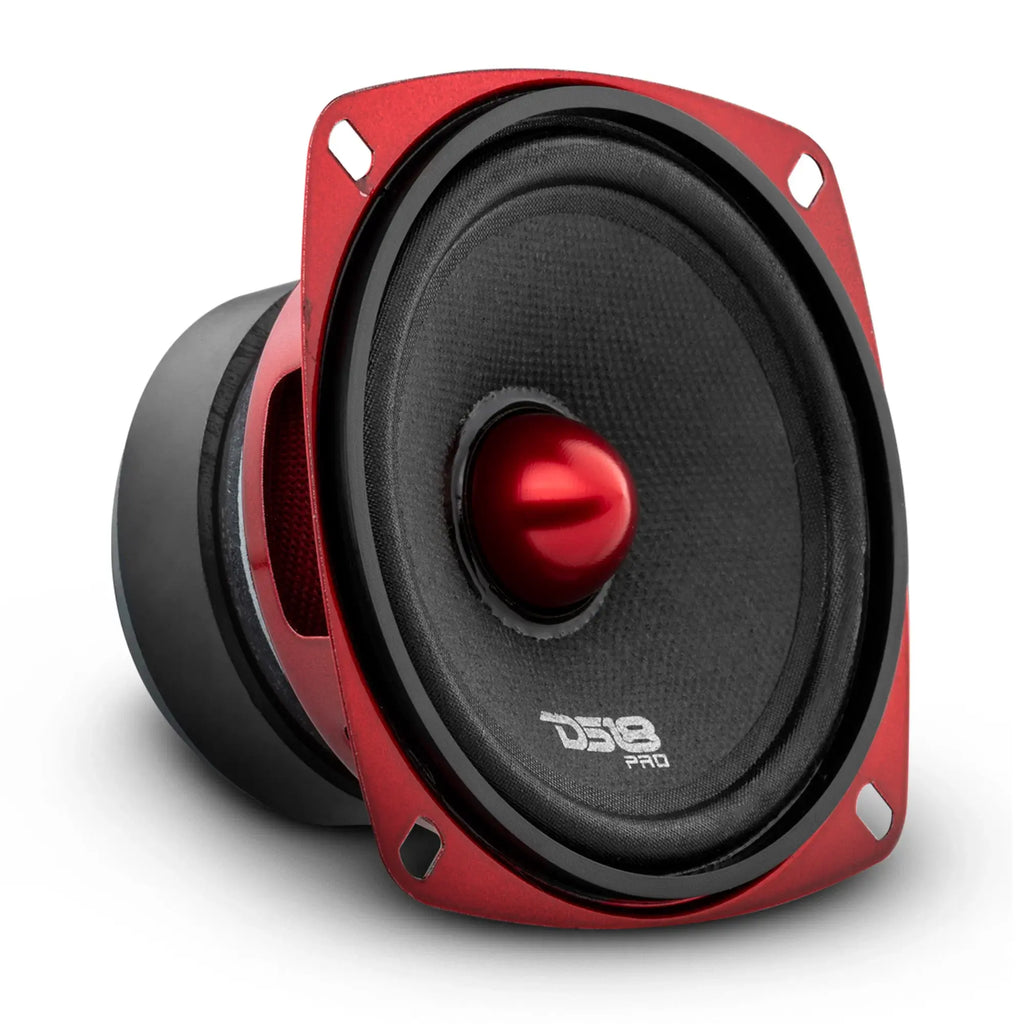

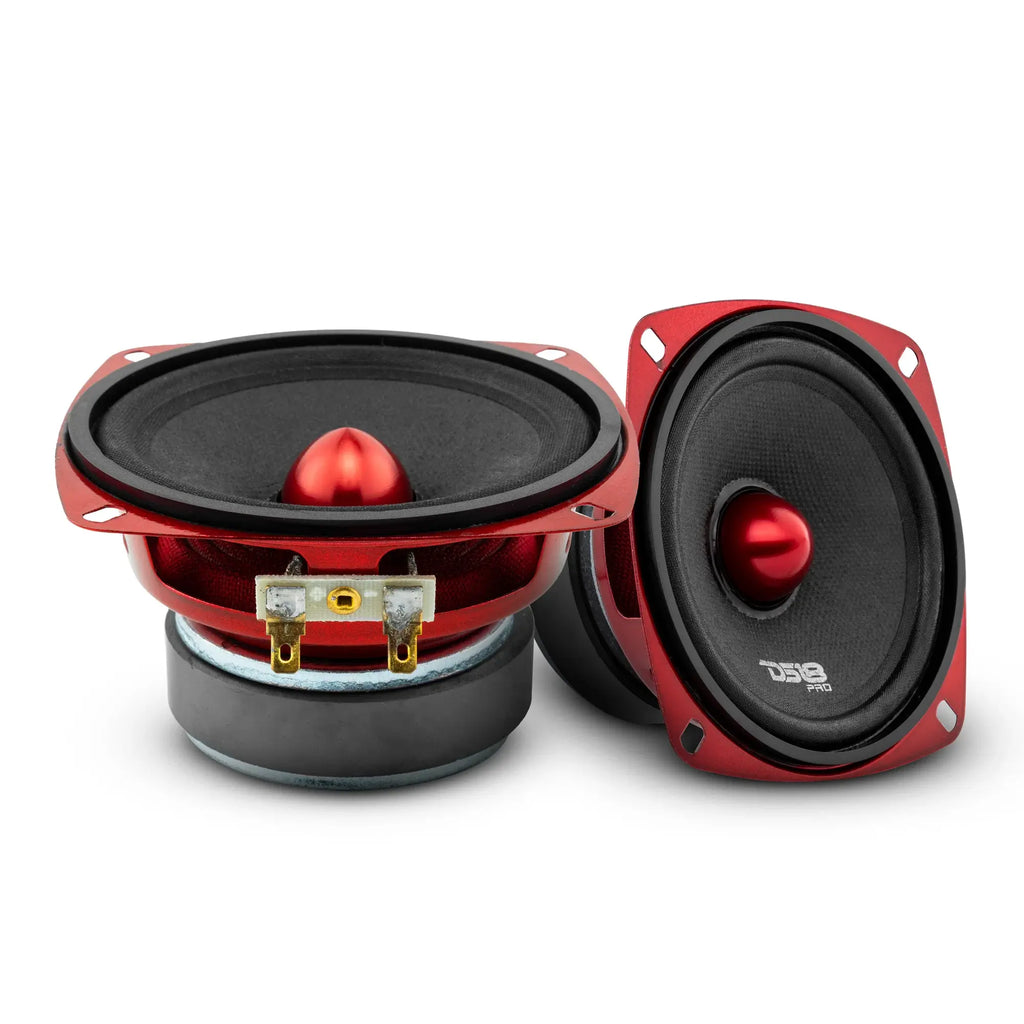

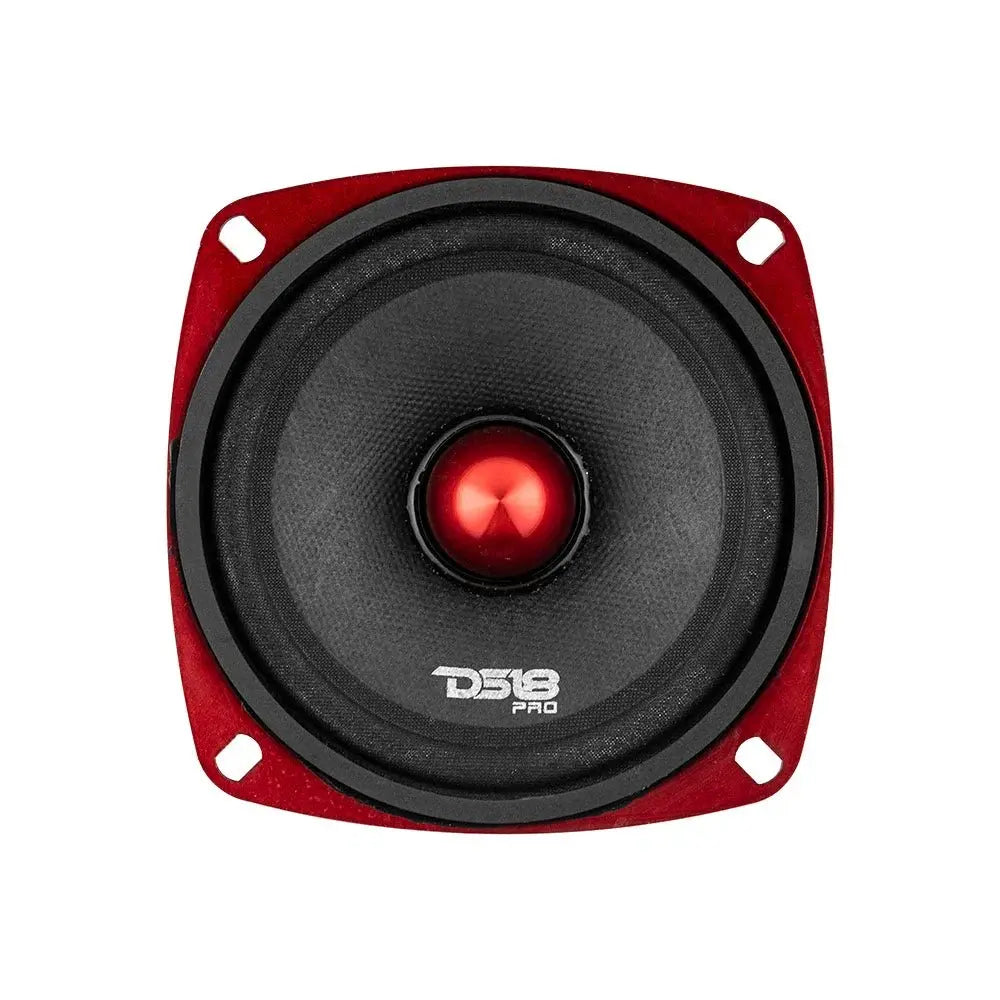

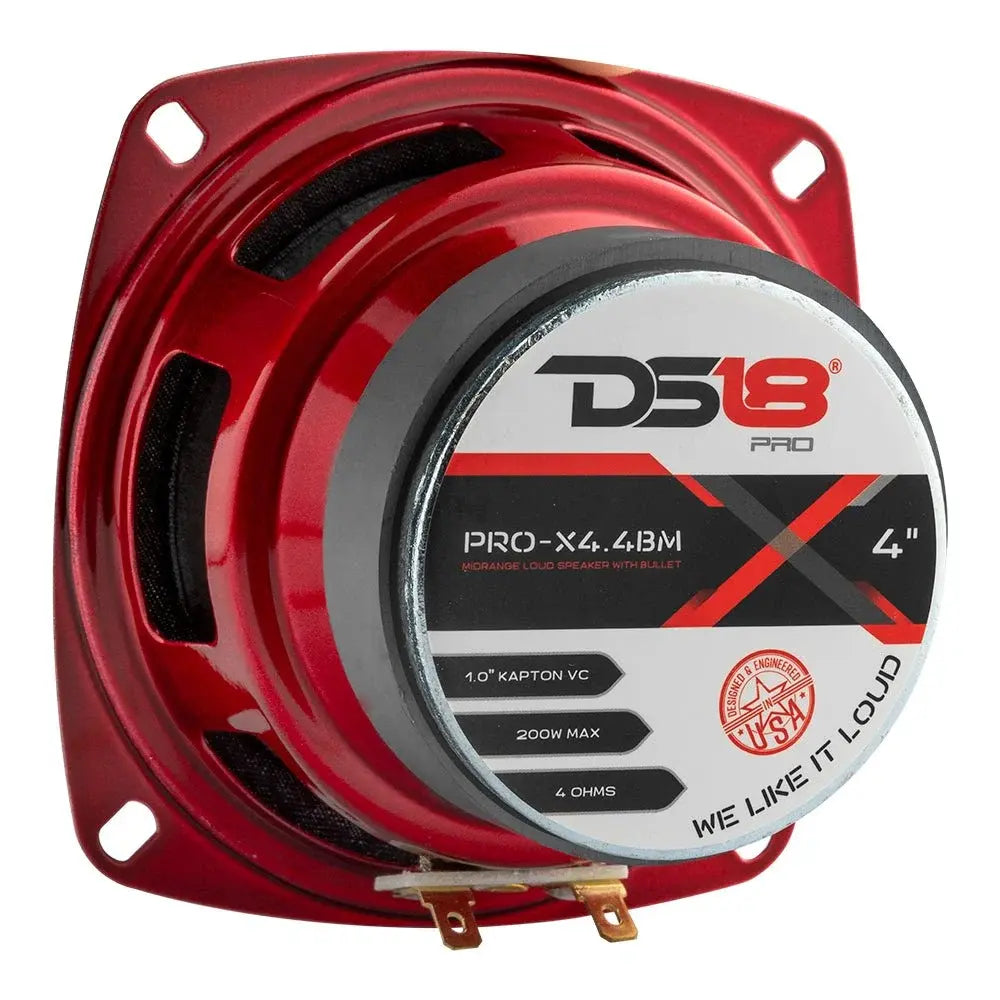

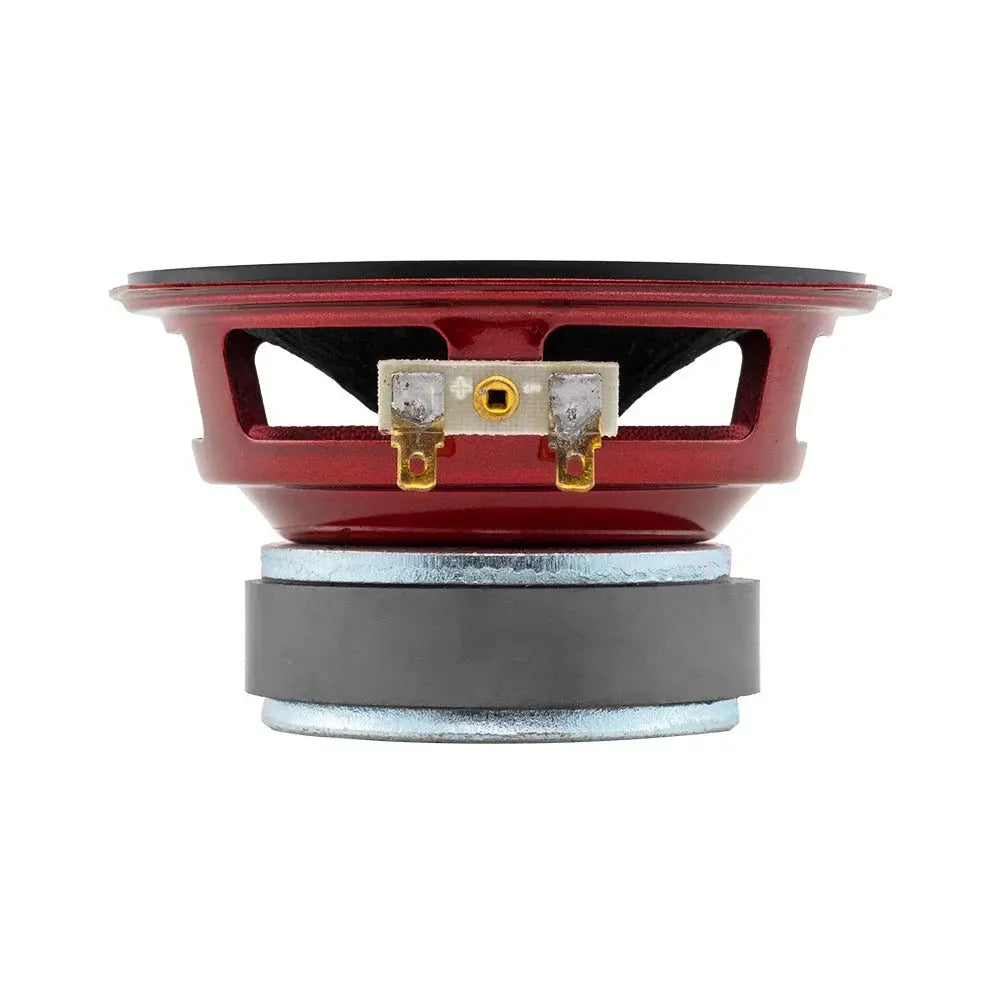

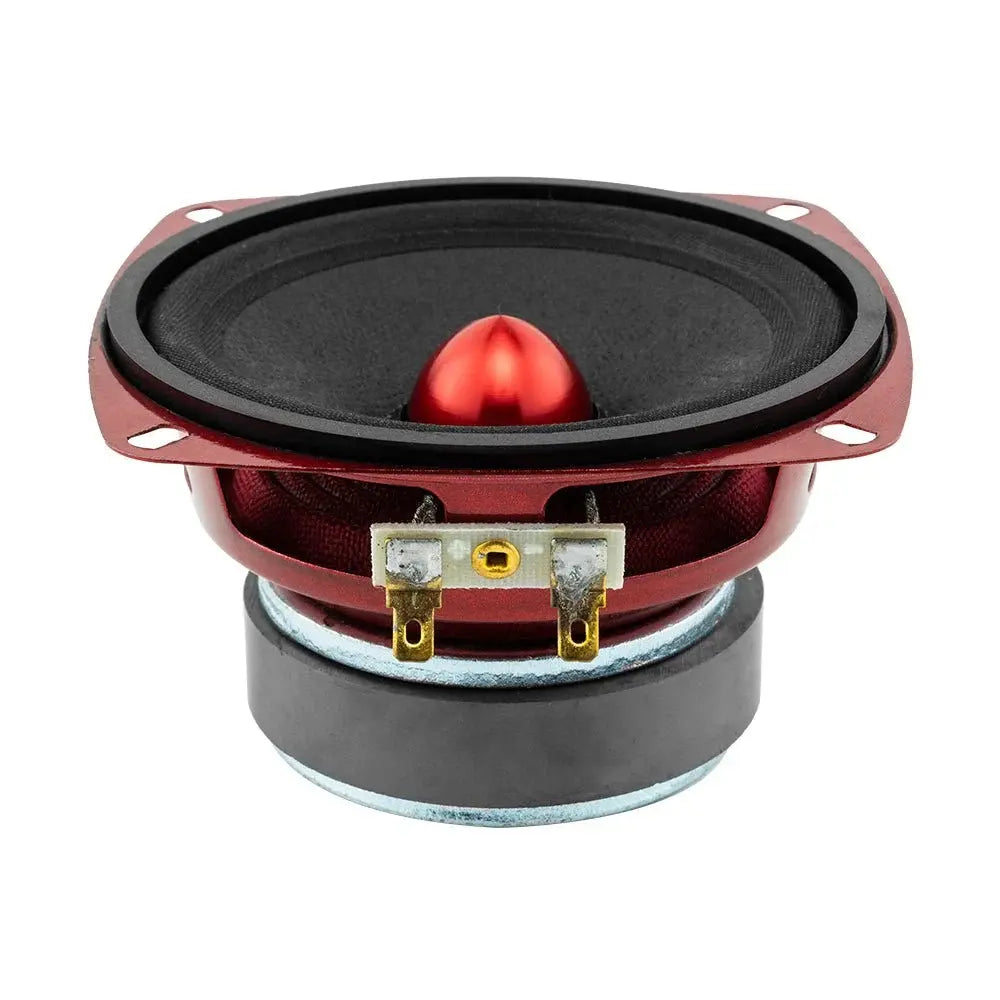

DS18 PRO-X 4" Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
SKU: PRO-X4.4BM
DS18 PRO-X 4" Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
Out Of Stock
Key Features
- 4" Mid-Range w/Bullet
- MAX Power: 200 Watts
- RMS Power: 100 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 90dB
SPECS
SKU
PRO-X4.4BM
Nominal Diameter
4" / 101.6mm
Nominal Impedance
4 ohm
RMS Power Handing
100W
Maximum Power Handing
200W
Sensitivity (1w/1m)
90dB
Frequency Response
250Hz - 16KHz
Recommended Hi Pass Crossover
280Hz
SPECS
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
10 oz
THIELE & SMALL PARAMETERS
Vas
0.38L / 0.013ft3
Xmax
6.3mm
Fs
350Hz
Qms
6.535
Qes
2.813
Qts
1.966
Re
3.2 ohm
MEASUREMENTS
Overall Diameter
4" / 104mm
Front Mount Baffle Cutout
3.66" / 93mm
Mounting Depth
2.2" / 56mm
Overall Depth
2.4" / 61mm
Product Weight
2.75
Product Dimensions
4.5 X 4.5 X 2.75
M/C Weight
28.5
M/C Dimensions
14.25 X 10 X 9.25
M/C QTY
18
Sold In
1
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
