DS18 PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4-Ohm EACH
SKU: PRO-X694BM
DS18 PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4-Ohm EACH
Out Of Stock
Key Features
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
SPECIFICATIONS
SKU
PRO-X694BM
Nominal Diameter
6 x 9" / 152 x 228mm
Nominal Impedance
4 Ohm
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
96dB
Frequency Response
100Hz-12.5KHz
Recommended HI Pass Crossover
120HZ
Sold in Pair or Single
Single
Grill Included
Yes
Motor
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Bullet Material
Aluminum
Bullet Color/Finish
Glossy Red
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
27Oz
Displacement Volume
0.32L / 0.011ft3
Thiele & Small Parameters
Equivalent Volume
20.38L / 0.719ft3
Excursion (one way)
7.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.166
Electrical Factor
0.731
Total Factor
0.64
Mechanical Mass
8.551g
Mechanical Compliance
0.225mm/N
BL Factor
6.544
Voice Coil Inductance
3.86mH
Cone Area
207.34cm2
DC Resistance
3.2 ohms
Measurement

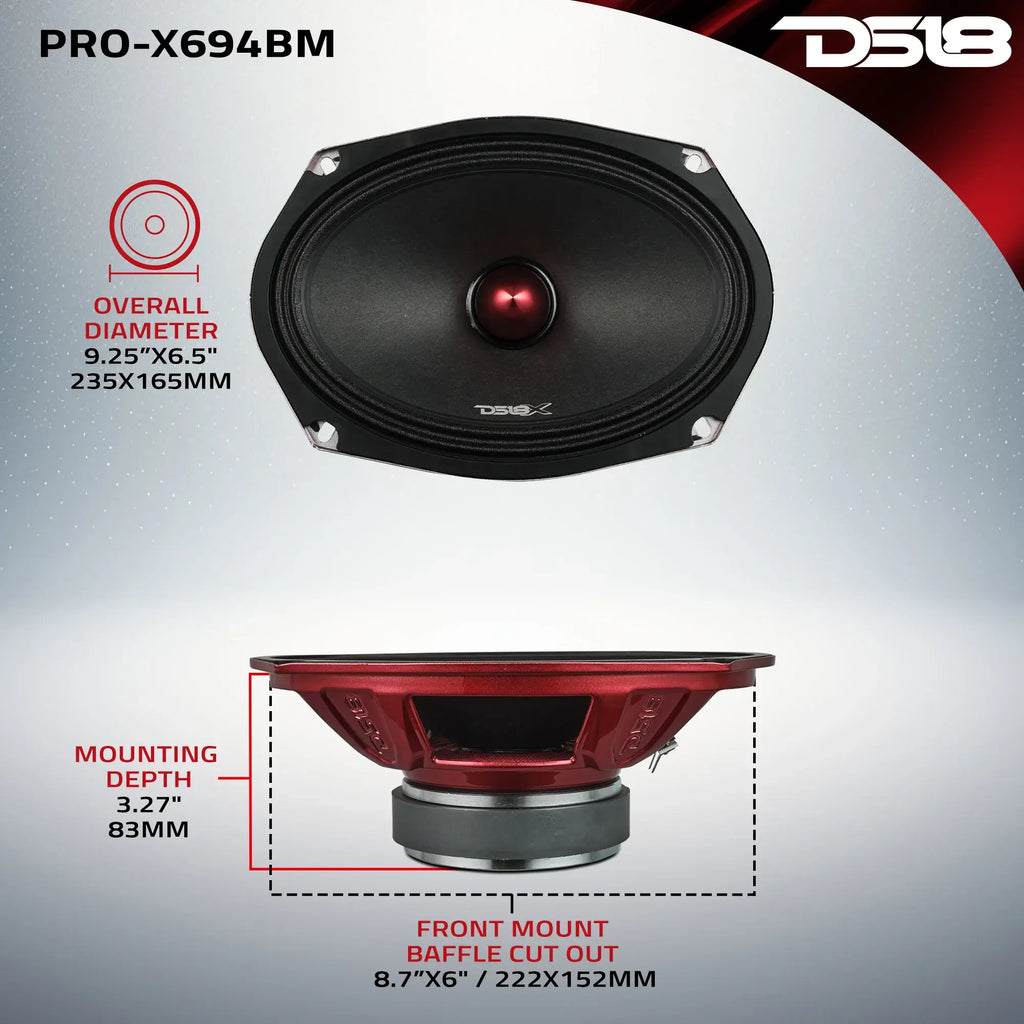

Overall Diameter
9.25 x 6.5" / 235 x 165mm
Overall Diameter With Grill
10.2 x 7.08" / 260 x 180mm
Overall Depth
3.5" / 88.85mm
Overall Depth With Grill
3.9" / 100mm
Front Mount Baffle Cutout
8.7 x 6" / 222 x 152mm
Mounting Depth
3.27" / 83mm
Motor Diameter
4.3" / 110mm
Product Overview
DS18 PRO-X694BM
6x9” Mid-Range Loudspeaker With Bullet | 200W RMS | 4-Ohm
The PRO-X694BM is a 6x9” dynamo that delivers 200W RMS and 400W MAX of pure mid-range with absolute clarity.
Aggressive Style Meets Precision Sound

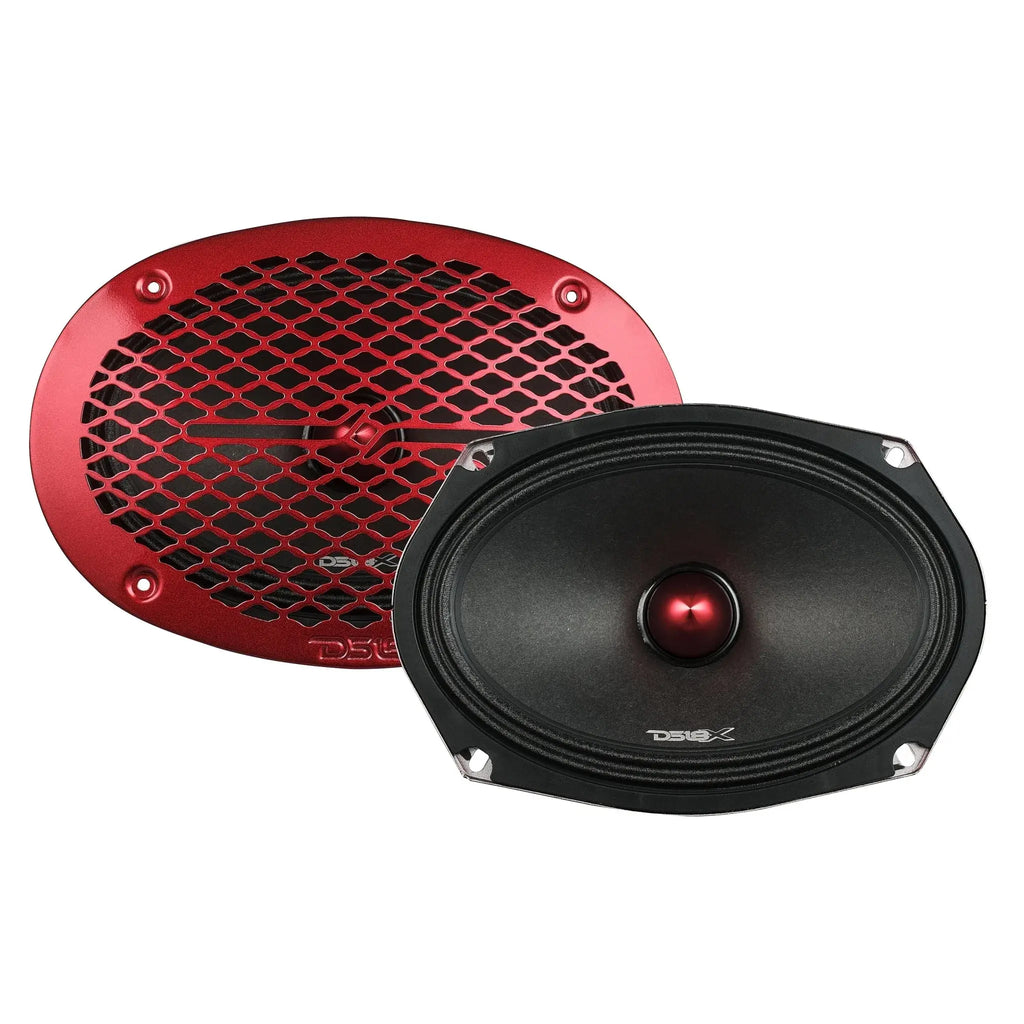

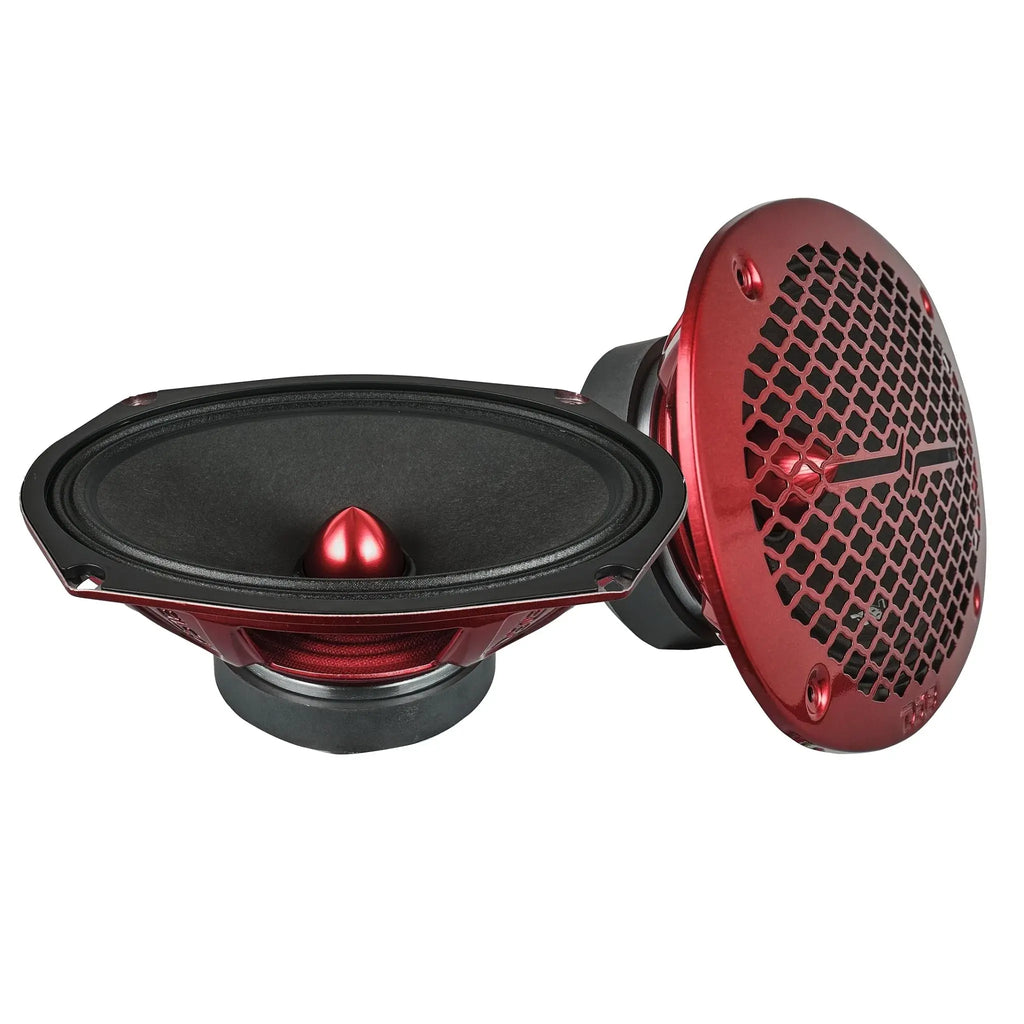

The newly designed glossy red honeycomb grill, bold bullet dust cap, and red steel basket give this speaker a stylish edge. Inside, a 1.5” Kapton voice coil, 27 oz ferrite magnet, and non-pressed paper cone deliver clean, punchy mids with 96dB sensitivity and a frequency range of 100Hz–12.5KHz.
The newly designed glossy red honeycomb grill, bold bullet dust cap, and red steel basket give this speaker a stylish edge. Inside, a 1.5” Kapton voice coil, 27 oz ferrite magnet, and non-pressed paper cone deliver clean, punchy mids with 96dB sensitivity and a frequency range of 100Hz–12.5KHz.
Engineered to Keep Up
The PRO-X694BM was built for performance and endurance. The bullet aluminum phase plug widens frequency dispersion and adds structural strength. A 3.27” mounting depth makes it compatible with most standard vehicle installs, so upgrading is quick and easy.
The PRO-X694BM was built for performance and endurance. The bullet aluminum phase plug widens frequency dispersion and adds structural strength. A 3.27” mounting depth makes it compatible with most standard vehicle installs, so upgrading is quick and easy.
Upgrade your door panels or build a full pro audio setup with the PRO-X694BM and feel the DS18 difference for yourself!
