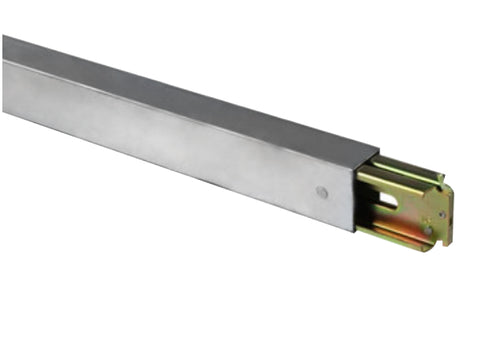

E-track Decking Bar Shoring Beams, Adjusts From : 90" to 102"
SKU: US92-1120
E-track Decking Bar Shoring Beams, Adjusts From : 90" to 102"
Commercial-grade, adjustable load bar designed to lock securely into standard vertical or horizontal E-track systems. This versatile bar serves a dual purpose in logistics and cargo restraint:
-
Decking: It acts as a heavy-duty structural joist, allowing operators to lay down plywood or decking boards to create a "second floor" (double-decking) inside the trailer, maximizing vertical cargo capacity.
-
Shoring: It locks horizontally between trailer walls to brace freight, acting as a retaining wall that prevents pallets or boxes from shifting forward or backward during transit.
It features an adjustable telescoping length ranging from 90" to 102", making it perfectly sized for standard 96" and 102" wide commercial trailers. The ends utilize a quick-release, spring-loaded flat latch system that allows a single operator to quickly snap the bar into or out of the track without extra tools.
Core Technical Specs (Typical)
Core Technical Specs (Typical)
Adjustment Range: 90" to 102"
Average Net Weight: 19 lbs (8.6 kg)
Shoring Capacity: 2,500 lbs (1,134 kg) Working Load Limit
Decking Capacity: 3,000 lbs (1,360 kg) Working Load Limit
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
