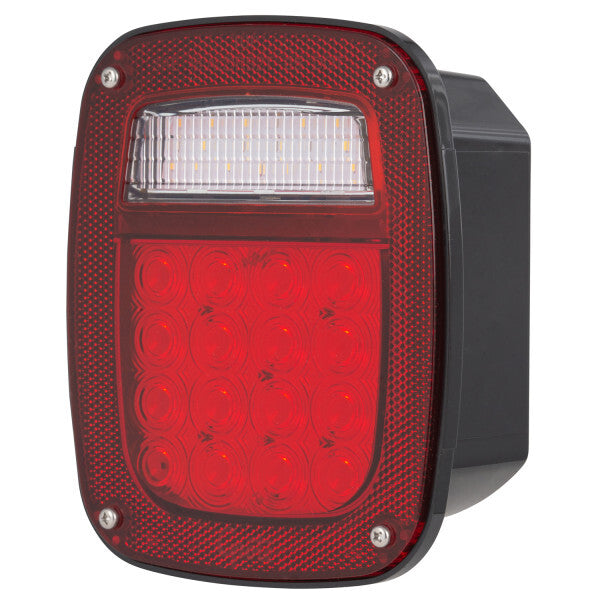

Grote Hi Count® LED Stop Tail Turn Lights Universal Tail Light
SKU: G5082
Grote Hi Count® LED Stop Tail Turn Lights Universal Tail Light
Technical specifications
- Material: Acrylic Lens, Polycarbonate Housing
- Color: Red, White
- Lens Color: Red
- Housing Color: Black
- Voltage: 12V
- Amperage: 0.12–0.34 A
- Mounting Type: Stud
- Connection Type: Blunt Cut
- Regulations: FMVSS 108
- Functions: A, I, R(2), S, T
- VMRS: 034-002-013
- Product Type: Stop Tail Turn
- Product Line: Hi Count®
- Shape: Square
- Warranty: 2 Years
- Features & benefits
- Includes reflex reflector
- Directly replaces Jeep® Wrangler® lamps through 2006
- 16 stop/tail/turn diodes, 22 backup diodes and 4 license diodes
- Potting protects against vibration and corrosion
- Circuit-board protection is compatible with existing flasher technology
- All functions utilize LED technology

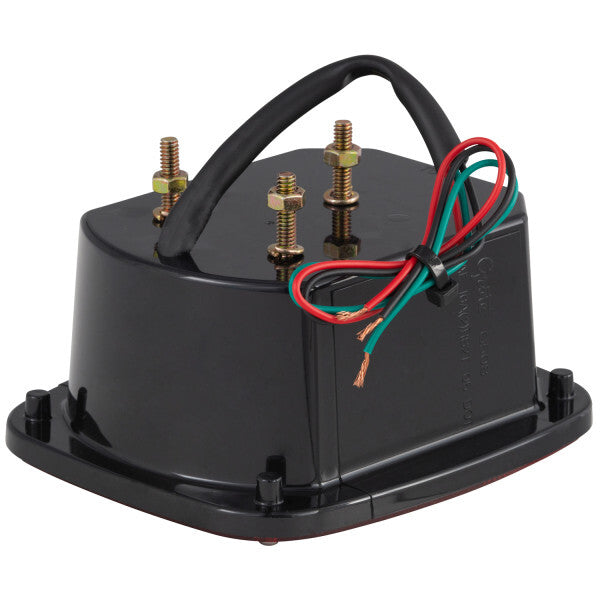

- Mounting hardware and instructions for easy installation/retrofit
- 3 stud mounting design incorporates ground function
- Gasket between lens and housing protects against moisture intrusion
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
