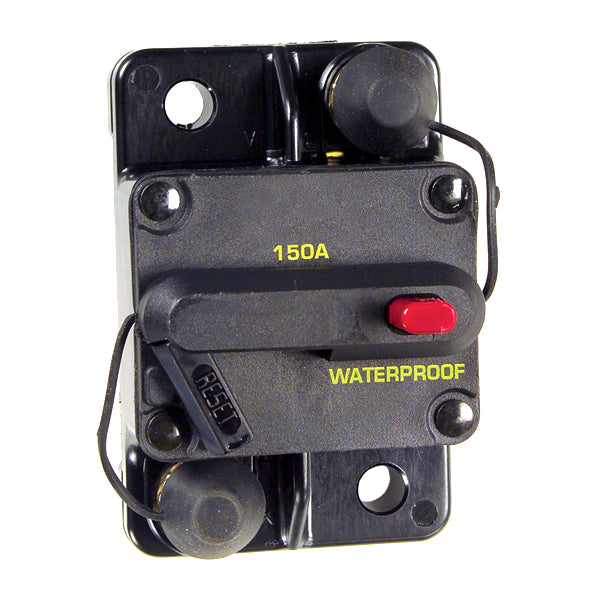

High Amperage Thermal Circuit Breakers
SKU: 82-2176
High Amperage Thermal Circuit Breakers
These circuit breakers are designed to protect your vehicle’s electrical system from overcurrent, overload, and short circuit situations. This product is waterproof.
FEATURES & BENEFITS
- Surface Mount, Type III; Single Pole
- Thermoplastic; UL Rated 94V – 0 housing
- Stud insulators provided; 1/4” – 28 thread studs
- Also used as battery chargers and DC audio systems
- Can be used in auxiliary and accessory circuits; trucks, buses, RV and marine applications
TECHNICAL SPECIFICATIONS
- FMVSS: SEA J1625 and J1171
- Color: Black
- Voltage Amp: 150A
- Stud or Tab Size: 1/4"
- Operating Temperature: -40°C (-40°F) to 85C (185°F)
- Style: Manual Reset
- Pack Quantity: 1
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
GARANTÍA DE UN AÑO / NO APLICA SI EL PRODUCTO SE DAÑA POR UNA MALA INTALACION / NO APLICA PARA PARTES ELECTRICAS.
