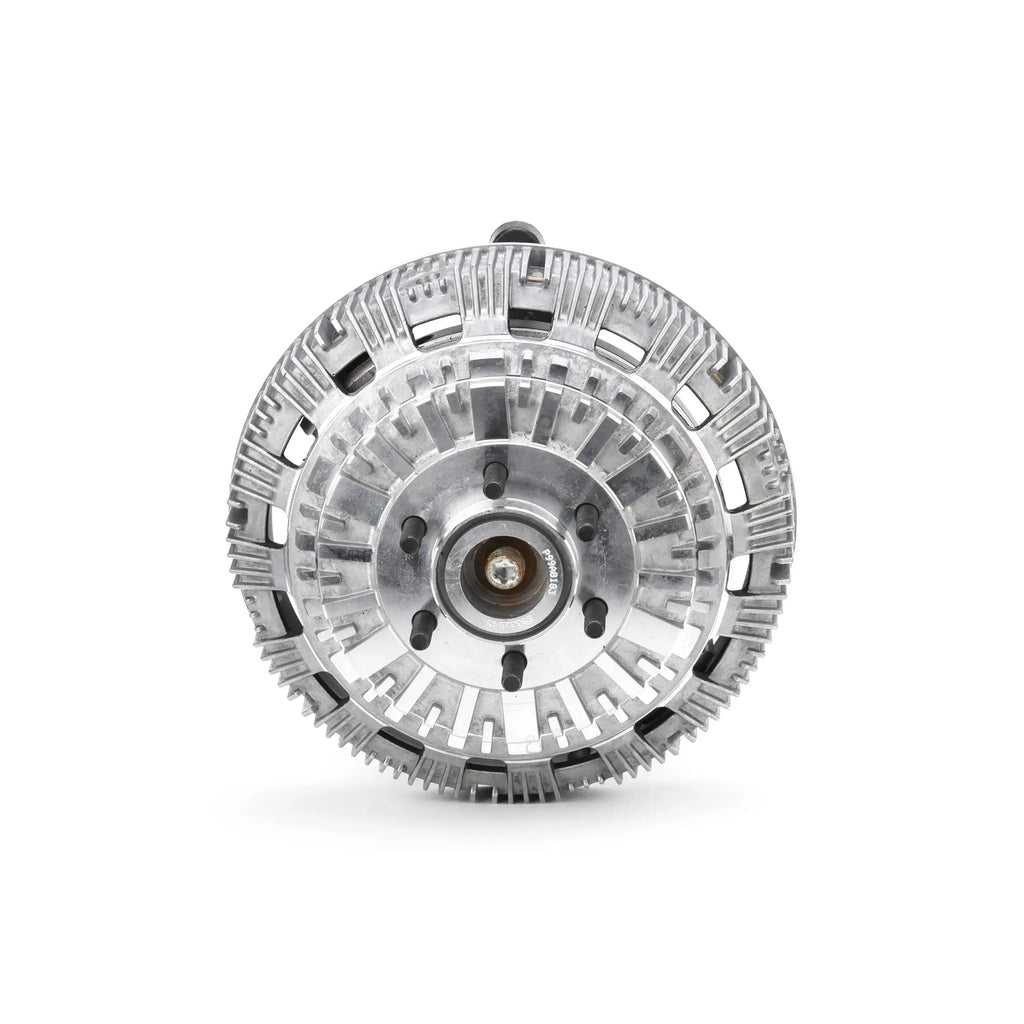

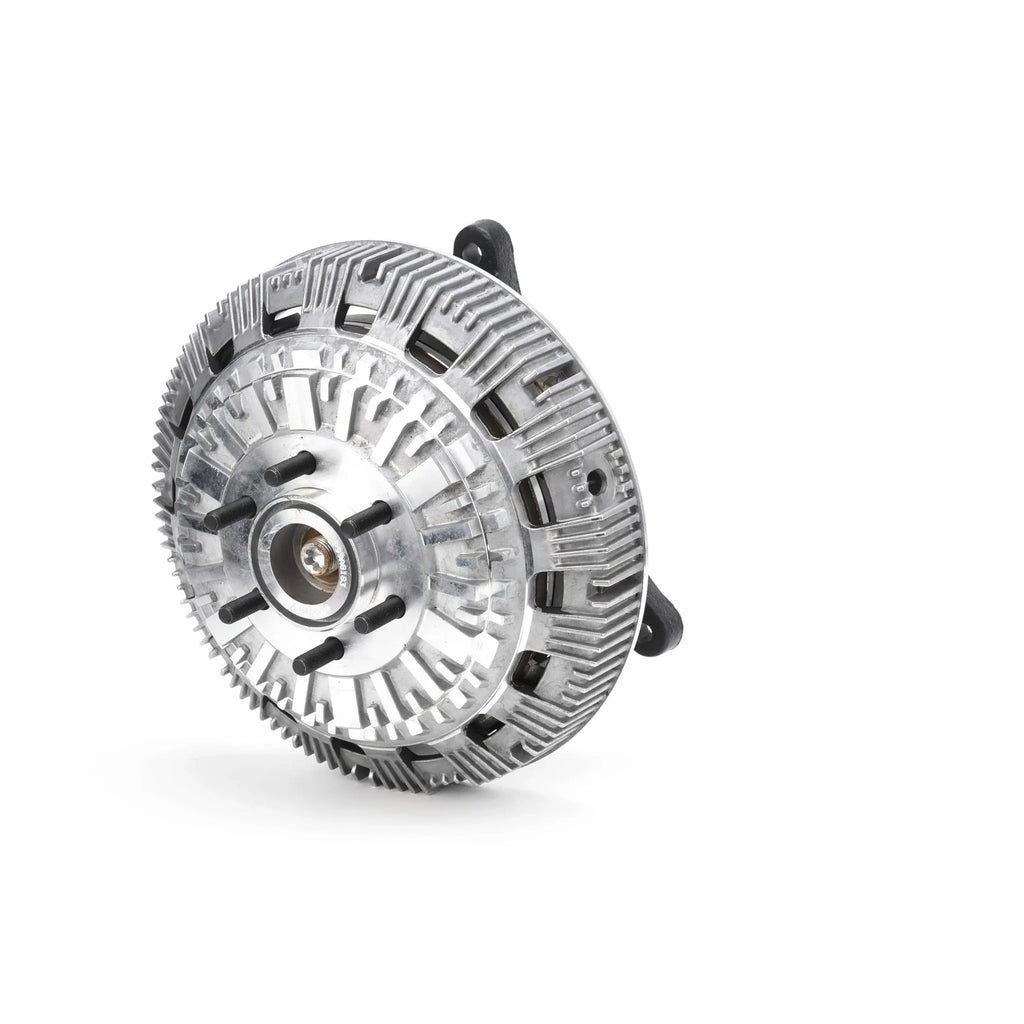

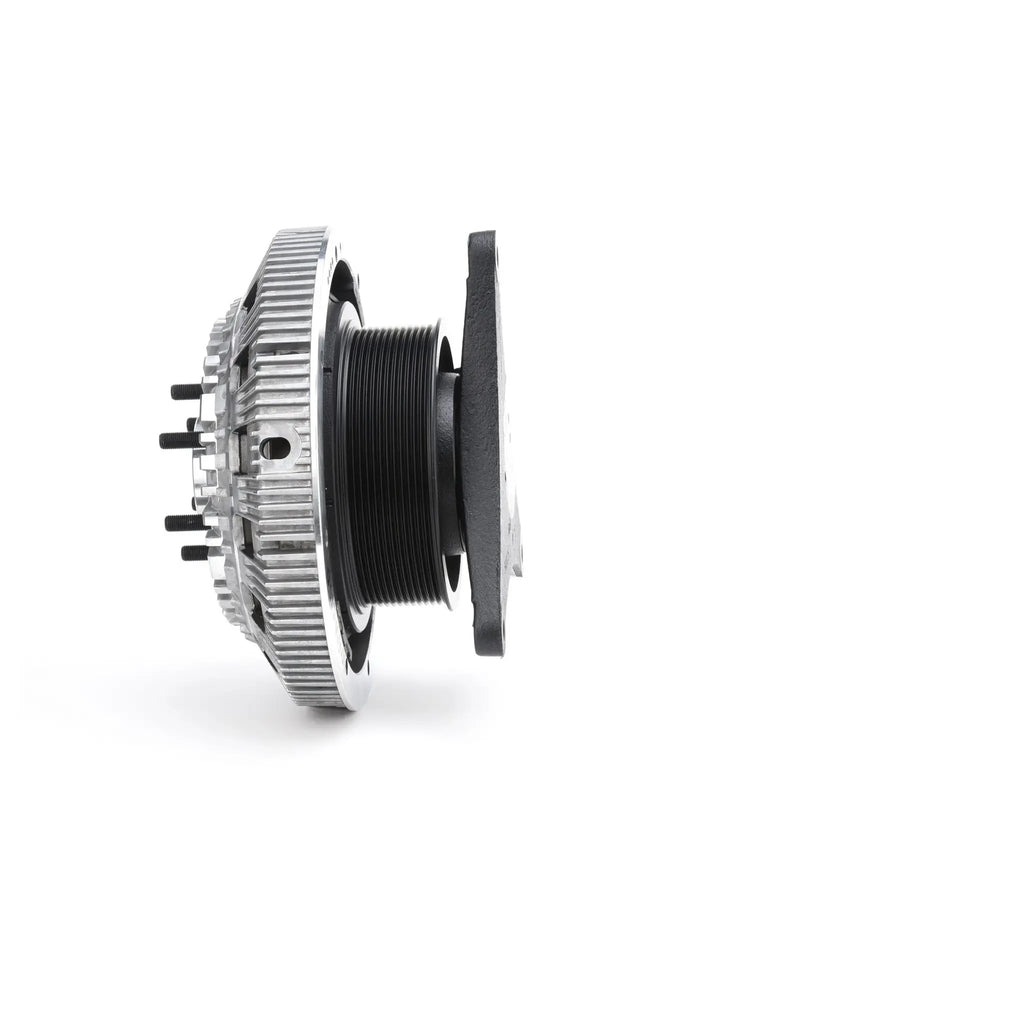

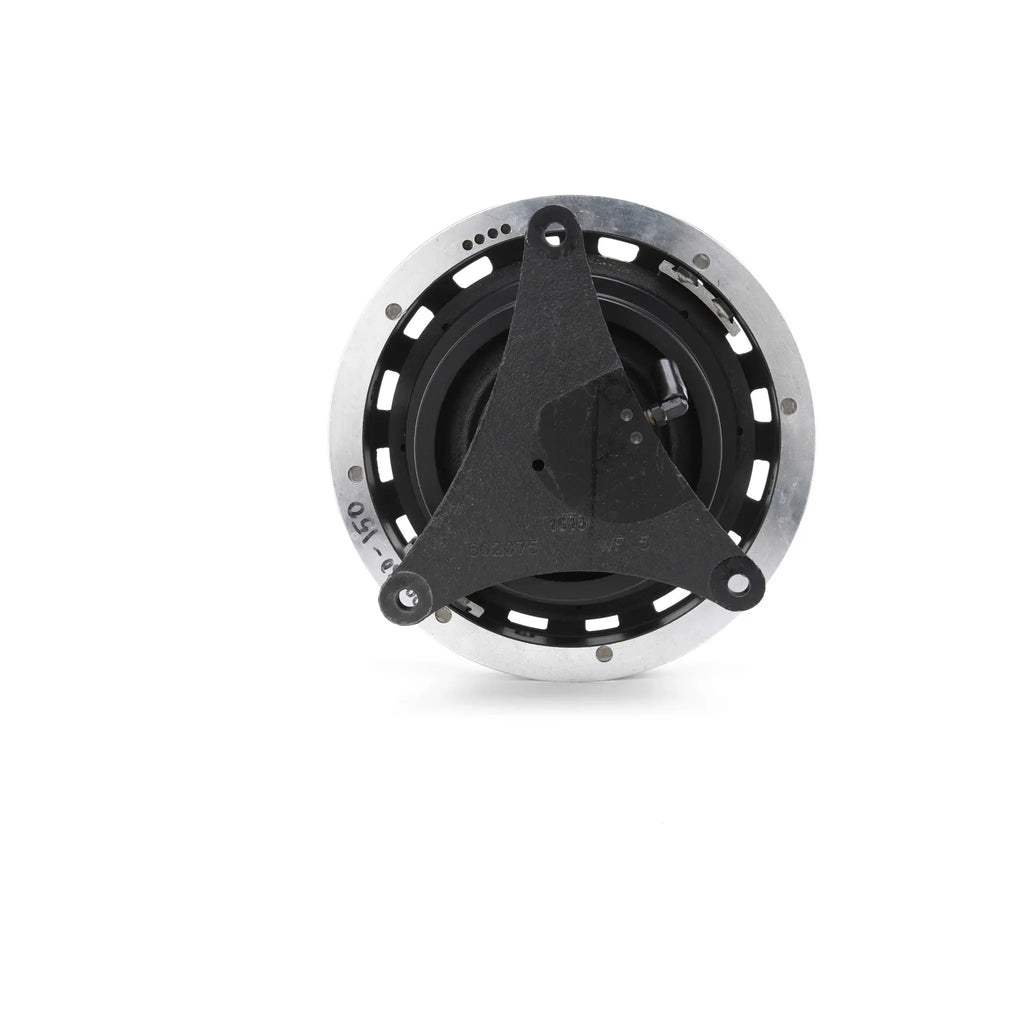

Horton DM Advantage Two-Speed Reman Fan Clutch fits Mack Granite - GU7, GU713 2010-2017
SKU: 79A8183
Horton DM Advantage Two-Speed Reman Fan Clutch fits Mack Granite - GU7, GU713 2010-2017
More Information
Part Number | 79A8183
Horton System Description | CLUTCH*DMA2S W/LOCK-UP SE 24*REMAN,MP7,164.0,12-PK,65.0 PLT,27.1 STUDS
Weight | 44.000000
Condition | Remanufactured
Application Summary | Mack
Clutch Type | 2-Speed
Model Family | DMA
Application Make | MACK
Engine Manufacturer | MACK
Belt Count | 1
Belt Groove Count | 12
Belt 1st Groove Distance (IN) | 1.48
Belt Groove Type | PK
Belt Type | 12PK
Engine Model | MP8
Fan Pilot Diameter (IN) | 2.56
Fan Blade Bolt Circle (IN) | 3.5
Pulley Diameter (IN) | 6.1
Application Model | Granite - GU7, GU713
Core Charge? | Yes
Application Model Year | 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Fan Drive Bolt Pattern | 2.56'' Pilot, 3.5'' BC, 6x, 3/8-24 Thread, 1.07'' Long
Horton System Description | CLUTCH*DMA2S W/LOCK-UP SE 24*REMAN,MP7,164.0,12-PK,65.0 PLT,27.1 STUDS
Weight | 44.000000
Condition | Remanufactured
Application Summary | Mack
Clutch Type | 2-Speed
Model Family | DMA
Application Make | MACK
Engine Manufacturer | MACK
Belt Count | 1
Belt Groove Count | 12
Belt 1st Groove Distance (IN) | 1.48
Belt Groove Type | PK
Belt Type | 12PK
Engine Model | MP8
Fan Pilot Diameter (IN) | 2.56
Fan Blade Bolt Circle (IN) | 3.5
Pulley Diameter (IN) | 6.1
Application Model | Granite - GU7, GU713
Core Charge? | Yes
Application Model Year | 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Fan Drive Bolt Pattern | 2.56'' Pilot, 3.5'' BC, 6x, 3/8-24 Thread, 1.07'' Long
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
