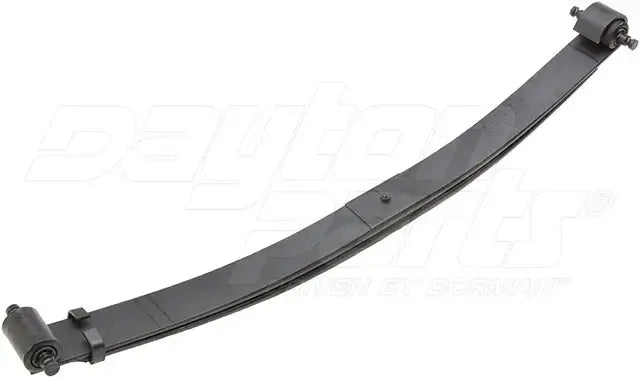

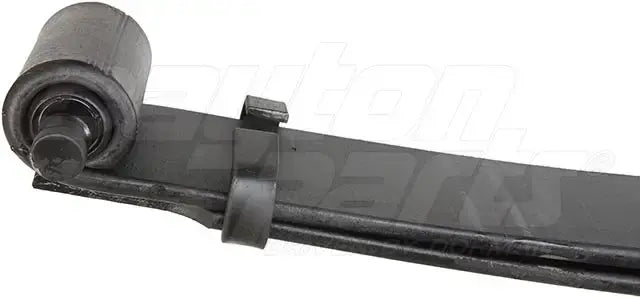

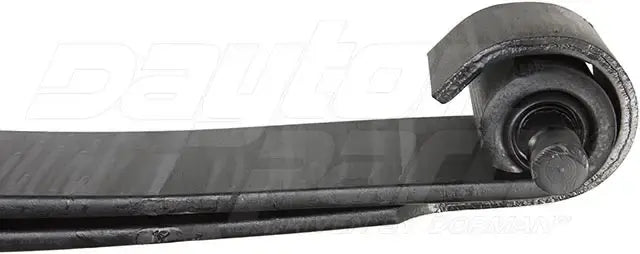

Leaf Spring Fits Hendrickson, Paccar
SKU: 59-548
Leaf Spring Fits Hendrickson, Paccar
Out Of Stock
Properly functioning leaf springs hold the weight and payload of a vehicle or trailer and are essential to suspension performance and passenger comfort. Check the product attributes to select the right leaf spring for your application.
- Direct replacement - these leaf springs are designed to match the fit and function of the original leaf springs on specific vehicles or trailers
- Ideal solution - seamlessly replaces leaf springs damaged by overloading, collision, cracking or corrosion, or are due for replacement
- Durable construction - made from quality materials to strict specifications to ensure reliable performance and long service life
- Trustworthy quality - engineered, manufactured and supported by the premier aftermarket leaf spring provider in the USA
SpecificationsAxle Modification Needed | No
Axle Orientation | Front
Bushing Color | Black
Bushings Included | Yes
Center Hole | 1/2 in
Color | Black
End 1 Attachment Type | Up Turned Eye
End 2 Attachment Type | Up Turned Eye
Grading | 2/984, Full taper
Helper Spring | No
LE End Type/Bushing No | Std/RB-328
Leaf Quantity | 2
Leaf Spring Arch Length | 6.188 in
Leaf Width | 4 in
Length Axis 1 | 27.313 in
Length Axis 2 | 32.25 in
Load Rate | 6000 lb
Long End Bushing Type | Rubber
Long End Pin Diameter | 1.0625 in
Material | Steel
Mounting Hardware Included | No
Number of Leaves | 2
Pack Thickness | 2.126 in
Package Contents | 1 Leaf Spring
Part Number | 59-548
Part Type | Suspension - Leaf Spring
SE End Type/Bushing No | STD/RB-295
Short End Bushing Type | Rubber
Short End Pin Diameter | 1.0625 in
Spring Design | Eyes Both Ends
Spring Research Institute Number | 59-548
Spring Type | Taper Spring
Suspension Grade Type | Standard
Weight | 103.000000
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
