Grote Class III, Permanent Mount, Tall Lens Voltage: 12/72V
SKU: 6262A
Grote Class III, Permanent Mount, Tall Lens Voltage: 12/72V
Technical specifications
- Color: Amber
- Voltage: 12/72 V
- Class: Class III
- Amperage: 0.09 A
- Type: Material Handling

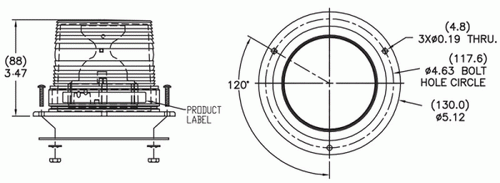

- Length: 2.84"
- Operating Temperature: -22°F (-30°C) to 122°F (50°C)
- Gauge: 18 GA
- Height: 5.1"
- Mounting Type: Permanent Mount
- Connection Type: Blunt Cut
- Lens Color: Amber
- Shape: Compact Dome
- Standards: SAE J845
- Wire Length: 9"
- Material: Polycarbonate/Nylon
- VMRS: 034-001-063
- Product Type: Beacon
- Width: 3.86"
- Warranty: 1 Year
Features & benefits
- Circuit board is conformal coated to protect circuitry
- Features three low intensity LEDs
- Easy 'Twist-off' lens for ease of replacement
- ideal replacement solution for rotating or strobe beacons
- Lightweight, durable polycarbonate lens
- This high quality and economical beacon has a wide operating range of 12-80V and low amp draw characteristic of LED technology
- The reinforced nylon base with epoxy-sealed electronics provides superior environmental protection against the elements and vibration
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
