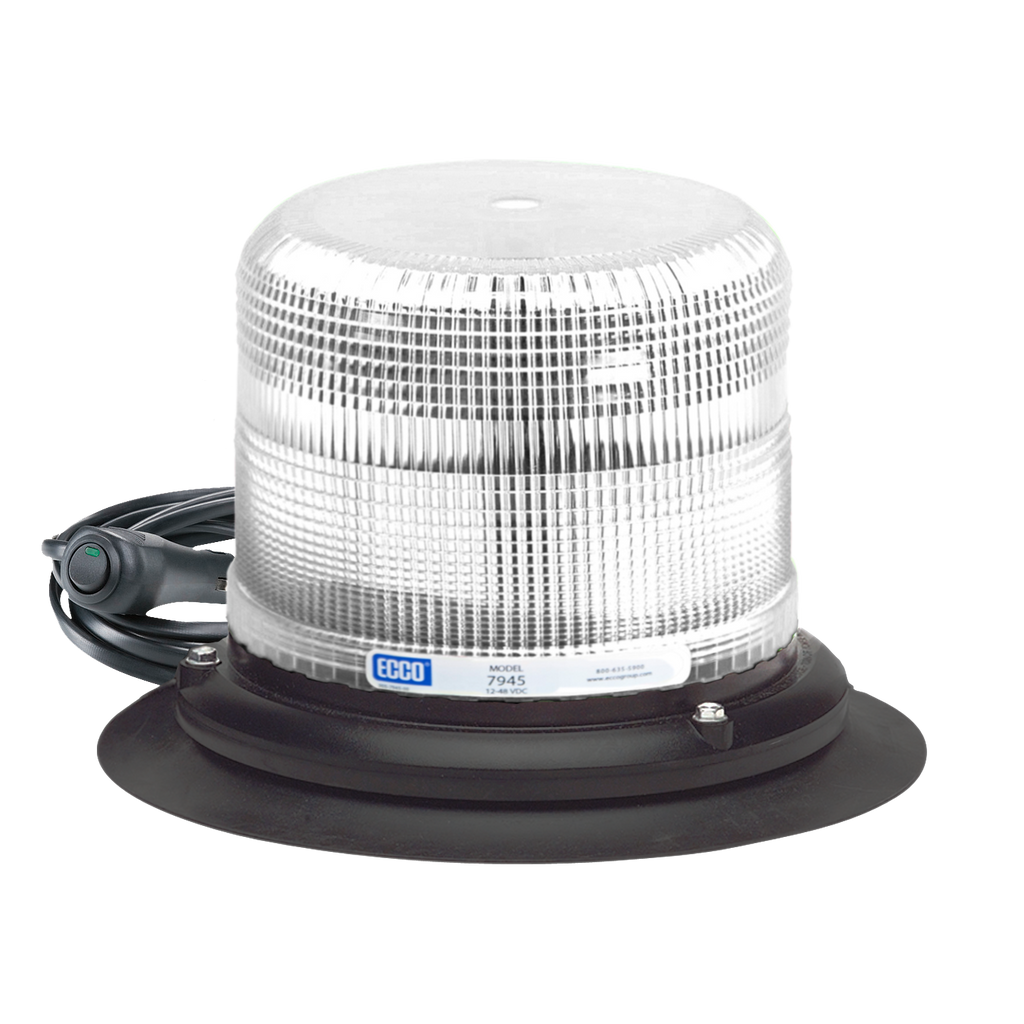

7945 Series Pulse® II LED Beacon White 12-48 V Vacuum-Magnet
SKU: 7945C-VM
7945 Series Pulse® II LED Beacon White 12-48 V Vacuum-Magnet
Design Features
The 7945 Series beacon combines all the major benefits of the latest LED technology with
a traditional, strobe style housing at a price point comparable to a strobe. Available in
either 5” or 7” height profiles the 7945 is suitable for a wide range of applications. The
7945 features 12-48VDC operation and 11 flash patterns to produce an attention getting
warning signal.
Models
• 12-48 VDC, 1.3 Amps
• Choose profile height 5” (7945) or 7” (7950)
• 11 flash patterns
• Reinforced polypropylene base, polycarbonate lens
• Switched cigarette plug adapter (vacuum-magnet models)
• Temperature Range: -22°F to +122°F (-30°C to +50°C)
The 7945 Series beacon combines all the major benefits of the latest LED technology with
a traditional, strobe style housing at a price point comparable to a strobe. Available in
either 5” or 7” height profiles the 7945 is suitable for a wide range of applications. The
7945 features 12-48VDC operation and 11 flash patterns to produce an attention getting
warning signal.
Models
• 12-48 VDC, 1.3 Amps
• Choose profile height 5” (7945) or 7” (7950)
• 11 flash patterns
• Reinforced polypropylene base, polycarbonate lens
• Switched cigarette plug adapter (vacuum-magnet models)
• Temperature Range: -22°F to +122°F (-30°C to +50°C)
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
