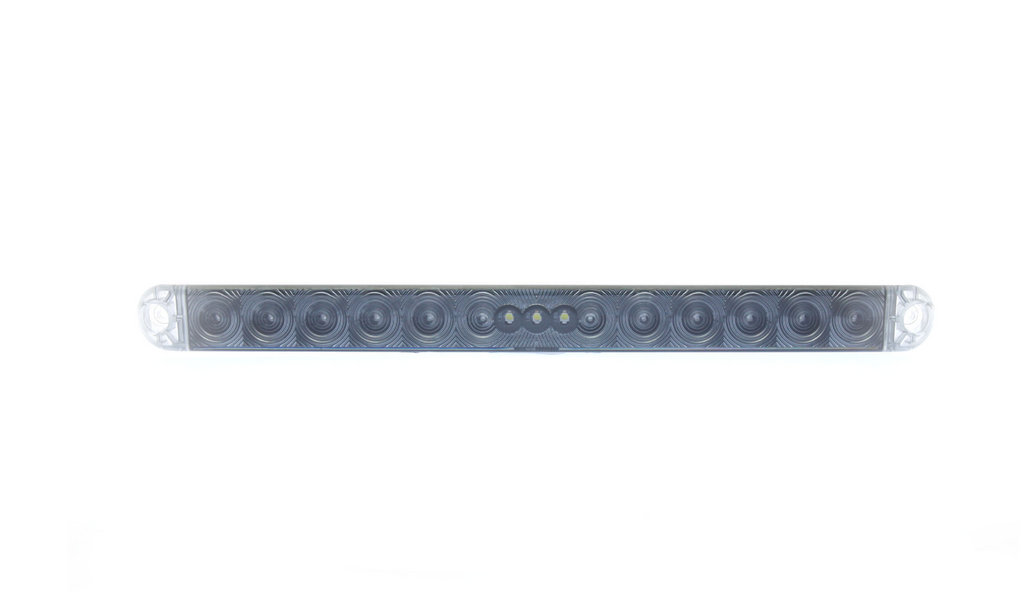

Fusion 15-LED 15-in. Thinline Over 80 Stop/Turn/Tail/Back-up Light, Smoke Lens, Red/White Diodes, Surface Mount,
SKU: STL871DSRSHBP
Fusion 15-LED 15-in. Thinline Over 80 Stop/Turn/Tail/Back-up Light, Smoke Lens, Red/White Diodes, Surface Mount,
Color | Red and White
Diodes | 15
Lumens | --
Mount | Surface
Connection | Hard Wired
Pack Qty | 50
FMVSS | S2 T2 I6 (2)R
Housing Material | Polycarbonate
Lens Material | Polycarbonate
Voltage | 12V
Amp Draw | .29A
Warranty | Lifetime LED Warranty
Weight | 0.368 lbs.
Size/Shape | Light Bar

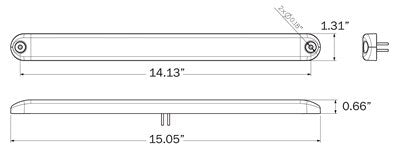

Dimensions
(W x H x D) | 15.050 x 1.310 x 0.660

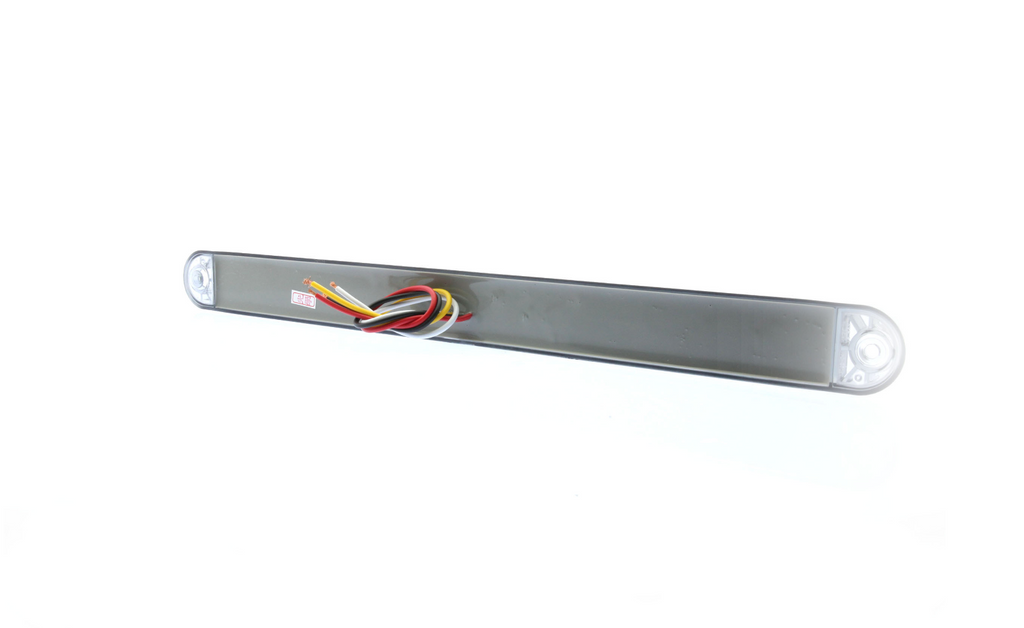

Fusion 15-LED 15-in. thinline over 80 stop/turn/tail/back-up light, smoke lens, red/white diodes, surface mount, hard wired (black=tail, red=stop/turn, yellow=back-up, white=ground), 7-in. leads
Diodes | 15
Lumens | --
Mount | Surface
Connection | Hard Wired
Pack Qty | 50
FMVSS | S2 T2 I6 (2)R
Housing Material | Polycarbonate
Lens Material | Polycarbonate
Voltage | 12V
Amp Draw | .29A
Warranty | Lifetime LED Warranty
Weight | 0.368 lbs.
Size/Shape | Light Bar
Dimensions
(W x H x D) | 15.050 x 1.310 x 0.660
Fusion 15-LED 15-in. thinline over 80 stop/turn/tail/back-up light, smoke lens, red/white diodes, surface mount, hard wired (black=tail, red=stop/turn, yellow=back-up, white=ground), 7-in. leads
| Freightliner | Argosy, Cascadia, Cascadia 113, Cascadia 125, Century, Classic, COE, Columbia, Coronado, FL106, FL112, FL50, FL60, FL70, FL80, FLA, FLC, FLD112, FLD112 (Set back Axle), FLD120, FLD120 SD, FLD132, International MV, M2, M2 106 |
| Kenworth | C500, K100, K300, T170, T2000, T270, T300, T370, T400, T450, T600, T660, T680, T700, T800, T880, W900, W900A, W900B, W900L, W990 |
| Peterbilt | 320, 325, 330, 335, 337, 348, 357, 359, 362, 365, 367, 375, 376, 377, 378, 379, 384, 386, 387, 388, 389, 567, 579, 587 |
| International | 1452FC, 1452SC, 1652SC, 1652UPS, 2554, 2574, 2575, 2654, 2674, 2675, 3000, 3800, 4000, 4100, 4100 SBA, 4200, 4200 LP, 4300, 4300 LP, 4400, 4400 LP, 4600, 4600 LP, 4600 UH, 4700, 4700 LP, 4700 LPX, 4800, 4900, 5500i, 5600i, 5900i, 7100, 7300, 7600, 8100, 8200, 8300, 9200, 9200i SBA, 9300, 9400, 9400i SBA, 9600, 9670, 9700, 9800, 9800 SBA, 9800 SFA, 9900, CE200, CE300, LoneStar, LT Series, MV, Paystar 5900, Prostar, TranStar 8500 &8600, Workstar 7600 &7700 |
| Volvo | VN, VN2, VNL, VNM, WIA & White GMC |
| Mack | CH, CHN, CV, CXN, Granite, MD, Pinnacle (Vision Elite), R600 & R700, RD, RH, Vision |
